Digisol DG-GS1510PL Manuel utilisateur
V1.0
2019-01-24
8 Port Gigabit Web Managed PoE
Switch with 2 Giga SFP Ports
DG-GS1510PL
PORTS
8
Trademarks:
Copyright
Copyright 2019 by DIGISOL SYSTEMS LTD. All rights reserved.
Company has an on-going policy of upgrading its products and it may be
possible that information in this document is not up-to-date.
Please check with your local distributors for the latest information.
No part of this document can be copied or reproduced in any form without
written consent from the company.
TM
DIGISOL is a trademark of DIGISOL SYSTEMS LTD. All other trademarks
are the property of the respective manufacturers.
This is a Gigabit Web Managed POE Switch, It provides 8 10/100/
1000Mbps Auto-Negotiation RJ45 POE ports and 2 Gigabit SFP Ports. It
supports the port's full line speed forwarding to ensure the stable
transmission of data. The machine can be used as a small local core switch
or a small and medium-size LAN switch, also can be used as an access
switch for large LAN. It can be widely used in monitoring, wireless, Internet
cafe and other fields.
Grounding: use specialized ground lead connect
Connect the power adapter output terminal to this port. Supports input
voltages +44 ~ +57 VDC
PWR LED：The Power LED lights up when the Switch is connected to a
power source.
Link/Act LED: The Link/Act LED will flash which indicates a network link
through the corresponding port. Blinking indicates that the Switch is either
sending or receiving data to the port.
PoE LED:
Green: Indicates the PoE powered device (PD) is connected and the port
supplies power successfully.
Light off: Indicates no powered device (PD) connected.
RST: By pressing the Reset button for 5 seconds the switch will change
back to the default
configuration and all changes will be lost.
Products Introduction

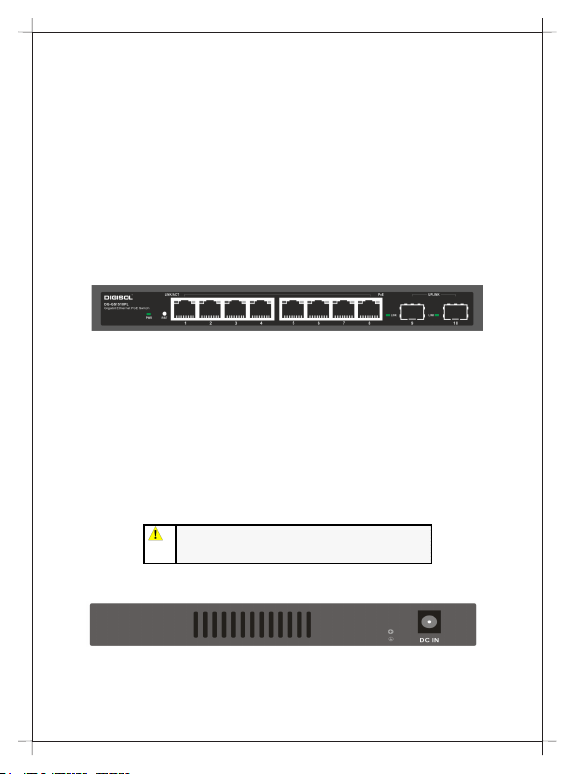

Front Panel
8 Port 10/100/1000Base-TX with 2 Gigabit SFP and 8 PoE L2+ Managed Switch
Rear Panel
Warning: The SFP ports should use UL listed Optical
Transceiver product, Rated Laser Class I. 3.3Vdc.
Product Features
Conforms to IEEE802.3, IEEE 802.3u, IEEE 802.3ab
Provides 8 10/100/1000 Base-TX ports and 2 1000Base-X SFP ports
High back-plane bandwidth 20Gbps
Support standard IP/ Extend IP / MAC IP / ARP ACL
IGMP snooping and IGMP Query mode for Multimedia application
Port mirror and bandwidth control
IEEE802.3x Full-Duplex Flow control
Support Port Based VLAN / 802.1Q Tag VLAN
IEEE802.3ab Link aggregation
Support IEEE802.3ad Port trunk with LACP
Support Spanning tree protocol IEEE 802.1d
Supports IEEE 802.1p class of service
Support IEEE 802.1x user authentication
Support Broadcast storm filter
Support System event log
Management by Web/SNMP/Telnet
Support IEEE802.3af and 802.3at
This chapter provides unpacking and installation information for the
Managed PoE switch.
Open the shipping carton and carefully unpack its contents. Please consult
the packing list located in the User Manual to make sure all items are present
and undamaged. If any item is missing or damaged, please contact the local
re-seller for replacement.
- Switch 1pcs
- AC power cord 1pcs
- Rubber feet 4pcs
- Screws 6pcs
- Mounting brackets 2pcs
- CD
If any item is found missing or damaged, please contact the local re-seller
for replacement.
Hardware Installation
First step: Open a seal
For safe switch installation and operation, it is recommended that you:
- Visually inspect the power cord to see that it is fully secured to the AC
power connector.
- Make sure that there is proper heat dissipation and adequate ventilation
around the switch.
- Do not place heavy objects on the switch.
attach the mounting brackets in to the switch's side panels (one on each
side) and secure them with the screws provided (please note that these
brackets are not designed for palm size switches).
Second step: Switch installation
Rack installation
When installing the switch on a desktop or shelf, the rubber feet included
with the device must be attached on the bottom at each corner of the
device's base. Allow enough ventilation space between the device and the
objects around it.
Desktop or Shelf Installation

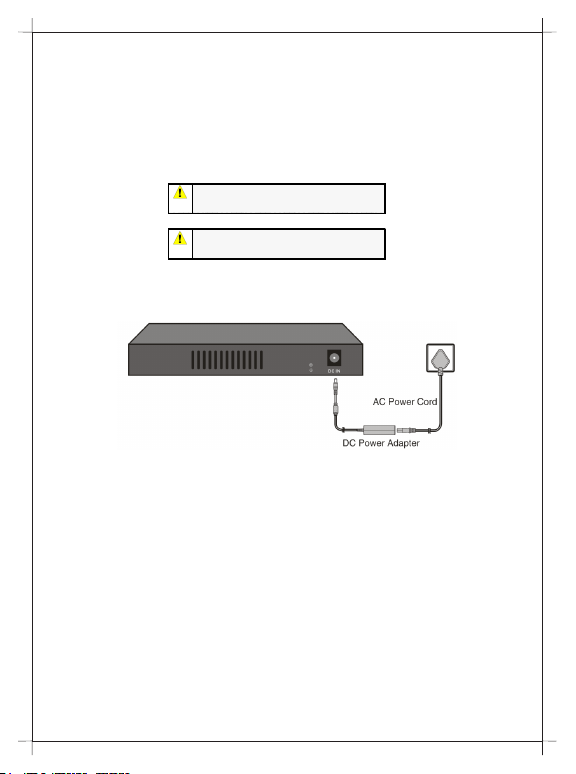

Using the AC power cord to connect to the power adapter, and then plug in
output terminal of the adapter into the DC IN socket on the back of the
switch. (The AC power outlet should be grounded)
Third step: Connecting power supply
Warning: Do not turn on the power switch before
power cables are connected. Power surge may
cause damage to the Switch.
Warning: The installation instructions clearly
state that the ITE is to be connected only to PoE
networks without routing to the outside plant.
As a precaution, the switch should be unplugged in case of power failure.
When power is resumed, plug back the switch again.
Power failure
This chapter introduces the management interface of Managed PoE switch.
Management Option
The Managed PoE switch can be managed through any port on the device
by using the Web-based management.
Each switch must be assigned its own IP address, which is used for
communication with Web-Based Management or a SNMP network manager.
The PC should have an IP address in the same range as the switch.
Please refer to the following installation instructions for the Web-based
Management .
After a successful physical installation, you can configure the Switch,
monitor the network status, and display statistics using a web browser.
The embedded Web-based Management currently supports the following
web browsers:
Internet Explorer 6 or higher version
Netscape 8 or higher version
Mozilla
Firefox 1.5/2.0 or higher version
You will need the following equipment to begin the web configuration of your
device:
A PC with a RJ-45 Ethernet connection
A standard Ethernet cable

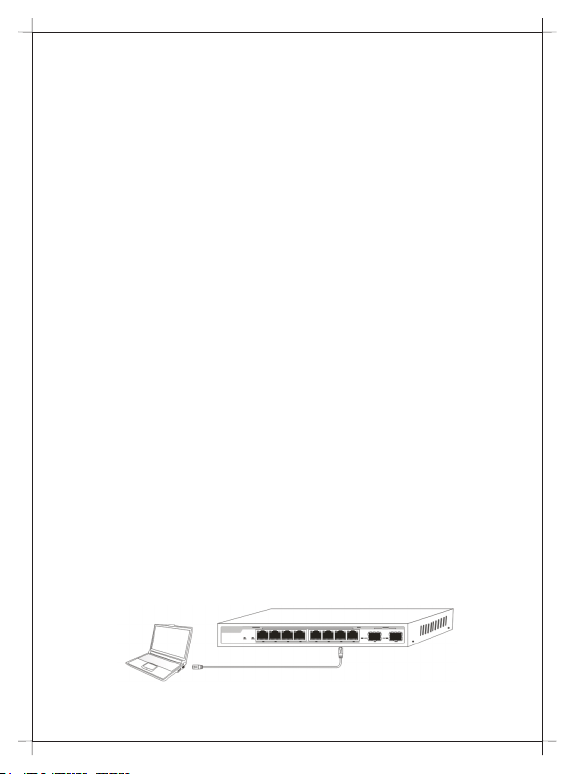

Connect the Ethernet cable to any of the ports on the front panel of the
switch and to the Ethernet port on the PC.
3. Getting Started
Using Web-based Management
Supported Web Browsers
Connecting to the Switch
Network connection
In order to login and configure the switch via an Ethernet connection, the PC
must have an IP address in the same subnet as the switch. For example, if
the switch has an IP address of 192.168.0.1, the PC should have an IP
address of 192.168.0.x (where x is a number between 1 ~ 254), and a
subnet mask of 255.255.255.0 Open the web browser and enter
192.168.0.1 (the factory-default IP address) in the address bar.
Then press <Enter>.
To log in to the switch, the IP address of your PC should be set in the same
subnet as that of the switch. The IP address is 192.168.0.x (”x” is any
number from 2 to 254). Subnet Mask is 255.255.255.0.
Login Web-based Management
NOTE: The switch's factory default IP address is
192.168.0.1 with a subnet mask of 255.255.255.0
Enter the IP address in the web browser
1. Logon Dialog Box
When the following logon dialog box appears, enter the password then
click OK.
By default, the username is admin and the password is admin.
After a successful login, the main page will appear as follows, and you can
click the menu on the left side to configure the corresponding functions.
4. WEB page Introduction
Configuration window
