DG-HR1060MS

150Mbps Wireless 3G Mifi Broadband Router

User Manual

V1.0

2014‐01‐15



As our products undergo continuous development the specifications are subject to change without prior notice

DG-HR1060MS User Manual



this publication may be reproduced, transmitted, transcribed, stored in a retrieval

system, or translated into any language or computer language, in any form or by any

means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise,

without the prior written permission of this company.

This company makes no representations or warranties, either expressed or implied,

with respect to the contents hereof and specifically disclaims any warranties,

merchantability or fitness for any particular purpose. Any software described in this

manual is sold or licensed "as is". Should the programs prove defective following

their purchase, the buyer (and not this company, its distributor, or its dealer) assumes

the entire cost of all necessary servicing, repair, and any incidental or consequential

damages resulting from any defect in the software. Further, this company reserves the

right to revise this publication and to make changes from time to time in the contents

thereof without obligation to notify any person of such revision or changes.

Trademarks

DIGISOL™ is a trademark of Smartlink Network Systems Ltd. All other trademarks

are the property of the respective manufacturers.

Safety

This equipment is designed with the utmost care for the safety of those who install

and use it. However, special attention must be paid to the dangers of electric shock

and static electricity when working with electrical equipment. All guidelines of this

and of the computer manufacturer must therefore be allowed at all times to ensure the

safe use of the equipment.



DG-HR1060MS User Manual



INDEX

1. Product Introduction ..................................................................................................................4

1-1 Introduction...........................................................................................................................4

1-2 Safety Instructions...............................................................................................................5

1-3 Package Contents...............................................................................................................5

1-4 System Requirements.........................................................................................................6

2 Get Familiar with your new wireless 3G Mi Fi broadband router.........................................7

2-1 Hardware Overview.............................................................................................................7

2-2 OLED Display States ..........................................................................................................8

2-3 Power Management............................................................................................................9

3. Using the Device......................................................................................................................10

3-1 Driver Installation...............................................................................................................12

3-2 Configuring the Router Settings......................................................................................13

3-3 Getting Started...................................................................................................................15

3-4 Using Quick Setup.............................................................................................................18

3-5 WAN Configuration............................................................................................................20

3-6 Network............................................................................................................................... 23

3-7 SMS.....................................................................................................................................28

3-8 Wi-Fi....................................................................................................................................29

3-9 Security............................................................................................................................... 32

3-10 System..............................................................................................................................36

4. Troubleshooting........................................................................................................................41

5. Product Specifications.............................................................................................................44

6. Glossary....................................................................................................................................47



DG-HR1060MS User Manual



1. Product Introduction

1-1 Introduction

The DIGISOL™ DG-HR1060MS HSPA+ Mobile Router lets you share a fast mobile

Internet connection with multiple PCs and mobile devices wherever you go. It offers

3G HSPA+ compatibility for fast downlink and uplink data rates, so you get the

high-speed upload and download speeds even when you’re on the go. Set up a

personal mobile network anywhere, anytime allowing you and those around you to

access the Internet, and share files.



Otherfeaturesofthisrouterinclude:

• High-Speed Mobile Internet with 3G Connectivity

The DG-HR1060MS HSPA+ Mobile Router gives you high-speed access to the

Internet wherever you are and lets you share it on the go.

The built-in 3G antenna provides a reliable connection to your 3G service provider,

and a separate Wi-Fi antenna gives extended coverage to the computers and mobile

devices connected to the DG-HR1060MS.



• Mobile Internet for All of Your Devices

With the DG-HR1060MS, you can get online with your notebook, smartphone, tablet,

or any other wireless device using a single 3G mobile connection. The

DG-HR1060MS provides high-speed Wireless N coverage to give high-speed

wireless access to everybody---whether you are with colleagues on a business trip or

travelling with friends and family.



• Built-in Software for Instant Access Anywhere

The DG-HR1060MS is truly plug and play, with drivers built right into the router so

you can connect without the need to install anything. Open a browser, connect the

router, and you can set up your network right from a web interface. This means that

notebooks and netbooks without a CD‑ROM drive can connect in no time. Once the

device is set up, you can simply power it on to start up your portable mobile network,

meaning that you can share your mobile Internet connection without the need of a

computer.

DG-HR1060MS User Manual



• Designed for True Portability

The DG-HR1060MS HSPA+ Mobile Router is small and slim enough to carry around

in your purse, bag, or pocket. It features a Micro-SD card slot for optional removable

storage (up to 32 GB), allowing you to always have your files and contacts on hand.

1-2 Safety Instructions

Like any electronic device, the DG-HR1060MS must be handled with care to ensure

reliable operation.



DIGISOL MiFi Wireless Router recommends the following guidelines:

• Protect the device from liquids, dust and excessive temperatures.

• DO NOT apply adhesive labels to the device; they might cause the device to

potentially overheat or alter the performance of the antenna.

• Use only batteries, chargers and accessories that your device has been provided

with. The failure to use approved batteries, chargers and accessories may

increase the risk that your device will overheat, catch fire, or explode, resulting

in serious injury or property damage, and may void the product warranty.

• Store the device in a safe place when not in use.

1-3 Package Contents

The MiFi Router DG-HR1060MS package includes:

• DG-HR1060MS MiFi Router

• 2000mAh Standard Lithium Ion Battery

• Power Adapter (5V, 1A)

• Micro USB Cable

• User Manual (Hard Copy)

DG-HR1060MS User Manual



1-4 System Requirements

• A compatible (U) SIM card with mobile data service.

• A computer with Windows®, Macintosh®, or Linux-based operating systems.

• Internet Explorer 8, Firefox 12.0, Chrome 20.0, or Safari 4.0.



DG-HR1060MS User Manual

2 Get Familiar with your new wireless 3G Mi Fi

broadband router



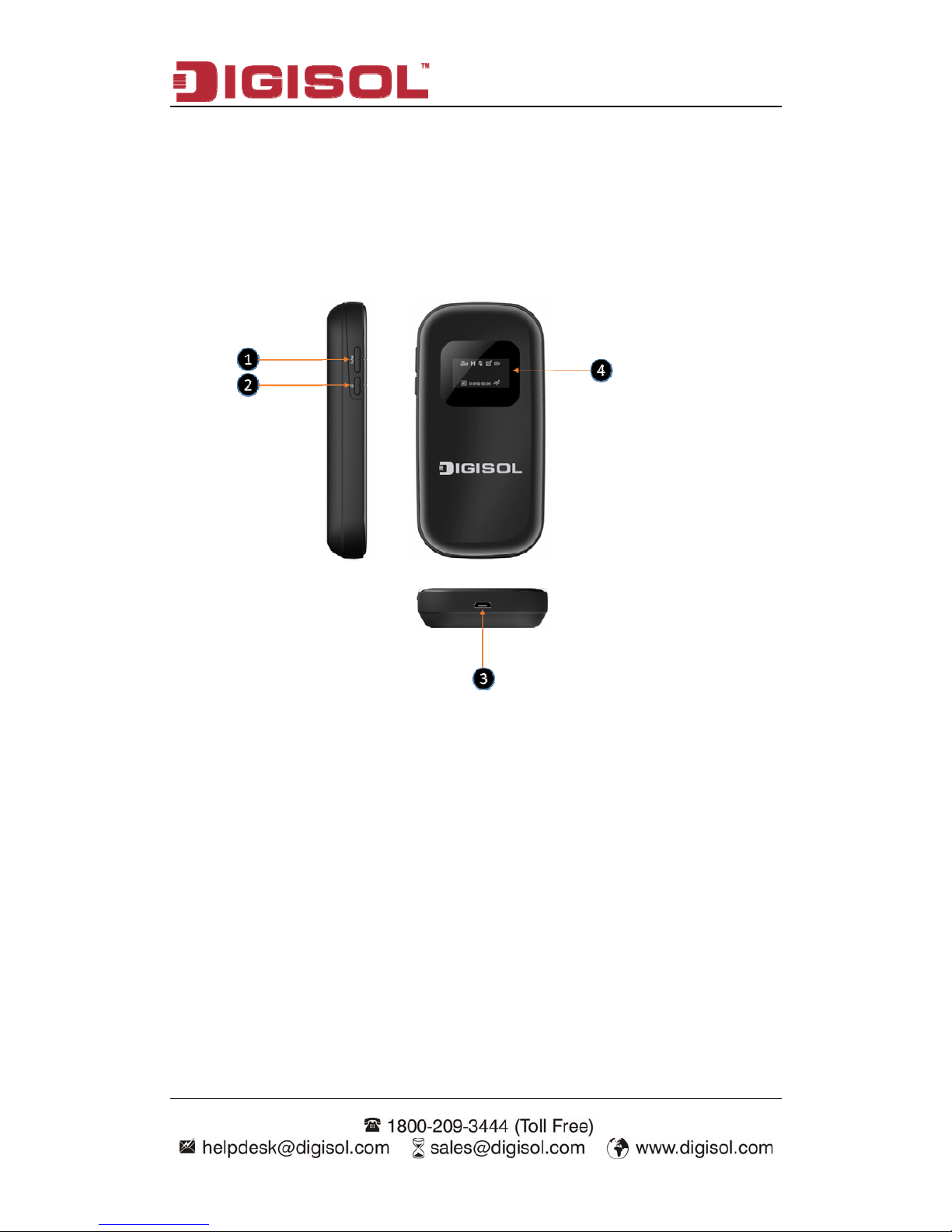

2-1 Hardware Overview



❶WPS Button—Press this button to add new wireless devices quickly and easily

using Wi-Fi Protected Setup (WPS).

Press and hold for more than 5 seconds to turn the wireless function ON/OFF.

❷Power Button —Press and hold this button for 6 seconds to power on/off the

device.

❸ Micro USB Connector — Connects either to the USB cable or power adapter for

charging.

❹Status Display—Provides connection and battery status, network signal strength,

roaming status and number of wireless clients connected.

❺Reset Button (upper-left of battery - Not Shown) — 1. If you forget the changes

done, you can restore factory default settings and reconfigure the settings.

2. If you forgetAdministrator password or Wireless network key, you can press

the Reset key to restore factory default settings. Press and hold for 3 seconds



DG-HR1060MS User Manual

2-2 OLED Display States

 

Number Function Icon Indication

1 Network Strength 0-5 Bars Indicates the strength of the current mobile network connection.

H+ Currently connected to DC-HSPA or HSPA+ mobile network.

H Currently connected to HSPA mobile network.

3G Currently connected to WCDMA mobile network.

2G Currently connected to GPRS/EDGE network.

2 Network Type

No SIM No SIM card detected in device.

Signal Indicates that the Wi-Fi network is currently turned ON.3 Wi-Fi & Clients Number Indicates the number of clients currently connected to the device

by Wi-Fi.

4 Internet

Connection

Status

Internet If this icon is displayed, there is an Internet connection present.

5 SMS Number There are unread SMS messages in the inbox.

6 Battery Status Empty-Full Displays the current battery level. If charging, the animation will

indicate charging status and current battery level.

7 Battery Status WPS The device is ready for WPS association with wireless clients.

A The device is set to connect to the mobile network automatically.

M The device is set to connect to the mobile network manually

8 Connection

Method D = On

Demand The device will connect to the preferred mobile network when

internet access is required.

9 Operator Name The name of the mobile network operator to which device is

currently connected.

10 Roaming R The device is currently roaming on a network other than the

home network.



DG-HR1060MS User Manual



2-3 Power Management

Your device will work from its battery or when plugged into a power source.



• Battery— Charge the battery by plugging in the wall charger. While the battery is

charging the battery icon on the Status Displays cycles from one to four bars.

When the battery is fully charged, the battery icon is solid.



• Wall charger— You can use the device when the charger is plugged into a wall

socket. The battery charges while it is plugged in. Before using the

DG-HR1060MS, read the battery safety information in the "Safety Hazards"

section of this guide.



DG-HR1060MS User Manual

3. Using the Device

Connect to Your Network

1. Ensure that your DG-HR1060MS HSPA+ Mobile Router is powered OFF.

2. Remove the back cover and take out the battery. Slide your (U) SIM card into the

slot provided, ensuring that the alignment is the same as indicated by the logo next

to the slot. The gold contacts on the card should be facing downwards.

Caution: Always unplug and turn off the router before installing or removing the

SIM card. Never insert or remove the SIM card while the router is in use.

3. Press and hold the power button at the side of the router.

a.“DIGISOL”, “welcome” will be displayed on the screen as the router performs

its initialization processes.

b. After a few moments, the OLED display will show the current status of the

router’s various functions. For more details on the OLED display, please refer to

section“OLED Display States”.



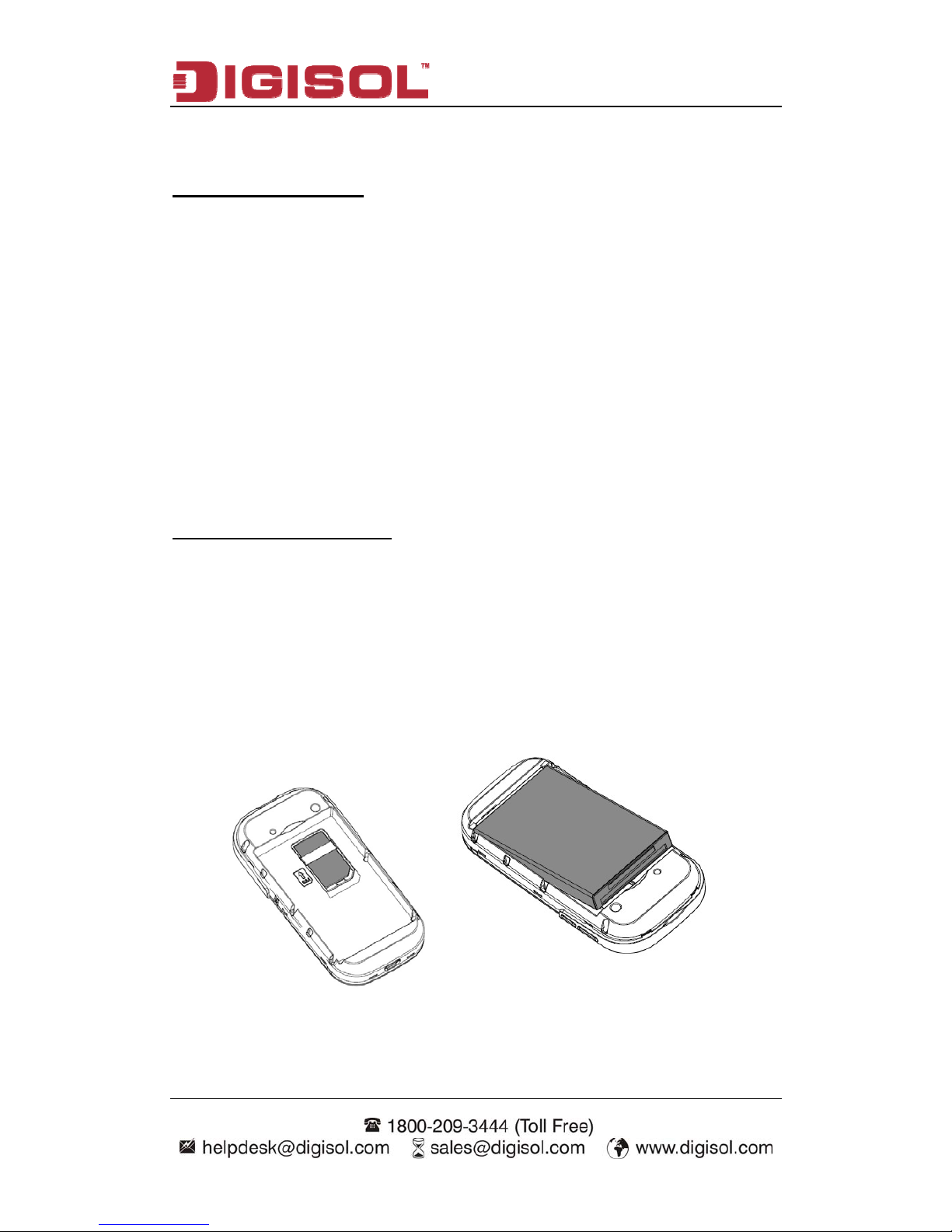

Insert SIM Card and Battery

Tips: Always switch the device OFF and disconnect the charger before removing

the battery.

1. Remove the back cover and the battery.

2. Insert the SIM card. Ensure that the contact area on the card is facing down and that

the beveled corner on the card is facing the beveled corner on the holder.

3. Align the battery contacts with the battery compartment connectors, and insert the

battery. Replace the back cover lastly.

 



Table des matières

Autres manuels Digisol Routeur réseau

Digisol

Digisol DH-bg1100n Manuel utilisateur

Digisol

Digisol DG-BR5411QAC Manuel utilisateur

Digisol

Digisol DG-GR6010 Manuel utilisateur

Digisol

Digisol DG-IS4512HP Manuel utilisateur

Digisol

Digisol DG-BG4300NU/IS Guide d'installation

Digisol

Digisol DG-BR5400QAC Manuel utilisateur

Digisol

Digisol DG-HR1400 Dimensions

Digisol

Digisol DG-GS4528S Manuel utilisateur

Digisol

Digisol DG-LB1054UV Manuel utilisateur

Digisol

Digisol DG-GR1010 Manuel utilisateur

Digisol

Digisol DG-BR5411QAC Manuel utilisateur

Digisol

Digisol DG-BG4011N Manuel utilisateur

Digisol

Digisol DG-HR1160M Manuel utilisateur

Digisol

Digisol DG-FS1510HPE Manuel utilisateur

Digisol

Digisol DG-BG1100U Manuel utilisateur

Digisol

Digisol DG-BG4300NU/IS Dimensions

Digisol

Digisol DG-HR1400 Manuel utilisateur

Digisol

Digisol DG-BG4011N Manuel utilisateur

Digisol

Digisol DG-FS4552 Manuel utilisateur

Digisol

Digisol DG-FS4528E Manuel utilisateur

Digisol

Digisol DG-BG4300NU Manuel utilisateur

Digisol

Digisol DG-BG4100NU Manuel utilisateur

Digisol

Digisol DG-BR5411QAC Manuel utilisateur

Digisol

Digisol DG-BG4300NU Guide d'installation

Manuels Routeur réseau populaires d'autres marques

Allnet

Allnet ALL0333AU Manuel utilisateur

HomeSeer

HomeSeer HT-SEL Manuel utilisateur

Sercomm

Sercomm Genesis OC3505D Manuel utilisateur

Billion

Billion BIPAC 5102 Series Manuel utilisateur

TP-Link

TP-Link TD-8817 Manuel utilisateur

Motorola

Motorola MR1900 Manuel utilisateur

Digi

Digi IX14 Manuel utilisateur

Cisco

Cisco NCS 540 Manuel

XAVi

XAVi X8821e Manuel utilisateur

BEC

BEC 6200WZL Manuel utilisateur

MikroTik

MikroTik hAP ac3 Series Manuel utilisateur

Korenix

Korenix JetNet 5428G Series Manuel utilisateur

NETGEAR

NETGEAR FS526T - Switch Manuel utilisateur

Korenix

Korenix JetNet 5710G Series Manuel utilisateur

Automated Logic

Automated Logic ZN551 Manuel du propriétaire

Cisco

Cisco ASR 1000 Series Manuel de l'opérateur

EnGenius

EnGenius ESR-9710 Manuel utilisateur

Cisco

Cisco 805 Series Instructions d'utilisation et de sécurité
