DGIMST10 - DigiSender® iMedia® SmartSender™

Contents

1 Introduction

1.1 About the iMedia® SmartSender™

1.2 What’s in the Box

2 The iMedia® Utility Program

2.1 Hardware & Software

2.1.1 Hardware Recommendations

2.1.2 Supported Operating Systems

2.2 Installing the iMedia® Utility Program

2.2.1 Standard Installation

2.2.2 The Benchmarking Tool

2.3 Using the iMedia® Utility Program

2.3.1 Basic Usage

2.3.2 Advanced Options

2.4 Conﬁguration Settings

2.4.1 Device Conﬁguration Settings

2.4.2 Overscan Conﬁguration Settings

2.4.3 Network Conﬁguration Settings

AP Mode Network Conﬁguration Settings

STA Mode Network Conﬁguration Settings

2.5 Uninstalling the iMedia® Utility Program

3 Installing the iMedia® SmartSender™

3.1 Network Connection

3.1.1 LAN Connection

3.1.2 Station Mode Connection

3.1.3 Access Point Mode Connection

3.1.4 Supported Network Connections

3.2 Connecting to your TV

4 Using the iMedia® SmartSender™

4.1 PC Sender Mode

4.2 Media Streaming Mode

4.2.1 Hardware Recommendations

4.2.2 Streaming Media from a PC or Laptop

4.2.3 Streaming Media from a SmartPhone or Tablet

Contents

04 - 05

06 - 18

07 - 09

07 - 08

10 - 12

10 - 11

13 - 17

15 - 17

15 - 16

19 - 28

19 - 27

21 - 22

23 - 24

25 - 27

29 - 34

30 - 34

32 - 33

Page 03

DGIMST10 - DigiSender® iMedia® SmartSender™

5 Troubleshooting

5.1 Troubleshooting the iMedia® Utility Program

5.1.1 Windows Vista / 7 User Account Control

5.1.2 Network Discovery & Firewall Checking

5.2 Troubleshooting PC Sender Mode

5.2.1 Video Playback in Windows XP

5.2.2 Laggy Picture / Poor Frame Rate

5.3 Troubleshooting Media Streaming Mode

5.3.1 Windows 7 ‘Play To’ command

5.3.2 No Audio and/or Video from the TV after selecting ‘Play To’

5.3.3 Laggy Playback / Stuttery Audio / Poor Frame Rate

5.4 Frequently Asked Questions

5.5 Technical Support

6 Speciﬁcations

6.1 Display Resolutions

6.2 Supported File Formats

6.2.1 Supported Video Formats

6.2.2 Supported Audio Formats

6.2.3 Supported Picture Formats

6.3 iMedia® SmartSender™ Speciﬁcations

6.3.1 Hardware Speciﬁcations

6.3.2 System Requirements

6.4 Declaration of Conformity

Contents

35 - 43

35 - 37

36 - 37

38 - 40

39 - 40

44 - 47

Contents

For indoor use only. Do not expose the unit to moisture as this may

lead to faulty operation and risk of electric shock.

Risk of electric shock, do not open. None of the contents of this

DigiSender®iMedia®pack contain user-serviceable parts.

Avoid dripping or splashing liquids on the unit and do not place

objects lled with liquid on it.

The rating label is located on the base of the unit.

Page 04

DGIMST10 - DigiSender® iMedia® SmartSender™

1 Introduction

Congratulations on purchasing the new DigiSender® iMedia® SmartSender™ from AEI Security & Com-

munications Ltd.

The DigiSender® iMedia® SmartSender™ enables all manner of digital media to be played on your exist-

ing home TV and features 2 basic modes of operation.

‘PC Sender Mode’ allows you to send your PC or Laptop screen to your TV, so that whatever you see on

your computer screen, you can also see on your TV. This is great for web surﬁng, working on documents,

business presentations, listening to music and much more.

‘Media Streaming Mode’ allows you to play music, video and photos stored on other Digital Media

devices that are connected to your Network. Whether it is your ﬂatmates PC, the kitchen laptop or a

friends SmartPhone, the iMedia® SmartSender™ allows you to connect them all to your TV wirelessly.

1.1 About the iMedia® SmartSender™

The SmartTVinterface foryour Smartphone,Tablet, Laptop & PC

Model:DGIMST10

Pleasekeep this Instruction Manual for future reference

TheSmartTV interfacefor yourSmartphone, Tablet,Laptop& PC

mar

Verify the contents of the box

Included in the pack is:

Install the iMedia® software

• Place the iMedia® software disc into the disc tray of your PC or Laptop.

• In the AutoPlay menu, click ‘Run AUTORUN.exe’.

• Follow the on-screen instructions in the install wizard.

• After installation is complete, click Analysis on the Benchmark Tool.

Note: If the AutoPlay menu does not display, open My Computer and click on your

disc drive, then double click the AUTORUN.exe ﬁ le to start the install wizard.

Connect the Ethernet cable to your wireless router

• Connect the Ethernet cable to the Ethernet socket on the back of the

iMedia® SmartSender™.

• Connect the other end of the Ethernet cable to an available Ethernet

socket on your wireless router.

Connect the power cable and press the power button

• Connect the power cable to the socket labelled DC 5V on the back of

the iMedia® SmartSender™.

• Plug the adaptor into an available mains socket.

• Press the power button on the back of the iMedia® SmartSender™.

Conﬁgure the iMedia® SmartSender™ to connect to your wireless router via Wi-Fi

• Double click the iMedia® Shortcut on your PC or Laptop

desktop.

• After a few seconds the iMedia® Utility Program will

sync with the iMedia® SmartSender™.

• Click the arrow at the bottom of the program.

• Double click the Gear symbol to bring up the Conﬁ gura-

tion Settings page.

• Click the STA Mode tab.

• Check the tick box next to ‘Enable Station Mode’.

• Input your router SSID and Encryption type.

• Input your router WEP/WPA/WPA2 KEY.

• Click Save.

The iMedia® SmartSender™ will then reboot itself and

automatically connect to your wireless router.

Note: Please consult your router documentation to ﬁ nd your SSID

and WEP/WPA/WPA2 KEY. Alternatively, search online for how to

ﬁ nd the SSID and WEP/WPA/WPA2 KEY for your speciﬁc router.

• 1x DigiSender® iMedia® SmartSender™

• 1x DigiSender® iMedia® Instruction Manual

• 1x DigiSender® iMedia® Software Disc

• 1x DigiSender® iMedia® Quick Guide

• 1x 1m Ethernet Cable

• 1x 1m HDMI Cable

• 1x 5V Power Cable

This Quick Guide has been designed for use with the most popular method of connecting the iMedia® SmartSender™. For other ways of connecting, please read the included Instruction Manual.

Ethernet Cable

HDMI Cable

Power Cable

iMedia® SmartSender™

ANT

AVOUT

DC5V

HDMIOUT

ETHERNETIN

USB1USB2

POWER

DC 5V

HDMI OUT

ETHERNET IN

Wireless Router

iMedia® SmartSender™

AutoPlay

Install Wizard

Benchmarking Tool

ANT

AVOUT

DC5V

HDMIOUT

ETHERNETIN

USB1USB2

POWER

DC 5V ETHERNET

POWER

iMedia® Desktop Shortcut

iMedia® Utility Program

iMedia® Settings Window

iMedia® STA Mode Tab

iMedia® SmartSender™

Power Cable

Mains Socket

Ethernet Cable

Model: DGIMST10

iMedia® Software Disc

iMedia® Quick Guide

iMedia® Instruction Manual

iMedia® Quick Guide

Page 05

DGIMST10 - DigiSender® iMedia® SmartSender™

All products are computer weight checked when packed, however, it is a good idea to check that all the

kits contents are present before proceeding.

1.2 What’s in the Box

The SmartTV interface for your Smartphone, Tablet, Laptop & PC

iMedia® Software Disc

iMedia® SmartSender™

The SmartTV interface for your Smartphone, Tablet, Laptop & PC

Model: DGIMST10

Please keep this Instruction Manual for future reference

iMedia® Instruction Manual

Ethernet Cable

HDMI Cable

Power Cable

1.2 What’s in the Box

Page 06

DGIMST10 - DigiSender® iMedia® SmartSender™

2 The iMedia® Utility Program

For best results and smooth playback, please refer to the Hardware Recommendations below.

2.1.1 Hardware Recommendations

Desktop or Workstation PC

CPU: 2.0GHz Intel Core 2 Duo or better

Chipset: Intel 965 series chipset or better

Memory: 2GB DDR2-800MHz

Graphics Card: NVIDIA GeForce 8400GS / ATI Radeon X300 or better

Network: 802.11 g/n Wi-Fi and/or 100/1000 Mbps Ethernet

Notebook or Laptop PC

CPU: 2.0GHz Intel Core 2 Duo or better

Chipset: Intel 965 series chipset or better

Memory: 2GB DDR2-800MHz

Graphics Card: NVIDIA GeForce 8200M / ATI Radeon Mobility X300 / Intel X3100 Integrated

Graphics Chipset or better

Network: 802.11 g/n Wi-Fi and/or 100/1000 Mbps Ethernet

2.1.2 Supported Operating Systems

Windows 7 64bit (x64)

Windows 7 32bit (x86)

Windows Vista (Service Pack 1 or later) 32bit (x86)

Windows Vista (Service Pack 1 or later) 64bit (x64)

Windows XP (Service Pack 3 or later)

2.1 Hardware & Software

2.1.1 Hardware Recommendations

Page 07

DGIMST10 - DigiSender® iMedia® SmartSender™

It is recommended that you close all open programs before proceeding with this installation.

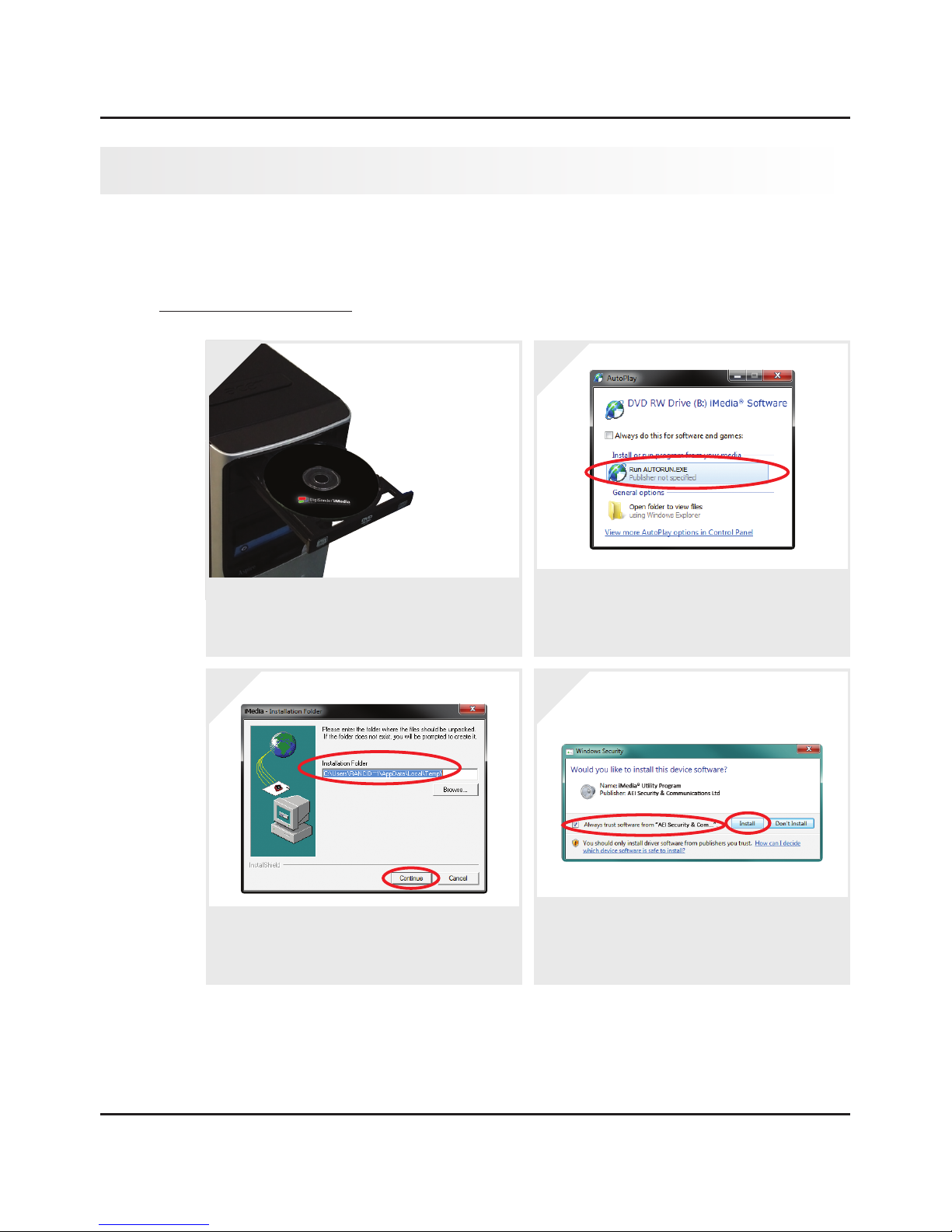

2.2.1 Standard Installation

2.2 Installing the iMedia® Utility Program

Place the iMedia® Software Disc into the disc tray

of your PC or Laptop

In the AutoPlay menu, select ‘AUTORUN.exe’.

If the AutoPlay menu doesn’t appear, open My

Computer, click the disc drive and double click

the ‘AUTORUN.exe’ ﬁle.

Choose a folder to unpack the ﬁles to and then

click the ‘Continue’ button.

If a window appears asking “Would you like to

install this device software”, tick the box next to

‘Always trust software from ...’ and then click

the ‘Install’ button.

continued on next page . . .

2.2.1 Standard Installation

Page 08

DGIMST10 - DigiSender® iMedia® SmartSender™

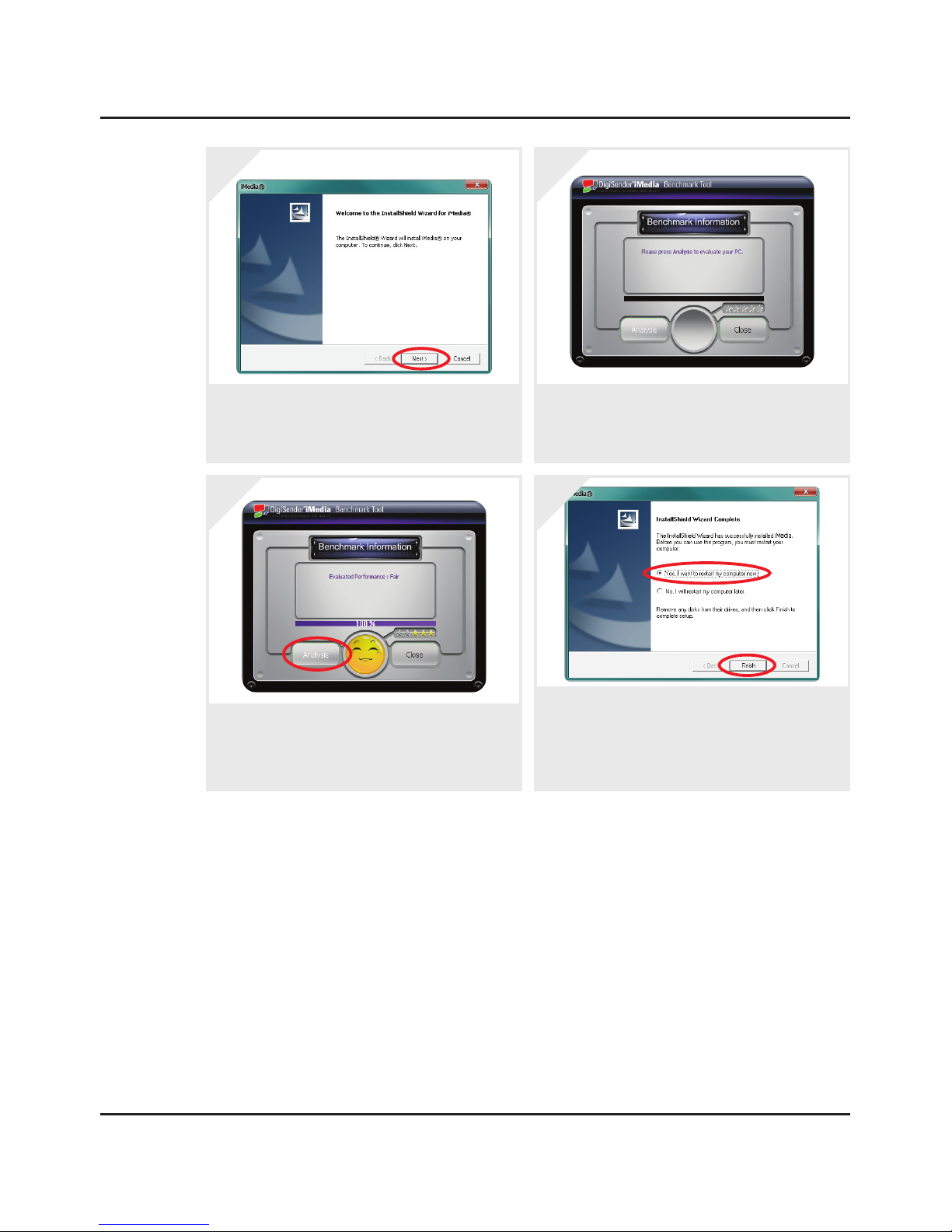

Click the ‘Next’ button to install the iMedia® Util-

ity Program when prompted to do so by the Install

Wizard.

After the program and drivers are installed, the

Benchmark Tool will automatically start.

Click the ‘Analysis’ button to perform the Bench-

mark Test. After approximately 10 seconds the

results will be displayed. See Section ‘2.2.2 The

Benchmarking Tool’ on page 09 for more information.

After Benchmarking is complete, click ‘Close’ and

in the next window choose “Yes, I want to restart

my computer now.” and then click the ‘Finish’

button. Make sure to save any open documents

before restarting your computer.

2.2.1 Standard Installation

2.2.2 The Benchmarking Tool

The Benchmarking Tool evaluates your PC’s capability to run the iMedia® Utility Program and send

your PC screen to your TV smoothly.

It is launched automatically during installation, but can be launched at any point by clicking the

iMedia® Benchmarking Tool shortcut in the Start menu.

The chart below outlines the various levels of performance.

Note: The level of performance can be affected by changing your PC desktop resolution or the theme settings

in Windows 7 and Windows Vista. See Section ‘5.2.2 Laggy Picture / Poor Frame Rate’ on page 39 for more

information.

Page 09

DGIMST10 - DigiSender® iMedia® SmartSender™

Stars Level Explanation

Lowest The CPU and/or Graphics Card are not supported by the iMedia® Utility

Program

Low Acceptable music/picture playback and web surﬁng but it is suggested

that you lower your PC desktop resolution to support video playback

Average Average music playback and picture viewing, however video playback

might be slightly laggy

Good Smooth playback of music, pictures and video

Excellent Great performance! You can expect ﬂawless playback of most media.

2.2.2 The Benchmarking Tool

Page 10

DGIMST10 - DigiSender® iMedia® SmartSender™

2.3.1 Basic Usage

The following section will explain the basics of using the iMedia® Utility Program.

Important Note: It can take up to several minutes for the iMedia® Utility Program and iMedia® SmartSender™

to sync. If after a few minutes they have still not synced, try disabling your Firewall. See Section ‘5.1.2 Network

Discovery & Firewall Checking’ on page 36 for more information.

2.3 Using the iMedia® Utility Program

To run the iMedia® Utility Program, double click

the iMedia® Utility Program Shortcut on your PC

or Laptop desktop.

Windows Firewall may prompt you to “Allow Ac-

cess”. If it does so, tick the boxes for both ‘Private

Networks’ and ‘Public Networks’ and then click

‘Allow Access’.

The iMedia® Utility Program will then start run-

ning and attempt to connect to the iMedia®

SmartSender™.

continued on next page . . .

2.3.1 Basic Usage

Table des matières

Autres manuels DigiSender Accessoires TV

DigiSender

DigiSender iMedia SmartSender Manuel utilisateur

Manuels Accessoires TV populaires d'autres marques

pass & seymour

pass & seymour GFCI Manuel utilisateur

Skyvue

Skyvue SECURITY ALARM DEVICE Manuel utilisateur

Niles

Niles C5-RFWM Manuel utilisateur

Philips

Philips SWA3554 Manuel utilisateur

Sony

Sony CRU-52X1 Manuel utilisateur

Sony

Sony BRAVIA KDL-46Z4100/S Mode d’emploi

BVE

BVE MATRIX 7xe Manuel utilisateur

Epson

Epson Moverio BT-100 Manuel utilisateur

Philips

Philips MONCARD Manuel utilisateur

Alcatel

Alcatel onetouch v100 Manuel utilisateur

Flow

Flow 836 ONT Manuel utilisateur

AIRIS

AIRIS G819 Manuel utilisateur

Philips

Philips LC7.1E Manuel utilisateur

Loewe

Loewe Digital Recorder + Manuel utilisateur

Sceptre

Sceptre Stello Manuel utilisateur

Philips

Philips Flavors 42FDF7013 Manuel utilisateur

Goodmans

Goodmans GD11FVRSD32 Manuel utilisateur

Philips

Philips Clon99-BKI Manuel utilisateur
