Digimerge DPP22W Manuel

Printed in KOREA

Model : DPP22W

Ultra Resolution WDR Day/Night Camera

Instruction Guide

Ultra Resolution WDR

Day/Night Camera

Model : DPP22W

Digimerge Technologies Inc.

INFORMATION - This equipment has been tested and found to comply with

limits for a Class A digital device, pursuant to part 15 of the FCC Rules & CE Rules.

These limits are designed to provide reasonable protection against harmful

interference when the equipment is operated in a commercial environment.

This equipment generates, uses, and can radiate radio frequency energy and, if

not installed and used in accordance with the instruction manual, may cause

harmful interference to radio communications.

Operation of this equipment in a residential area is likely to cause harmful

interference in which case the user will be required to correct the interference at

his own expense.

◆

Do NOT use power sources other than those specified.

◆

Do NOT expose this appliance to rain or moisture.

This installation should be made by a qualified service person and

should conform to all local codes.

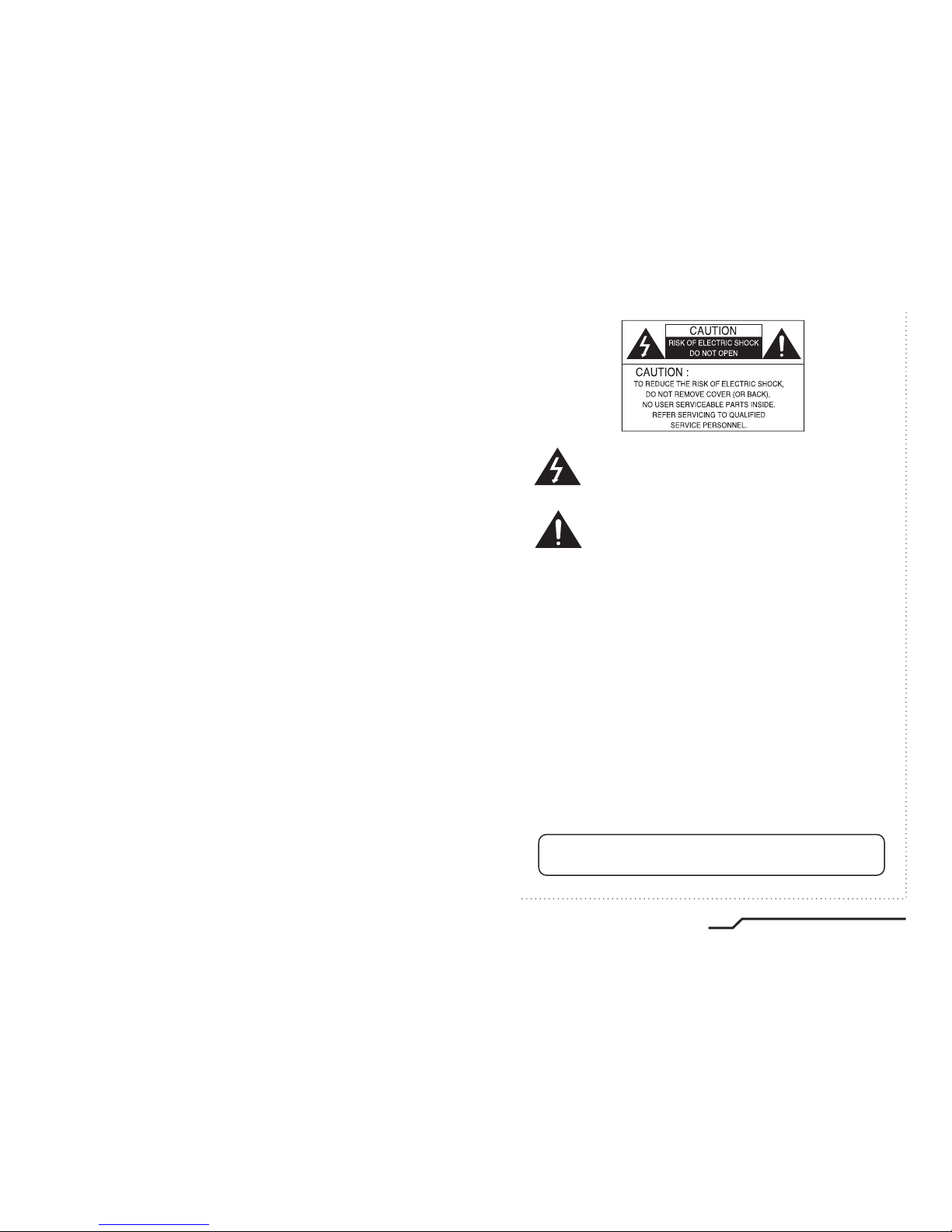

The lightning flash with an arrowhead symbol, within an equilateral

triangle is intended to alert the user to the presence of uninsulated

dangerous voltage within the product's enclosure that may be of

sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert

the user to the presence of important operating and maintenance

(servicing) instructions in the literature accompanying the appliance.

WARNING - Changes or modifications not expressly approved by the

manufacturer could void the user's authority to operate the equipment.

CAUTION : To prevent electric shock and risk of fire hazards:

Ultra Resolution WDR Day/Night Camera

Features

Warnings and Precautions

Names and Functions of Parts

Installation

■Front

■Bottom

■Back

■Lens

ㆍUsing auto iris

ㆍUsing C/CS mount lens

ㆍUsing a C-Mount lens

■Connecting to a monitor

■Connecting to power

Components 8

How to Use the Camera 16

■Menu 16

■Settings 17

ㆍPRESETS 18

ㆍEXPOSURE 19

ㆍWDR 20

ㆍWHITE BALANCE 21

ㆍDAY/NIGHT 23

ㆍIMAGE ADJ. 24

ㆍSPECIAL 25

- CAMERA ID

- VIDEO OUT

- DZOOM

- MOTION

- PRIVACY SETUP

ㆍEXIT MENU 29

ㆍRESET 29

Troubleshooting 30

Specifications 31

Limited Warranty 32

■Contents

Ultra Resolution WDR Day/Night Camera

The camera requires periodic inspection.

Contact an authorised technician to carry out the inspection.

Do not Install the camera on a surface that can not support it.

If the camera is installed on an inappropriate surface, it may fall

and cause injury.

Do not hold plug with wet hands.

It could cause an electric shock.

Do not dis-assemble the camera.

It may result in an electric shock or other hazards.

VIDEO / DC Drive Lens

The video drive lens and the DC drive lens

can be selected by the touch of a switch.

Additional Functions

SYNC (INT/LL), SENS-UP, FLIP(H/V-REV),

D-ZOOM, SHARPNESS and PRIVACY

functions are provided.

Motion Detection

Since the camera detects motion without any

additional external sensor, you can monitor

activity more efficiently.

Wide Dynamic Range (WDR)

The camera delivers high quality pictures,

even when backlit, by increasing exposure

in dark areas while decreasing it in bright

areas;

ㆍ120dB maximum dynamic range

High Resolution Color for Crisp,

Clear Video

ㆍProgressive image capture

ㆍ690TVL Effective

High Sensitivity for low-light

images

The built-in high sensitivity

PIXIM SEAWOLF Sensor enables

a clear image even at 0.1Lux

Day & Night

The camera identifies whether it is day or night

and automatically switches to the appropriate

mode, depending on its environment. By day,

the camera switches to color mode in order to

maintain optimal color. At night, it switches to

B/W mode so as to obtain better picture definition.

DNR (Digital Noise Reduction)

The amount of low illuminance noise is

significantly reduced, and the signal-to-noise

ratio (S/N ratio) as well as horizontal resolution,

have been improved resulting in a clear and

sharp images even in low light.

■Features Warning ■

Ultra Resolution WDR Day/Night Camera

ㆍPlease check the power supply satisfies the normal specification before

connecting the camera.

Do not install the camera in

extreme temperature conditions.

Do not install the camera under

unstable lighting conditions. Do not touch the front lens of the

camera.

Only use the camera under conditions

where temperatures are between

-10˚C and +50˚C. Be especially

careful to provide ventilation when

operating under high temperatures.

It can cause the image quality to be

poor.

Severe lighting change or flicker can

cause the camera to work improperly.

This is one of the most important parts of

the camera. Be careful not to leave

fingerprints on the lens cover.

Do not install or use the camera in an

environment where the humidity is high.

It can cause malfunctions to occur.

If it gets wet, wipe it dry immediately.

Liquids can contain minerals that

corrode the electronic components.

If exposed to radioactivity the CMOS

will fail.

It can damage the CMOS.

Do not drop the camera and protect

it from physical shocks.

Do not expose the camera to rain

or spill beverage on it. Do not expose the camera to

radioactivity.

Never keep the camera pointed

directly at strong light.

■Precautions

Ultra Resolution WDR Day/Night Camera

■Components

Names and Functions of Parts ■

1. COLOR BOX CAMERA

AUTO IRIS LENS CONNECTION PLUG

3. L-WRENCH

4. C-MOUNT ADAPTOR

5. INSTRUCTION GUIDE

Front

①Lens protection cap

Cover the lens when not using it.

②CS-Mount lens adaptor

Attach the CS-Mount lens here.

③Back Focus clamp screw

Loosen the clamp screw with a screwdriver before adjusting the Back

Focal length.

①

② ③

Ultra Resolution WDR Day/Night Camera

■Names and Functions of Parts

Names and Functions of Parts ■

IRIS JACK OSD EXTRA

POWER

VIDEO

SET

VIDEO OUT

AC24V IN

DC12V IN

⑪

⑤ ⑥ ⑦ ⑧

⑨⑩

Back

⑤Auto iris lens connector

This is the connection terminal for the auto iris lens.

⑥Auto iris lens selection switch

Change the mode to DC or VIDEO depending on the type of auto iris

lens being used.

⑦OSD Extra

Connects to the remote controller(option) when you want to install remotely.

⑧Video output terminal

Sends video signals and connects to the video input terminal of the

monitor.

⑨Power lamp

Lights up when the correct power is supplied to the camera.

⑩Setting button

●SET button

: Used for the menu display. This button can be used to

confirm settings after changing the value of the selected function or

current conditions.

●UP & DOWN buttons :

Used for selecting items by moving the

cursor up or down on the menu screen.

●LEFT & RIGHT buttons :

Used when changing item values, by

moving the cursor to the left or right on the menu screen.

⑪Power input terminal

Connects to the power appropriate to each power requirement.

Bottom

④Mounting bracket screw hole

Use the screw hole when fixing the

camera onto the mounting bracket. Please use

the clamp screw as specified in the picture.

※

The mounting bracket can be separated and

attached on the top of the camera.

please do not tighten the screw to a depth of

more than 5mm, otherwise serious damage

can occur to the inside of the camera.

④

Ultra Resolution WDR Day/Night Camera

■Installation

Installation ■

Lenses are sold separately. Lenses such as auto iris lens,

CS-Mount lens and C-Mount lens can be used.

1. Peel off about 8mm of the outer skin of the auto iris lens cable.

2. Peel off about 2mm of the outer skin of the insulated conductor inside the

lens cable.

■

Lens

Note

ㆍUse of the DC auto iris lens is recommended to achieve the best

results for operating this product effectively.

ㆍKeep the lens clean.

ㆍAny foreign objects and fingermarks on the lens can cause inferior

image quality in low light level conditions.

When using an auto iris lens

3. Remove the cover of the auto iris lens connection plug and solder the

lens cable to the connector pin in the plug.

4. Replace the auto iris lens connection plug cover and take off the lens

protection cap, and then attach the auto iris lens to the camera by

screwing it in clockwise.

5. Insert the connection plug that is connected to the auto iris lens cable into

the auto lens connector, which is located on the back of the camera.

6. Set the lens selection switch, located on

the back of the camera, to DC or VIDEO

depending on the type of auto iris lens which is

being used.

Pin No. LENS

DC VIDEO

No.1 Pin Damping- Red(power)

No.2 Pin Damping+ NC

No.3 Pin Drive+ White(video signal)

No.4 Pin Dreve- Black(GND)

IRIS JACK OSD EXTRA

POWER

VIDEO SET

VIDEO OUT

AC24V IN

DC12V IN

■Installation

Ultra Resolution WDR Day/Night Camera

Take off the lens protection cap and attach

the CS-Mount lens to the camera by screwing it in

clockwise.

Note

ㆍUse the specified lens connection parts as shown in the picture below.

The use of the wrong sized parts may cause damage

to the inside of the camera or result in poor fitting.

ㆍUse of a lens which is too heavy affects the balance

of the camera and may cause a malfunction. Please

use a lens that weighs less than 450g.

ㆍSelect Av mode if possible when adjusting

the automatic light control (ALC) of an auto lens.

Use of PK mode may cause hunting.

When using a CS-Mount lens

1. Take off the lens protection cap and

attach the C-mount adaptor.

2. Attach the C-Mount lens to the

camera by screwing it in clockwise.

When using a C-Mount lens

Connect the video output terminal located on the back of the camera to

the monitor.

ㆍThe connection method varies depending on the type of monitor and

accessories. Please refer to the user's manual for each instrument.

ㆍTurn off the power when connecting.

■

Connecting to a monitor

Check the standard power requirement before connecting to power.

■

Connecting to power

IRIS JACK OSD EXTRA

POWER

VIDEO SET

VIDEO OUT

AC24V IN

DC12V IN

AC24V IN

DC12V IN

AC24V IN

DC12V IN

IRIS JACK OSD EXTRA

POWER

VIDEOSET

VIDEO OUT

AC24V IN

DC12V IN

IRIS JACK OSD EXTRA

POWER

VIDEOSET

VIDEO OUT

AC24V IN

DC12V IN

POWER

Dual Power Type

(AC 24V/DC 12V, AC 24V Class2)

DC Power Type (DC 12V, 500mA)

Ultra Resolution WDR Day/Night Camera

1. Press the SET button

ㆍSettings can now be accessed. The SETUP menu is displayed

on the monitor.

2. Select a menu item from the list available by using the UP and DOWN

buttons.

ㆍFuntions are selected using up and down buttons.

ㆍThe selected position is displayed in blue.

SETUP

PRESETS

EXPOSURE..

WDR

WHITE BALANCE

DAY/NIGHT

IMAGE ADJ..

SPECIAL..

EXIT MENU.

OUTDOOR

MIDDLE

ATW

AUTO..

ㆍOUTDOORㆍINDOORㆍNORMAL

SETUP menu

PRESETS

EXPOSURE

WDR

WHITE BALANCE

DAY/NIGHT

IMAGE ADJ.

EXIT MENU

ㆍLENS

ㆍCOLOR ROLL

ㆍMIDDLE

ㆍLOW

ㆍCAMERA ID

ㆍDZOOM

ㆍATW

ㆍAWB ㆍMANUAL

ㆍFLIP

ㆍAUTO

SPECIAL

ㆍHIGH

ㆍVIDEO OUT

ㆍMOTION

ㆍINDOOR ㆍOUTDOOR

ㆍSHARPNESS

ㆍCOLOR GAIN ㆍGAMMA

ㆍDNR

ㆍAGC

ㆍSENS-UP

ㆍBLC

ㆍUSER

ㆍPRIVACY SETUP ㆍRESET

ㆍCOLOR ㆍBW

IRIS JACK OSD EXTRA

POWER

VIDEO SET

VIDEO OUT

AC24V IN

DC12V IN

SET

■How to Use the Camera

■

Settings

Settings can be made using the 5 buttons on the rear of the camera.

Table des matières

Autres manuels Digimerge Caméra de sécurité

Digimerge

Digimerge DPB14TLX Manuel utilisateur

Digimerge

Digimerge DCS100033 Manuel utilisateur

Digimerge

Digimerge DPZ36WO23 Manuel utilisateur

Digimerge

Digimerge DCDHR2532 Manuel utilisateur

Digimerge

Digimerge DPP12D Manuel

Digimerge

Digimerge DND7220 Series Manuel utilisateur

Digimerge

Digimerge DPV34D Manuel utilisateur

Digimerge

Digimerge DPV24D Manuel utilisateur

Digimerge

Digimerge DPV34WL Manuel

Digimerge

Digimerge DCBHR1037 Manuel utilisateur

Digimerge

Digimerge DNB6300V Manuel utilisateur

Digimerge

Digimerge DCV54DL Manuel utilisateur

Digimerge

Digimerge DPV24D Manuel utilisateur

Digimerge

Digimerge DBD14 Manuel utilisateur

Digimerge

Digimerge DPV14W Manuel utilisateur

Digimerge

Digimerge DPV14D Manuel utilisateur

Digimerge

Digimerge DPV24DL Manuel utilisateur

Digimerge

Digimerge DPV14D Manuel utilisateur

Digimerge

Digimerge DNP5320E Manuel utilisateur

Digimerge

Digimerge DPV24DL Manuel utilisateur

Digimerge

Digimerge DPZ16TO27 Manuel utilisateur

Digimerge

Digimerge DCV24DL Manuel utilisateur

Digimerge

Digimerge DCBHR1035 Manuel utilisateur

Digimerge

Digimerge DCBHR1535 Manuel utilisateur

Manuels Caméra de sécurité populaires d'autres marques

Okina USA

Okina USA SIR36-870VF650LP Manuel utilisateur

Divio

Divio NDR155PA Manuel utilisateur

Canon

Canon VB-C500D Manuel utilisateur

Easy Access

Easy Access EasyGuard Manuel utilisateur

Vivotek

Vivotek FD9389-EHV-v2 Manuel utilisateur

TUYA

TUYA COSMO W2 Manuel utilisateur

Eusso

Eusso UNC7500-IR Guide de configuration

urmet domus

urmet domus 1096/204 Manuel utilisateur

VC VC20 series Manuel utilisateur

Axis

Axis Q1614 Manuel utilisateur

ieGeek

ieGeek DD201 Manuel utilisateur

VADDIO

VADDIO ClearVIEW HD-USB PTZ 999-6990-000 Manuel utilisateur

Vicon

Vicon V662-D-1 Mode d'emploi

Grundig

Grundig GCH-K0274P Manuel utilisateur

Lorex

Lorex VANTAGE LBC7032 Manuel utilisateur

4xem

4xem WPT Manuel utilisateur

Samsung

Samsung SCV-3082 Manuel utilisateur

Vitek

Vitek VTC-C544 Manuel utilisateur
