Digimerge DPV24D Manuel utilisateur

Please read this manual thoroughly before use and keep it handy for future reference.

Vandal Models: DPV24D / DPV24TLX

Indoor Models: DPD23D / DPD24D

Ultra Resolution

Day & Night Dome Camera

INSTRUCTION MANUAL

INTRODUCTION

Features

All Models Feature:

• 1/3”SonySuperHAD™IICCD

• Excellentlowlightperformanceusing

 PolarisVision2technology.

• 0.15Lux/F1.2(Color)

 0.001Luxw/Sense-Upatx256

• 600TVlines(Color)ofresolution

• 3DDigitalNoiseReduction(3D-DNR)

• OSDmenucontrol

• PrivacyMasking/MotionDetection

• VIDEOOUT(BNC)

• Operatesin12VDCor24VAC

• TestMonitorOutput

• CameraMounting:Surface/Flushmounting

  (IndoorModelonly)

DPD23D

• IndoorDomeModel

• 3.6mmFixedLens

DPD24D

• IndoorDomeModel

• 2.8-10.5mmVarifocalDay/NightLensF1.4DCIris

DPV24D

• VandalResistantDomeModel

• 2.8-10.5mmVarifocalDay/NightLensF1.4DCIris

DPV24TLX

• VandalResistantDomeModel

• 2.8-10.5mmVarifocalDay/NightLensF1.4DCIris

• SmartIRtechnology

• ICRltertogiveclearnightvision

• ArcticProtechnologywithbuilt-inheater

• 0LuxwithIRLED

General DPD23D DPD24D DPV24D DPV24TLX

Power source DC 12V / AC 24V +10%

Power consumption 2.5 Watts 10 Watts

(Heater On)

Image sensor 1/3”SonySuperHAD™IICCD

Total pixels 811 (H) x 508 (V)

Scanning system 2:1 interlace

Scanning frequency 15.734KHz(H), 59.95Hz(V)

Sync.system Internal / Line Lock

Resolution 600 TV Lines

Min.Illumination 0.15Lux / 0.001Lux

Sense Up at x256 0 Lux IR LED On

Video output 1.0 Vp-p (75 ohm, composite)

S/N Ratio more than 50dB (AGC OFF)

Operating Temperature -10°C - +50°C -40°C - +50°C

Power input 2-Pin terminal block (Detachable)

Video output BNC Connector (2nd video RCA)

Lens mount Fixed mount

Lens 3.6mm Fixed 2.8 - 10.5mm F1.4 Varifocal DC Auto iris

Operating humidity 0-90% (non-condensing)

SPECIFICATIONS

-1-

-2-

MEASUREMENTS

Vandal Dome Dimensions

3/4’’ -14

NPS thread

97.0 mm

3.82 in

Base hole positions

40 mm

1.57 in

55.5 mm

2.19 in

Ø 0.1"

3.5 mm

3.9"

100.0 mm

3.4"

87 mm

5.1"

130 mm

112 mm

4.4 in

112 mm

4.4 in

39 mm

1.5 in

115 mm

4.5 in

27 mm

1.1 in

137°

123°

100°

7 mm

.28 in

Underside Base hole positionsIndoor Dome Dimensions

Recess cutout and tting clearance.Recess Mount Fitting dimensions

5.1"

130 mm

-3-

PACKING CONTENTS

Indoor Dome package contains the following:

Camera in housing ---------------------------------1

Camera Locking screws (PA3 Type) -----------2

Instruction guide (This Document)-------------1

Surface & Flush Mounting Templates----------2

RCA - BNC test cable------------------------------1

Junction Box Plate----------------------------------1

Mounting screw pack ------------------------------1

Vandal Dome package contains the following:

Camera in housing ---------------------------------1

Camera Locking screws (PM4 Type) ----------3

Instruction guide (This Document)-------------1

Surface Mounting Template ----------------------1

RCA - BNC test cable------------------------------1

Junction Box Plate----------------------------------1

Mounting screw pack ------------------------------1

Tamper allen key------------------------------------1

Conduit Key ------------------------------------------1

Junction box plate allows tting of either Vandal dome or

Indoor dome to standard 2S, 4S and Octagon junction

boxes.

NOTE: Flush side of junction box plate should be attached

to junction box

Junction Box tting plate accessories:

Junction Box Fitting plate ------------------------1

2S / 4S plate screws (KM3.5 Type) ------------4

Octagon tting screws (KM4 Type)-------------2

Base Fitting Screws PWM3 ----------------------3

JUNCTION BOX PLATE

Screw hole overview Vandal dome tting illustration Junction box tting plate attached to camera

Base Fitting

Screws

88.9 mm

3.5 in

83.3 mm

3.28 in

46.0 mm

1.8 in

Base Fitting

Screw.

Octagon

Screw

2S / 4S

Screw

Locking

Screw

Conduit

Key

Allen Key

Mounting Screws Pack.

3pc 70mm / 2.8in Screws

3pc 30mm / 1.2in Screws

3pc 40mm 1.6in plugs

-4-

JUNCTION BOX INSTALLATION TYPES

2S FITTING

a. 2S Fitting requires only 2pcs of base

attachment screws.

Note: You have a reduced space in which

to hide cables using this type of

installation. Recommended for indoor

dome only.

TWO GANG FITTING

a. Two gang tting (switch box) requires 4pcs

of base attachment screws.

Note: A two gang provides the most robust

tting. Suitable for both indoor and

vandal domes.

4S FITTING

a. 4S Fitting requires 2pcs of base attachment

screws.

Note: Screws used for the 4S box are larger

compared to those used for the 2S (M4

type). Suitable for both indoor and

vandal domes

OCTAGON FITTING

a. 4” Octagon tting requires only 2pcs of

base attachment screws.

Note Screws used for the octagon tting

are larger compared to those used for

the 2S/4S (M4 type). Suitable for both

indoor and vandal domes

Cable

Entry

Screws

Cable

Entry

Screws

Cable

Entry

Screws

Cable

Entry

Screws

-5-

VANDAL DOME FITTINGS

Pendant Cap - model # MNTV2XPC

Replaces the need for the camera base.

Compatible with ceiling conduit installations

Pole Mount - model # MNTV2XPJunction Box Accessory - model # MNTV2XJ

Fits either wall mount and corner mount bracket.

Symmetrical so reversible for top or bottom

conduit.

Corner Mount bracket - model # MNTV2XR

Can t either Wall Bracket or Junction Box. Pendant Mount - model # MNTV2XC

Wall Mount - model # MNTV2XW

-6-

INSTALLATION. VANDAL DOME

1) Remove the three tamper screws using the provided

allen key. Size is standard T-15

Note: If you plan to use conduit tting, remove conduit

cap using the prodivded conduit key.

DPV24TLX ONLY

When using DC power, note the correct polarity stated on the

label attached to the power cord.

Note: If you plan on installing onto a junction

box, attach provided tting plate rst to

the junction box and then you attach the

camera base to the tting plate.

3a) Reinsert camera module into camera base

by ligning up the arrow notches, and turning

camera module clockwise to lock into place.

3b) Use the supplied three base locking screws to

secure camera base to camera module.

Go to step 4on page 7 to complete installation.

Method 1 - Direct Attach Install

2a) Use included mounting template to mark and pre-

drill the required holes. Use 2pc of the 2.8” screws

to mount the camera directly to the mounting

surface.

Remove (one base locking screw, used for shipping

purposes) and install the 3rd 2.8” screw.

Go to step 4on page 7 to complete installation.

Method 2 - Camera Base Install

Note: Use this method if installing onto junction box

plate.

2b) Remove the camera base by unscrewing the base

locking screw, and turn camera module approx. 5

degrees counter-clockwise to detach camera base

from the camera module. Now you install the base

to the correct holes as indicated on the mount

template using the 1.2” screws.

Autres manuels pour DPV24D

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Digimerge Caméra de sécurité

Digimerge

Digimerge DPD23D Manuel utilisateur

Digimerge

Digimerge DCB13TL Manuel utilisateur

Digimerge

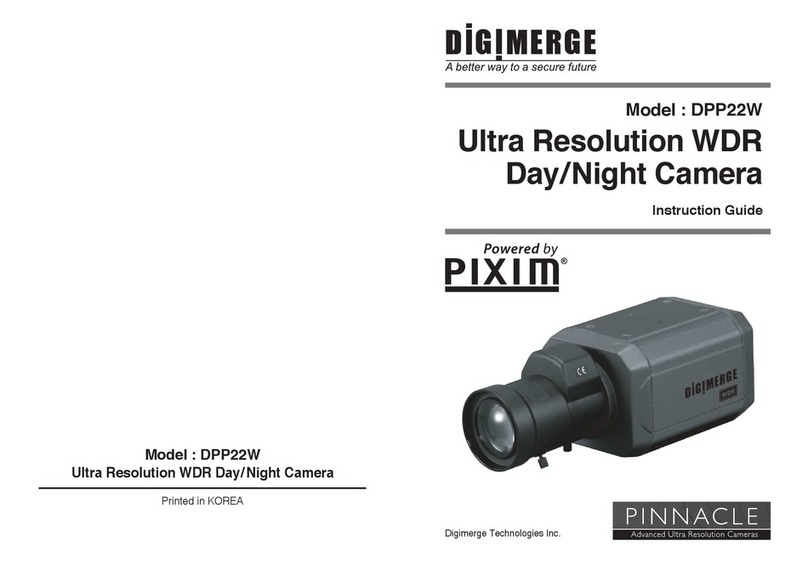

Digimerge DPP22W Manuel

Digimerge

Digimerge DPV14W Manuel utilisateur

Digimerge

Digimerge DPV24D Manuel utilisateur

Digimerge

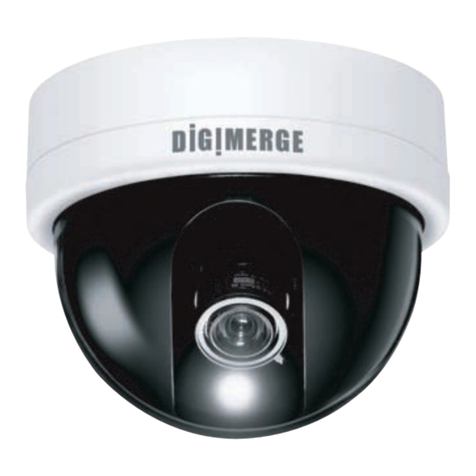

Digimerge DPD24W Manuel
