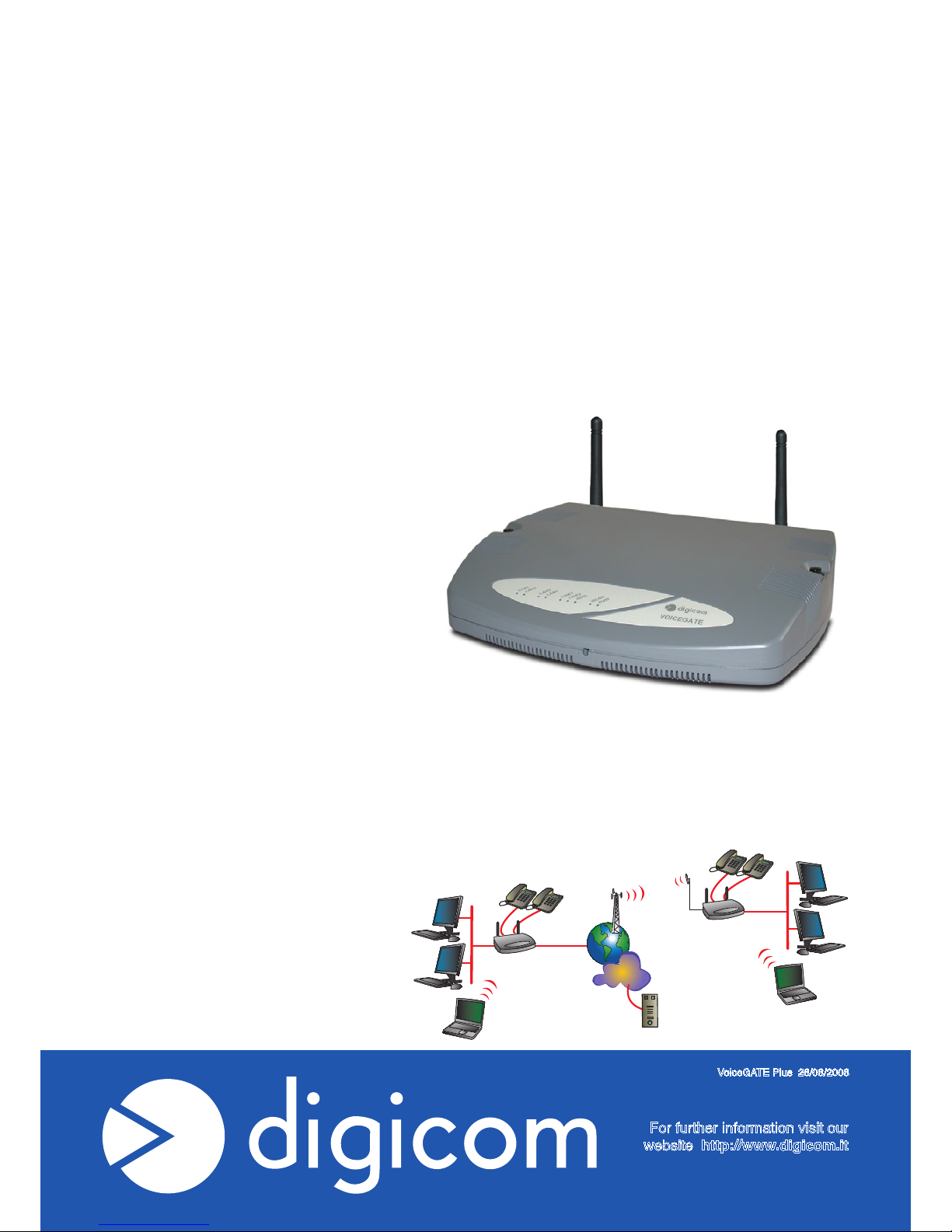

Digicom VoiceGATE Plus Wireless ADSL Router Manuel utilisateur
For further information visit our
website http://www.digicom.it
VoiceGATE Plus 26/08/2008
Wireless ADSL Router with VoIP functionalities
VoiceGATE Plus
lADSL 2/2+ up to 24 Mbps
lSIP 2.0 Standard VoIP support
l2 FXS ports
lWEBbasedlocalandremoteconguration
DESCRIPTION
VoiceGATE Plus is an ADSL Router with built-in VoIP, Wireless and Firewall functionalities.
It is available with two geographic interfaces (WAN), ADSL or Ethernet.
VoiceGATE Plus supports the ADSL2/2+ standard
to surf the Internet in downstream up to 24 Mbps
and in upstream up to 1 Mbps. Furthermore the
ADSL connection up to 8 Mbps in downstream is
possible.
Thankstothehighspeed,youcanalsoaccessthe
newmultimediaservices,games,videostreaming
and real time audio.
VoiceGATE Plus supports the SIP protocol
(Session Initiation Protocol), the most popular VoIP
protocol, that guarantees a larger interoperability
with IP Telecom Operators and with other VoIP
gatewayandequipments.
Itintegratestwo FXS analog ports (for the phone connection) that allow two VoIP calls simultaneously.
Additionallythereisan FXO portforemergencycallsandback-uponthePSTNlineincasetheADSLorVoIPservice
is not available.
VoiceGATE Plus supports the Voice supplementary services:callwaiting,callerIDandcalltransfer.
Free wireless surng thanks to the 802.11g
(54Mbps) and 802.11b (11Mbps) built-in
Wireless Access Point. The WPA and 64/128
bit WEP encryptions ensure secure radio
transmissions.
INTERNET
ADSL
VoIP
SIP
Server
VoiceGATE PLUS
ADSL
VoiceGATE PLUS
Ethernet
Ethernet
For further information visit our
website http://www.digicom.it
VoiceGATE Plus Ethernet supports also the PPPoE
and the VLAN tagging (802.1pQ). The VLAN tagging
distinguishes the type of trafc to the Provider (for
examplethemanagementtrafcfromthedataandvoice
trafc).
The Quality of Service(QoS)givesprioritytothemain
services like VoIP.
ThebrowsingissecuredbytheFirewall Stateful Packet
Inspection function (SPI) that protects from DoS attacks
and supports the Packet Filtering (port control, Source
IP, Addressee IP, MAC address).
VoiceGATE Plus has a built-in 10/100 Ethernet switch
todirectlyconnectthePCsofyourLAN.4portsavailable
for the ADSL version and 3 ports for the Ethernet one
(the fourth port is for the WAN).
VoiceGATE Plus can be local and remote congured
throughcommand line and via web bowser.
TECHNICAL FEATURES
ADSL and supported protocols
lSupported standards: ADSL2+, G.dmt.bisplus (ITU G.992.5),
ADSL2 G.dmt.bis (ITU G.992.3), Full-rate ANSI T1.413 Issue 2,
G.dmt (ITU G.992.1), G.hs (ITU G.994.1)
lATM Adaptation Layer Type 5 (AAL5)
lMultiple Protocol over AAL5 (RFC 2684, formerly RFC 1483)
lBridged or routed Ethernet encapsulation
lVC and LLC based multiplexing
lRFC 2684, formerly (RFC 1483)
lPPP over Ethernet (PPPoE)
lPPP over ATM (RFC 2364)
lClassical IP over ATM (RFC 1577)
Network functionalities
lSupports DHCP Server/Client
lNAT, static routing e RIP-1/2
lDynamic Domain Name System (DDNS)
lVirtual Server e DMZ, SNTP, DNS relay
lQoS, ToS support
lVLAN tagging (802.1pQ).
lPPPoE supported on the ethernet version
VoIP
lStandard SIP 2.0 (RFC3261) support
l2 FXS ports for the connection of analog phones
l1 FXO port for back-up on PSTN line
lCodec audio G.711 A/m law, G.729 support
lVoice supplementary services support: call waiting, caller ID, call
transfer
lSilence suppression, VAD (voice activity detection), CNG
(Comfort Noise Generation) and echo cancellation support
lBack-up over PSTN
Wireless 802.11g
lStandard IEEE 802.11g and 802.11b
lWireless speed up to 54 Mbps
l64/128WEP and WPA encryption
Firewall
lStateful Packet Inspection (SPI)
lDoS attacks protection
lPacket Filtering, URL Content
Management
lLocal and remote configuration-management via command line
lWeb based firmware upgrade
lSNMP configuration support
Hardware
lFactory default reset button
lSize: 24 x 19 x 5 cm
lPower supply: 12V DC, 1.2A
lCE Mark
Available Versions
VoiceGATE PLUS ADSL Ethernet VoIP 2Fxs+1Fxo Wireless
VoiceGATE PLUS A2+ WiFi Yes No Yes Yes
VoiceGATE PLUS Eth WiFi No Yes Yes Yes
