Digi One IAP Manuel utilisateur

Quick Start Guide

Digi One™ IAP, Digi One™ IA, Digi

One™ IAP HAZ

Welcome to your Digi product

Get started: This guide helps you with initial product setup. Need more? Find additional

supporting material for this product at www.digi.com/products/serial-servers/digioneiapfamily.

Or connect to the online documentation by scanning this code:

Digi Technical Support: Digi offers multiple support plans to help you get the most out of your

product. For information on Technical Support plans and pricing, contact us at 877.912.3444 or

visit www.digi.com/support.

Documentation feedback: To provide feedback on this documentation, send your comments to

techcomm@digi.com.

1Verify your components

Included equipment

Verify that you have all included equipment. If any item is missing or damaged, contact your supplier.

2Set the DIPswitch or screw-terminal pins

1. Set the serial DIP switch according to your serial device requirements (EIA-232/422/485). The pinouts are on the back of the device.

Switch settings

*If switch 4 is up, termination resister is connected.

If down, termination resistor is not connected.

DB-9 RS-232 RS-422/485

Full-duplex

RS-485

Half_duplex Screw term

2 RxD RxD+ RxD+ 6

3 TxD TxD+ TxD+ 3

7 RTS RTS+ Not used 1

8 CTS CTS+ Not used 8

5 GND GND GND 5

6 DSR RxD- RxD- 7

1 DCD CTS- Not used 9

4 DTR RTS- Not used 2

9 NA TxD- TxD- 4

Digi, Digi International, and the Digi logo are trademarks or registered trademarks in the United States and other countries worldwide. All other trademarks mentioned in this

document are the property of their respective owners.

2. Digi One IAP only: Set pass-through settings.

Switch position Port 1 screw term Port 2 DB-9 Flow control

ON Follows switch

(232/422/485)

RS-232

only

Hardware flow

control supported

OFF Follows switch

(232/422/485)

Follows switch

(232/422/485)

Hardware flow

control supported

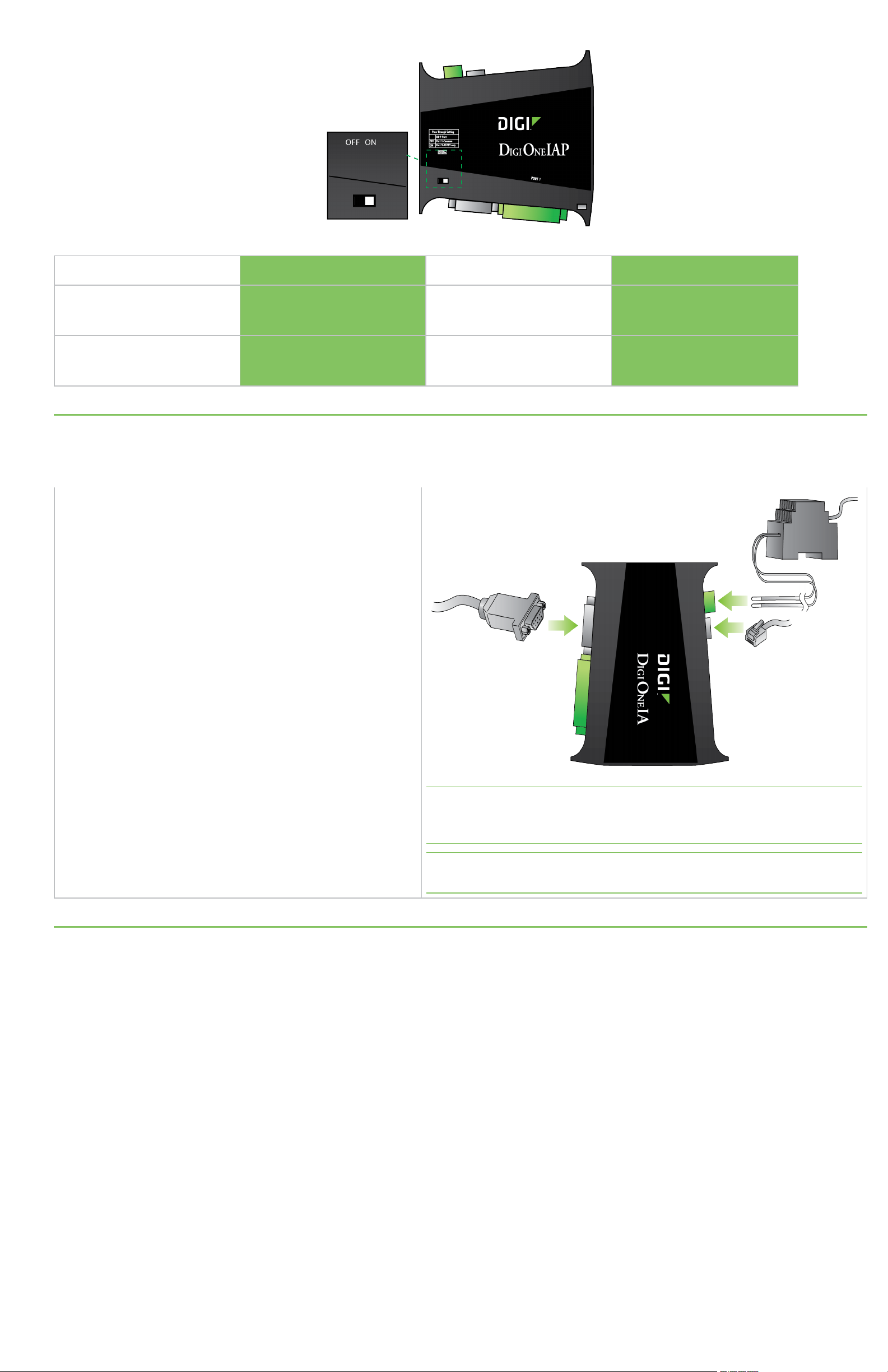

Connect the hardware

a. Connect serial cable (DB-9 shown).

b. Connect the Ethernet cable (not provided).

c. Connect the power source.

Note Ethernet link LED

Green = good link

Off = no link

Note Wiring terminals should be tightened to 5 inches per pound. Use

copper conductors only.

What's next?

Download the necessary drivers and utilities from the Product Support section at www.digi.com/products/serial-servers/digioneiapfamily. You

can also find additional information at knowledge.digi.com.
