RAMDRILL
RAMDRILL PHD-XD
3PT LINKAGE
OPERATORS MANUAL
PM-000019B
2PM-000019B - Ramdrill Operators Manual - July 2015
3
Your Ramdrill is a high performance attachment that is designed for Drilling. To avoid premature wear and
failure, and to fulll your terms of warranty please read this statement.
All DIGGA RAMDRILL must have a rst oil change within the rst 30hrs (extreme use) or 50hrs (moderate
use) or 3mths (which ever comes rst) of use to ensure the bed in of the drive unit. For more detailed
information please read page 25.
If the rst oil change is not performed within this period excessive wear within the gearbox will occur that will
cause premature failure. All Warranty will be void.
Oil must then be changed thereafter every 300hrs (extreme use)/500hrs (moderate use) and a full service
every 12mths must be performed by an authorised Digga service agent to ensure Warranty requirements are
met.
In the event of a failure under the warranty period:
• Contact Digga immediately, DO-NOT DISASSEMBLE YOUR DRIVE without rst obtaining written
permission and instructions from Digga.
• Proof of service must be provided in hard copy form of both operational and service history (including serial
number of gearbox and hydraulic motor) records. Service must be performed by an authorised Digga
service agent.
CRITICAL - DO NOT CONNECT OR OPERATE YOUR RAMDRILL
WITHOUT FIRST HAVING READ AND UNDERSTOOD THIS STATEMENT
1 CRITICAL INFORMATION - SERVICE INTERVALS
4PM-000019B - Ramdrill Operators Manual - July 2015
1CRITICAL INFORMATION.............................................................................. 3
2TABLE OF CONTENTS.................................................................................. 4
3TO THE PURCHASER................................................................................... 5
4SERVICE AND PREPARATION FOR USE.................................................... 6
5SAFETY PRECAUTIONS GENERAL USE.................................................... 10
6SAFETY - WORKING WITH THE ATTACHMENT ........................................ 16
7SAFETY - DECAL LOCATION....................................................................... 18
8BEFORE USE................................................................................................ 19
9INSTALLATION AND OPERATION INSTRUCTIONS.................................... 20
10 CONTACT INFORMATION............................................................................. 24
11 MAINTENANCE.............................................................................................. 25
12 TROUBLE SHOOTING................................................................................... 28
13 WARRANTY..................................................................................................... 30
2 TABLE OF CONTENTS
TO BE UPDATED
5
3 TO THE PURCHASER
ABOUT THIS MANUAL
This manual has been designed to help you do a better,
safer job. Read this manual carefully and
become familiar with its contents.Remember;
never let anyone operate this unit without reading the
“Safety Precautions” and “Operating Instructions” sections
of this manual. Unless noted otherwise, right and left sides
are determined from the position of the operator when
behind the product facing forward.
THANK YOU
Congratulations on the purchase of your new DIGGA Ramdrill. This product was carefully designed and manufactured to give you years of
dependable service. It is mandatory that oil changes are performed at the specied interval to keep it in top working condition
(Maintenance - chapter 11).
The complete manual must be read and understood before connecting and operating. Be sure to observe all safety precautions and
maintenance procedures as described in this manual.
Optional Extras are available for special applications or extreme conditions: these are noted throughout the manual. Contact your DIGGA
dealer for any further information pertaining to this product or for further information on other products available in the DIGGA range.
SAFETY ALERT SYMBOL
This is the “Safety Alert Symbol” used by this industry. This symbol is used to warn
of possible injury. Be sure to read all warnings carefully. They are included for your
safety and for the safety of others working with you.
6PM-000019B - Ramdrill Operators Manual - July 2015
MODEL______________________________________
SERIAL NUMBER______________________________
DATE PURCHASED____________________________
The parts department needs this information
to ensure accurate parts can be sent to the
authorised service agent.
Your Digga Ramdrill is a user non serviceable part. Unauthorised disassembly will void warranty.
All service and warranty must be performed by an authorised DIGGA service agent. Contact your local Digga
dealer for details.
To facilitate warranty or service, record the model and serial number of your unit in the space provided on this
page. This information may be obtained from the identication plate located on the product.
4 SERVICE & PREPARATION FOR USE
MODELS COVERED IN THIS MANUAL
PTO PHD-XD 3PT LINKAGE
7
4 SERVICE & PREPARATION FOR USE - PHD FIXED BOOM
To avoid any inconvenience before operation, please check that you have received the following items which you
have ordered.
MAIN COMPONENTS
NO DESCRIPTION
1HYDRAULIC CYLINDER
2PIN - DUAL PIN CAT1 AND CAT2
3TOP LINK BAR
4BOOM ASSEMBLY
5ADJUSTABLE LEGS ASSEMBLY
6A FRAME WELDMENT
7GEARBOX ASSEMBLY
1
4
3
6
7
5
2
NOTE
PHD RAMDRILLS COME WITH
THE FOLLOWING TOP LINK BAR
PART NUMBER
RD-000024
600MM LONG

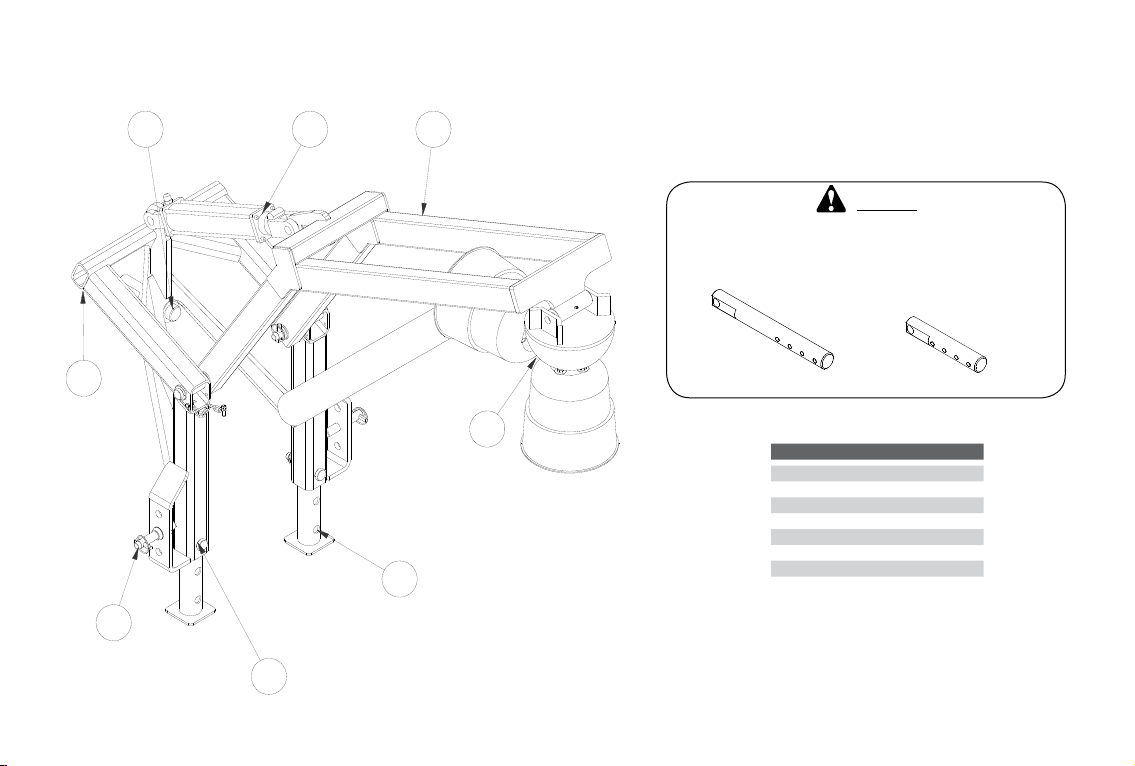

RAMDRILL - PHD FIXED BOOM
8PM-000019B - Ramdrill Operators Manual - July 2015
NO DESCRIPTION
1RAM ROD
2 PIN - CAT2
3PIN - ADJUSTABLE LEG
4TOP LINK BAR
5A-FRAME WELDMENT
6LEG ASSEMBLY
7BOOM ASSEMBLY
8GEARBOX ASSEMBLY
174
3
6
5
2
8
4 SERVICE & PREPARATION FOR USE - PTO FIXED BOOM
NOTE
PTO RAMDRILLS COME WITH
THE FOLLOWING TOP LINK BARS
PART NUMBER
RD-000025
PART NUMBER
RD-000026
450MM LONG 295MM LONG
RAMDRILL - PTO FIXED BOOM
9
To avoid any inconvenience before operation, please check that you have received the items (covered in this
manual) which you may have ordered.
QTY DESCRIPTION
1BOLT HEX 1/2X4 G8 UNC ZP
1NUT HEX NYLOC 1/2 UNC ZP
2NUT NYLOC 1/4 ZP
2BOLT HEX 1/4”x1” G8.8 UNC ZP
1GREASE NIPPLE 1/4 UNF
2S7-0612-BSPTM JICM-NIP
2QRC POPPET FIRG M 1/2 BSPP
2DOUTY WASHER HYD COUPLINGS
2CAT 1 (B200)-137MMOAL 22MMDIA
2CAT 2 (B202)-140MMOAL 22MMDIA
2LYNCH B7-11MM SHAFT
1OP MANUAL RD
1BOLT KIT RD CLUTCH CVR
2GB SPC PTO
1CHAIN 1M CHAIN SECT 4MM GALV
1CONVERSION BUSH CAT 1 TO 2
1HYDRAULIC CYLINDER
2CLUTCH COVER
1CLUTCH
1HOSE KIT
1GEAR BOX
1450MM TOP LINK BAR
1295MM TOP LINK BAR
QTY DESCRIPTION
2BOLT HEX M10X110 G8.8 ZP
1BOLT HEX 1/2X4 G8 UNC ZP
1NUT HEX NYLOC 1/2 UNC ZP
2NUT NYLOC 1/4 ZP
2NUT HEX NYLOC M10 ZP
2BOLT HEX 1/4”X1” G8.8 UNC ZP
1S90 1212-JICM UNOM - NIP
1REDNIP-MLE S90-1212THRDA+B3/4
4QRC POPPET FIRG M 1/2 BSPP
4DOUTY WASHER HYD COUPLINGS
2CAT 2 (B202)-140MMOAL 22MMDIA
2LYNCH B7-11MM SHAFT
1OP MANUAL RD
2GB PIN 1IN W/TEARDROP
1CHAIN 1M CHAIN SECT 4MM GALV
1CONVERSION BUSH CAT 1 TO 2
1HYDRAULIC CYLINDER
1HOSE KIT
1GEARBOX
1600MM TOP LINK BAR
QTY DESCRIPTION
1DRWB3/4B404-208OAL 186SL 19DIA
1B81-160MM OAL 141MM SL 25MMDIA
3LYNCH B7-11MM SHAFT
2CAT1/2DBL END-1900AL 22MM 28.5
1OP MANUAL RD
1BOLT KIT RD CLUTCH CVR
1CONVERSION BUSH CAT 1 TO 2
1HYDRAULIC CYLINDER
2CLUTCH COVER
1CLUTCH
1HOSE KIT
1GEAR BOX
4 SERVICE & PREPARATION FOR USE
PTO PHD 3PT LINKAGE
10 PM-000019B - Ramdrill Operators Manual - July 2015
SIGNAL WORDS: Note the use of signal words DANGER, WARNING, and CAUTION with the safety messages. The appropriate signal
word for each has been selected using the following guidelines:
DANGER: Indicates an imminently hazardous situation, which if not avoided, will result in death or serious injury. This signal word is to be
limited to the most extreme situations, typically for machine components which, for functional purposes, cannot be guarded.
WARNING: Indicates a potentially hazardous situation, which if not avoided, could result in death or serious injury, and includes hazards
that are exposed when guards are removed. It may also be used to alert against unsafe practices and indicate potential failure or damage
to equipment.
CAUTION: Indicates a potentially hazardous situation, which if not avoided, may result in minor or moderate injury. It may also be used to
alert against unsafe practices.
TAKE NOTE! THIS SAFETY ALERT SYMBOL FOUND THROUGHOUT THIS MANUAL IS USED TO CALL YOUR ATTENTION TO
INSTRUCTIONS INVOLVING YOUR PERSONAL SAFETY OR OTHERS. FAILURE TO FOLLOW THESE INSTRUCTIONS CAN
RESULT IN INJURY OR DEATH.
ATTENTION!
BECOME ALERT!
YOUR SAFETY IS INVOLVED!
THIS SYMBOL MEANS:
This section is composed of various warnings and safety tips. Read and learn all the information in this section before you attempt
to use your attachment. Also read your machines owner’s manual before using your equipment. This knowledge will help you operate
your unit safely. Do not take this information lightly, it is presented for your benet and for the benet of others working around
you.
The “Safety Alert Symbol” will be used throughout this manual. It will appear with the word DANGER, WARNING, or CAUTION,
and a safety message pertaining to the specic topic being covered. Take the time to read these messages as you come across them.
5 SAFETY PRECAUTIONS - GENERAL INFORMATION
