Thank you for purchasing the DIG Model G77AS Landscape Drip Watering System. Please take the time to
read through the enclosed instructions and follow them step by step. If you have any questions, please call
our customer service line at 1.800.344.2281.
ABOUT YOUR G77AS KIT
Let your landscape thrive with this complete drip watering kit that connects to any outdoor faucet.The
G77AS starter kit includes DIG’s pressure compensating drippers and contains all the parts needed to
irrigate up to 150 square feet. Use these guidelines to design and install an efcient low-volume irrigation
system that conserves water and promotes a healthy environment.
LAY
INSTALLATION
This kit can be connected into a 3/4″faucet/spigot or at the end of a garden hose. If a faucet is not
adjacent to the garden or to the location of the installation, you may extend from the faucet using a garden
hose or an additional length of 1/2″drip tubing (model B35 for 50′or B36 for 100′).
To start the installation, the backow device should be mounted directly to the faucet Please make sure to
add the 25-PSI pressure regulator (included) after the backow preventer. The pressure regulator is used
to lower the incoming pressure from the faucet to the recommended operating pressure of 25 PSI, which is
within the range of operating pressures for drip irrigation or micro-sprinkler systems.
1.800.322.9146 FAX: 760.727.0282
DIG CORPORATION THREE-YEAR WARRANTY
DIG CORPORATION warrants these products to be free from defects in material and workmanship for a period of three years from date
of purchase. This warranty does not cover damage resulting from accident, misuse, neglect, modication, improper installation or subjec-
tion to line pressure in excess of 50 lbs. per square inch. This warranty shall extend only to the original purchaser of the product for use
by the purchaser. This warranty shall not cover batteries or any malfunction of the product due to battery failure. The obligation of DIG
CORPORATION under this warranty is limited to repairing or replacing at its factory this product which shall be returned to the factory
within three years after the original purchase and which on examination is found to contain defects in material and workmanship.
DIG CORPORATION SHALL IN NO EVENT BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES OF ANY KIND; THE SOLE
OBLIGATION OF DIG IS LIMITED TO REPAIR OR REPLACEMENT OF DEFECTIVE PRODUCTS. SOME STATES DO NOT ALLOW THE EXCLUSION
OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU.
Unattended use for prolonged periods without inspection to verify proper operation is beyond the intended use of this product, and any
damage resulting from such use shall not be the responsibility of DIG CORPORATION. There are no warranties which extend beyond the
description on the face hereof. In the case of purchase of the product for use other than, for irrigation purposes, DIG CORPORATION hereby
disclaims any implied warranties including any warranties of merchantability and tness for a particular purpose. In the case of the pur-
chase of the product for personal, family or household purposes, DIG CORPORATION disclaims any such warranties to the extent permitted
by law. To the extent that any such disclaimer or implied warranties shall be ineffectual, then any implied warranties shall be limited in
duration to a period of one year from the date of the original purchase for use by the purchaser. Some states do not allow limitation on how
long an implied warranty lasts, so the above limitation may not apply
to you. In order to obtain performance under this warranty, the unit must be returned to the factory, along with proof of purchase indicating
original date of purchase, shipping prepaid, addressed as follows:
DIG CORPORATION, 1210 Activity Drive, Vista, CA 92081. Repaired or replaced units will be shipped prepaid to the nam and address sup-
plied with the unit returned under warranty. Allow four weeks for repairs and shipping time. Repair of damaged units not otherwise within
warranty may be refused or done at a reasonable cost or charge at the option of DIG CORPORATION. This warranty gives you specic legal
rights, and you may also have other rights which vary from state to state.
INSTALLATION INSTRUCTIONS
Landscape Drip
Watering System
Model G77AS
www.digcorp.com
1210 Activity Drive
Vista, CA 92081-8510
Printed in the USA. We at DIG strongly believe in conservation.
Please recycle whenever possible. 083018 REV D 26-008
(20) 1-GPH PC Drippers, Black, part# B221B
(2) 2-GPH PC Drippers, Green, part# B224B
(2) 4-GPH PC Drippers, Red, part# B222B
(5) 1/4″Tubing Holder Stakes
part# P33B
(1) Hole Punch
part# D44
(3) 1/2″Tubing Holder Stakes
part# R60
(2) Goof Plugs
part# G79B

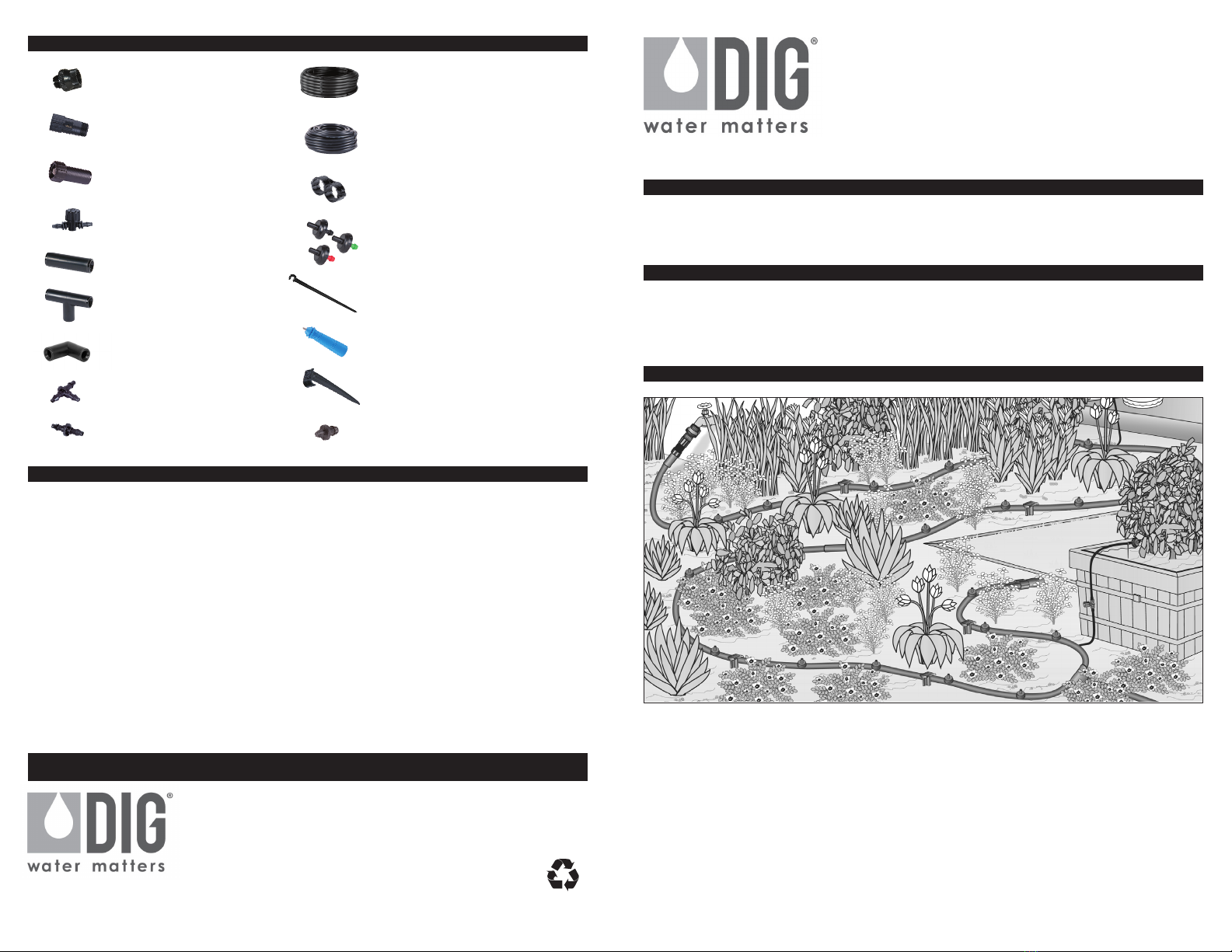

CONTENTS
(1) 3/4″ Backow Preventer
with FHT x MHT
part# D45
(1) 3/4″FHT Preset Pressure
Regulator at 25 PSI
part# D46
(1) 3/4″FHT Swivel Adapter
with Screen
part# C34
(1) 1/4″Ball Valve
part#D33A
(1) 1/2″Compression Coupling
part# C33
(1) 1/2″Compression Tees
part# C35
(1) 1/2″Compression Elbows*
part# C36
(5) 1/4″Tees**
part# H82A
(5) 1/4″Barbs**
part# H80A
(1) 50′of 1/2″Polyethylene Drip
Tubing .600″ID x .700″OD
part# B35
(1) 50′of 1/4″Black Micro Tubing
with .170″ID x 250″OD
part# B38P
(2) Hose End Figure "8"
part# F68B
*newly added
**3 additional tees and barbs added
TYPE OF PLANTS RECOMMENDED NUMBER OF DRIPPERS AND SPACING
Flowers
Vegetables
Small shrubs
and roses (up to two feet high)
Medium shrubs and
trees (two to four feet high)
Large shrubs and trees
(four to six feet high)
In sandy or loamy soil, place one, 1-GPH dripper every 10″to 12″. In clay soil, place
one, 1-GPH dripper every 16″to 20″.
In sandy or loamy soil, place one, 1-GPH dripper every 10″to 12″. In clay soil, place
one, 1-GPH dripper every 16″to 20″
In sandy or loamy soil, place one, 2-GPH dripper per plant. In clay soil, place two,
1-GPH drippers per plant 16″to 20″apart.
In sandy or loamy soil, place two, 1-GPH drippers per plant 10″to 12″apart. In clay
soil, place two, 1-GPH drippers per plant 16″to 20″apart.
In sandy or loamy soil, place three to four, 1-GPH drippers per plant 10″to 12″apart.
In clay soil, place three to four, 1-GPH drippers 16″to 20” apart.
Faucet connection:
Begin the installation at the water source by attaching
the backow preventer to your faucet , and then
attach the 25-PSI preset pressure regulator to the
backow preventer. Connect the poly tubing to the
3/4″swivel adapter and attach it to the pressure
regulator by turning “clockwise” until hand tight.
If you wish to automate the system, please select
a DIG battery or solar powered timer (model B09D,
B092A or EVO100), available online or in a store
near you.
Drip tubing layout:
Before installing the 1/2″poly tubing, uncoil the roll
and lay it out in direct sunlight (if possible) for 30
to 40 minutes. This will make it more pliable and
easier to work into the compression ttings during
installation.
Lay out the 1/2″poly tubing and run it next to as
many plants as possible. Secure the drip tubing to the
soil with the 1/2″drip tubing stakes. Install the poly
tubing in a gentle S curve to allow for contraction
at low to high temperatures.
Connect the 1/2″ drip ttings
Use 1/2″ tees (part #C35) and elbows (part #C36)
throughout the layout as needed. To install the 1/2″
compression ttings, cut the poly tubing with a hand
pruner, being careful to keep dirt from entering
the line. Hold the tting in one hand and the poly
tubing in the other and force the poly tubing into the
compression tting by moving it from side to side.
Note: Open the faucet and ush out the poly drip tubing
through the ends before installing the drip emitters.
Drip emitter installation:
The drip emitters can be installed along the poly
tubing at varying or specic spacings, depending on
the layout of the plants. To ensure high uniformity,
take care not to exceed the recommendations
provided in the kit specications.
To install the drip emitters, use one or both of the
two options:
Option 1:
Installing the drip emitters into the 1/2″poly tubing
Insert the drip emitters directly into the 1/2″tubing:
Punch a hole into the side of the poly tubing using the
small punch (part #D44). Snap the barbed side of the
drip emitter into the hole after the lines have been
ushed.
EVO 100
Solar Powered Hose
End Timer. Optional -
not included.
D52 Y-Splitter
Optional -
not included
B09D or B092A
Battery Powered Hose
End Timers. Optional -
not included.
1
2
3
1
2
3
SPECIFICATION
• Operating pressure: 10 to 45 PSI
• Recommended operating pressure: 25 PSI
(use with model D46 25-PSI pressure regulator)
• Flow rates and color codes:
- 1 GPH (4 L/H) color code - black
- 2 GPH (8 L/H) color code - green
- 4 GPH (12 L/H) color code - red
• Maximum recommended ow rate:
220 GPH (3.7 GPM)
• Poly tubing length and size:
50′x 1/2″with .600″ID x .700″OD
• Micro tubing length and size: 50′x 1/4″
• Total ow rate for this kit: 32 GPH (.53 GPM)
Option 2:
Installing the drip emitters into the 1/4″micro tubing
Extend the drip emitters using 1/4″micro tubing to reach
plants that are not near the 1/2″poly tubing: First, run a
length of micro tubing from the 1/2″poly tubing to the
plant and cut it. Then, insert a 1/4″barbed connector
(part #H80A) into the micro tubing. Punch a hole into the
1/2″poly tubing and insert the 1/4″barb into the poly
tubing. At the other end of the micro tubing, insert the
barbed side of the drip emitter after the lines have been
ushed. Add a stabilizer stake and secure to the ground.
Use the 1/4″barbed valve for manual control of individual
line of micro tubing.
Initial system start-up
Turn the water on again and ush the line[s]; this will
ush out any dirt or debris that may be in the line[s]. Close
the end of the poly tubing with the gure "8" hose end
(part #F68B).
Test and inspect the system to identify if there are any
leaks in the drip tubing laterals. If there are any leaks from
the barbed ttings or drip emitters, remove the ttings
or drip emitters and insert a goof plug to close the hole.
Reinsert the barb ttings or drip emitters nearby.
WATERING SCHEDULE
Open the faucet for 45 minutes to 1 hour every 2 to 3 days, depending on your location, weather and soil
type. Faster draining, lighter soils will need to be irrigated more frequently than heavy, soild soils with
high clay content. After a few days, check the soil and the health of the plants, and adjust the watering
schedule as needed. If you have an irrigation controller and additional time is required, adjust the irrigation
controller program with a longer watering duration and/or additional start times.
