1. General

This guide is intended for trained specialised personnel. Therefore, it does

not include basic working steps.

The seal on the energy meter must not be damaged!

A damaged seal will result in immediate invalidation of the factory

warranty and verication. The cables supplied with the meter

must neither be shortened, extended nor changed in any other way.

Legal regulations and operating instructions for the use of energy

meters must be observed!

The installation must only be carried out by a specialist energy

meter installation and electrical company. The personnel must

be trained in the installation and handling of energy meters and electrical

devices as well as the applicable guidelines.

Medium: Water, according to CEN/TR 16911.

If water additives are used (e.g. corrosion protection), the user must

make sure that the corrosion resistance is adequate.

This product is designated (where relevant) as a pressure main-

taining component in the sense of the Pressure Equipment Direc-

tive (PED) and may only be operated as a pressure maintaining

component with temperature sensors suitable for this purpose.

This product is not intended for used as a safety device in the sense of the

Pressure Equipment Directive (PED).

The medium temperature is specied as 5 ... 105 °C (130 °C)

The temperature range depends on variant and nominal size.

The exact temperature range is shown on the type plate.

The encapsulated variant is to be used if condensation is expected.

The operating/ambient conditions are 5 … 55 °C; IP 54/64; 93 % rel.

humidity.

Ambient temperatures below 35 °C have a positive eect on battery

lifetime.

If the ow sensor is insulated with the pipeline, the calculator

must be accessible.

-5-

English Italiano Dansk Svenska

Detailed user guide available at https://www.diehl.com/metering/en/

support-center/download-center/.

The Software IZAR@Mobile2 is used for reading out data and conguration

and can be downloaded from the Internet under:

https://www.diehl.com/metering/en/support-center/download-center/

Changing of communication relevant parameters can result in

the loss of OMS certication.

2. Transport and storage

Unpacking

Energy meters are measuring devices and must be handled with care. To

protect against damage and soiling, they should only be unpacked imme-

diately prior to installation.

Transport

The transport of the meter is permitted only in the original package.

When sending wireless measuring instruments / components by

air, disable the wireless (place in aircraft mode) before shipping.

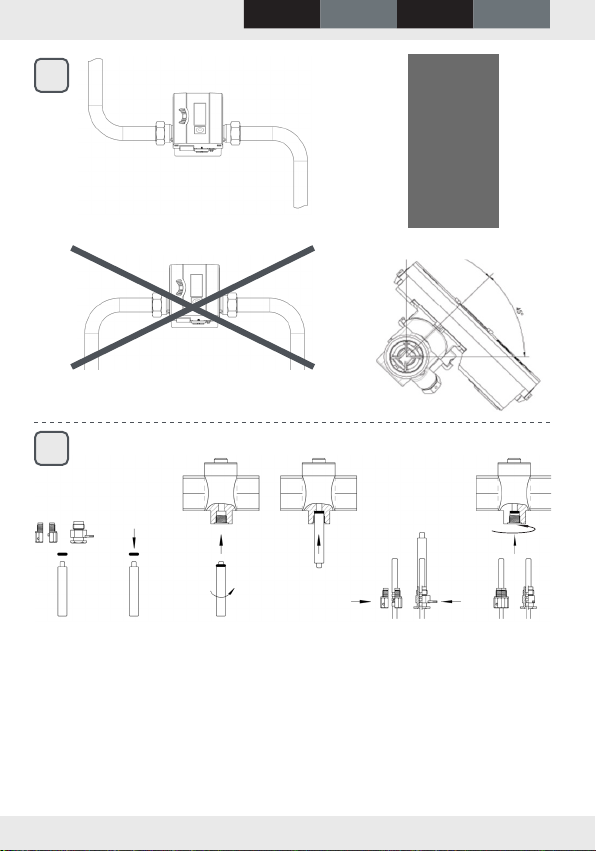

3. Installationofenergymeter(g.I)

Depending on the design and application (heat or cooling meter), the

energy meter is installed in either the hot or cold line of the system.

The ow sensor must be installed so that the ow direction matches

the arrow direction on the sensor.

Depending on the version, the ow sensor must be installed in inlet or

outlet. The installation position is displayed in the info loop 3.4 (see

"Information loop (3)" on page 13) and, if necessary, also by means

of a pictogram.

-6-

English Italiano Dansk Svenska

no pictogram

(Installation position

can be set on site,

5.1 on page 9)Inlet Outlet

Calming sections are not necessary before and after the ow sensor.

For systems without temperature mixing, a straight calming section of

3-10 x DN upstream of the ow sensor is recommended.

The meter can be installed in both horizontal and vertical pipe

sections, provided air bubbles cannot collect in the meter.

The ow sensor must always be lled with liquid.

Avoid frost at the meter.

We recommend installing the ow sensor tilted through 45°.

The minimum system pressure must be 1 bar to avoid cavitation.

Make sure the meter is installed suciently far away from possible

sources of electromagnetic interference (switches, electric motors,

uorescent lamps etc.).

If possible install the cables of the ow sensor or temperature sensor

freely suspended (not bundled - aerial eect) with sucient distance

from electromagnetic interference sources.

T: 5 … 90 °C

Twater> Tambient

T: 5 … 105 / 130 °C

Twater< Tambient

-7-

English Italiano Dansk Svenska

For medium temperatures from 90°C or for TWater<TAmbient (cooling

meter application or heat meter with cooling tari application) the cal-

culator must be removed and tted at a sucient distance from any

heat sources. A wall holder (optional) or a spacer holder (optional) is

available for this purpose.

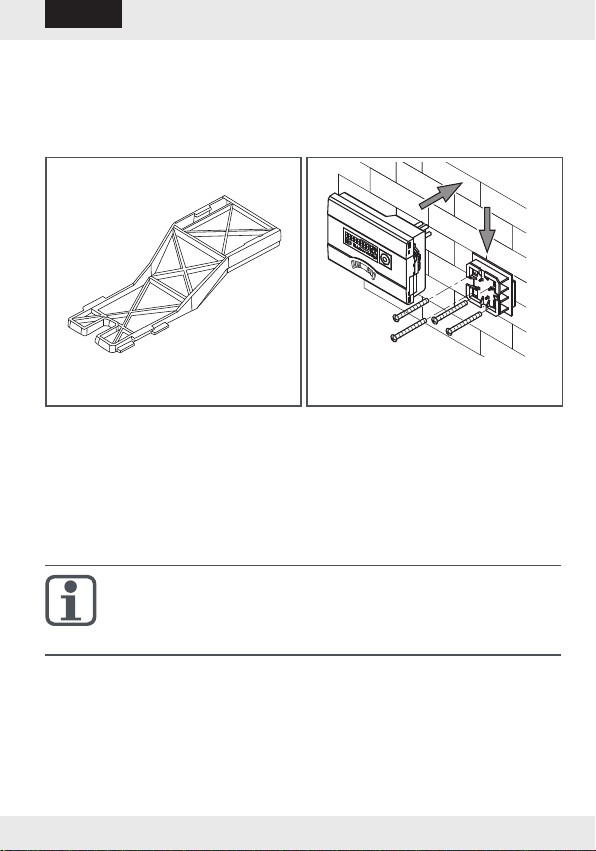

Spacer holder Wall mounting

It is recommended that shut-o valves are tted before and after the

energy meter to simplify removing the meter.

The meter should be installed in a conveniently accessible position for

service and operating personnel.

Initial operation is to be carried out and recorded after installation.

4. Temperature sensor

Handle the temperature sensor carefully!

The sensor cables are provided with coloured type plates:

Red: Sensor in the hot line

Blue: Sensor in the cold line

The connecting cables must not be shortened or extended.

The free temperature sensors can be tted so they are directly sub-

merged (e.g. ball valve) or in a pocket tested for conformity for this

sensor type.

Sensors must be installed symmetrically.

-8-

English Italiano Dansk Svenska

4.1 Installation in the ball valve with adapter

(coupling set in a separate bag)

Use ball valves with installation option for temperature sensor with thread

M10 x 1.

Preparatory measures

Close the ball valve.

Unscrew the plug screw from the ball valve.

Installation(seeg.II)

1. Place the O-ring from the attached coupling set (type A or B) on the

mounting pin.

2. Insert the O-ring with the mounting pin into the sensor hole of the ball

valve (turn the mounting pin).

3. Position the O-ring in its nal position using the other end of the

mounting pin.

4. Fastening screws

Type A (plastic) - plug the fastening screw onto the temperature sen-

sor.

Type B (brass) - insert the temperature sensor in the fastening screw

and place the sensor in the mounting pin. Press in the dowel pin com-

pletely and remove the mounting pin.

5. Insert the temperature sensor with the securing tting in the ball

valve and manually tighten (2-3 Nm).

4.2 Installation in a pocket

It is recommended that temperature sensors for DN25 rated sizes or

smaller are only tted in new installations such that they are directly

immersed.

This ensures higher measuring accuracy.

-9-

English Italiano Dansk Svenska

5. Start-up operation

Once the meter has been installed, the components (calculator, volume

measuring component and both temperature sensors) must be sealed

with a tamper-proof seal and the meter started up by a specialist com-

pany approved according to the legislation.

Check the display for a plausible indication of ow rate and temper-

atures.

User guide for further Information is available at

https://www.diehl.com/metering/en/support-center/download-center/

5.1 Inlet/outletsetting(optionalexworks)

Optionally, the installation position of the meter can be set in-situ in loop 3

("3.4" on page 13). Consequently installation in the inlet (ow) or outlet

(return) is possible.

This setting must be made prior to initial operation of the meter.

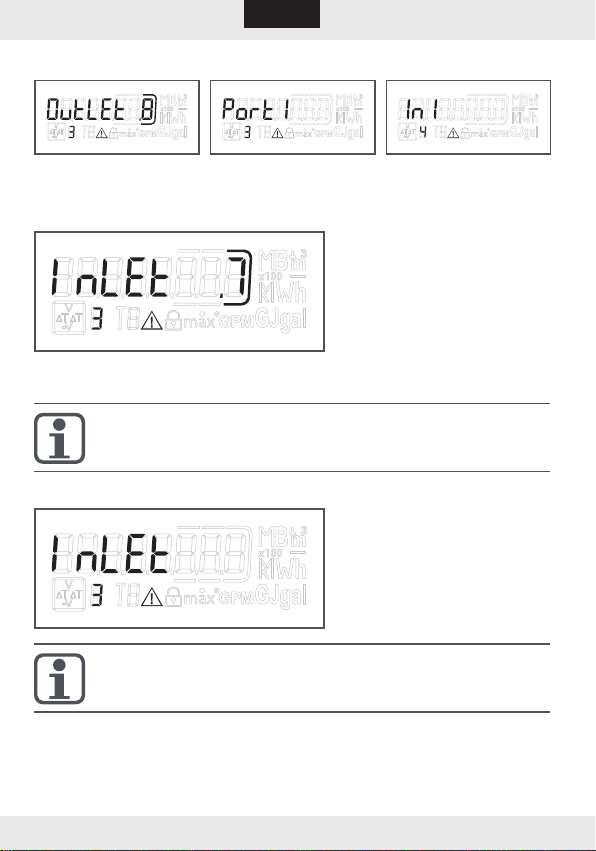

As supplied, the outlet (return) is pre-set and is shown as follows in the

display. Setting and number of possi-

ble changes.

To changeover, switch to the "Outlet" window in loop 3 (see 9. Operation).

Pressing and holding the button for > 6 s changes the display/setting to

"Inlet".

This setting can be changed a total of 8 times by pressing the button.

The display changes during the 6 s.

This does not inuence functioning.

-10-

English Italiano Dansk Svenska

Sequence during changing

Button pressed <3s Button pressed >3s

If the button is pressed and then held for > 6 s, the meter performs the

command shown in the display. In each change, the framed

number in the display is

reduced by 1.

After 8 changes, it is no longer possible to change the installation position.

The possibility of changing lapses either immediately upon

detection of water, or after three hours’ operation without error

detection (pre-set ex works).

The following indication appears in the display (example):

The changes indication dis-

appears.

When changing the installation position, the sensors must be

matched to the actual installation (see chapter 4).

Table des matières

Langues :

Autres manuels Diehl Metering Instrument de mesure

Diehl Metering

Diehl Metering Sharky 775 Instructions d'installation

Diehl Metering

Diehl Metering IZAR DOSING Manuel d'utilisation

Diehl Metering

Diehl Metering IZAR RADIO EXTERN AIR Manuel utilisateur

Diehl Metering

Diehl Metering AQUILA DN15 Manuel utilisateur

Diehl Metering

Diehl Metering HYDRUS 171A Manuel utilisateur

Diehl Metering

Diehl Metering Sharky 775 Manuel utilisateur

Diehl Metering

Diehl Metering Sharky 775 Manuel utilisateur

Diehl Metering

Diehl Metering AERIUS Manuel utilisateur

Diehl Metering

Diehl Metering HYDRUS 171A Manuel utilisateur

Diehl Metering

Diehl Metering HYDRUS 171A Manuel utilisateur

Diehl Metering

Diehl Metering HYDRUS 171A Manuel utilisateur

Diehl Metering

Diehl Metering Hydrus DN 15 Series Manuel utilisateur

Diehl Metering

Diehl Metering IZAR PULSE H Manuel utilisateur

Diehl Metering

Diehl Metering AURIGA DN 15 Manuel utilisateur

Manuels Instrument de mesure populaires d'autres marques

Suaoki

Suaoki D40 Manuel utilisateur

Elster

Elster BK-G1.6 Manuel utilisateur

Endress+Hauser

Endress+Hauser Deltabar FMD71 Manuel

Duratool

Duratool D03128 Manuel utilisateur

Vega

Vega VEGAPULS 65 Manuel utilisateur

Tonghui

Tonghui TH2618B Manuel utilisateur

Tenmars

Tenmars TM-801 Manuel utilisateur

MSR

MSR 145 Manuel utilisateur

TPS

TPS WP-82 Manuel utilisateur

ELMETRON

ELMETRON CP-511 Manuel utilisateur

PCB Piezotronics

PCB Piezotronics 003C30 Manuel utilisateur

Tenma

Tenma 72-10465 Manuel utilisateur

Endress+Hauser

Endress+Hauser Proline Promag 50 Caractéristiques techniques

Siemens

Siemens SITRANS F Coriolis FCT030 Manuel de la liste des pièces

KLINGER

KLINGER CMF V Series Manuel utilisateur

EXFO

EXFO FTB-2 Manuel d'exploitation et d'entretien

Keysight

Keysight M8290A Manuel utilisateur

ADTEK

ADTEK MW-5 Manuel utilisateur
