DiamondCore Tools CINK Manuel utilisateur
The CINK
User Manual
diamondcoretools.com | info@diamondcoretools.com2
Introduction ...........................................................................................................................................2
Safety Precautions ...............................................................................................................................3
Quick Start ...............................................................................................................................................4
Operation .................................................................................................................................................6
Maintenance ..........................................................................................................................................7
Troubleshooting ................................................................................................................................ 11
Frequently Asked Questions ....................................................................................................... 12
Parts & Accessories ........................................................................................................................... 13
Warranty ................................................................................................................................................ 13
CONTENTS
INTRODUCTION
The CINK is a complete, self-contained system for cleanup of clay, clay water, pottery tools and accessories. The
system is designed to prevent clay from going down drains in plumbing or septic systems.
CONTENTS | INTRODUCTION
| 619-905-9400 3
• Read this user manual completely before operating the unit.
• Follow all instructions and operating procedures.
• Avoid splashing water in eyes.
• Avoid splashing water on electrical components.
• Do not allow hoses to become bent or kinked.
• Do not leave the pump running for extended periods of time.
• Do not allow the pump to run “dry” without water in the system for more than 2 minutes.
• Do not allow the sink basin drain to become plugged while the system is running.
• Do not plug the drain of The CINK to ll the sink basin to wash parts.
• CAUTION: Use The CINK only in areas where if water spills it will not damage oors or carpeting, etc. Be aware that
water may drip from hoses or spill when bucket lids or lters are removed.
• Position The CINK far away enough from electrical outlets so that water cannot splash on the outlet and plug.
• WARNING! Do not allow the power cord to lie in standing water at any time.
• Plug the power cord into a properly grounded, three-prong electric power outlet only.
Always use a surge protector.
• Protect the power cord from being damaged, pinched, bent, stepped on, rolled over, stretched, etc.
• WARNING! Do not use any other electrical appliances on or near The CINK to avoid any shock danger.
• When performing maintenance on The CINK, unplug the power cord from the electric outlet.
• Always leave The CINK unplugged during a lightning storm and when it is not in use.
• To reduce the risk of re or electric shock, do not expose The CINK to outdoor elements such as rain, snow, etc.
• Remove all water and clay from the entire system before freezing conditions exist.
• Engage the wheel caster brakes to keep the unit from moving when it is plugged in or is in use.
• When moving the cart from one location to another:
1. Unplug the power cord from the electrical outlet.
2. Remove all items from The CINK or drainboard.
3. Unlock the locking casters.
4. Move carefully to avoid tipping the unit over.
5. Relock the wheel casters when The CINK is in its new spot.
• Do not place any objects over 25 pounds on the unit or sit on or stand on this product as the unit may tip over.
Objects placed on The CINK may fall, causing injury or damage to the user or to the unit.
• The CINK is to be used only with clean water to clean clay, pottery tools and brushes, slip water buckets, sponges,
splash pans, etc. (water-soluble, clay product materials).
• WARNING! This CINK and system contain NON-POTABLE WATER.
DO NOT DRINK THE WATER IN THIS UNIT AND THE SPRAY NOZZLE.
• CAUTION: DO NOT use The CINK for: beverages, food residue, bodily uids, chemicals, oil-based materials,
paints or glazes. The CINK is NOT designed for disposal or ltering of hazardous or biohazardous materials.
• Do not attempt to connect The CINK to any septic or sewer plumbing systems.
• Disposal of water and material collected in this system should be in accordance with local laws and regulations.
• CAUTION: Freezing conditions will damage The CINK (see Page 6).
SAFETY PRECAUTIONS
SAFETY PRECAUTIONS
diamondcoretools.com | info@diamondcoretools.com4

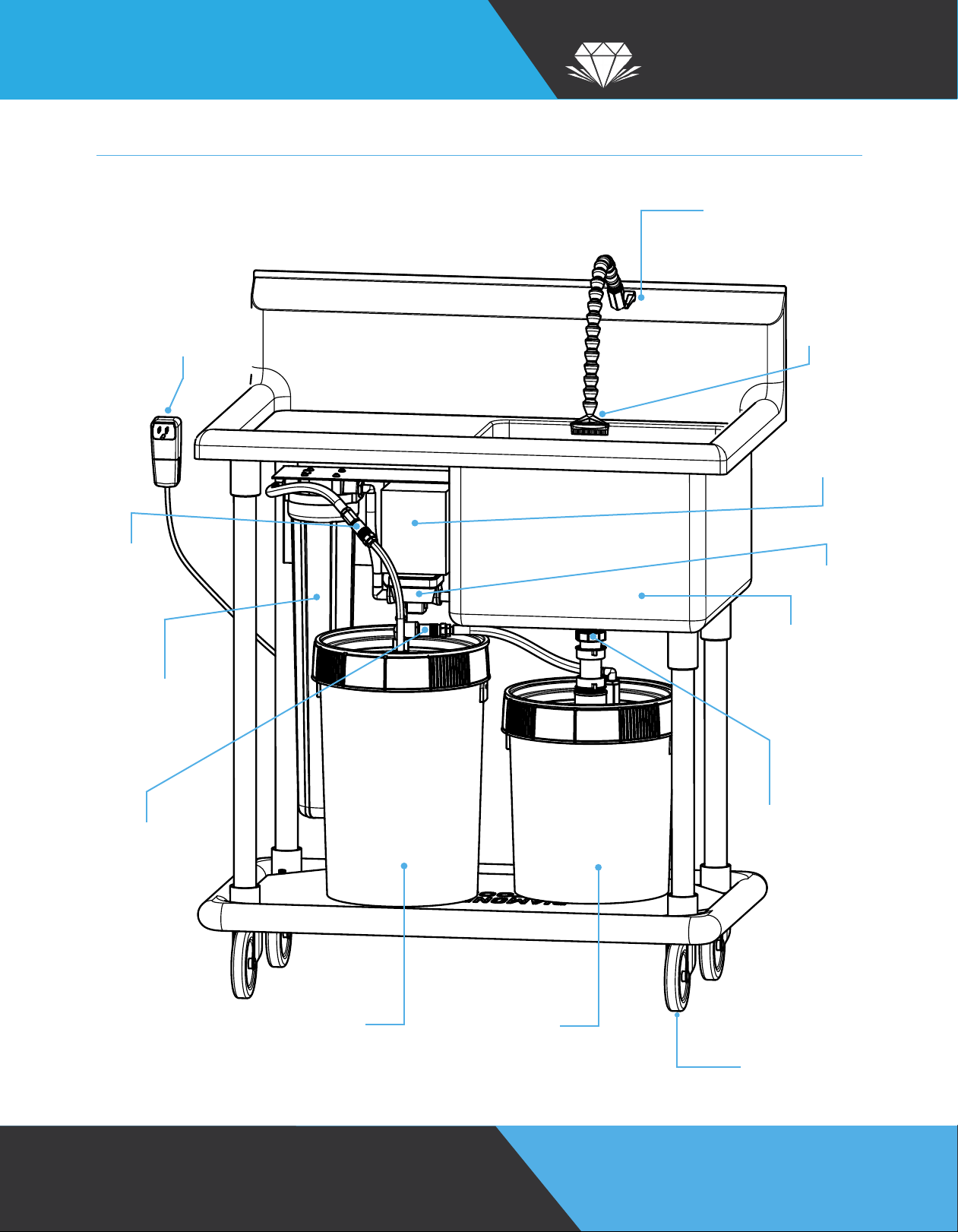

QUICK START
Sink Basin
Bucket - 5 gal.
Valve
(Up is OFF, Down is ON)
Bucket - 6.5 gal.
(Bag Filter Inside)
String Filter
Housing
(Big Blue)
(O-Ring inside)
Spray
Nozzle
Drain
Union
Locking Front
Caster Wheels
6.5 gal.
Quick
Disconnect
Pump
Pump
Cover
5 gal.
Quick
Disconnect
GFCI
QUICK START
| 619-905-9400 5
10
2
Separate the quick disconnects and
the drain union to remove buckets.
3
Add fresh water to buckets.
Stop at ll lines.
4
Screw on bucket lids. Be sure
they are STRAIGHT and TIGHT.
Remove blue lter housing.
Twist clockwise.
6
Check string lter and ensure O-ring
is in place. Fill with water to top.
8
Reconnect tubes with
quick disconnects.
Connect drain union. Open valve.
Reattach big blue housing. Be sure
it is straight and tight. Turn
counter-clockwise to tighten.
11
5
7
4
9
Remove clear gasket taped
to 5-gal. bucket lid. Insert
gasket into drain union.
Plug in and let run for 1 minute.
12
Check
for
O-ring
QUICK START
1
Remove CINK from pallet. Position
CINK in nal location next to plug.
diamondcoretools.com | info@diamondcoretools.com6
OPERATION
OPERATION
WARNING! NEVER plug the sink basin drain and ll the basin with water to wash parts. This may cause the buckets
to collapse if the pump keeps pumping. The CINK system is designed to function with continuous recirculation of
water.
Note: Under heavy continuous use, water may become cloudy. If the system is allowed sedimentation time, ner
particles will settle. You should periodically refresh the water in the system (at least once per week) after adequate
sedimentation time is allowed. See Maintenance (Page 7) for instructions.
Note: Unplug The CINK if it will be left unattended for extended periods of time.
Key Operating Steps
1
234
Check water levels and that faucet valve is o (system won’t function
properly if 6.5-gal. bucket is below 1/3 full). With faucet valve OFF
(handle upward), aim spray nozzle into sink basin.
Plug GFCI power cord into
3-prong electric power outlet
(observe safety cautions).
Turn the faucet valve ON
(handle down) to begin
the ow of water.
When nished, turn the faucet
valve OFF (handle up).
1
| 619-905-9400 7

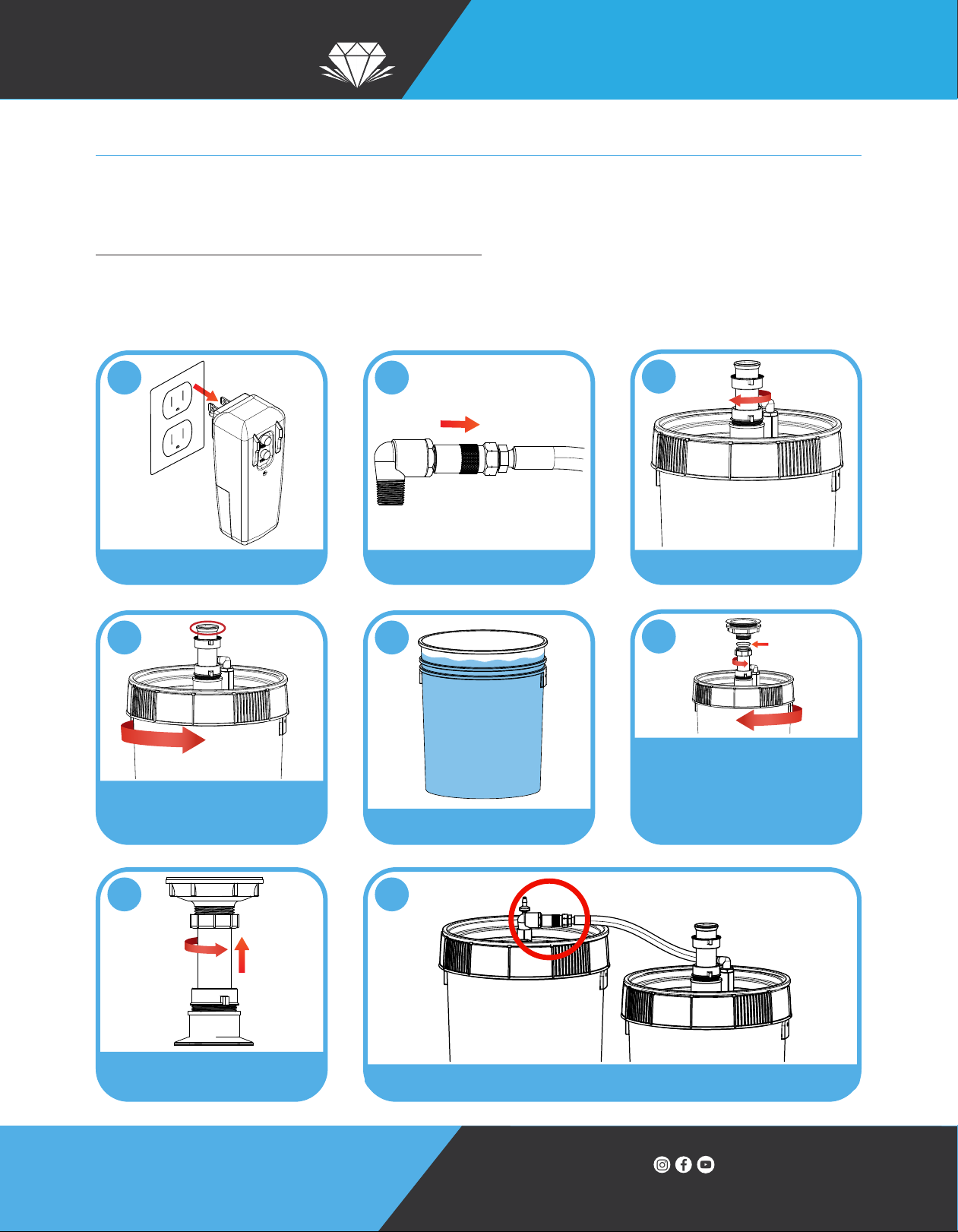

1
Unplug the power cord
from the electrical outlet.
2
Disconnect the 5-gal.
quick disconnects.
3
Disconnect upper drain union
turning clockwise.
4
Twist counter-clockwise to remove
bucket and lid (keep track of clear
plastic gasket). Pour o water
and remove waste clay.
5
Rell the 5-gal. bucket with
fresh water to the ll line.
6
Reattach the lid. Make sure it is
seated properly and tight (be
careful not to overtighten). Slide
the bucket under the sink and
align the drainpipe. You may need
to push down on the bucket lid
so the drainpipe will t.
7
Turn the upper drain union counter-
clockwise to tighten. Be sure
clear plastic gasket is in place.
8
Reconnect the quick disconnect linking the
5-gal. bucket to the center of the 6.5-gal. bucket.
MAINTENANCE
MAINTENANCE
To maintain The CINK, you will need to empty the 5-gallon clay collection bucket, clean the lter bag and replace the
string lter cartridge periodically. You may also need to winterize or prepare The CINK for periods of unuse. Remem-
ber, as you perform these maintenance steps, small amounts of water may leak out from the system.
Emptying the 5-Gallon Clay Collection Bucket
The 5-gallon bucket is intended to capture most of the clay and slip that will be put into The CINK. You will need to
empty this bucket more frequently than cleaning or replacing the other two lters.
To empty the 5-gallon bucket when it has collected a signicant amount of clay:
diamondcoretools.com | info@diamondcoretools.com8
1
Unplug the GFCI power cord
from the electrical outlet.
2
Disconnect both disconnects.
3
Remove the 6.5-gal. bucket and lid.
4
Remove lter bag by pushing
up, then tilt at an angle and
pull o sideways.
5
Clean lter bag and put back on
lter head. Pour water from bucket
and dispose of clay sediment.
6
7
Make sure lid is seated
properly and tight.
8
Slide the bucket back on the cart.
Rotate the bucket so that the elbow
connector in the center is facing
toward the 5-gal. bucket.
9
Reconnect both disconnects.
Reinstall the lter bag in the reverse
order it was taken o. Rell bucket up
to the ll line before reassembly.
MAINTENANCE
Emptying the 6.5-Gallon Filtered Sediment Bucket and Cleaning the Filter Bag
The lter bag in the 6.5-gallon ltered sediment bucket is designed to stop particles and debris that are not settled
out in the 5-gallon clay collection bucket (smaller bucket). This lter can usually be cleaned instead of replaced. The
sediment level in the bottom of the 6.5-gallon bucket should not be allowed to get above 1 inch thick.
To empty the 6.5-gallon ltered sediment bucket and clean the lter bag:
| 619-905-9400 9
1
Unplug GFCI power cord. Push down on the red button
to release vacuum.
Turn blue lter housing
clockwise to remove. Caution:
Filter housing is full of water.
4
Remove and clean string
lter and housing. Do not
misplace the black O-ring.
5
Remove black O-ring and wipe
the groove clean. Place the
O-ring back into the groove. If it
appears damaged or crimped,
it should be replaced.
6
Reinsert clean or new string lter,
making sure that it slips down
over the standpipe inside on the
bottom of the blue housing. Rell
with water to top of housing.
7
Reconnect the blue lter housing,
making sure that the string lter
slips over the upper standpipe.
Twist the blue lter housing counter-
clockwise and hand-tighten.
DO NOT OVERTIGHTEN.
8
Make sure the valve handle
is OFF and the faucet nozzle is
aimed into the basin. Plug the
power cord back in.
2
3
MAINTENANCE
Changing the Filter Cartridge in the Big Blue Filter
The big blue lter collects ultra-ne clay particles and should be cleaned at least every 3 months. Eventually, the
pores of the lter cartridge will ll up and the water ow from the spray nozzle will decrease. At that time, please visit
www.DiamondCoreTools.com, call 619-905-9400 or email info@diamondcoretools.com to purchase replacement lters.
To change the lter cartridge:
diamondcoretools.com | info@diamondcoretools.com10
1
Unplug the unit and empty
and clean both buckets and
the string lter housing.
DO NOT REPLACE ANY WATER.
2
Drain pump by removing tabs
and pulling tubes from sockets.
3
With tubes removed, purge the
pump of any water by plugging in
the power cord for only 2 seconds,
THEN UNPLUG THE POWER CORD.
1
2
2 seconds
MAINTENANCE
Note: After the system has had a chance to dry, be sure to plug the hose ttings back into the pump and press the
blue or black lock tabs on the pump back down all the way.
Extended Non-Use of The CINK
If you don’t plan to use The CINK for an extended period, we recommend unplugging the unit, removing all water
and clay from the system, cleaning the unit and allowing the lters to air dry. Follow instructions for Winterizing The
CINK above.
Winterizing The CINK (Cold Weather or Freezing Conditions)
CAUTION: The CINK is NOT designed to operate or be stored with water or clay in it during freezing conditions.
If freezing conditions are anticipated, remove all water and clay from the entire system. The manufacturer is not
responsible for any damage to the system, caused by the user, due to cold weather or freezing conditions.
Water Cleanliness
If you want to include an additive to the water to help prevent the water from smelling, you can add pool or spa
chlorine or oil. Additives are also good to help prevent bacteria in the water.
