INSTRUCTIONS FOR USE AND
INSTALLATION TOASTERS
TS 1270 / TS 3270
Made in France
Septembre 2015
TOASTERS
TS 1270 / TS 3270
Congratulations for the acquisition of this upmarket appliance made in France. You
chose an appliance which alloys the best technical qualities with a big user-
friendliness. We wish you the biggest contentment.
1. SECURITY INSTRUCTIONS
Please respect these instructions scrupulously to avoid any
risk of fire, electric shock, scald or other wounds and dam-
age. During the use of this appliance, fundamental circum-
spection of security must always be noticed, such as:
-Take into account the instructions and keep it system-
atically with the appliance.
-Install the appliance always in instructions respect. A
10 cm distance minimum with the partition or the wall
is necessary.
-Protect the appliance from direct light of the sun,
frost and humidity.
-Never leave the appliance within the reach of chil-
dren or disabled persons without surveillance.
-Never move the appliance when it is working or
when the surfaces of cooking are still hot.
-Check that the appliance is definitely off before con-
necting it up or disconnecting it.
-Do not touch the hot surfaces of the appliance. The
temperature of the hot surfaces can be very important
when the appliance is working. Always use handles
and control knobs.
11
-Do not use the appliance for other functions than de-
termined use.
-Do not leave the electrical cord in contact of hot sur-
faces.
-The appliance should not be used close to combus-
tible materials.
-During use, look after not to obstruct hearings of aer-
ation of the appliance.
-To avoid any electric shock, never plunge the appli-
ance, the cord or plug in water or quite other liquid.
-If the cord is harmed, it must be replaced by the pro-
ducer, his after sale service or persons of similar skills
to avoid any risk.
-Entrust repairs only to a skilled person.
-Use only spare parts of origin.
-At the end of cooking, before cleaning the appliance,
do not forget to disconnect it.
2. CONTENTS OF CARDBOARD PACKAGING
Device: A toaster with protecting grids
Accessories: - One tray
-One cooking grid with handles (TS 1270/TS 3270)
-One cooking grid with deflector (TS 3270 only)
-The present note
See exploded views for TS 1270 / TS 3270 at the end of the document.
3. CONFORMITY OF USE
Use the appliance only to cook, reheat, glaze, brown, toast… in quantity your croque-
monsieur, pizzas, quiches, cheese/meat puffs….with no preheating, smokes or
odours.
12
4. WAY OF FUNCTIONING
Unique in the world, these salamanders toasters with 1 or 2 levels and 2 or 3 quartz
tubes lines enable to defrost, brown, glaze, grill or toast every kind of dishes.
For fast service, the top part of the salamander (TS 3270) is closed and fitted with a
tray with handles.
According to the dimension of the machine, you can cook instantly at core with no
smoke and odour thanks to the rays of the infrared quartz tubes from 200 to 400
toasts per hour.
Preheat is not necessary as the temperature rise is very fast, less than 30 sec.

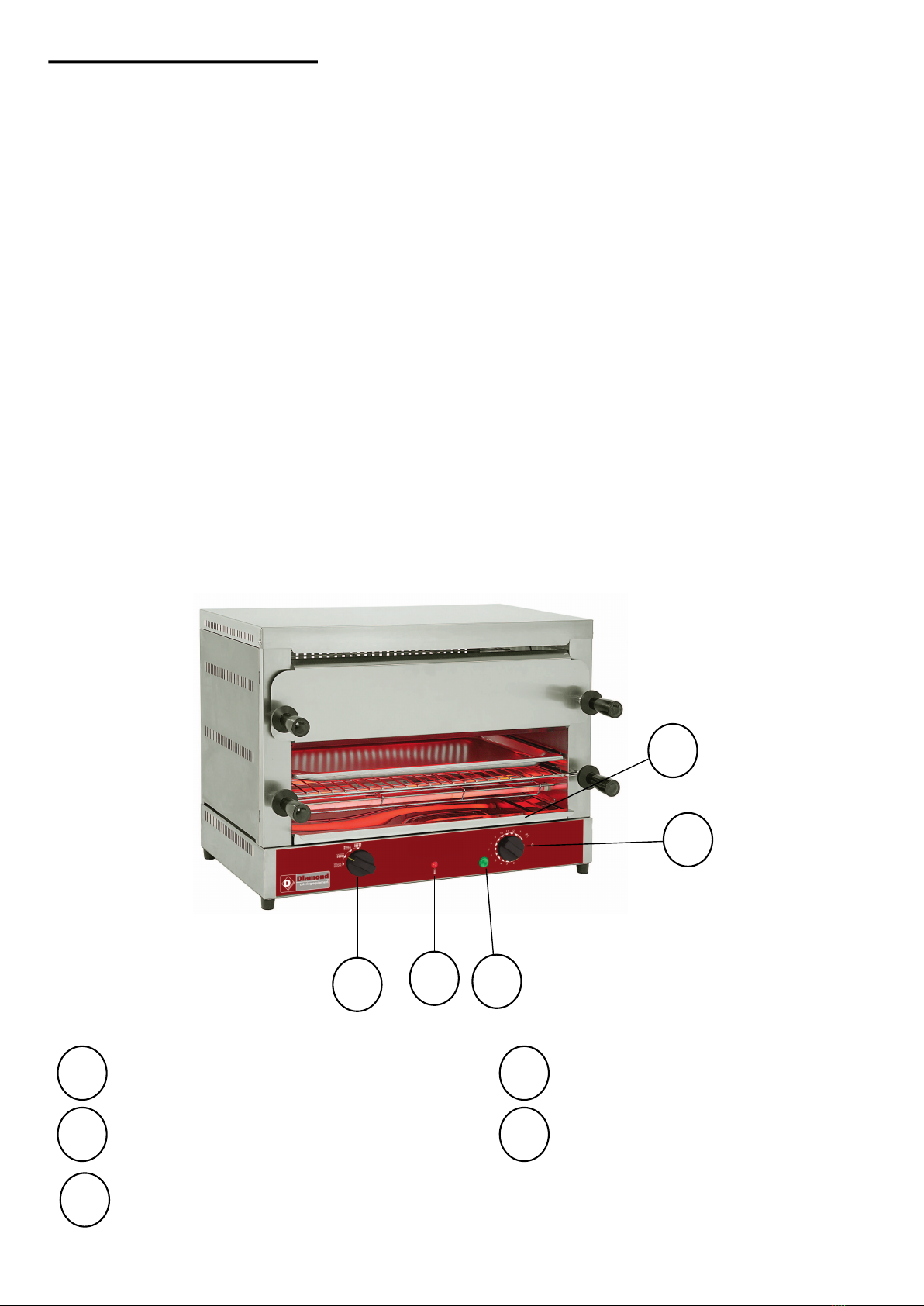

To turn on the toaster, just action the commutator (n°1 on picture) on the desired posi-
tion (from 2 to 4), turn on the timer (n°4 on picture) according the desired cooking
time. The orange pilot light (n°2 on picture) ignites. Your machine is working.
The selection of the cooking zone is made through the commutator.
Never use the toaster without its tray (n°5 on picture).
Commutator Orange pilot light
On/off pilot light Timer
Tray
13
5
3
1 2
4
12
4
3
5
5. FUNCTIONING / MANIPULATION
a) Installation / assembly:
-Unpack carefully the device of its packaging.
-Place it on a plane and heatproof surface.
-Never place the device near a wall or near a partition makes of combustible ma-
terials even if it is very well isolated.
-A distance of minimum 10 cm with the partition or the wall is necessary.
-Remove the protective films
b) First starting:
During the first use, warm your machine up outside to evacuate residual smokes of
manufacturing oil from the metallic parts. This may emit a slight smell for a few mo-
ments.
First cleaning
Clean the device before the first use. (See 6. Cleaning)
Connection of the device
-Check that the tension and the frequency of the electricity network suit to the values
indicated on the descriptive plate.
-Check that neither the cord nor the plug are damaged. If necessary, it has to be re-
placed by the manufacturer, its after sale service or any qualified person to avoid any
risk.
-Make sure that every control knob is positioned on 0.
-Unwind completely the electric power cable and connect it in a plug connected with
the earth.
-The device is connected.
NB: in case of connection of the device in a plug without earth protection or directly on
the electricity network, confide its connection to a qualified person .
14
c) Use of device :
Elements of command and display
Putting on
Turn on the commutator (n°1 on picture) on the wished position.
Turn on the timer control knob (n°4 on picture) on the wished cooking time
The orange pilot light (n°2 on picture) ignites. The machine is on.
You can use your toaster in continuous by turning the timer on left side from position
0. Caution : do not forget to turn off your pizza oven after use.
Temperature setting
Set the power desired by positioning the commutator (n°1 on picture) to the wished
position.
Stopping the appliance
Set the timer (n°4 on picture) on 0
Set the commutator (n°1 on picture) on 0: the appliance is no longer functioning.
Disconnect the power cable.
Clean the appliance. (see 6. Cleaning)
d) Breakdown / repair:
In case of breakdown or of damaged part, please call your after-sales service and
confide any technical operation to qualified person.
Command/Display Function
Commutator 4 positions (n° 1 on pic-
ture) :
Position 1
Position 2: Toaster/salamander
Position 3: Pizza oven
Position 4
Stop
Bottom and middle quartz tubes on
Top and middle quartz tubes on
All the tubes warm
Orange pilot light (n°2 on picture) Machine is on
Green pilot light (n°3 on picture) On/off
Timer 15 min (n°4 on picture) Cooking time
15
When you contact the after-sales service of your distributor or your store, give him the
complete reference of your device (commercial name, type and serial number). This
information appears on the visible descriptive plate behind the device.
6. CLEANING AND MAINTENANCE
-Disconnect the device.
-Let cool completely the device before any technical intervention or cleaning.
-Never clean the quartz tubes when they are hot
-Avoid touching quartz tubes with your fingers but use a cloth moistened with spirit.
-Clean regularly the external walls of your device with warm water and wash liquid:
avoid the abrasive towelling. Rinse your device with a wet sponge.
-Never clean the device under a water jet, the infiltrations would risk to damage it in a
irreparable way.
-Never immerse the device, the cord or the plug in the water or quite other liquid to
avoid any electric shock.
-During a prolonged non-use, we recommend you strongly to keep the device shield-
ed from the humidity.
7. TECHNICAL SPECIFICATIONS
Wires colours correspondence Phase 1
Phase 2
Phase 3
Neutral
Earth
Brown
Black
Grey
Blue
Yellow-Green
8. NORMS AND LEGALS DISPOSALS
The device is conform to :
IEC/EN 60335-1
IEC/EN 60335-2-48
EN 55014-1 + 55014-2
EN 61000-3-2 + 61000-3-316
Models TS 3270
1 cable
TS 1270 TS 3270
2 cords
Outside dimensions mm 640x380x475 640x380x330 640x380x475
Weight 19 Kg13 Kg 19 Kg
Power 4000 W2700 W 2 x 2000 W
No quartz tube 969
Current 17.4 A11 A 8.5 A/Phase
Voltage 380-440 V 3 N ~220-240 V ~ 2 x 220-240 V ~
9. ELIMINATION OF THE ELECTRIC AND ELECTRONIC WASTE
The device respects the directives:
2002/96/CE (DEEE) N°34270064800021
2002/95/CE (ROHS)
2006/95 CE
2004/108 CE
Reach rule
Never put the device among household waste.
The device must be put down in a centre of recycling for the electric equipments.
The materials of the device are indeed reusable. By eliminating correctly the electric
and electronic wastes, the recycling and quite other shape of re-use of worn equip-
ments, you participate in a significant way in the environmental protection.
For any information about the collection of electric and electronic waste, please con-
tact your distributor.
10. GUARANTEE
Conditions of guarantee
The guarantee applicable to any device is the commercial guarantee of the distributor
or the retailer. Please contact the store where you bought your device to know the
precise conditions.
The guarantee grants no right for damages.
The dispositions which follow are not exclusive of the profit of the legal guarantee
planned by articles 1641 and following ones of the Civil code relative to the defects
and the latent defects.
Exclusion clauses of the guarantee
Bad installation and bad maintenance, in particular if they do not respect cur-
rent regulations or instructions appearing in this user guide.
Cannot benefit from the guarantee the repairs required as a result of false operations,
of inappropriate use, of carelessness or of excess loads of the device, as well as
those resulting from variations of the power supply, over tension or from defective in-
stallations.
17
The damage due to shocks, bad weather is not flatware by the guarantee. The materi-
al travels at the risks of the user; in case of delivery by carrier, the consignee has to
have reservations towards the carrier before any delivery of the device.
The guarantee comes to an end in case of intervention, of repair, of modification by
no qualified persons, or of use in inappropriate purposes.
18
