Dialight Vigilant Manuel utilisateur

9100HZC280501 REV B

Dialight, 1501 Route 34 South, Farmingdale, NJ, USA 07727

Tel: 732 919 3119 Fax: 732 751 5778 www.dialight.com

Page 1

Area Light with Battery Backup UL1598/A / UL844 / UL924

Important Information

These instructions contain safety information, read and follow them carefully. Dialight will not accept any

responsibility

for

injury, damage or loss, which may occur due to incorrect installation, operation or maintenance.

Operation/Installation

Instructions

Note:Save these instructions for future use

use.

Note:These instructions are for Battery Backup specific case only. For

general Area Light information, see supplemental instruction sheet

9100HZC280501 REV B

Dialight, 1501 Route 34 South, Farmingdale, NJ, USA 07727

Tel: 732 919 3119 Fax: 732 751 5778 www.dialight.com

Page 2

Area Light with Battery Backup UL1598/A / UL844 / UL924

WARNING:To avoid fire and electrical shock, turn off power at circuit breaker or

fuse and test that the power is off before wiring.

1. Install luminaire as intended using supplemental installation manual(s).

2. Connect the mains supply wires to the luminaire as shown below.

120-277 VAC BATTERY BACKUP SWITCH LIVE –

NORTH AMERICA

SYMBOL

COLOR

CONNECTION

GREEN

EARTH

BLACK

PERMANENT LIVE

L’

ORANGE

SWITCH LIVE

WHITE

NEUTRAL

Replacing the Battery Pack

1. Open battery cover by unscrewing six 10-32 captive screws as shown to access battery pack connection.

NOTE: For maintained battery backup, connect

the black wire to the supply permanent live and

the orange wire to the supply switch live. For

sustained battery backup, connect both the

orange and black wires to the supply live.

9100HZC280501 REV B

Dialight, 1501 Route 34 South, Farmingdale, NJ, USA 07727

Tel: 732 919 3119 Fax: 732 751 5778 www.dialight.com

Page 3

Area Light with Battery Backup UL1598/A / UL844 / UL924

2. Disconnect battery pack from battery driver as shown.

3. Unscrew two 10-32 screws and slide battery pack out of housing. Discard old battery pack according to

respective national regulations on waste disposal.

9100HZC280501 REV B

Dialight, 1501 Route 34 South, Farmingdale, NJ, USA 07727

Tel: 732 919 3119 Fax: 732 751 5778 www.dialight.com

Page 4

Area Light with Battery Backup UL1598/A / UL844 / UL924

4. Collect the replacement battery pack and slide into the battery enclosure as shown. Align the two 10-32

captive screws already in the pack with the two corresponding holes in the enclosure.

Torque to 28-30 in-lbs

5. Connect battery pack to battery driver as shown.

Figure A

Figure B

9100HZC280501 REV B

Dialight, 1501 Route 34 South, Farmingdale, NJ, USA 07727

Tel: 732 919 3119 Fax: 732 751 5778 www.dialight.com

Page 5

Area Light with Battery Backup UL1598/A / UL844 / UL924

6. Close battery cover by tightening six 10-32 captive screws as shown to 28-30 in-lbs.

NOTE: When closing, be sure no wires interfere with closure to avoid risk of pinching.

Battery Backup Function

Battery Backup Indicator Light Functions

LED Indicator Status

Status/Mode

Green ON and blinks every 10s

System OK/AC OK

Red ON and blinks every 5s

Battery not detected/Faulty, Check connections/Replace Battery

Red LED Blinks every 2s

Light Output Fault. Check wiring connections

RED LED Blinks every 1s

Multiple faults

Green LED Blinks every 2s

Performing Function Test*

Green LED blinks every 1s

Performing Duration Test/Commissioning Test*

*Function Test –Tests for the basic functionality of battery and light output connections

*Duration/Commissioning Test –Tests for full duration of light output in battery backup mode.

Technical Data

Area Light Battery Backup

Nominal AC Supply Voltage

120-277V AC, 50-60Hz, Single Phase

Power Consumption

[Lumens] [W]

9000 71

7000 (Wide Optic) 69

7000 57

6000 45

4000 35

3000 29

Power Factor(AC only) >0.95

ATHD(AC only) <10% @120VAC

<10% @230/240VAC

<12% @277VAC

Temperature

-4°F to +131°F [-20°C to +55°C]

Technical Data

Area Light Battery Backup (cont.)

Housing Material

A360 Die Cast Aluminum

Finish

Powder Coat

Gray, RAL 7040

Lens

Polycarbonate or glass

Dimensions

Conduit Mount option

10.7 x 12.2 x 8.1 in.

[271 x 311 x 205 mm]

All other mounting options

Size varies by mount type

9100HZC280501 REV B

Dialight, 1501 Route 34 South, Farmingdale, NJ, USA 07727

Tel: 732 919 3119 Fax: 732 751 5778 www.dialight.com

Page 6

Area Light with Battery Backup UL1598/A / UL844 / UL924

Technical Diagrams

Dimensions: in [mm]

NOTE: Below is for conduit mount luminaire only. Other available mounting options will effect overall dimensions.

Official Statement

All statements, technical information, and recommendations contained herein are based on information and tests that

Dialight believes to be reliable. The accuracy or completeness thereof is not guaranteed. In accordance with Dialight “Terms

and Conditions of Sale” and since conditions of use are outside our control, the purchaser should determine the suitability of

the product for his or her intended use and assumes all risk and liability whatsoever in connection therewith.

Autres manuels pour Vigilant

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Dialight Équipement d'éclairage

Dialight

Dialight VIGILANT Series Manuel utilisateur

Dialight

Dialight SafeSite Manuel utilisateur

Dialight

Dialight L-856 Manuel

Dialight

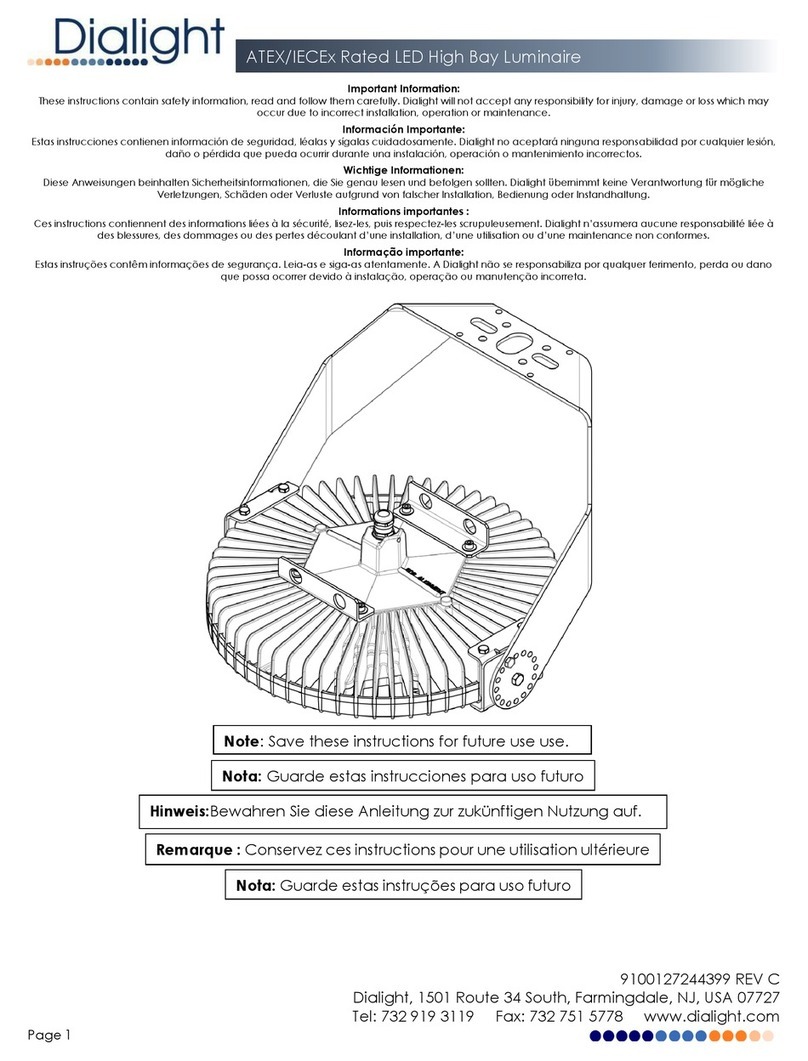

Dialight HBXW3SSL304FT Manuel utilisateur
