Instruction Sheet

PG7000™ Upgrade Instructions:

Flash with EEPROM to Flash

without EEPROM,

Non-Flash to Flash without EEPROM

INTRODUCTION

For a PG7000 Platform to run ver. 2.02 or higher software, it must be equipped with flash memory, a set of larger

NVRAMs (128K) and jumpers must be installed and the BIOS EPROM must be replaced. Two different upgrade kits

corresponding to two PG7000 Platform hardware situations are available: Upgrade A, P/N 401592 is for PG7000s

that already have flash memory; Upgrade B, P/N 401593 is for PG7000s that do not have flash memory.

• A limited number of PG7000s were delivered between February and July 1999 with ver. 2.00 software. These require Upgrade A

but without the new PG Terminal, use P/N 401594. Refer to the UPGRADING PG7000 PISTON GAUGES FROM ver. 1.0x TO ver.

2.0x commercial document for additional upgrade information.

UPGRADE KIT A, P/N 401592: FLASH WITH EEPROM TO FLASH WITHOUT EEPROM

• If the PG7000 already has ver. 2.00 or 2.01 software, it has a new PG TERMINAL. Use P/N 401594 to upgrade. It does not

include the terminal.

P/N 401592 Parts List

• 4 102091 Shunt, jumper • 1 401284 PG Terminal (not in P/N 401594)

• 1 102542 IC, NVRAM/clock, DS1248Y • 1 550099 Manual, PG7000

• 1 102543 IC, NVRAM, DS1245Y • 1 560037 Instruction sheet, upgrade

• 1 401597 EPROM, PG BIOS ver. 1.02

Installation Instructions (see Figure 1)

 Open the PG7000 base to expose the electronic board. Use the instructions provided in Section 5.6 of the PG7000

manual supplied with the upgrade kit for assistance on disassembly of the base.

Remove EPROM from U45 and replace with EPROM P/N 401597.

Remove NVRAM DS1230Y from U49 and NVRAM DS1386 from U54.

Insert NVRAM DS1245Y into U49 and NVRAM DS1248Y into U54.

Install two jumper shunts on J12.

Install two jumper shunts on J13.

Flash the PG7000 with PG7000 software ver. 2.02d. (This is available for download at DHI web site:

www.dhinstruments.com). Refer to the instructions provided in Section 5.5 of the PG7000 manual. Remember,

a “null modem” cable must be used to connect the PC to the PG7000 COM2 port.

Reboot the PG7000 following the reboot instructions displayed. When asked whether to upgrade answer, “YES”.

Repeat step and with the most recent PG7000 software version.

 PG7000 software upgrades are designed to reformat and transfer data as needed. However, various PG7000 user

settings may be reset and/or deleted. The extent depends on the number of revisions between the original and the

newly flashed version. Be sure to check the metrological aspects including piston-cylinder, mass set, mass bell and

internal sensor calibration files as these may be completely deleted and/or reset. See the PG7000 Manual.

Remove EEPROMS from U41 and U46.

Deliver the upgraded PG7000 Platform to the customer with the new PG Terminal P/N 401284 (not included in

P/N 401594) and the new PG7000 manual P/N 550099.

PG7000™ Upgrade Instructions Flash with EEPROM to Flash without EEPROM,

Non-Flash to Flash without EEPROM

Figure 1

UPGRADE KIT B, P/N 401593: NON-FLASH TO FLASH W/OUT EEPROM

P/N 401593 Parts List

• 30 cm 101551-Z Wire, black, 28 AWG • 1 401228 PAL, 68302F, CHIP SELECT

• 4 102091 Shunt, jumper • 1 401596 PCB, PG flash memory adaptor

• 1 102542 IC, NVRAM/clock, DS1248Y • 1 401284 PG Terminal

• 1 102543 IC, NVRAM, DS1245Y • 1 550099 Manual, PG7000

• 1 401597 EPROM, PG BIOS ver. 1.02 • 1 560037 Instruction sheet, upgrade

Installation Instructions (see Figure 2)

NOTE: Installation instructions will vary depending on the software version and the PAL version installed.

 Determine what software version is installed: power up the PG and the software version will be displayed on the

PG Terminal.

Open the PG7000 base to expose the electronic board. Use the instructions provided in Section 5.6 of the

PG7000 manual supplied with the upgrade kit for assistance on disassembly of the base.

Determine the PAL version: refer to location U50. A PAL will be installed at this location. The PAL should be

marked with the version number (1.00, 1.01 or 1.03).

 For software ver. 1.04X or less; only one EPROM is already installed. Follow “a” and “b” below.

Insert the PG Flash Adaptor, P/N 401596, into the empty location (U45 will be empty for PAL ver. 1.00

and 1.03; U44 will be empty for PAL ver. 1.01).

Remove the old EPROM from either U44 or U45 and insert the new BIOS EPROM, P/N 401597.

BIOS EPROM ON

FLASH PG

PAL

U41

U44

U45

U47

U49

DS1245Y

U53

U46

U54

DS1248Y

U50

PG7000™ Upgrade Instructions Flash with EEPROM to Flash without EEPROM,

Non-Flash to Flash without EEPROM

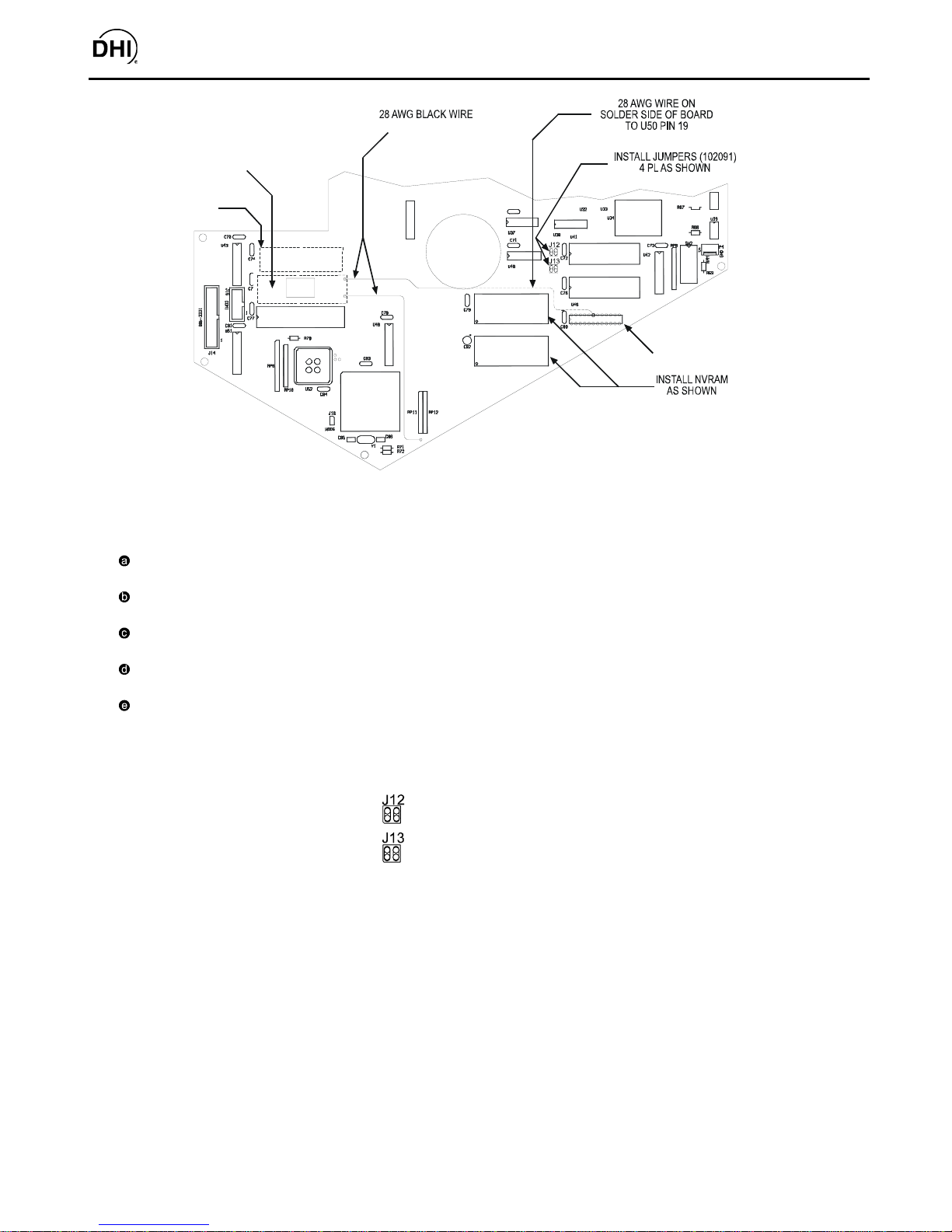

Figure 2

For software ver. 1.05 or higher; EPROM’s are already installed at both U44 and U45. Follow instructions below.

For PAL ver. 1.00 and 1.01, or if the PAL version number is not marked: Remove the PAL from U50.

Insert the new CHIP SELECT PAL, ver. 1.03, P/N 401228, at U50.

Remove EPROMs from locations U44 and U45

Insert the new BIOS EPROM, P/N 401597, at U44

Insert the PG flash adaptor, P/N 401596, at U45

 Remove NVRAM DS1230Y from U49 and NVRAM DS1386 from U54.

 Insert NVRAM DS1245Y into U49 and NVRAM DS1248Y into U54.

 Install two jumper shunts on J12.

 Install two jumper shunts on J13.

 Using two lengths of the black 28 AWG wire and referring to Figure 2, connect the PG flash adaptor to the PG main

board. Use silicon glue to hold the wire on the board.

PG FLASH MEMORY

ADAPTOR (SHOWN @ U45,

SEE INSTRUCTIONS

BELOW FOR ACTUAL

LOCATION)

EPROM ON NON-FLASH

PG (SHOWN @ U44, SEE

INSTRUCTIONS BELOW

FOR ACTUAL

LOCATION)

PAL

U41

U44

U45

U47

U49

DS1245Y

U53

U46

U54

DS1248Y

U50

PG7000™ Upgrade Instructions Flash with EEPROM to Flash without EEPROM,

Non-Flash to Flash without EEPROM

Document 560037c 040514

DH Instruments, Inc.

4765 East Beautiful Lane

Phoenix AZ 85044-5318

USA

Calibration Solutions

for Pressure

and Flow™

Tel 602.431.9100

Fax 602.431.9559

[email protected]

www.dhinstruments.com

Flash the PG7000 with PG7000 software ver. 2.02d. (This is available for download at DHI web site:

www.dhinstruments.com). Refer to the instructions provided in Section 5.5 of the PG7000 manual. Remember, a

“null modem” cable must be used to connect the PC to the PG7000 COM2 port.

Reboot the PG7000 following the reboot instructions displayed. When asked whether to upgrade answer, “YES”.

Repeat step and with the most recent PG7000 software version.

PG7000 software upgrades are designed to reformat and transfer data as needed. However, various PG7000 user

settings may be reset and/or deleted. The extent depends on the number of revisions between the original and the

newly flashed version. Be sure to check the metrological aspects including piston-cylinder, mass set, mass bell and

internal sensor calibration files as these may be completely deleted and/or reset. See the PG7000 manual.

Remove EEPROMs from U41 and U46.

Deliver the upgraded PG7000 Platform to the customer with the new PG Terminal P/N 401284 and the new PG7000

manual, P/N 550099.
