KS070-BT Installation Guide

Package Contents

•

One 7" Touch Panel PC

•

One sheet of Poron foam

•

One HDD drive bay kit

•

1 DVD disk includes:

-Manual

DFI reserves the right to change the speciﬁcations at any time prior to

the product's release. For the latest revision and more details of the

installation procedure, please refer to the user's manual on the website.

www.dﬁ.com

Panel

Top View

HDMI

USB 3.0 Antenna

hole

COM 2

(RS232/RS422/RS485)

COM 4/ 8-bit DIO

Antenna

hole

Reset

Power button

(Green LED)

COM 1

(RS232/RS422/RS485)

Status LED (Blue)

Antenna

hole

Line-out

Bottom View

COM 3

(RS232/RS422/RS485)

USB 2.0

LAN 2

DC-in

Mic-in LAN 1

Removing the Chassis Cover

1. Make sure the system and all other peripheral devices connected to it

have been powered-off.

2. Disconnect all power cords and cables.

3. The 8 mounting screws on the rear side of the system are used to

secure the cover to the chassis. Remove these screws and put them in a

safe place for later use.

4. Lift the cover up to open the system.

5. The Mini PCIe and the micro SD slots are readily accessible after

removing the chassis cover.

Mounting screw

Installing a SATA Drive

2. Align the mounting holes of the SATA HDD with the mounting holes on

the HDD drive bay and use the provided mounting screws to attach the

SATA HDD to the drive bay.

1. The SATA data and power connectors are on the system board.

SATA mounting location

SATA connectors

Mounting screw

3. Connect one end of the SATA cable to the SATA power and data

connectors on the SATA drive and the other end of the SATA cable to

the SATA power and data connectors on the system board.

4. Align the mounting holes of the HDD drive bay with the mounting holes

on the system and use the provided mounting screws to secure the

drive bay in place.

SATA power/data cable

SATA drive

Mounting screw

SATA drive

SATA connectors

Installing a Mini PCIe Card

Note:

The system also has one additional full-size Mini PCIe and one half-size Mini PCIe slot

that uses PCIe and LPC interface respectively.

The system board is equipped with 3 Mini PCIe slots: two full-size and one

half-size slots. Here we will demonstrate the installation of a full-size Mini

PCIe card (mSATA interface) for capacity expansion.

1. Grasp the Mini PCIe card by its edges and align the notch in the

connector of the PCIe card with the notch in the connector on the

system board.

2. Push the Mini PCIe card down and use the provided mounting screws to

secure the card on the system board.

Mounting screw

The wall mount kit includes the following:

• 2 wall mount brackets

• Bracket screws

2. Select a place on the wall where you will mount the Panel PC.

3. Use the provided mounting screws to attach “wall mount bracket 1” to

the wall.

Mounting Options

Wall mount

Wall mount bracket 1 Wall mount bracket 2

Wall mount bracket 1

Mounting screw

1. Before starting any installation procedures, attach the poron foam to

the Panel PC.

Poron foam

4. Attach the other bracket (wall mount bracket 2) to the rear of the

Panel PC.

Wall mount bracket 2

Mounting screw

Hooks

Screw

5. Slide the Panel PC to "wall mount bracket 1" to attach the two brackets

with the hooks. Then tighten the screw to secure the assembly in place.

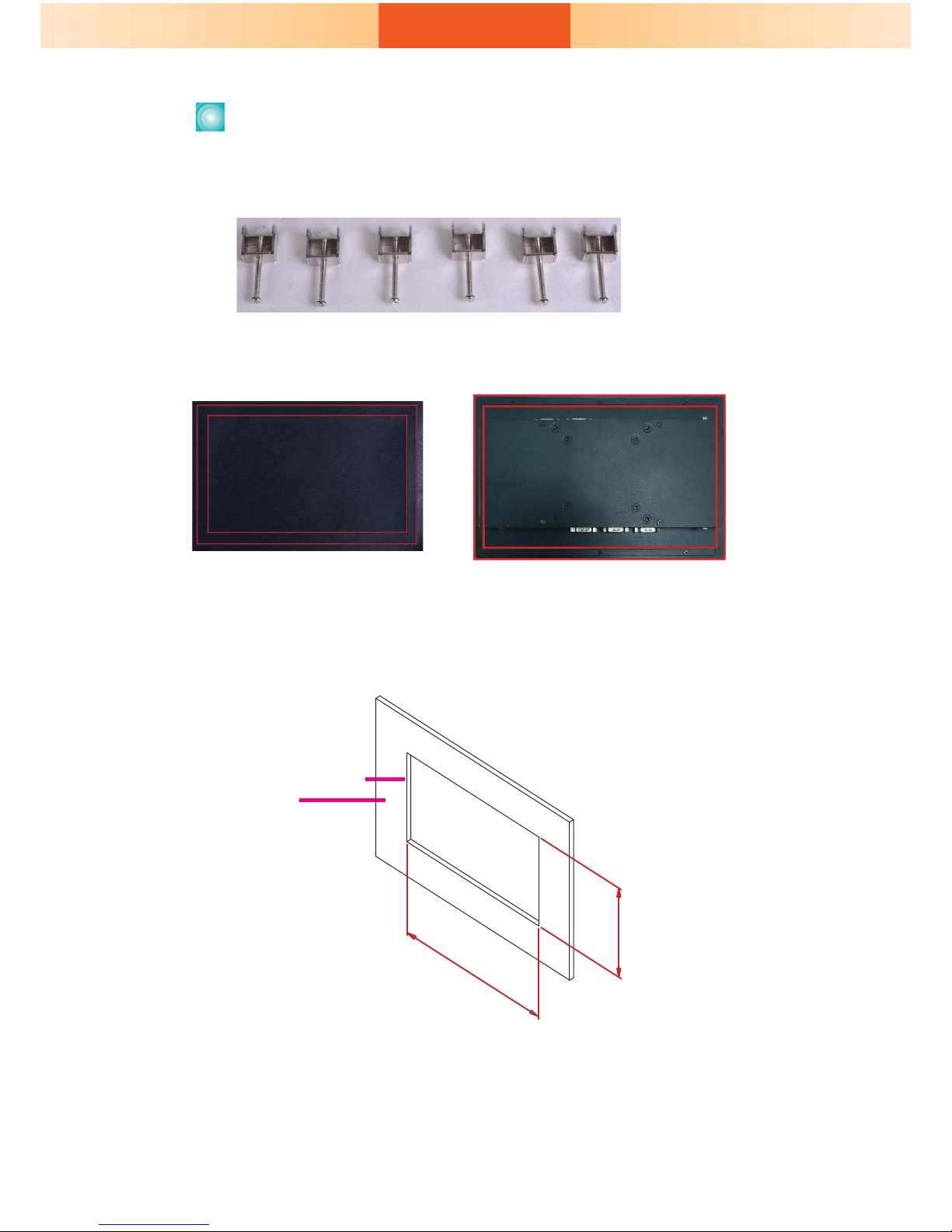

Panel mount

The panel mounting kit includes the following:

• 6 mounting clamps

2. Select a place on the panel (or wall) where you will mount the Panel PC.

3. Cut out a shape on the panel that corresponds to the Panel PC’s rear

dimensions (202.5mm x 140.3mm) and ensure that the Panel PC can be

ﬁtted into the panel properly.

4. Insert the Panel PC from the outside surface of the panel into the

mounting hole until it is properly ﬁtted against the panel.

5. Position the mounting clamps along the rear edges of the Panel PC and

insert them into the slits around the Panel PC.

1. Before starting any installation procedures, attach the poron foam to

the Panel PC.

Poron foam

Panel

Mounting hole

202.5

140.3

6. The ﬁrst and second clamps must be positioned and secured diagonally

prior to mounting the rest of the clamps. Tighten the clamp’s screw

using an electric screwdriver by pressing the white plastic cap onto

the back of the panel. The illustration below shows that all clamps are

properly mounted.

White plastic cap

ﬁ

Slit for mounting the clamp

Mounting clamp

Note:

The maximum thickness of your panel’s mounting wall should be 10 mm for secure

panel mount.
