DFI DT122-SB Manuel utilisateur

1

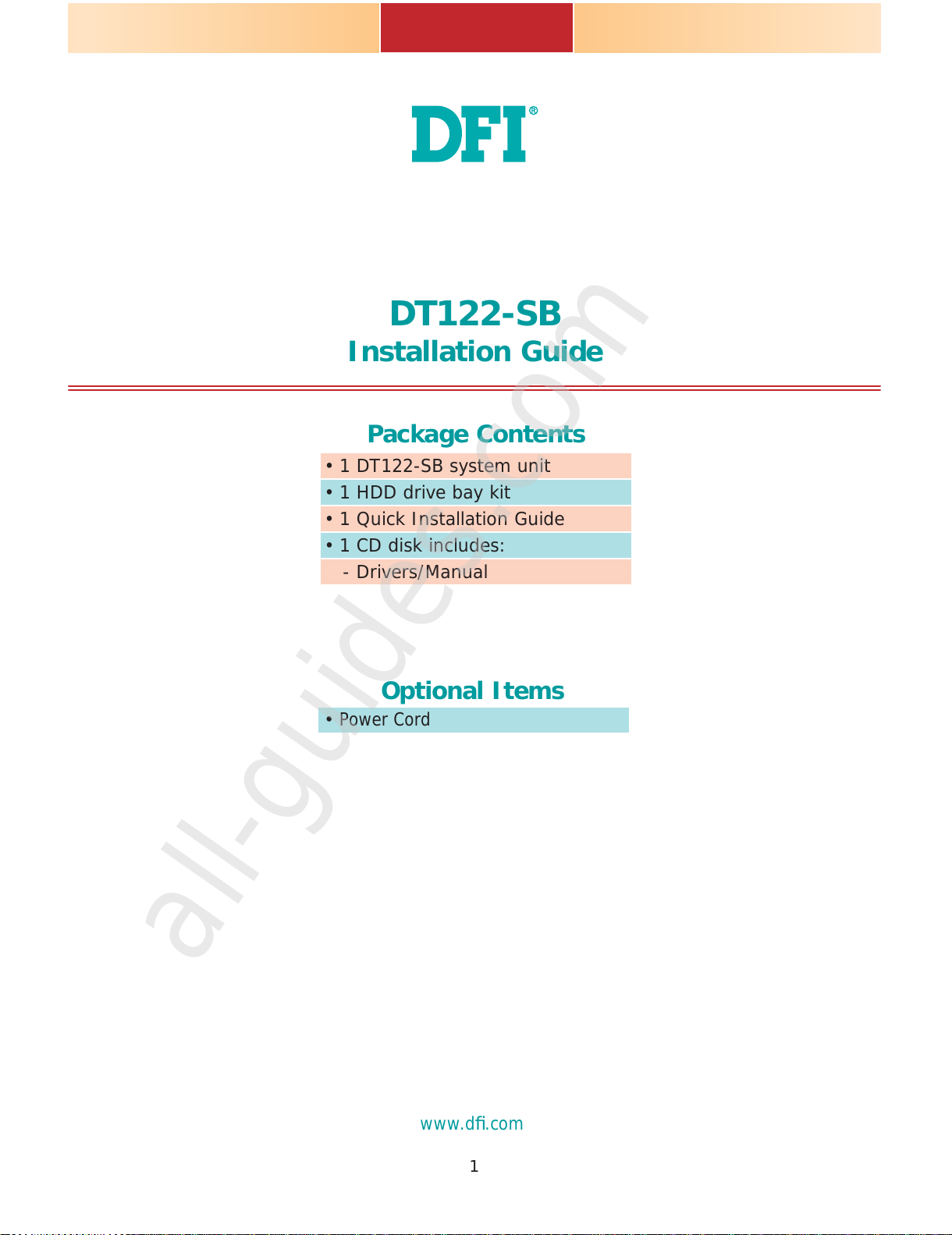

DT122-SB

Installation Guide

www.dﬁ.com

• 1 DT122-SB system unit

• 1 HDD drive bay kit

• 1 Quick Installation Guide

• 1 CD disk includes:

- Drivers/Manual

•

Power Cord

Package Contents

Optional Items

All manuals and user guides at all-guides.com

all-guides.com

2

Front View

Power Button

HDD LED

Power LED

Reset Button

Rear View

Line-out

COM 2

Mic-in

Line-in

DVI-I

(DVI-D Signal)

COM 1

PS/2 KB

PS/2 Mouse Expansion slot

LAN 1-2

USB 2.0VGA

All manuals and user guides at all-guides.com

3

Key Features

DT122-SB

PROCESSOR 3rd/2nd Generation Intel®CoreTM processors

CHIPSET Intel®Q67

LAN 2 LAN ports

COM 2 COM ports

DISPLAYS 1 DVI-I, 1 VGA

USB 4 Type A USB 2.0/1.1 ports

AUDIO Mic-in, Line-in, Line-out

All manuals and user guides at all-guides.com

4

Removing the Chassis Cover

1. Make sure the system and all other peripheral devices

connected to it has been powered-off.

2. Disconnect all power cords and cables.

3. The 4 mounting screws on the sides of the system are

used to secure the cover to the chassis. Remove these

screws and then put them in a safe place for later use.

Mounting

screw

Mounting

screw

All manuals and user guides at all-guides.com

5

4. After removing the mounting screws, slide the cover

backwards.

Slide the Cover Backward

5. The DIMM sockets and SATA drive bay are readily

accessible after removing the chassis cover.

DIMM socket

2.5"/3.5" SATA

drive bay

All manuals and user guides at all-guides.com

6

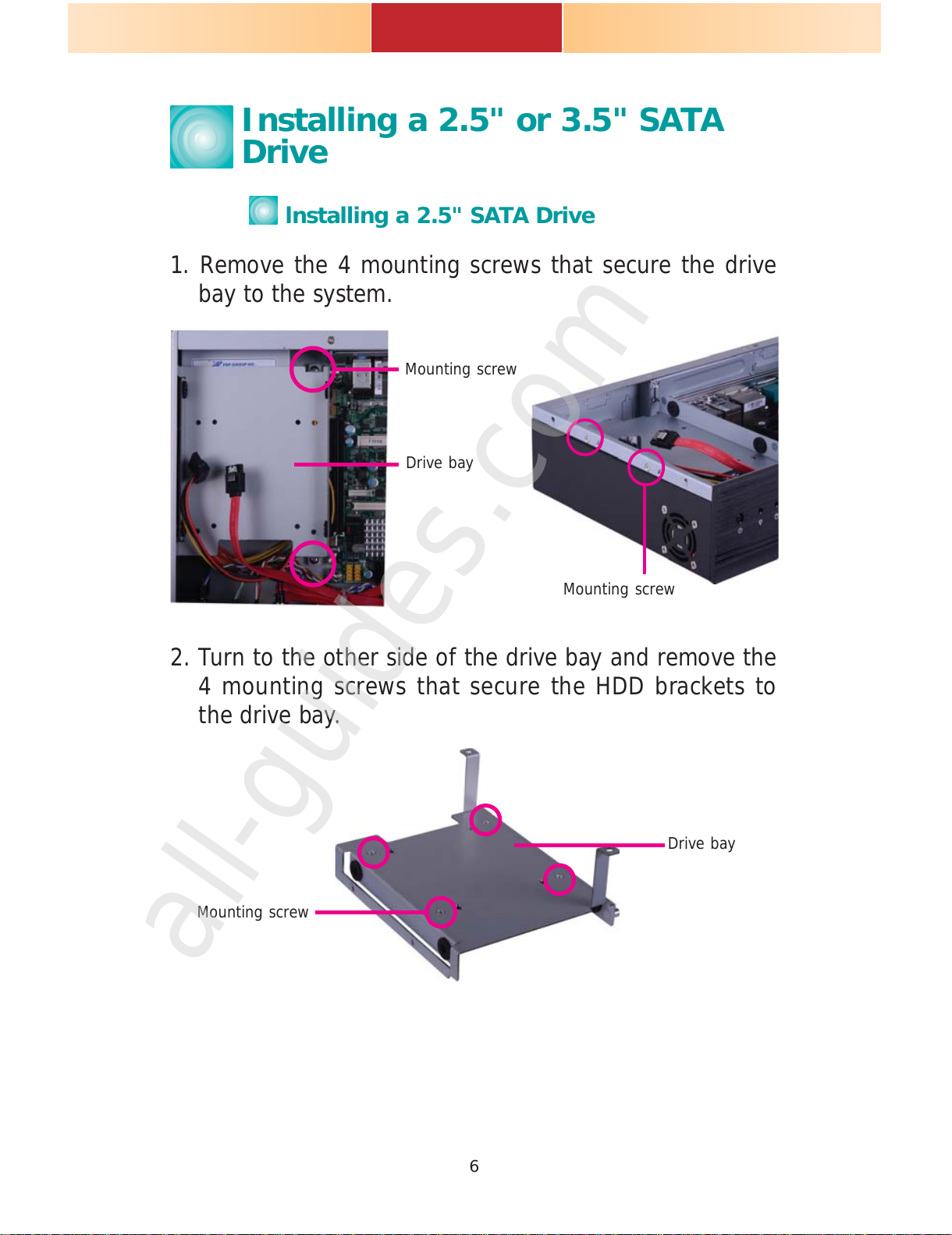

1. Remove the 4 mounting screws that secure the drive

bay to the system.

Installing a 2.5" or 3.5" SATA

Drive

lnstalling a 2.5" SATA Drive

2. Turn to the other side of the drive bay and remove the

4 mounting screws that secure the HDD brackets to

the drive bay.

Mounting screw

Mounting screw

Mounting screw

Drive bay

Drive bay

All manuals and user guides at all-guides.com

all-guides.com

7

3. Align the mounting holes of the SATA drive with the

mounting holes on the HDD bracket and then use the

provided mounting screws to secure the drive in place.

Mounting screw

SATA drive

HDD bracket

Mounting screw

All manuals and user guides at all-guides.com

8

4. Turn to the other side of the drive bay. Use the

provided mounting screws from step 2 to secure the

SATA drive (with HDD bracket) onto the drive bay.

Mounting screw

Drive bay

Mounting screw

5. Place the SATA drive bay assembly into the chassis.

Secure the SATA drive bay with the mounting screws

you removed in step 1.

Mounting screw

Mounting screw

All manuals and user guides at all-guides.com

9

6. Connect the SATA data cable and SATA power cable to

the connectors on the SATA drive.

SATA data cable

SATA power

cable

All manuals and user guides at all-guides.com

10

lnstalling a 3.5" SATA Drive

Drive bay

spacer

spacer

3. Place the SATA drive on the drive bay. Align the

mounting holes of the SATA drive with the mounting

holes on the drive bay.

SATA drive

Drive bay

1. Remove the 4 mounting screws that secure the drive

bay to the system.

Mounting screw

Mounting screw

Drive bay

2. Insert the spacer into the anti-shock bumper. You will

ﬁnd the spacers in the HDD drive bay kit that comes

with the DT122 package.
