RM641-SD Installation Guide

•

1 RM641-SD system unit

•

1 Quick Installation Guide

•

1 CD disk includes:

-Drivers / Manual

Package Contents

Panel

Front View

DFI reserves the right to change the speciﬁcations at any time prior to the product's release. For the latest revision and more details of

the installation process, please refer to the user's manual.

www.dﬁ.com

Rear View

Power LED

USB 2.0

Reset

Power

HDD LED

keyboard/mouse

USB 2.0

LAN 1-2

USB 3.0

Line-out

Mic-in

DVI-I

(DVI-D signal)

VGA COM

DC-in Jack

HDMI

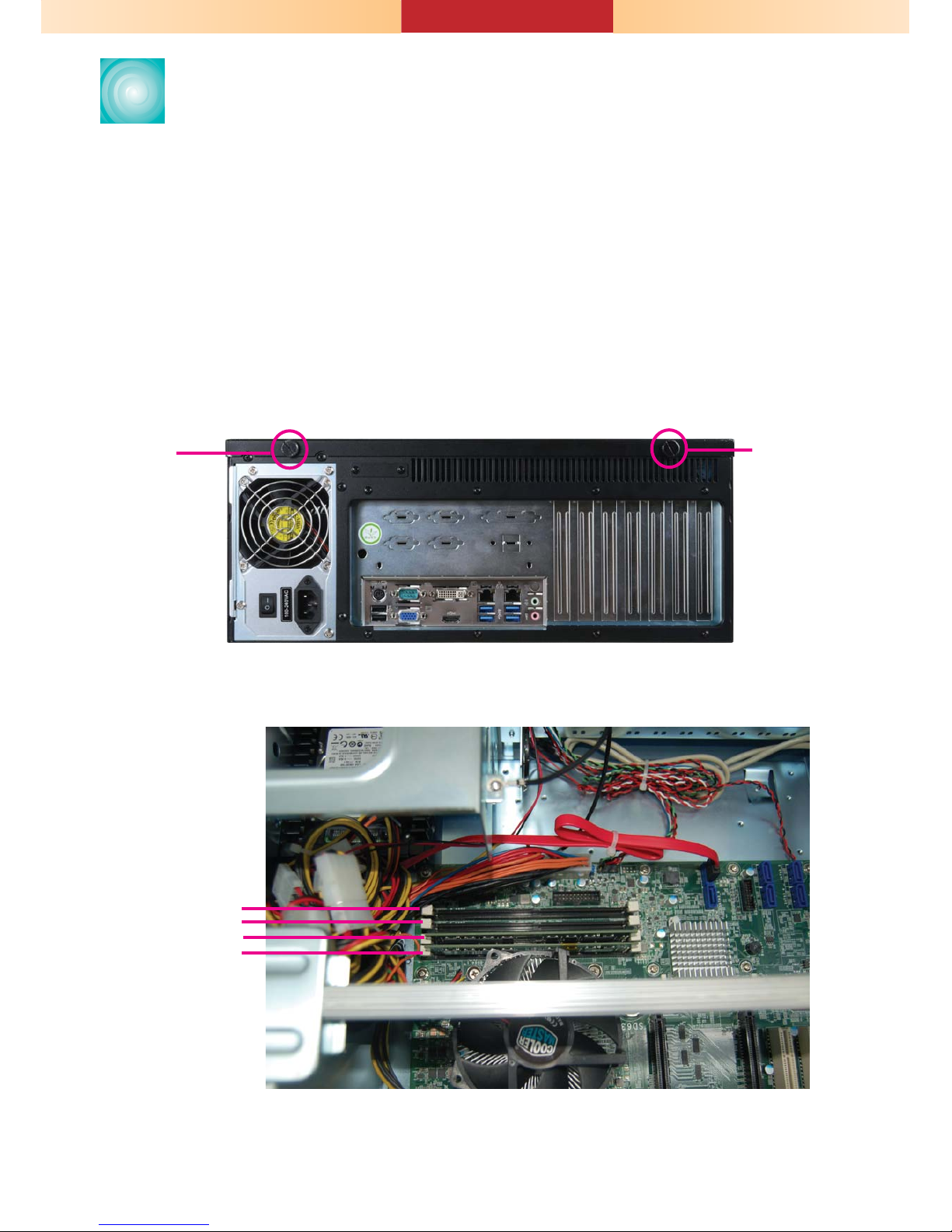

Removing the Chassis Cover

1. Before removing the chassis cover, make sure the system and all

other peripheral devices connected to it have been powered-off.

2. Disconnect all power cords and cables.

3. Remove the 2 mounting screws to open the top cover.

4. You can install DDR4 DIMMs into the memory sockets. The

system supports dual channel architecture.

Chassis

screw Chassis

screw

DIMM socket

Installing a SATA Drive

1. Unfasten the 4 mounting screws that secure HDD bracket to the

system.

2. Secure the hard drive to the HDD bracket. Align the mounting

holes of the SATA drive with the mounting holes on the HDD

bracket and then use 4 mounting screws to install the hard drive

onto the HDD bracket.

HDD bracket

SATA drive

Mounting screw

HDD bracket

3. Connect the SATA data cable and SATA power cable to the con-

nectors on the SATA drive. Then connect the SATA data cable to

the SATA port on the system board.

SATA port

SATA power and

data connector

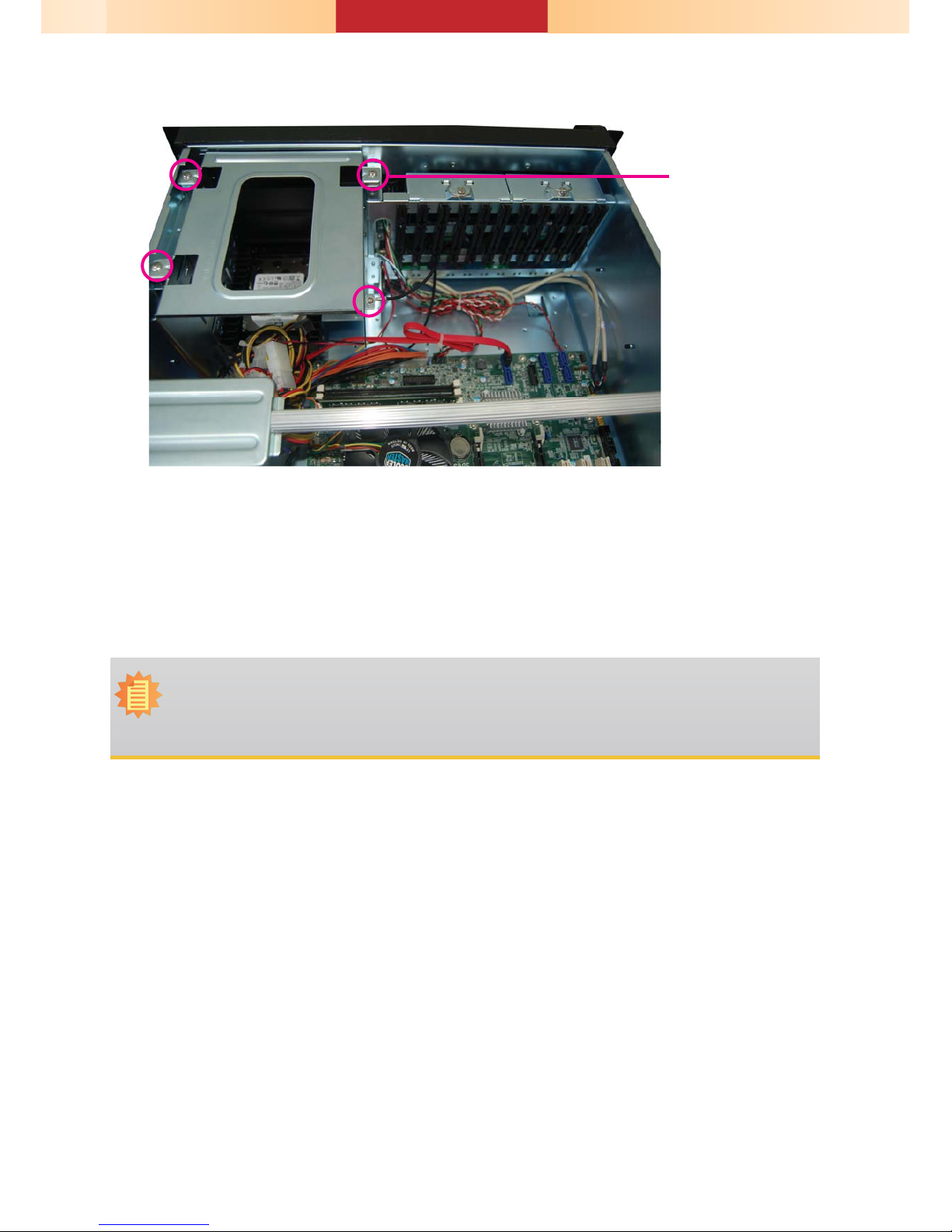

4. Install the HDD bracket back to the system.

Note:

The system can accommodate 4 disks (3.5” or 2.5”). However, 3.5” to 5.25” or 2.5”

to 5.25” drive mounting bracket adapters will be required to install HDDs in the

optical bays.

Mounting screw

www.dﬁ.com

Board Layout and Jumper Settings

RS232/RS422/RS485 Select :

COM1 (JP5), COM2 (JP1) RS232/RS422/RS485 Select :

COM1 (JP6, JP7), COM2 (JP2, JP3)

RS232 (default) 1-2 On RS232 (default) 1-3, 2-4 On

RS422 Full Duplex 3-4 On RS422 Full Duplex/RS485 3-5, 4-6 On

RS485 5-6 On

Note:

1. When COM1 RS232/422/485 is selected, JP6 and JP7 must be set in accordance

to JP5.

2. When COM2 RS232/422/485 is selected, JP2 and JP3 must be set in accordance

to JP1.

A44001646

210

Socket LGA1151

Line-out

Mic-in

LAN 2

USB 4

USB 3

USB 3.0

LAN 1

USB 2

USB 1

USB 3.0

PCIe x16

Battery

Intel

C236/Q170

SMBus

19 19

USB 7-8

USB 2.0

210 210

USB 13-14

USB 5-6

USB 3.0

210

USB 9-10

210

SPI Flash

BIOS

DDR4_1

DDR4_2

DDR4_3

DDR4_4

PS/2 KB/MS

USB 6

USB 5

USB 2.0

Auto

Power-on

Select

(JP10)

Standby

Power LED

Battery

Buzzer

S/PDIF

COM 1

VGA

DVI-D

HDMI

CPU Fan

System Fan 1

Digital

I/O

19 1

ATX Power

12 24

11 12

Front

Panel

1314

LPC

SATA 1

SATA 0

SATA 3.0

SATA 3

SATA 2

SATA 3.0

SATA 5

SATA 4

210

COM 5

210

COM 6

210

COM 3

210

COM 4

210

COM 2

COM 2 RS232/Power

Select (JP4)

PCIe x4

PCI 1

PCI 2

PCI 3

PCIe x16

System

Fan 2

LAN LED

SD631-C236: C236

SD631-Q170: Q170

(JP1)

(JP2)

(JP3)

(JP2)

(JP1)

COM 2

RS232/422/485

Select

Chrontel

CH7517A

ASMedia

ASM1442

ASMedia

ASM1442

Intel

WGI219LM

Intel

WGI210AT

Realtek

ALC888

Nuvoton

NCT6106D

ASM1085

+12V

Power

COM 1

RS232/422/485

Select (JP5) COM 1 RS232/Power

Select (JP8)

COM 1

RS232/422/485

Select (JP6) COM 1 RS232/422/485

Select (JP7)

Clear CMOS

Data (JP9)

Chassis

Intrusion

RS232 Power Select JP8 (COM 1)

JP4 (COM 2)

RS232 (default) 1-3 (RI), 2-4 (DCD) On

RS232 with power 3-5 (+5V), 4-6 (+12V) On

Auto Power-on Select JP10

Power-on via power button (default) 1-2 On

Power-on via AC power 2-3 On

Clear CMOS Data JP9

Normal (default) 1-2 On

Clear CMOS Data 2-3 On
