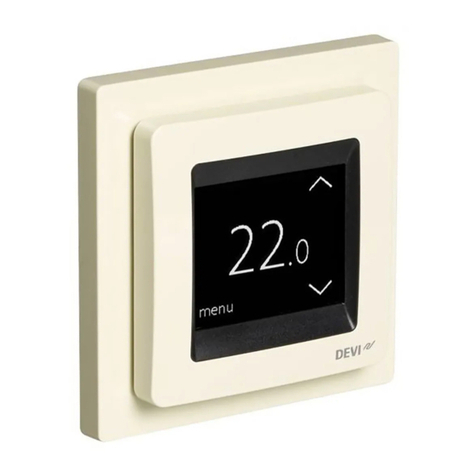

DEVIreg™ Touch

Electronic Intelligent Thermostat

User Guide

www.DEVI.com

Table of Contents

1 Introduction ............... 4

1.1 Safety Instructions ........ 5

2Settings ................. 6

2.1 Setting Temperature ....... 7

2.2 Time and Date .......... 8

2.3 Periods with Lowering of Temper-

ature ................ 10

2.4 Away ............... 18

2.5 Minimum Floor Temperature .. 21

2.6 Restore Default Temperature Set-

tings ................ 23

2.7 Safety Lock ............ 24

2.8 Frost Protection ......... 26

2.9 Energy Consumption ...... 29

2.10 Backlight Level .......... 30

2.11 Language ............. 31

2.12 Turning the Thermostat On/Off 32

3 Error Messages ............. 33

4 Removing Front Part of Thermostat 34

5 Warranty ................. 34

6 Disposal Instruction .......... 35

DEVIreg™ Touch

User Guide 3

1 Introduction

DEVIreg™ Touch is an electronic thermostat specially de-

signed for floor heating systems. Among others, the ther-

mostat has the following features:

▪A touchscreen display with backlight.

▪An easy-to-follow menu-driven operation.

▪Energy-saving schedule: A standard or customized

timer program including fully flexible day and time

pattern that lets you preset the temperature to ener-

gy-saving levels, e.g. while you are at work or asleep -

and with optimum heating start/stop to reach the de-

sired temperature at the right time.

▪Open window detection that prevents excessive heat-

ing at sudden drop of temperature.

▪Vacation setting: Suspension of normal program

schedule for specified periods of time.

▪Consumption meter.

▪Quick-access button to features such as frost protec-

tion and away function.

DEVIreg™ Touch

4 User Guide

1.1 Safety Instructions

Please observe the following guidelines:

▪Do not cover the thermostat, e.g. by hanging towels or

similar items in front of it! This will impair the ability of

the thermostat to sense and adjust the room tempera-

ture correctly.

▪Do not spill liquids of any kind into the thermostat.

▪Do not open, disassemble, or tamper with the thermo-

stat in any way.

▪If the thermostat is installed in a place frequented by

small children, use the safety lock.

▪Do not interrupt the power supply to the thermostat.

▪The installation of the thermostat must be done by an

authorized and qualified installer according to local

regulations.

DEVIreg™ Touch

User Guide 5

2 Settings

Basic rules for changing thermostat settings

Accessing different

settings Directly press the item on the

screen you want to access.

To increase a value Press the > arrow (press and hold to

step quickly through the values)

To decrease a value Press the < arrow (press and hold to

step quickly through the values)

To confirm a value Press in the top right corner of

the screen.

To cancel your

changes Press the back arrow in the top left

corner of the screen to go to the

previous screen without saving

your changes.

To return to normal

temperature dis-

play

Use the back arrow in the upper left

corner of the screen until you reach

the main menu screen, the press

in the centre of the main menu

screen.

DEVIreg™ Touch

6 User Guide

2.1 Setting Temperature

When the display is inactive, it

shows the actual temperature

measured in the room:

When you activate the display, it

shows the temperature that you

want (the one you have set):

If the system is heating, up arrows

will flash to the left of the tempera-

ture:

DEVIreg™ Touch

User Guide 7

How to lower or raise the temperature

1. Touch the thermostat display

to activate it. Then press the

up or down arrow in the right

side of the screen.

2.2 Time and Date

How to set the time and date

1. Touch the thermostat display

to activate it, then press

menu.

2. Press TIME/DATE in the bot-

tom left corner of the menu.

Then press TIME.

DEVIreg™ Touch

8 User Guide

3. Press the hour numbers.

4. Use the arrows < and > to set

the hour. Press to confirm.

5. Press the minutes numbers

and use the arrows < and > to

set the minutes. Press to

confirm and press again to

return to the TIME/DATE

screen.

6. Press DATE.

DEVIreg™ Touch

User Guide 9

7. Press the day, month and year

respectively and set the date

using the arrows < and > and

pressing to confirm. Press

in the SET DATE screen.

To return to the normal temperature display, press the

back arrow in the upper left corner of the screen until you

get to the main menu, then press .

2.3 Periods with Lowering of Temperature

You can set the thermostat to keep a constant temperature,

or let the thermostat automatically switch between periods

with a lower temperature (also called economy tempera-

ture) and periods with comfort temperature.

By default, the thermostat is set to the following comfort

periods:

▪Monday - Friday: 6:00 - 8:00 and 16:00 - 22:30.

▪Saturday - Sunday: 7:00 - 22:45.

You use the thermostat timer to change the predefined

comfort periods and set the comfort and economy temper-

atures you want. Note: In order to switch between comfort

and economy temperatures, the timer function must be ac-

tivated (ON).

DEVIreg™ Touch

10 User Guide
