Desa VN20BTA Instructions originales

For more information, visit www.desatech.com

WARNING: If the information in this manual is not fol-

lowed exactly, a re or explosion may result causing

property damage, personal injury or loss of life.

— Do not store or use gasoline or other ammable

vapors and liquids in the vicinity of this or any other

appliance.

— WHAT TO DO IF YOU SMELL GAS

• Do not try to light any appliance.

• Do not touch any electrical switch; do not use any

phone in your building.

• Immediately call your gas supplier from a neighbor’s

phone. Follow the gas supplier’s instructions.

• If you cannot reach your gas supplier, call the re

department.

— Installation and service must be performed by a quali-

ed installer, service agency or the gas supplier.

INSTALLER: Leave this manual with the appliance.

CONSUMER: Retain this manual for future reference.

MODELS VN20BTA, VP20BTA

VN30BTA AND VP30BTA

UNVENTED (VENT-FREE) BLUE FLAME GAS HEATER

SAFETY INFORMATION AND INSTALLATION MANUAL

www.desatech.com 113061-01F2

SAFETY INFORMATION

WARNING: Improper in-

stallation, adjustment, al-

teration, service or mainte-

nance can cause injury or

property damage. Refer to

this manual for correct in-

stallation and operational

procedures. For assis-

tance or additional infor-

mation consult a qualied

installer, service agency or

the gas supplier.

WARNING: This is an

unvented gas-red heater.

It uses air (oxygen) from the

room in which it is installed.

Provisions for adequate

combustion and ventila-

tion air must be provided.

Refer to Air for Combustion

and Ventilation section on

page 5 of this manual.

This appliance is only for

use with the type of gas

indicated on the rating

plate. This appliance is

not convertible for use

with other gases.

This appliance may be in-

stalled in an aftermarket,*

permanently located,

manufactured (mobile)

home, where not prohib-

ited by local codes.

* Aftermarket: Completion of sale, not for

purpose of resale, from the manufacturer

WARNING: This product con-

tains and/or generates chemicals

known to the State of California

to cause cancer or birth defects

or other reproductive harm.

IMPORTANT: Read this owner’s

manual carefully and completely

before trying to assemble,

operate or service this heater.

Improper use of this heater can

cause serious injury or death

from burns, fire, explosion,

electrical shock and carbon

monoxide poisoning.

DANGER: Carbon monoxide

poisoning may lead to death!

Carbon Monoxide Poisoning: Early signs of carbon

monoxide poisoning resemble the u, with head-

aches, dizziness or nausea. If you have these signs,

the heater may not be working properly. Get fresh

air at once! Have heater serviced. Some people

are more affected by carbon monoxide than others.

These include pregnant women, people with heart

or lung disease or anemia, those under the inu-

ence of alcohol and those at high altitudes.

TABLE OF CONTENTS

Safety Information ............................................... 2

Local Codes......................................................... 4

Product Identication........................................... 4

Unpacking............................................................ 4

Product Features................................................. 4

Air For Combustion and Ventilation..................... 5

Installation ........................................................... 7

Operating Heater............................................... 14

Inspecting Heater .............................................. 15

Cleaning and Maintenance................................ 16

Troubleshooting................................................. 17

Specications .................................................... 21

Service Hints ..................................................... 21

Technical Service............................................... 21

Service Publications .......................................... 21

Replacement Parts............................................ 21

Accessories ....................................................... 21

Illustrated Parts Breakdown and Parts List........ 22

Warranty Information ...........................Back Cover

www.desatech.com

113061-01F 3

Natural and Propane/LP Gas: Natural and

propane/LP gases are fuel gases. Fuel gases are

odorless. An odor-making agent are added to fuel

gases. The odor helps you detect a fuel gas leak.

However, the odor added to fuel gas can fade. Fuel

gas may be present even though no odor exists.

Make certain you read and understand all warn-

ings. Keep this manual for reference. It is your

guide to safe and proper operation of this heater.

WARNING: Any change to

this heater or its controls can

be dangerous.

WARNING: Do not use a

blower insert, heat exchanger

insert or other accessory not ap-

proved for use with this heater.

Due to high temperatures, the

appliance should be located out

of trafc and away from furniture

and draperies.

Do not place clothing or other

ammable material on or near

the appliance. Never place any

objects on the heater.

Surface of heater becomes very

hot when running heater. Keep

children and adults away from

hot surface to avoid burns or

clothing ignition. Heater will

remain hot for a time after shut-

down. Allow surface to cool

before touching.

Carefully supervise young chil-

dren when they are in the same

room with heater.

Make sure grill guard is in place

before running heater.

Keep the appliance area clear

and free from combustible ma-

terials, gasoline and other am-

mable vapors and liquids.

1. This appliance is only for use with the type of

gas indicated on the rating plate. This appliance

is not convertible for use with other gases.

2. Do not place propane/LP supply tank(s) in-

side any structure. Locate propane/LP supply

tank(s) outdoors (propane/LP models only).

3. If you smell gas

• shut off gas supply

• do not try to light any appliance

• do not touch any electrical switch; do not use

any phone in your building

• immediately call your gas supplier from a

neighbor’s phone. Follow the gas supplier’s

instructions

• if you cannot reach your gas supplier, call

the re department

4. This heater shall not be installed in a bedroom

or bathroom.

5. This heater needs fresh, outside air ventilation

to run properly. This heater has an Oxygen

Depletion Sensing (ODS) safety shutoff

system. The ODS shuts down the heater if

not enough fresh air is available. See Air for

Combustion and Ventilation, page 5.

6. Keep all air openings in front and bottom of

heater clear and free of debris. This will insure

enough air for proper combustion.

7. If heater shuts off, do not relight until you

provide fresh, outside air. If heater keeps

shutting off, have it serviced.

8. Do not run heater

• where ammable liquids or vapors are used

or stored

• under dusty conditions

9. Do not use heater if any part has been under

water. Immediately call a qualied service

technician to inspect the room heater and to

replace any part of the control system and any

gas control which has been under water.

10. Turn off and let cool before servicing. Only

a qualied service person should service and

repair heater.

11. Operating heater above elevations of 4,500

feet could cause pilot outage.

12. To prevent performance problems, do not use

propane/LP fuel tank of less than 100 lbs.

capacity (propane/LP models only).

SAFETY INFORMATION

Continued

www.desatech.com 113061-01F4

13. Before using furniture polish, wax, carpet

cleaner or similar products, turn heater off. If

heated, the vapors from these products may

create a white powder residue within burner

box or on adjacent walls or furniture.

14. Provide adequate clearances around air

openings.

LOCAL CODES

Install and use heater with care. Follow all lo-

cal codes. In the absence of local codes, use the

latest edition of National Fuel Gas Code, ANSI

Z223.1/NFPA 54*.

*Available from:

American National Standards Institute, Inc.

1430 Broadway

New York, NY 10018

National Fire Protection Association, Inc.

Batterymarch Park

Quincy, MA 02269

State of Massachusetts: The installation must

be made by a licensed plumber or gas tter in

the Commonwealth of Massachusetts.

Sellers of unvented propane or natural gas-red

supplemental room heaters shall provide to

each purchaser a copy of 527 CMR 30 upon

sale of the unit.

Vent-free gas products are prohibited for bed-

room and bathroom installation in the Com-

monwealth of Massachusetts.

UNPACKING

1. Remove heater from carton.

2. Remove all protective packaging applied to

heater for shipment.

3. Check heater for any shipping damage. If

heater is damaged, promptly return to dealer

where you bought heater.

SAFETY INFORMATION

Continued

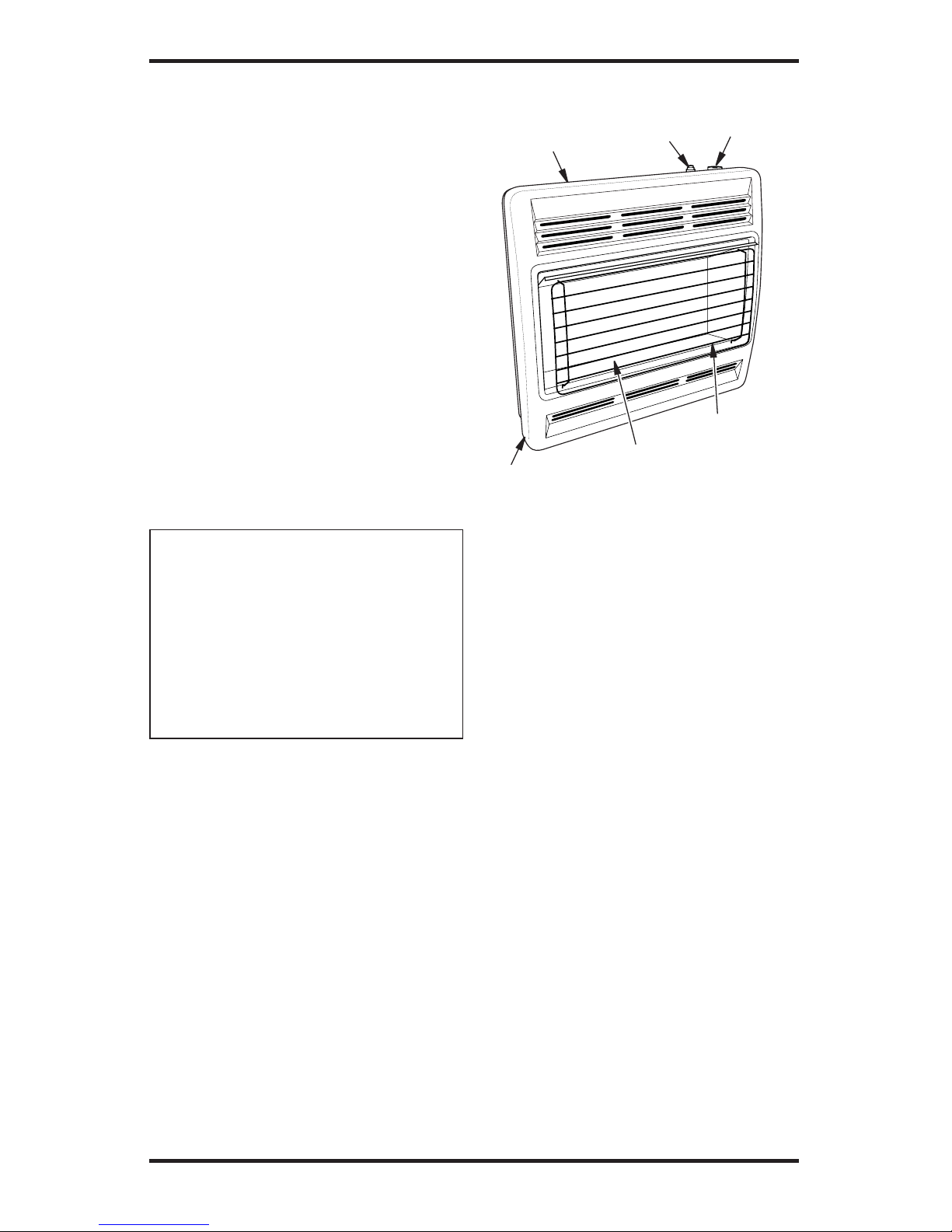

Figure 1 - Vent-Free Gas Heater

Ignitor

Button

Heater

Cabinet

Front Panel

Glass Panel

Grill Guard

Control

Knob

PRODUCT IDENTIFICATION

PRODUCT FEATURES

SAFETY DEVICE

This heater has a pilot with an Oxygen Deple-

tion Sensing (ODS) safety shutoff system. The

ODS/pilot is a required feature for vent-free room

heaters. The ODS/pilot shuts off the heater if there

is not enough fresh air.

IGNITION SYSTEM

This heater has an electronic ignitor to light heater

fuel supply.

THERMOSTATIC HEAT CONTROL

Thermostat models have a thermostat sensing

bulb and a control valve. This results in the great-

est heater comfort. This can also result in lower

gas bills.

www.desatech.com

113061-01F 5

AIR FOR COMBUSTION

AND VENTILATION

WARNING: This heater shall

not be installed in a conned

space or unusually tight con-

struction unless provisions are

provided for adequate combus-

tion and ventilation air. Read the

following instructions to insure

proper fresh air for this and

other fuel-burning appliances

in your home.

Today’s homes are built more energy efcient

than ever. New materials, increased insulation and

new construction methods help reduce heat loss

in homes. Home owners weather strip and caulk

around windows and doors to keep the cold air out

and the warm air in. During heating months, home

owners want their homes as airtight as possible.

While it is good to make your home energy ef-

cient, your home needs to breathe. Fresh air must

enter your home. All fuel-burning appliances need

fresh air for proper combustion and ventilation.

Exhaust fans, replaces, clothes dryers and fuel

burning appliances draw air from the house to

operate. You must provide adequate fresh air for

these appliances. This will insure proper venting

of vented fuel-burning appliances.

PROVIDING ADEQUATE

VENTILATION

The following are excerpts from National Fuel

Gas Code, ANSI Z223.1/NFPA 54, Section 5.3,

Air for Combustion and Ventilation.

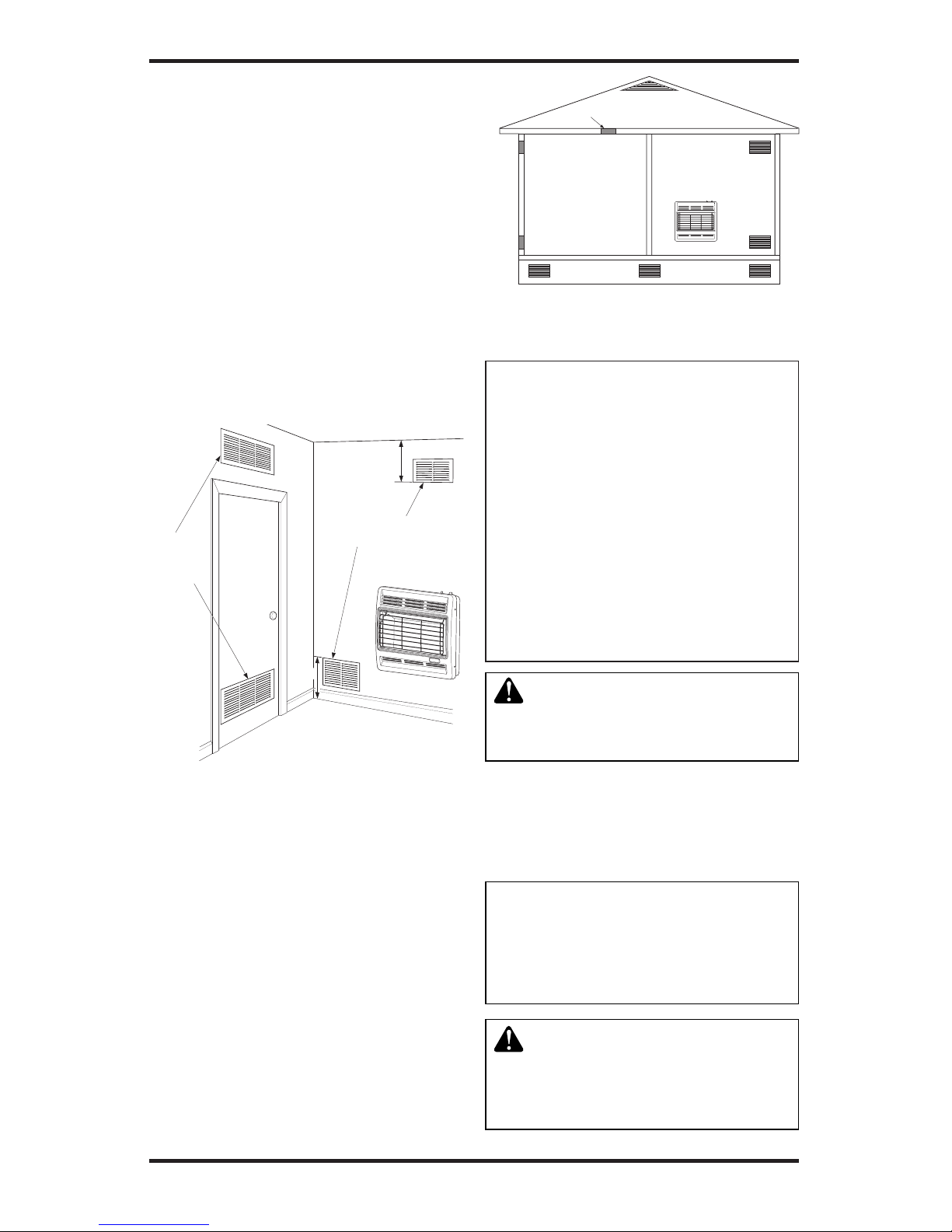

All spaces in homes fall into one of the three fol-

lowing ventilation classications:

1. Unusually Tight Construction

2. Unconned Space

3. Conned Space

The information on pages 5 through 7 will help

you classify your space and provide adequate

ventilation.

Unusually Tight Construction

The air that leaks around doors and windows

may provide enough fresh air for combustion and

ventilation. However, in buildings of unusually

tight construction, you must provide additional

fresh air.

Unusually tight construction is dened as con-

struction where:

a. walls and ceilings exposed to the outside

atmosphere have a continuous water vapor

retarder with a rating of one perm (6x10-11 kg

per pa-sec-m2) or less with openings gasketed

or sealed and

b. weather stripping has been added on openable

windows and doors and

c. caulking or sealants are applied to areas such

as joints around window and door frames,

between sole plates and floors, between

wall-ceiling joints, between wall panels, at

penetrations for plumbing, electrical and gas

lines and at other openings.

If your home meets all of the three criteria above,

you must provide additional fresh air. See Ventila-

tion Air From Outdoors, page 7.

If your home does not meet all of the three criteria

above, proceed to Determining Fresh-Air Flow

For Heater Location, page 6.

Conned and Unconned Space

The National Fuel Gas Code, ANSI Z223.1/NFPA

54 denes a conned space as a space whose

volume is less than 50 cubic feet per 1,000 Btu

per hour (4.8 m3 per kw) of the aggregate input

rating of all appliances installed in that space and

an unconned space as a space whose volume is

not less than 50 cubic feet per 1,000 Btu per hour

(4.8 m3 per kw) of the aggregate input rating of

all appliances installed in that space. Rooms com-

municating directly with the space in which the

appliances are installed*, through openings not

furnished with doors, are considered a part of the

unconned space.

* Adjoining rooms are communicating only if

there are doorless passageways or ventilation grills

between them.

www.desatech.com 113061-01F6

AIR FOR COMBUSTION

AND VENTILATION

Continued

DETERMINING FRESH-AIR FLOW

FOR HEATER LOCATION

Determining if You Have a Conned or

Unconned Space

Use this work sheet to determine if you have a con-

ned or unconned space.

Space: Includes the room in which you will install

heater plus any adjoining rooms with doorless pas-

sageways or ventilation grills between the rooms.

1. Determine the volume of the space (length x

width x height).

Length x Width x Height =__________cu. ft.

(volume of space)

Example: Space size 20 ft. (length) x 16 ft.

(width) x 8 ft. (ceiling height) = 2560 cu. ft.

(volume of space)

If additional ventilation to adjoining room is

supplied with grills or openings, add the volume

of these rooms to the total volume of the space.

2. Multiply the space volume by 20 to determine

the maximum Btu/Hr the space can support.

_______ (volume of space) x 20 = (Maximum

Btu/Hr the space can support)

Example: 2560 cu. ft. (volume of space) x 20 =

51,200 (maximum Btu/Hr the space can support)

3. Add the Btu/Hr of all fuel burning appliances in

the space.

Vent-free heater ______________Btu/Hr

Gas water heater* ______________Btu/Hr

Gas furnace ______________Btu/Hr

Vented gas heater ______________Btu/Hr

Gas replace logs ______________Btu/Hr

Other gas appliances* + _____________Btu/Hr

Total = ____________Btu/Hr

* Do not include direct-vent gas appliances. Di-

rect-vent draws combustion air from the outdoors

and vents to the outdoors.

Example:

Gas water heater ______________Btu/Hr

Vent-free heater + _____________Btu/Hr

Total = _____________Btu/Hr

40,000

20,000

60,000

4. Compare the maximum Btu/Hr the space can

support with the actual amount of Btu/Hr used.

__________ Btu/Hr (maximum the space can

support)

___________ Btu/Hr (actual amount of Btu/Hr used)

Example:

51,200 Btu/Hr (maximum the space can support)

60,000 Btu/Hr (actual amount of Btu/Hr used)

The space in the above example is a conned space

because the actual Btu/Hr used is more than the maxi-

mum Btu/Hr the space can support. You must provide

additional fresh air. Your options are as follows:

A. Rework worksheet, adding the space of an adjoin-

ing room. If the extra space provides an unconned

space, remove door to adjoining room or add

ventilation grills between rooms. See Ventilation

Air From Inside Building, page 7.

B. Vent room directly to the outdoors. See Ventila-

tion Air From Outdoors, page 7.

C. Install a lower Btu/Hr heater, if lower Btu/Hr size

makes room unconned.

If the actual Btu/Hr used is less than the maximum

Btu/Hr the space can support, the space is an uncon-

ned space. You will need no additional fresh air

ventilation.

WARNING: If the area in

which the heater may be oper-

ated is smaller than that dened

as an unconned space or if the

building is of unusually tight

construction, provide adequate

combustion and ventilation air

by one of the methods described

in the National Fuel Gas Code,

ANSI Z223.1/NFPA54 Section 5.3

or applicable local codes.

www.desatech.com

113061-01F 7

VENTILATION AIR

Ventilation Air From Inside Building

This fresh air would come from an adjoining un-

conned space. When ventilating to an adjoining

unconned space, you must provide two perma-

nent openings: one within 12" of the ceiling and

one within 12" of the oor on the wall connecting

the two spaces (see options 1 and 2, Figure 2). You

can also remove door into adjoining room (see

option 3, Figure 2). Follow the National Fuel Gas

Code, ANSI Z223.1/NFPA 54, Section 5.3, Air for

Combustion and Ventilation for required size of

ventilation grills or ducts.

Figure 3 - Ventilation Air from Outdoors

Figure 2 - Ventilation Air from Inside

Building

AIR FOR COMBUSTION

AND VENTILATION

Continued

INSTALLATION

NOTICE: This heater is intended

for use as supplemental heat.

Use this heater along with your

primary heating system. Do not

install this heater as your pri-

mary heat source. If you have a

central heating system, you may

run system’s circulating blower

while using heater. This will help

circulate the heat throughout the

house. In the event of a power

outage, you can use this heater

as your primary heat source.

WARNING: A qualied ser-

vice person must install heater.

Follow all local codes.

CHECK GAS TYPE

Use only the correct type of gas (natural or pro-

pane/LP). If your gas supply is not the correct gas

type, do not install heater. Call dealer where you

bought heater for proper type heater.

This appliance is only for use

with the type of gas indicated on

the rating plate. This appliance

is not convertible for use with

other gases.

WARNING: This appliance

is equipped for (natural or pro-

pane/LP) gas. Field conversion

is not permitted.

Outlet

Air

Ventilated

Attic

Outlet

Inlet

Air

Inlet Air Ventilated

Crawl Space

Crawl

Space

To Attic

Remove

Door into

Adjoining

Room,

Option 3

Ventilation Grills

Into Adjoining Room,

Option 2

12"

Ventilation

Grills

into Adjoining

Room,

Option 1

Ventilation Air From Outdoors

Provide extra fresh air by using ventilation grills or

ducts. You must provide two permanent openings:

one within 12" of the ceiling and one within 12"

of the oor. Connect these items directly to the

outdoors or spaces open to the outdoors. These

spaces include attics and crawl spaces. Follow the

National Fuel Gas Code, ANSI Z223.1/NFPA 54,

Section 5.3, Air for Combustion and Ventilation for

required size of ventilation grills or ducts.

IMPORTANT: Do not provide openings for inlet

or outlet air into attic if attic has a thermostat-

controlled power vent. Heated air entering the attic

will activate the power vent.

www.desatech.com 113061-01F8

Minimum

From

Sides Of

Heater

36"

FLOOR

CEILING

Minimum

Minimum To

Top Surface

Of Carpeting,

Tile Or Other

Combustible

Material

Left

Side

Right

Side

INSTALLATION ITEMS

Before installing heater, make sure you have the

items listed below.

• for propane/LP gas, external regulator (supplied

by installer)

• piping (check local codes)

• sealant (resistant to propane/LP gas)

• equipment shutoff valve *

• ground joint union

• test gauge connection*

• sediment trap

• tee joint

• pipe wrench

* A CSA design-certied equipment shutoff valve

with 1/8" NPT tap is an acceptable alternative to

test gauge connection. The optional CSA design-

certied equipment shutoff valve can be purchased

from your dealer. See Accessories, page 21.

LOCATING HEATER

WARNING: Maintain the

minimum clearances shown

in Figure 4. If you can, provide

greater clearances from oor,

ceiling and joining wall.

You can locate heater on the oor, away from a

wall. A wall mounting bracket and oor base stand

are included with this heater. Determine which

method is best for your application.

INSTALLATION

Continued WARNING: Never install the

heater

• in a bedroom or bathroom

• in a recreational vehicle

• where curtains, furniture,

clothing or other ammable

objects are less than 36" from

the front, top or sides of the

heater

• as a replace insert

• in high trafc areas

• in windy or drafty areas

CAUTION: This heater cre-

ates warm air currents. These

currents move heat to wall sur-

faces next to heater. Installing

heater next to vinyl or cloth wall

coverings or operating heater

where impurities (such as, but

not limited to, tobacco smoke,

aromatic candles, cleaning u-

ids, oil or kerosene lamps, etc.) in

the air exist, may discolor walls

or cause odors.

IMPORTANT: Vent-free heaters add moisture to

the air. Although this is benecial, installing heater

in rooms without enough ventilation air may cause

mildew to form from too much moisture. See Air

for Combustion and Ventilation, page 5.

CAUTION: If you install the

heater in a home garage

• heater pilot and burner must

be at least 18" above oor

• locate heater where moving

vehicle will not hit it

For convenience and efciency, install heater

• where there is easy access for operation, inspec-

tion and service

• in coldest part of room

An optional fan kit is available from your dealer.

See Accessories, page 21. If planning to use fan,

locate heater near an electrical outlet.

Figure 4 - Mounting Clearances As

Viewed From Front of Heater

www.desatech.com

113061-01F 9

(20.3

cm)

Min.

Adjoining Wall

Only Insert Mounting

Screws Through Last

Hole On Each End

Only Insert Mounting

Screws Through Last

Hole On Each End

Floor Floor

14" (35.6 cm)

18 3/4"

(47.6 cm)

Min.

18 3/4"

(47.6 cm)

Min.

12"

(30.4

cm)

Min.

30,000 Btu/hr Models

THERMOSTAT SENSING BULB

The thermostat sensing bulb has been placed

below the heater.

1. Place clamp on thermostat sensing bulb as

shown in Figure 5. Clamp is provided in

hardware package.

2. Snap clamp into upper mounting hole as shown

in Figure 5. Mounting hole is located on lower

left edge on back of heater. Make sure the

thermostat sensing bulb is pointing up.

Figure 5 - Attaching Thermostat Sensing

Bulb

Clamp

Thermostat

Sensing Bulb

Figure 6 - Mounting Bracket

INSTALLING HEATER TO WALL

Mounting Bracket

Locate mounting bracket in heater carton. Remove

mounting bracket from heater carton.

Figure 7 - Removing Front Panel Of

Heater

Removing Front Panel Of Heater

1. Remove the four painted screws, two on each

side of front panel.

2. Pull bottom of front panel forward, then out.

3. Remove any remaining packaging materials.

Methods For Attaching Mounting Bracket

To Wall

Only use last hole on each end of mounting bracket

to attach bracket to wall. These two holes are 14"

apart from their centers. Attach mounting bracket

to wall in one of two ways:

1. Attaching to wall stud

2. Attaching to wall anchor

Attaching to Wall Stud: This method provides the

strongest hold. Insert mounting screws through

mounting bracket and into wall studs.

Attaching to Wall Anchor: This method allows you

to attach mounting bracket to hollow walls (wall

areas between studs) or to solid walls (concrete

or masonry).

Decide which method better suits your needs.

Either method will provide a secure hold for the

mounting bracket.

Marking Screw Locations

1. Tape mounting bracket to wall where heater will

be located. Make sure mounting bracket is level.

WARNING:Maintainminimum

clearances shown in Figure 8. If

you can, provide greater clearanc-

es from oor and joining wall.

2. Mark screw locations on wall (see Figure 8).

Note: Only mark last hole on each end of

mounting bracket. Insert mounting screws

through these holes only.

3. Remove tape and mounting bracket from wall.

Figure 8 - Mounting Bracket Clearances

(20.3

cm)

Min.

Adjoining Wall

Only Insert Mounting

Screws Through Last

Hole On Each End

Only Insert Mounting

Screws Through Last

Hole On Each End

Floor Floor

14" (35.6 cm)

(47.6 cm)

Min.

(47.6 cm)

Min.

12"

(30.4

cm)

Min.

20,000 Btu/hr Models

INSTALLATION

Continued

www.desatech.com 113061-01F10

INSTALLATION

Continued

Attaching Mounting Bracket To Wall

Note: Wall anchors, mounting screws and spacers

are in hardware package. The hardware package

is provided with heater.

Attaching To Wall Stud Method

For attaching mounting bracket to wall studs

1. Drill holes at marked locations using 9/64"

drill bit.

2. Place mounting bracket onto wall. Line up last

hole on each end of bracket with holes drilled

in wall.

3. Insert mounting screws through bracket and

into wall studs.

4. Tighten screws until mounting bracket is

rmly fastened to wall studs.

Attaching To Wall Anchor Method

For attaching mounting bracket to hollow walls

(wall areas between studs) or solid walls (concrete

or masonry)

1. Drill holes at marked locations using 5/16"

drill bit. For solid walls (concrete or masonry),

drill at least 1" deep.

2. Fold wall anchor as shown in Figure 9.

3. Insert wall anchor (wings rst) into hole. Tap

anchor ush to wall.

4. For thin walls (1/2" or less), insert red key

into wall anchor. Push red key to “pop” open

anchor wings (see Figure 10). IMPORTANT:

Do not hammer key! For thick walls (over 1/2"

thick) or solid walls, do not pop open wings.

5. Place mounting bracket onto wall. Line up

last hole on each end of bracket with wall

anchors.

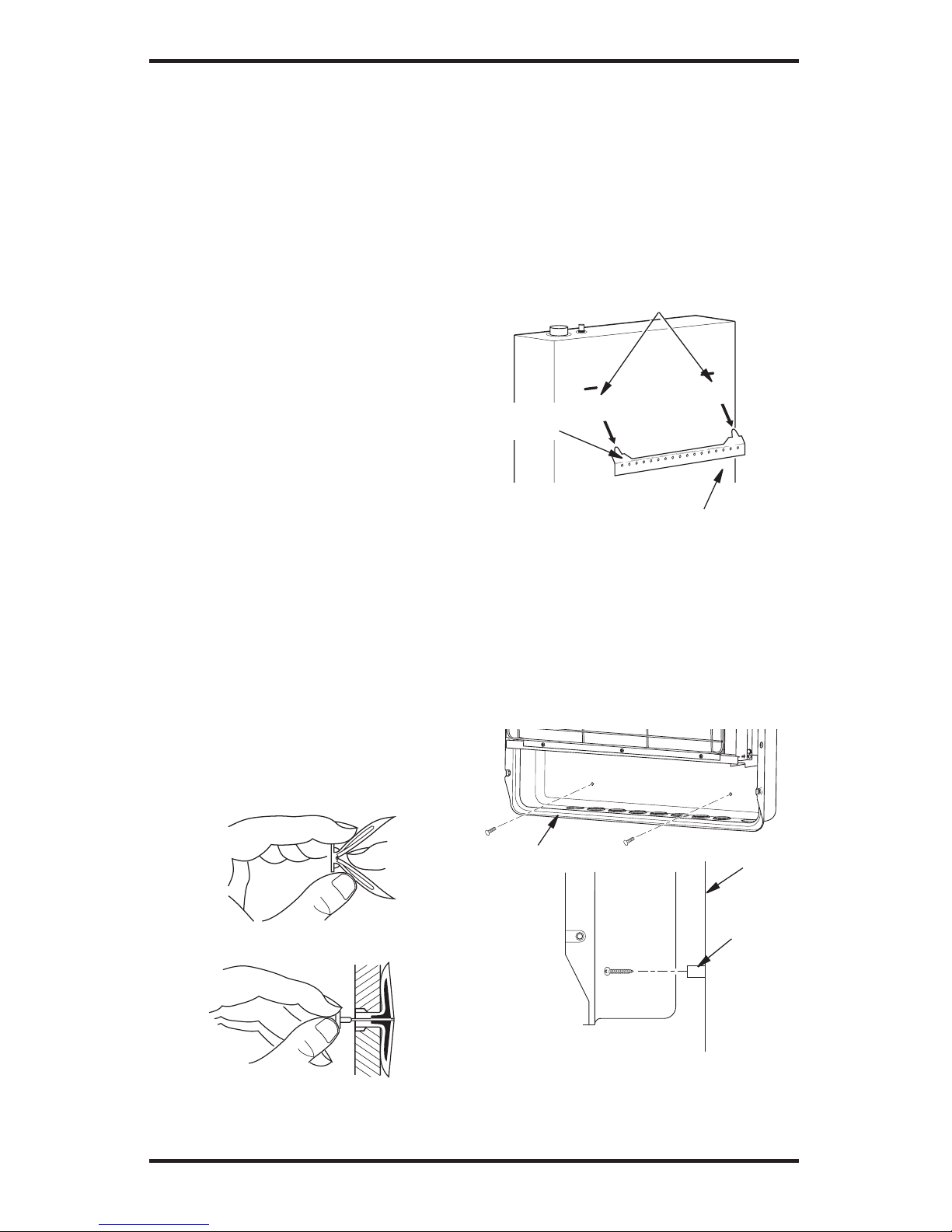

Figure 9 - Folding Anchor

Figure 11 - Mounting Heater Onto

Mounting Bracket

Stand-

Out Tab

Figure 10 - Popping Open Anchor Wings

For Thin Walls

Mounting Bracket (attached to wall)

Horizontal Slots

6. Insert mounting screws through bracket and

into wall anchors.

7. Tighten screws until mounting bracket is

rmly fastened to wall.

Placing Heater On Mounting Bracket

1. Locate two horizontal slots on back panel

of heater.

2. Place heater onto mounting bracket. Slide

horizontal slots onto stand-out tabs on mount-

ing bracket.

Installing Bottom Mounting Screws

1. Locate two bottom mounting holes. These

holes are near bottom on back panel of heater

(see Figure 12).

2. Mark screw locations on wall.

3. Remove heater from mounting bracket.

Figure 12 - Installing Bottom Mounting

Screws

Side View

Front View

Wall

Spacer

Heater

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Desa Chauffage au gaz

Desa

Desa FLAME-MAX FVFM27PR Guide de démarrage rapide

Desa

Desa HD18NRA Guide de démarrage rapide

Desa

Desa Comfort Glow CGS2718N Guide de démarrage rapide

Desa

Desa GWRN18 Instructions originales

Desa

Desa 30 Guide de démarrage rapide

Desa

Desa HDVSR78 Guide de démarrage rapide

Desa

Desa RH10PT Guide de démarrage rapide

Desa

Desa TC100VR Manuel utilisateur

Desa

Desa CFS18NR Guide de démarrage rapide

Desa

Desa Comfort Glow CGR35NA Guide de démarrage rapide

Desa

Desa Comfort Glow CGP10TA Guide de démarrage rapide

Desa

Desa 10542 Manuel utilisateur

Desa

Desa Firewerks VTDMV18NA Guide de démarrage rapide

Desa

Desa GWRN10 Instructions originales

Desa

Desa CF18PV Manuel d'utilisation

Desa

Desa Glo-Warm FA-20BB Guide de démarrage rapide

Desa

Desa CCL3018NR Guide de démarrage rapide

Desa

Desa Glo-Warm FGHS30LPB Guide de démarrage rapide

Desa

Desa VUL18NR Guide de démarrage rapide

Desa

Desa Medallion MR10NT Guide de démarrage rapide

Desa

Desa Amity Guide de démarrage rapide

Desa

Desa Design Dynamics HCA-18-RFN Guide de démarrage rapide

Desa

Desa FLAME-MAX VML27NR Guide de démarrage rapide

Desa

Desa Comfort Glow CCL3018NA Guide de démarrage rapide

Manuels Chauffage au gaz populaires d'autres marques

Superior

Superior BGE18NV Manuel utilisateur

Dru

Dru Room-sealed atmospheric gas-fired heating... Manuel utilisateur

klover

klover TKR 35 Manuel utilisateur

Rothenberger Industrial

Rothenberger Industrial 035984 Manuel utilisateur

New Buck Corporation

New Buck Corporation 34 Manuel utilisateur

Hargrove

Hargrove Timberland Glow Guide de démarrage rapide

Kinder

Kinder Cameo BF Manuel utilisateur

Qlima

Qlima GH 438 B-2 Manuel

Gasmate

Gasmate AH100 Series Manuel utilisateur

Medallion

Medallion MBP20TLB Guide de démarrage rapide

Clarke

Clarke DEVIL 910SS Manuel utilisateur

Superior

Superior BGE18NR Manuel utilisateur

Brant Radiant Heaters

Brant Radiant Heaters QTD Series Instructions d'installation

L.B. White

L.B. White Therma Grow HW220 Manuel

Sealey

Sealey LP35.V5 Manuel utilisateur

Italkero

Italkero Falo Evo Manuel utilisateur

Williams

Williams 2509822A Manuel utilisateur

Romotop

Romotop Heckla 1301 Caractéristiques techniques
