Desa RCP80 Manuel utilisateur

PROPANE

CONSTRUCTION

HEATER

OWNER’S MANUAL

IMPORTANT

Readandunderstandthismanualbeforeassembling,starting,orservicingheater.

Improper use of heater can cause serious injury. Keep this manual for future

reference.

GENERAL HAZARD WARNING:

FAILURE TO COMPLY WITH THE PRECAUTIONS AND INSTRUCTIONS PRO-

VIDED WITH THIS HEATER, CAN RESULT IN DEATH, SERIOUS BODILY INJURY

AND PROPERTY LOSS OR DAMAGE FROM HAZARDS OF FIRE, EXPLOSION,

BURN, ASPHYXIATION, AND/OR CARBON MONOXIDE POISONING.

ONLY PERSONS WHO CAN UNDERSTAND AND FOLLOW THE INSTRUCTIONS

SHOULD USE OR SERVICE THIS HEATER.

IF YOU NEED ASSISTANCE OR HEATER INFORMATION SUCH AS AN INSTRUC-

TIONS MANUAL, LABELS, ETC. CONTACT THE MANUFACTURER.

Models: TC80 and RCP80

099684

SECTION PAGE

CONTENTS Safety Information......................................................................... 2

Product Identification .................................................................... 4

Specifications ................................................................................ 4

Unpacking......................................................................................5

Theory of Operation ...................................................................... 5

Propane Supply..............................................................................5

Ventilation ..................................................................................... 5

Installation ..................................................................................... 6

Operation .......................................................................................7

Storage ........................................................................................... 9

Maintenance .................................................................................. 10

Troubleshooting.............................................................................10

Accessories .................................................................................... 11

Replacement Parts ......................................................................... 11

Illustrated Parts List....................................................................... 12-13

Warranty and Repair Service.........................................................Back Cover

SAFETY

INFORMATION

Safety Information continues on next page

The heater is designed for use as a construction heater in accordance with ANSI

Z83.7•CGA2.14.Otherstandardsgoverntheuseoffuelgasesandheatingproducts

for specific uses. Your local authority can advise you about these. The primary

purposeofconstructionheatersis to providetemporaryheatingofbuildings under

construction,alterationorrepair.Properlyused,theheaterprovidessafeeconomi-

cal heating. Products of combustion are vented into the area being heated.

Wecannotforeseeevery usewhichmaybe madeofourheaters.Checkwithyour

local fire safety authority if you have questions about heater use.

Other standards govern the use of fuel gases and heat producing products for

specific uses. Your local authorities can advise you about these.

Carbon Monoxide Poisoning: Some people are more affected by carbon

monoxidethanothers.Earlysignsofcarbonmonoxidepoisoningresembletheﬂu,

with headaches, dizziness, and/or nausea. If you have these signs, the heater may

not be working properly. Get fresh air at once! Check for proper ventilation and

have heater serviced.

WARNING ICON G 001

WARNING: FIRE, BURN, INHALATION, AND EXPLOSION

HAZARD.KEEPSOLIDCOMBUSTIBLES,SUCHASBUILDING

MATERIALS, PAPER OR CARDBOARD, A SAFE DISTANCE

AWAY FROM THE HEATER AS RECOMMENDED BY THE

INSTRUCTIONS. NEVER USE THE HEATER IN SPACES

WHICH DO OR MAY CONTAIN VOLATILE OR AIRBORNE

COMBUSTIBLES,ORPRODUCTSSUCHASGASOLINE,SOL-

VENTS, PAINT THINNER, DUST PARTICLES OR UNKNOWN

CHEMICALS.

WARNING ICON G001

WARNING

NOT FOR HOME OR RECREATIONAL VEHICLE USE.

WARNING ICON G 001

WARNINGS

099684

SAFETY

INFORMATION

Continued

WARNINGS

PropaneGas:Propanegasisodorless.Anodor-makingagentisaddedtopropane

gas. The odor helps you detect a propane gas leak. However, the odor added to

propane gas may fade. Propane gas may be present even though no odor exists.

Makecertainyoureadandunderstandallwarnings.Keepthismanualforreference.

It is your guide to safe and proper operation of this heater.

• Install and use heater with care. Follow all local ordinances and codes. In the

absence of local ordinances and codes, refer to the Standard for Storage and

Handling of Liquefied Petroleum Gas, ANSI/NFPA 58 and the Natural Gas

Installation Code, CAN/CGA B149.2. This instructs on the safe storage and

handling of propane gases.

• Use only the hose and factory preset regulator provided with the heater.

• Use only propane gas set up for vapor withdrawal.

• Provide adequate ventilation. Before using heater, provide at least a 2.5-square-

foot opening of fresh, outside air. This heater produces carbon monoxide, which

is listed by the State of California as a reproductive toxin under Proposition 65.

• For indoor use only. Do not use heater outdoors.

• Do not use heater in occupied dwellings or in living or sleeping quarters.

• Do not use heater below ground level. Propane gas is heavier than air. If a leak

occurs, propane gas will sink to the lowest possible level.

• Keep appliance area clear and free from combustible materials, gasoline, paint

thinner, and other flammable vapors and liquids. Do not use heater in areas

with high dust content.

• Minimum heater clearances from combustibles:

Sides: 4 Ft. Top: 6 Ft.

• Keep heater at least six feet from propane tank(s). Do not point heater at

propane tank(s) within 20 feet.

• Keep propane tank(s) below 100°F.

• Check heater for damage before each use. Do not use a damaged heater.

• Check hose before each use of heater. If highly worn or cut, replace before

using heater.

• Locate heater on stable and level surface if heater is hot or operating.

• Not intended for use on finished floors.

• Never block air inlet (bottom) or air outlet (top) of heater.

• Keep heater away from strong drafts, water spray, rain, or dripping water.

• Do not leave heater unattended.

• Keep children and animals away from heater.

• Never move, handle, or service a hot, operating, or plugged-in heater. Severe

burns may result. Wait 20 minutes after turning heater off.

• To prevent injury, wear gloves when handling heater.

• Never attach duct work to heater.

• Do not alter heater. Keep heater in its original state.

• Do not use heater if altered.

• Turn off propane supply and unplug heater when not in use.

• Use only original replacement parts. This heater must use design-specific

parts. Do not substitute or use generic parts. Improper replacement parts could

cause serious or fatal injuries.

099684

PRODUCT

IDENTIFICATION

SPECIFICATIONS

Rating (BTU/Hr)

High ................................................................................ 73,000

Low ................................................................................. 30,000

Fuel ...................................................................................... Propane Vapor Only

Fuel Consumption

Gallons/Hour .................................................................. 1.1

Pounds/Hour ................................................................... 3.7

Supply Pressure (To Regulator)

Maximum........................................................................ 200 psi

Minimum, for input adjustment...................................... 10 psi

Manifold Pressure (inches of water column)

High ................................................................................ 14

Low ................................................................................. 15.2

Ignitor Gap........................................................................... 0.120"

Weight (Pounds) .................................................................. 15

Shipping Weight (Pounds) .................................................. 19

Size - L x W x H (Inches).................................................... 18 1/2 x 16 x 23 1/8

Figure 1 - Product Identification

HIGH

LOW

OFF

INDICATOR

Top

Debris

Shield

Shell

Ignitor

Electrode Pilot

Burner

Tube

Thermocouple

Base

Piezo Ignitor

Button

Main Burner

Valve

Main Burner

Valve Handle

Automatic

Control Valve

Button

Inlet

Connector

Hose/Regulator

Assembly

Automatic

Control Valve

099684

1. Remove all packing items applied to heater for shipment. Keep plastic cover

caps (attached to inlet connector and hose/regulator assembly) for storage.

2. Remove all items from carton.

3. Check all items for shipping damage. If heater is damaged, promptly inform

dealer where you bought heater.

UNPACKING

THEORY OF

OPERATION

The Fuel System: The hose/regulator assembly attaches to the propane gas

supply. This provides fuel to the heater.

The Ignition System: The piezo ignitor lights the pilot fuel supply. The pilot

ignites the main burner.

The Automatic Control System: This system causes the heater to shut down

if the flame goes out.

PROPANE

SUPPLY

You must provide propane gas and propane tank(s).

Use this heater only with a propane vapor withdrawal supply system. See

Chapter 5 of the Standard for Storage and Handling of Liquefied Petroleum Gas,

ANSI/NFPA 58 and/or CAN/CGA B149.2. Your local library or fire department

will have this booklet.

This heater will operate with a 20-pound propane tank. However, you can only

operate it in the LOW position during mildly cool weather. At higher heat settings

or during colder weather, you must use larger tanks.

The amount of propane gas ready for use from propane tanks varies. Two factors

decide this amount.

1. The amount of propane gas in tank(s)

2. The temperature of tank(s)

The chart below shows the minimum number of 100-pound tanks needed to run

the heater. Connect tanks together with a manifold.

Less gas is vaporized at lower temperatures. Your local propane gas dealer will

help you select the proper supply system.

Average Temperature (°F)

At Tank Location 60°40°32°20°10°0°

Number Of Tanks 111122

VENTILATION WARNING

Provide at least a 2.5 square foot opening of fresh, outside air

while running heater. If proper fresh, outside air ventilation is

not provided, carbon monoxide poisoning can occur. Provide

proper fresh, outside air ventilation before running heater.

099684

4. Open propane supply valve on propane tank(s) slowly.

Note:

If not opened

slowly, excess-flow check valve on propane tank will stop gas flow. If this

happens, close propane supply valve and open again slowly.

INSTALLATION

3. Connect hose to the inlet connector. Tighten firmly using a wrench.

IMPORTANT:

Use extra hose or piping if needed. Install extra hose or piping

between hose/regulator assembly and propane tank. You must use the regula-

tor supplied with heater even if propane tank has one.

Figure 2 - Regulator With Vent Pointing Down

Continued

Figure 3 - Hose and Inlet Connector

HIGH

LOW

OFF

INDICATOR

Hose

Inlet Connector

POL Fitting

Hose

Regulator

Vent

(pointing down)

Supply Valve

1. Provide propane supply system (see Propane Supply, page 5).

2. Connect POL fitting on hose/regulator assembly to propane tank(s). Turn POL

fitting counterclockwise into threads on tank. Tighten firmly using a wrench.

IMPORTANT:

Tighten regulator with vent pointing down. Pointing vent

down protects regulator from weather damage.

Propane

Tank

WARNING

Test all gas piping and connections for leaks after installa-

tion or servicing. Correct all leaks at once.

WARNING

Review and understand the warnings in the Safety Informa-

tion section, pages 2 and 3. They are needed to safely oper-

ate this heater. Follow all local codes when using this heater.

099684

5. Check all connections for leaks. Apply mixture of liquid soap and water to gas

joints. Bubbles forming show a leak that must be corrected.

6. Close propane supply valve.

OPERATION

Continued

To Start Heater

1. Follow all installation, ventilation, and safety information.

2. Locate heater on stable and level surface. Make sure strong drafts do not blow

on heater.

3. Open propane supply valve on propane tank(s) slowly.

Note:

If not opened

slowly, excess-flow check valve on propane tank may stop gas flow. If this

happens, close propane supply valve and open again slowly.

4. Push in and hold automatic control valve button (see Figure 4). Push piezo

ignitor button (see Figure 4). You may need to push piezo ignitor button 3-8

times until the pilot lights. When pilot lights, keep automatic control valve

button pushed in. Release after 30 seconds.

Note:

If pilot fails to light, hose may have air in it. If so, keep automatic control

valvebuttonpressedandwait20seconds.Releaseautomaticcontrolvalvebutton

and wait 20 seconds for unburned fuel to exit heater. Repeat step 4.

Figure 4 - Main Burner Valve Handle, Automatic Control Valve Button,

and Piezo Ignitor Button Locations

INDICATO

Main Burner

Valve Handle

Piezo Ignitor

Button

Automatic Control

Valve Button

WARNING

Never use an open flame to check for a leak. Apply a mixture

of liquid soap and water to all joints. Bubbles forming show a

leak that must be corrected. Correct all leaks at once.

WARNING

Review and understand the warnings in the Safety Informa-

tion section, pages 2 and 3. They are needed to safely oper-

ate this heater. Follow all local codes when using this heater.

WARNING

Fully close main burner valve before lighting pilot. If not,

severe burns can occur. Do this by turning valve handle

towards the OFF position until it stops.

099684

5. If pilot light goes out, repeat step 4.

6. When pilot remains lit, fully open main burner valve. Do this by turning valve

handle to the HIGH position. You can now position the handle to any setting

between HIGH and LOW.

CAUTION

Only use the main burner valve handle to adjust the burner

flame. Always turn handle pointer to the HIGH position

before turning it to a lower position. Never set handle

pointer between the LOW and OFF positions.

HIGH

LOW

OFF

INDICATOR

Slight Yellow Coloring

on Flame Ends

Blue Flame

Correct Flame Pattern

Burner

Tube

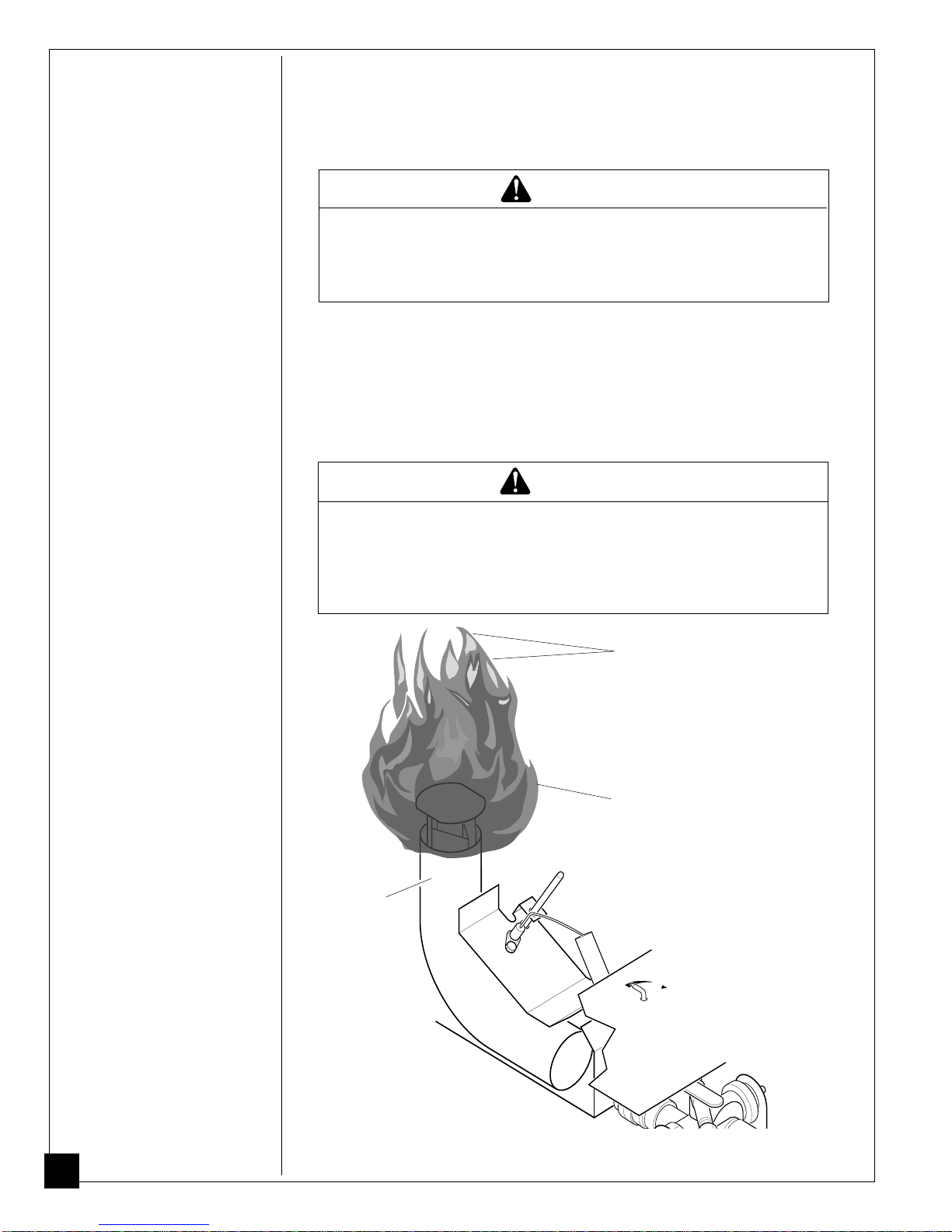

Figure 5 - Normal Flame Pattern at High Position

CAUTION

Running heater below specified input rating may cause

flashback. During flashback, the burner flame is mostly

yellow. The flame will burn inside the burner tube, causing a

roaring noise. If flashback occurs, turn heater off. After

burner tube cools, restart the heater.

Flame Patterns

Figure 5 shows a correct flame pattern. The burner flame is mostly blue with a

slight yellow coloring on the ends.

Figure 6 shows an incorrect flame pattern. The flame is mostly yellow. The

incorrect flame pattern results from running heater below the LOW position or

from flashback.

099684

HIGH

LOW

OFF

INDICATOR

To Stop Heater

1. Tightly close propane supply valve on propane tank(s). Allow heater to burn

remaining fuel in hose.

2. Shut off main burner valve. Do this by turning valve handle towards the OFF

position until it stops.

To Restart Heater

1. Wait five minutes after stopping heater.

2. Restart heater by following steps under To Start Heater, page 7.

1. Store propane tank(s) in safe manner. Refer to Chapter 5 of Standard for

Storage and Handling of Liquefied Petroleum Gases, ANSI/NFPA 58 and/or

CAN/CGA B149.2. Follow all local codes. Always store propane tanks outdoors.

2. Place plastic cover caps over brass fittings on inlet connector and

hose/regulator assembly.

3. Store in a dry, clean, and safe place.

STORAGE

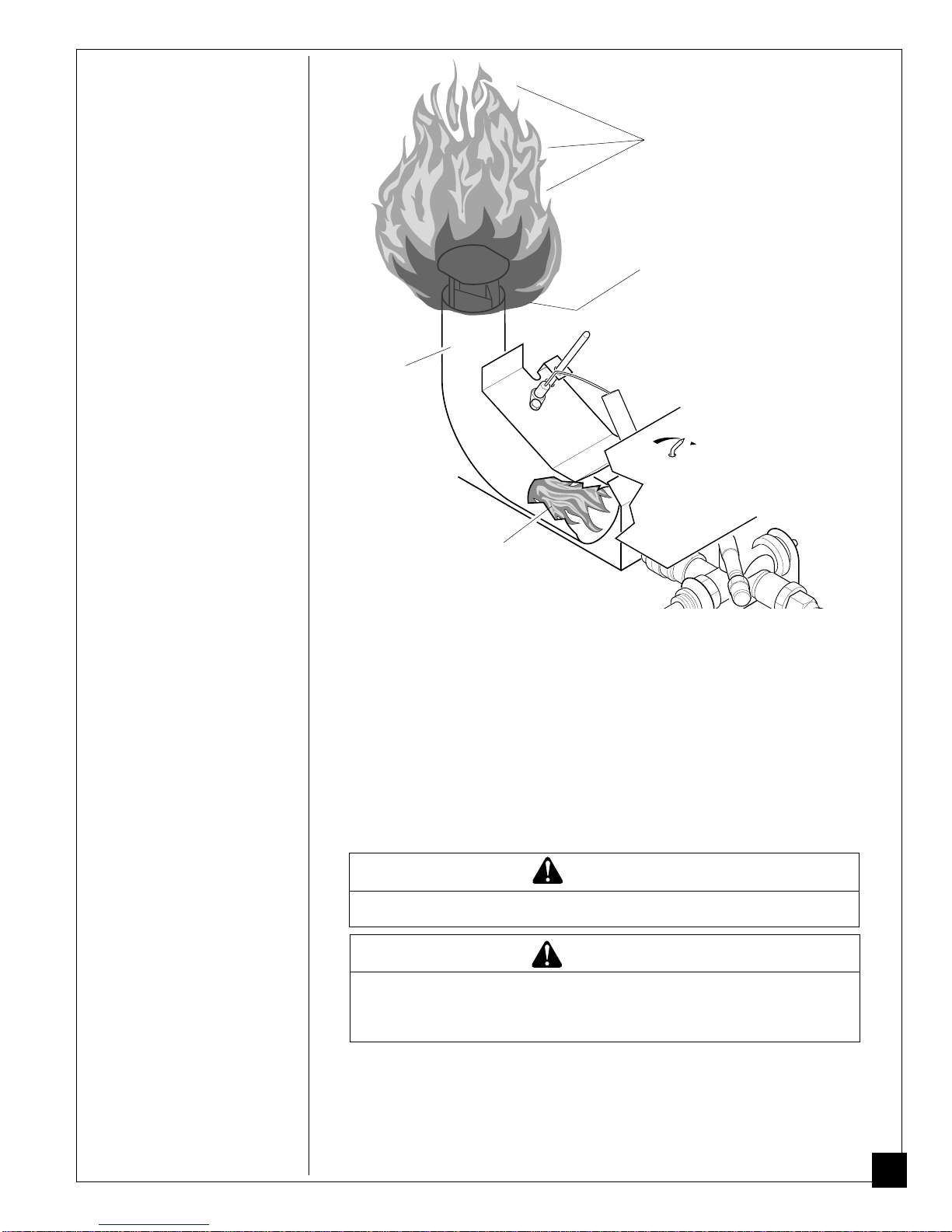

Figure 6 - Flame Pattern during Flashback

Yellow Flame

Blue Flame

Flame Inside

Burner Tube

(makes roaring noise)

Incorrect Flame

Pattern–Flashback

Burner

Tube

CAUTION

Disconnect heater from propane supply tank(s).

CAUTION

Do not stack heaters over three high if more than one

heater is being stored. Secure heaters with rope or strap

after stacking.

099684

MAINTENANCE WARNING

Never attempt to service heater while it is connected to

propane supply, operating, or hot. Severe burns can occur.

SYMPTOM

Pilot fails

to light

Pilot lights

but goes

out when

automatic

control valve

button

is released

Burn rate

is low

POSSIBLE CAUSE

1. Propane supply valve closed

on propane tank(s)

2. Excess flow check valve

closed

3. Air in gas line

4. Blockage in pilot orifice

5. Piezo ignition system not

sparking

1. Not enough warm up time

2. Low gas pressure

3. Thermocouple loose or

needs to be replaced

4. Automatic control valve

needs to be replaced

1. Main burner valve not fully

open

2. Plugged gas orifice

3. Low gas pressure

4. Low fuel supply

REMEDY

1. Open propane supply valve

slowly.

2. Close propane supply valve on

propanetankandreopenslowly.

3. Allow several minutes to purge

air with automatic control

valve button depressed.

4. Replace pilot orifice.

5. Adjust ignitor electrode gap to

.120". Check wire lead for

damage. Replace piezo ignitor

and/or ignitor electrode as

necessary.

1. Relight, hold automatic control

valve button in 45 seconds.

2. Check propane tank(s) for

proper gas supply.

3. Tighten connection or replace

thermocouple.

4. Replace automatic control

valve.

1. Fully open main burner valve

by turning the valve handle

towards HIGH position until it

stops.

2. Replace gas orifice.

3. Check gas supply; check

regulator output.

4. Consult propane gas supplier.

TROUBLE-

SHOOTING WARNING

Never attempt to service heater while it is connected to

propane supply, operating, or hot. Severe burns can occur.

1. Keep heater clean.

2. Inspect heater before each use. Check connections for leaks. Apply mixture of

liquid soap and water to connections. Bubbles forming show a leak that must be

corrected. Correct all leaks at once.

3. Inspect hose/regulator assembly before each use. If hose is highly worn or cut,

replace.

4. Have heater inspected yearly by service person.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Desa Chauffage au gaz

Desa

Desa Comfort Glow CGN10A Guide de démarrage rapide

Desa

Desa SF20NT Instructions originales

Desa

Desa FLAME-MAX VML27PR Guide de démarrage rapide

Desa

Desa 10542 Manuel utilisateur

Desa

Desa RH10PT Guide de démarrage rapide

Desa

Desa Vanguard VN10 Guide de démarrage rapide

Desa

Desa Glo-Warm FA-20BB Guide de démarrage rapide

Desa

Desa Comfort Glow CGP16RA Guide de démarrage rapide

Desa

Desa Comfort Glow CGP10R Guide de démarrage rapide

Desa

Desa HRB3624NR Guide de démarrage rapide

Desa

Desa CBN20, CBP20, SBN20, SBP20, CB Guide de configuration

Desa

Desa INTERNATIONAL UNVENTED (VENT-FREE) GAS LOG... Guide de démarrage rapide

Desa

Desa REM10PT Guide de démarrage rapide

Desa

Desa NZ100 Instructions originales

Desa

Desa Comfort Glow CGN12 Guide de démarrage rapide

Desa

Desa Comfort Glow CGN10TA Guide de démarrage rapide

Desa

Desa HDLE2824NRA Manuel utilisateur

Desa

Desa Comfort Glow CGB3930NRA Guide de démarrage rapide

Desa

Desa Glo-Warm FA-20BB Guide de démarrage rapide

Desa

Desa R series Manuel utilisateur

Desa

Desa VGL24NR Guide de démarrage rapide

Desa

Desa CFS18NR Guide de démarrage rapide

Desa

Desa VN10TA Guide de démarrage rapide

Desa

Desa Glo-Warm FB-3B Guide de démarrage rapide

Manuels Chauffage au gaz populaires d'autres marques

Superior

Superior BGE18NV Manuel utilisateur

Dru

Dru Room-sealed atmospheric gas-fired heating... Manuel utilisateur

klover

klover TKR 35 Manuel utilisateur

Rothenberger Industrial

Rothenberger Industrial 035984 Manuel utilisateur

New Buck Corporation

New Buck Corporation 34 Manuel utilisateur

Hargrove

Hargrove Timberland Glow Guide de démarrage rapide

Kinder

Kinder Cameo BF Manuel utilisateur

Qlima

Qlima GH 438 B-2 Manuel

Gasmate

Gasmate AH100 Series Manuel utilisateur

Medallion

Medallion MBP20TLB Guide de démarrage rapide

Clarke

Clarke DEVIL 910SS Manuel utilisateur

Superior

Superior BGE18NR Manuel utilisateur

Brant Radiant Heaters

Brant Radiant Heaters QTD Series Instructions d'installation

L.B. White

L.B. White Therma Grow HW220 Manuel

Sealey

Sealey LP35.V5 Manuel utilisateur

Italkero

Italkero Falo Evo Manuel utilisateur

Williams

Williams 2509822A Manuel utilisateur

Romotop

Romotop Heckla 1301 Caractéristiques techniques
