Save this manual for future reference.

BLUE-FLAMEVENT-FREE

NATURAL GAS HEATER

OWNER’S OPERATION AND INSTALLATION MANUAL

WARNING: If the information in this manual

is not followed exactly, a fire or explosion

may result causing property damage, per-

sonal injury, or loss of life.

— Do not store or use gasoline or other

flammable vapors and liquids in the

vicinity of this or any other appliance.

— WHAT TO DO IF YOU SMELL GAS

• Do not try to light any appliance.

• Do not touch any electrical switch; do

not use any phone in your building.

• Immediatelycallyourgassupplierfrom

a neighbor’s phone. Follow the gas

supplier’s instructions.

• If you cannot reach your gas supplier,

call the fire department.

— Installation and service must be per-

formed by a qualified installer, service

agency, or the gas supplier.

WARNING:Improperinstallation,

adjustment, alteration, service, or

maintenance can cause injury or

property damage. Refer to this

manualforcorrectinstallationand

operationalprocedures.Forassis-

tance or additional information

consult a qualified installer, ser-

vice agency, or the gas supplier.

Model: RN30BT, RN30B and CGN18B

CONTENTS SECTION PAGE

Safety Information......................................................................... 2

Product Identification .................................................................... 4

Local Codes ...................................................................................4

Unpacking......................................................................................4

Product Features ............................................................................4

Installing To Wall.......................................................................... 5

Connecting To Gas Supply............................................................10

Checking Gas Connections............................................................11

Operating Heater (Thermostat Model) ..........................................13

Operating Heater (Non-Thermostat Model) .................................. 16

Inspecting Burner ..........................................................................18

Cleaning And Maintenance ...........................................................20

Troubleshooting.............................................................................20

Technical Service ..........................................................................24

Specifications ................................................................................ 24

Service Hints ................................................................................. 24

Replacement Parts .........................................................................24

Parts Centrals................................................................................. 25

Accessories ....................................................................................25

Illustrated Parts List.......................................................................26-31

Warranty Information .................................................................... Back Cover

WARNING ICON G001

WARNINGS

IMPORTANT: Read this owner’s manual carefully and completely

before trying to assemble, operate, or service this heater. Improper

use of this heater can cause serious injury or death from burns, fire,

explosion, electrical shock, and carbon monoxide poisoning.

WARNING ICON G001

DANGER

Carbon monoxide poisoning may lead to death!

Carbon Monoxide Poisoning: Early signs of carbon monoxide poisoning

resemblethe flu,withheadaches,dizziness,or nausea.If youhavethesesigns,the

heater may not be working properly. Getfreshairat once! Have heater serviced.

Some people are more affected by carbon monoxide than others. These include

pregnant women, persons with heart or lung disease or anemia, those under the

influence of alcohol, and those at high altitudes.

Natural Gas: Natural gas is odorless. An odor-making agent is added to natural

gas. The odor helps you detect a natural gas leak. However, the odor added to

natural gas can fade. Natural gas may be present even though no odor exits.

Make certain you read and understand all warnings. Keep this manual for

reference. It is your guide to safe and proper operation of this heater.

SAFETY

INFORMATION

Safety Information continued on next page

SAFETY

INFORMATION

Continued

WARNING ICON G 001

WARNINGS

Continued

1. Use only natural gas. Do not convert heater to use different fuel type.

2. If you smell gas

• Shut off gas supply.

• Do not try to light any appliance.

• Do not touch any electrical switch; do not use any phone in your building.

• Immediately call your gas supplier from a neighbor’s phone. Follow the

gas supplier’s instructions.

• If you cannot reach your gas supplier, call the fire department.

3. Never install the heater

• in sleeping quarters, a mobile home, or a recreational vehicle

• where curtains, furniture, clothing, or other flammable objects are less than

36 inches from the front, top, or sides of the heater

• as a fireplace insert

• in high traffic areas

• in windy or drafty areas

4. Open window, door, or garage door to admit fresh, outside air when using

heater. Open window one or two inches. When used without fresh, outside air,

heater may give off carbon monoxide gas.

5. Never run heater in small, closed room.

6. If heater shuts off, do not relight until you provide fresh, outside air. If heater

keeps shutting off, have it serviced.

7. Do not run heater

• where flammable liquids or vapors are used or stored

• under dusty conditions

8. Never place any objects on the heater.

9. Surface of heater becomes very hot when running heater. Keep children and

adults away from hot surface to avoid burns or clothing ignition. Heater will

remain hot for a time after shut-down. Allow surface to cool before touching.

10.Make sure grill guard is in place before running heater.

11.Do not alter heater or its controls. Any change may create a safety hazard.

12.Do not use heater if any part of heater has been under water.

13.Turn off and unplug heater and let cool before servicing. Only a qualified

service person should service and repair heater.

14. Do not operate heater above elevations of 4,500 feet.

PRODUCT

IDENTIFICATION

Ignitor Button Control Knob

Front

Panel

Heat Shield

(RN30BT,

RN30B) or

Glass Panel

(CGN18B)

Grill

Guard

PRODUCT

FEATURES

Safety Device

This heater has a pilot with an Oxygen Depletion Sensor Shutoff System (ODS).

The ODS/pilot is a required feature for vent-free heaters. The ODS/pilot shuts off

the heater if there is not enough fresh air.

Piezo Ignition System

This heater has a piezo ignitor. This system requires no matches, batteries, or other

sources to light heater.

Thermostatic Heat Control

(Thermostat Model Only)

Thermostat model has a thermostat sensing bulb and a control valve. This results in

the greatest heater comfort. This can also result in lower gas bills.

LOCAL CODES Install and use heater with care. Follow all local codes. In the absence of local

codes, use the latest edition of National Gas Code ANSI Z223.1, also known as

NFPA 54*.

*Available from: American National Standards Institute, Inc.

1430 Broadway

New York, NY 10018

National Fire Protection Association, Inc.

Batterymarch Park

Quincy, MA 02269

Figure 1 - Vent-Free Natural Gas Heater

UNPACKING 1. Remove heater from carton.

2. Remove all protective packaging applied to heater for shipment.

3. Check heater for any shipping damage. If heater is damaged, promptly inform

dealer where you bought heater.

Heater

Cabinet

INSTALLING

TO WALL NOTICE

Aqualifiedservicepersonmustinstallheater.Followalllocalcodes.

CHECK GAS TYPE

Use only natural gas. If your gas supply is not natural gas, do not install heater. Call

dealer where you bought heater for proper type heater.

INSTALLATION ITEMS

Before installing the heater, make sure you have the items listed below.

• piping (check local codes)

• sealant (resistant to propane gas)

• manual shutoff valve *

• ground joint union

• test gauge connection * (see

Figure 11, page 11)

• sediment trap

• tee joint

• pipe wrench

* AnA.G.A.design certified manualshutoffvalve with 1/8"NPTtap is anacceptable

alternative to test gauge connection. Purchase the optional A.G.A. design certified

manual shutoff valve from your dealer. See Accessories, page 25.

LOCATING HEATER

This heater is designed to be mounted on a wall.

WARNING ICON G001

WARNING

Maintain the minimum clearances shown in Figure 2 (page 6). If

you can, provide greater clearances from floor, ceiling, and join-

ing wall.

Continued

WARNING ICON G 001

CAUTION

Operating heater where impurities in the air (such as tobacco

smoke) exist may discolor walls.

WARNING ICON G 001

WARNING

Never install the heater

•in sleeping quarters, a mobile home, or a recreational vehicle

•where curtains, furniture, clothing, or other flammable objects

are less than 36 inches from the front, top, or sides of the

heater

•as a fireplace insert

•in high traffic areas

•in windy or drafty areas

You can locate model CGN18B on floor, away from a wall. An optional floor

mounting stand is needed. Purchase the floor mounting stand from your dealer.

See Accessories, page 25.

WARNING ICON G 001

CAUTION

If you install the heater in a home garage

•heater pilot and burner must be at least 18 inches above floor

•locate heater where moving vehicle will not hit it

Figure 3 - Attaching Thermostat Sensing Bulb

Clamp

Thermostat

Sensing Bulb

THERMOSTAT SENSING BULB

(Thermostat Model Only)

The thermostat sensing bulb has been placed inside the heater for protection during

shipping.

Locating Thermostat Sensing Bulb

1. Remove front panel of heater (see Figure 5, page 7).

2. Locate thermostat sensing bulb just under burner assembly.

IMPORTANT:

Attach thermostat sensing bulb to back of heater for proper opera-

tion.

Attaching Thermostat Sensing Bulb

1. Remove thermostat sensing bulb from holders inside heater. Route through slot

opening in bottom of heater.

2. Place clamp on thermostat sensing bulb as shown in Figure 3. Clamp is provided

in hardware package.

3. Snap clamp into upper mounting hole as shown in Figure 3. Mounting hole is

located on lower left edge on back of heater. Make sure the thermostat sensing

bulb is pointing up.

For convenience and efficiency, install heater

•where there is easy access for operation, inspection, and service

•where strong wind gusts from an open door or garage door can not blow

directly into heater.

An optional fan kit is available from your dealer. See Accessories, page 25. If

planning to use fan, locate heater near an electrical outlet.

36"

FLOOR

CEILING

Minimum

Minimum To Floor

Minimum

From

Sides Of

Heater

Left

Side Right

Side

* 163/4" - RN30BT, RN30B

* 3" - CGN18B

Figure 2 - Mounting Clearances As Viewed From Front of Heater

INSTALLING

TO WALL

Continued

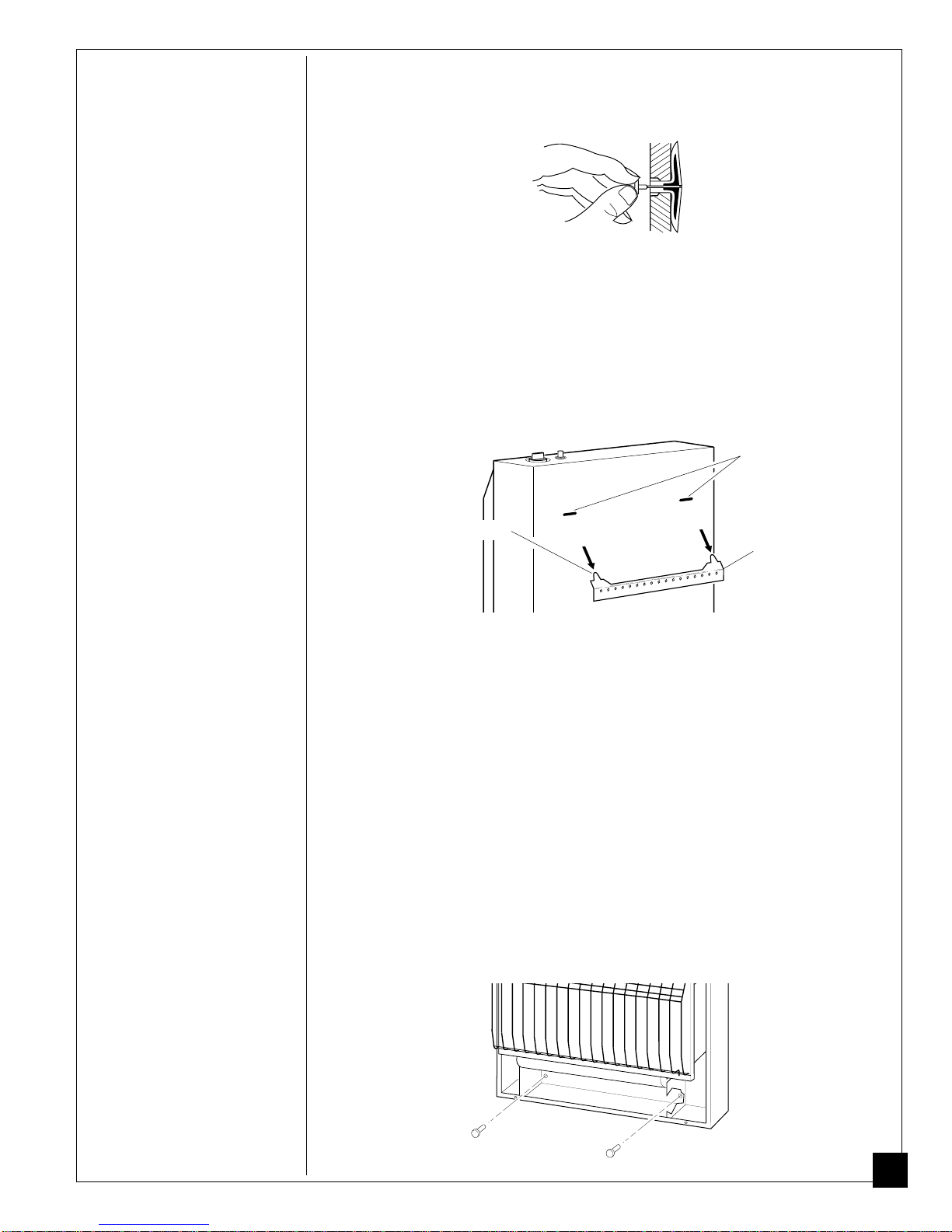

INSTALLING HEATER TO WALL

Mounting Bracket

The mounting bracket is located on back panel of heater. It has been taped there for

shipping. Remove mounting bracket from back panel.

Figure 4 - Mounting Bracket Location

Mounting

Bracket

GRH/OV 003B

FRONT PANEL REMOVAL G H

Figure 5 - Removing Front Panel Of Heater

Removing Front Panel Of Heater

1. Remove two screws near bottom corners of front panel.

2. Lift straight up on grill guard until it stops. Grill guard will slide up about 1/4".

3. Pull bottom of front panel forward, then down.

4. Remove cardboard packing from grill and glass (CGN18B) or heat shield

(RN30BT and RN30B).

Methods For Attaching Mounting Bracket To Wall

Only use last hole on each end of mounting bracket to attach bracket to wall. These

two holes are 16 inches apart from their centers. Attach mounting bracket to wall in

one of two ways.

1. Attaching to wall stud

2. Attaching to wall anchor

Attaching to wall stud This method provides the strongest hold. Insert mounting

screws through mounting bracket and into wall studs.

Attaching to wall anchor This method allows you to attach mounting bracket to

hollow walls (wall areas between studs) or to solid walls (concrete or masonry).

Decide which method better suits your needs. Either method will provide a secure

hold for the mounting bracket.

INSTALLING

TO WALL

Continued

Marking Screw Locations

1. Tape mounting bracket to wall where heater will be located. Make sure mount-

ing bracket is level.

Attaching Mounting Bracket To Wall

Note:

Wall anchors, mounting screws, and spacers are in hardware package. The

hardware package is provided with heater.

Attaching to wall stud method

For attaching mounting bracket to wall studs

1. Drill holes at marked locations using 9/64" drill bit.

2. Place mounting bracket onto wall. Line up last hole on each end of bracket with

holes drilled in wall.

3. Insert mounting screws through bracket and into wall studs.

4. Tighten screws until mounting bracket is firmly fastened to wall studs.

Attaching to wall anchor method

For attaching mounting bracket to hollow walls (wall areas between studs) or solid

walls (concrete or masonry)

1. Drill holes at marked locations using 5/16" drill bit. For solid walls (concrete or

masonry), drill at least 1" deep.

2. Fold wall anchor as shown in Figure 7.

2. Mark screw locations on wall (see Figure 6).

Note:

Only mark last hole on each end of mounting bracket. Insert mounting

screws through these holes only.

3. Remove tape and mounting bracket from wall.

3. Insert wall anchor (wings first) into hole. Tap anchor flush to wall.

Figure 7 - Folding Anchor

Continued

WARNING ICON G 001

WARNING

Maintain minimum clearances shown in Figure 6. If you can,

provide greater clearances from floor and joining wall.

32 1/2"

Min.

11"

Min. 16"

18 3/4"

Min.

7 1/4"

Min.

Adjoining Wall

16"

Adjoining Wall

Only Insert Mounting

Screws Through Last

Hole On Each End

Only Insert Mounting

Screws Through Last

Hole On Each End

Floor Floor

RN30BT and RN30B CGN18B

Figure 6 - Mounting Bracket Clearances

INSTALLING

TO WALL

Continued

4. For thin walls (1/2" or less), insert red key into wall anchor. Push red key to

“pop”open anchor wings.

IMPORTANT:

Do not hammer key!

For thick walls (over 1/2" thick) or solid walls, do not pop open wings.

Figure 10 - Installing Bottom Mounting Screws

Figure 8 - Popping Open Anchor Wings For Thin Walls

5. Place mounting bracket onto wall. Line up last hole on each end of bracket with

wall anchors.

6. Insert mounting screws through bracket and into wall anchors.

7. Tighten screws until mounting bracket is firmly fastened to wall.

Placing Heater On Mounting Bracket

1. Locate two horizontal slots on back panel of heater.

2. Place heater onto mounting bracket. Slide horizontal slots onto stand-out tabs on

mounting bracket.

Figure 9 - Mounting Heater Onto Mounting Bracket

Stand-Out Tab Mounting Bracket

(attached to wall)

Installing Bottom Mounting Screws

1. Locate two bottom mounting holes. These holes are near bottom on back panel

of heater (see Figure 10).

2. Mark screw locations on wall.

3. Remove heater from mounting bracket.

4. If installing bottom mounting screws into hollow or solid wall, install wall

anchors. Follow steps 1 through 4 under Attaching To Wall Anchor Method,

page 8.

If installing bottom mounting screw into wall stud, drill holes at marked loca-

tions using 9/64" drill bit.

5. Replace heater onto mounting bracket.

6. Place spacers between bottom mounting holes and wall anchor or drilled hole.

7. Hold spacer in place with one hand. With other hand, insert mounting screw

through bottom mounting hole and spacer. Place tip of screw in opening of wall

anchor or drilled hole.

8. Tighten both screws until heater is firmly secured to wall. Do not over tighten.

Note:

Do not replace front panel at this time. Replace front panel after making

gas connections and checking for leaks (see pages 10-12).

Horizontal Slots

INSTALLING

TO WALL

Continued

CONNECTING

TO GAS

SUPPLY

NOTICE

A qualified service person must connect heater to gas supply.

Follow all local codes.

WARNING ICON G 001

WARNING

Never connect heater to private (non-utility) gas wells. This gas is

commonly known as well-head gas.

IMPORTANT:

Check gas line pressure before connecting heater to gas line. Gas

line pressure must be no greater than 14 inches of water. If gas line pressure is

higher, heater regulator damage could occur.

Installation must include a manual shutoff valve, union, and plugged 1/8" NPT tap.

Locate NPT tap within reach for test gauge hook up. NPT tap must be upstream

from heater (see Figure 11, page 11).

Apply pipe joint sealant lightly to male threads. This will prevent excess sealant

from going into pipe. Excess sealant in the pipe could result in clogged heater

valves.

WARNING ICON G001

CAUTION

Use only new, black iron or steel pipe. Copper tubing may be used

in certain areas. Check your local codes. Use pipe of 1/2" diameter

or greater to allow proper gas volume to heater. If pipe is too small,

undue loss of pressure will occur.

CAUTION

Use pipe joint sealant that is resistant to liquid petroleum (LP) gas.

WARNING ICON G 001

Install sediment trap in supply line as shown in Figure 11. Locate sediment trap

where it is within reach for cleaning. Locate sediment trap where trapped matter is

not likely to freeze. A sediment trap traps moisture and contaminants. This keeps

them from going into heater controls. If sediment trap is not installed or is installed

wrong, heater may not run properly.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Desa Chauffage au gaz

Desa

Desa Comfort Glow CGD3924PRA Guide de démarrage rapide

Desa

Desa Design Dynamics HCA-18-RFN Guide de démarrage rapide

Desa

Desa PROPANE GAS LOG HEATER Guide de démarrage rapide

Desa

Desa BG30N Instructions originales

Desa

Desa Comfort Glow CGN10 Guide de démarrage rapide

Desa

Desa RCLP50A Manuel utilisateur

Desa

Desa Comfort Glow CGP11 Guide de démarrage rapide

Desa

Desa CFS18PRA Guide de démarrage rapide

Desa

Desa Comfort Glow CCL3924NR Guide de démarrage rapide

Desa

Desa Split Oak Design, American Oak Guide de démarrage rapide

Desa

Desa Comfort Glow CGP10 Guide de démarrage rapide

Desa

Desa CLD3018PT Guide de démarrage rapide

Desa

Desa Glo-Warm FA-2B Guide de démarrage rapide

Desa

Desa RH10PT Guide de démarrage rapide

Desa

Desa 30LP Manuel utilisateur

Desa

Desa HDVF3018N Guide de démarrage rapide

Desa

Desa VGC30NR/PR Guide de démarrage rapide

Desa

Desa VGC18NR/PR Guide de démarrage rapide

Desa

Desa Comfort Glow CGP10TA Guide de démarrage rapide

Desa

Desa HD18NRA Guide de démarrage rapide

Desa

Desa VN1000BTA Guide de démarrage rapide

Desa

Desa GN30T Instructions originales

Desa

Desa LDL3924NR Guide de démarrage rapide

Desa

Desa 125-R Manuel utilisateur

Manuels Chauffage au gaz populaires d'autres marques

Superior

Superior BGE18NV Manuel utilisateur

Dru

Dru Room-sealed atmospheric gas-fired heating... Manuel utilisateur

klover

klover TKR 35 Manuel utilisateur

Rothenberger Industrial

Rothenberger Industrial 035984 Manuel utilisateur

New Buck Corporation

New Buck Corporation 34 Manuel utilisateur

Hargrove

Hargrove Timberland Glow Guide de démarrage rapide

Kinder

Kinder Cameo BF Manuel utilisateur

Qlima

Qlima GH 438 B-2 Manuel

Gasmate

Gasmate AH100 Series Manuel utilisateur

Medallion

Medallion MBP20TLB Guide de démarrage rapide

Clarke

Clarke DEVIL 910SS Manuel utilisateur

Superior

Superior BGE18NR Manuel utilisateur

Brant Radiant Heaters

Brant Radiant Heaters QTD Series Instructions d'installation

L.B. White

L.B. White Therma Grow HW220 Manuel

Sealey

Sealey LP35.V5 Manuel utilisateur

Italkero

Italkero Falo Evo Manuel utilisateur

Williams

Williams 2509822A Manuel utilisateur

Romotop

Romotop Heckla 1301 Caractéristiques techniques
