Parts included with this kit:

Part No. Description Quantity

114418-01 Instruction Sheet 1

108085-02 Pilot Orifice LP (30) 1

104506-20 Pan Burner Orifice LP (117, #56) 1

14544 Tube Burner Orifice LP (104, #59) 1

14488 Gas Valve Regulator LP 1

114355-39 Conversion Label, English 1

114356-39 Conversion Label, French 1

56060 Conversion Information Label 1

106739-01 Registration, Gas Conversion 1

Tools Required

• 7/8" Open End Wrench

or Adjustable Wrench

• 3/4" Open End Wrench

or Adjustable Wrench

• 11/16" Open End Wrench

or Adjustable Wrench

CONVERTING FROM NATURAL GAS TO PROPANE/LP GAS

For Use When Converting Model (V)V36N(-B)(C1) Series and CHDV36NR-C Series

This conversion kit must be installed by a qualified

service agency.

Read these instructions completely before installing this conversion kit.

Before proceeding, make sure the gas control valve is in the OFF

position, all electrical power to the appliance is off, and the fireplace

is cool to the touch.

CAUTION: The gas supply shall be shut off prior to

disconnecting the electrical power before proceed-

ing with the conversion.

INSTALLATION INSTRUCTIONS

FOR PCDM-36VB CONVERSION KIT

Save this manual for future reference.

For more information, visit www.desatech.com

• Torx T20 or Slotted Screwdriver

• 5/32" Allen Wrench

• #2 Short Phillips Screwdriver

• Thread Sealant

(Resistant to Propane/LP)

Removing Louver Panels

Remove the top and bottom louver panels by simultaneously pulling

both top end spring latches towards the center of the appliance until

they are disengaged from the locating holes (see Figure 1). Repeat

for bottom spring latches and pull the louvers outward. To install or

replace items removed, simply reverse the procedures above.

Figure 1 - Removing Louver Panel

Louver Panel

Spring Latch

ACCESSING FIREPLACE

The gas control valve and burner orifices are located under the firebox

floor of the appliance and are accessed by removing the lower louver

panel. The pilot orifice is located in the pilot burner and is accessed

by opening the glass door and removing the logs.

Lock

Unlock

Glass

Door

Figure 2 - Opening Glass Door

Latch

Opening Glass Door

1. Remove screen assembly by pushing the rod either left or right

and then down and forward. Set assembly aside.

2. Lift up on latches of door to unlock. There are two on top of

firebox and two below firebox that hold glass door in place (see

Figure 2).

3. Remove log set from firebox. Refer to Installing Logs, Lava

Rock and Glowing Embers in owner’s manual.

114418-01A

For more information, visit www.desatech.com

Figure 4 - Removing/Replacing Pan Burner Orifice

(Tube Burner Not Shown for Clarity)

Figure 3 - Removing/Applying RTV Silicone and Locating

Air Shutter

RTV Silicone

Firebox

Bottom

Pan Burner Assembly

TUBE BURNER ORIFICE CONVERSION

1. Inside the control compartment under firebox bottom, locate

aluminum tube with flare fitting and brass elbow on the right

side. Loosen flare fitting and disconnect aluminum tube from

elbow fitting. Use a 3/4" open end wrench (see Figure 5).

2. Carefully cut away RTV silicone from the orifice where it

passes through the firebox bottom (see Figure 5). Remove el-

bow fitting with orifice from burner inlet by turning counter-

clockwise. Use a 7/8" open end wrench (see Figure 6, page 3).

Figure 5 - Removing/Applying RTV Silicone and Locating

Air Shutter

Rear Burner

Firebox

Bottom

RTV Silicone

Rear Burner

Orifice

PAN BURNER ORIFICE CONVERSION

1. Inside the control compartment under firebox, locate alumi-

num tube with flare fitting and adapter fitting on the left side.

Loosen flare fitting and disconnect aluminum tube from adapter

fitting. Use a 3/4" open end wrench (see Figure 3).

2. Carefully cut away the RTV silicone from the adapter fitting

where it passes through the firebox bottom (see Figure 3).

Remove adapter fitting from elbow fitting by turning counter-

clockwise. Use an 11/16" open end wrench.

3. Inside firebox, locate two small burner hold down brackets on

rear of pan burner. Remove screws with phillips screwdriver

and carefully lift pan burner assembly up and out of firebox

(Do not force the assembly during removal.) See Figure 4.

4. Remove elbow fitting with orifice from burner manifold by

turning counterclockwise. Use a 3/4" open end wrench. Re-

move NG orifice from elbow fitting. Apply a light amount of

propane/LP resistant sealant to short threaded end of LP ori-

fice (117, #56) supplied in kit. Thread LP orifice into elbow.

5. Apply light amount of propane/LP resistant sealant to long

threaded end of orifice. Thread elbow fitting with orifice into

burner manifold and tighten by turning clockwise. Use a 3/4"

open end wrench. Make sure elbow fitting faces down.

6. Locate air shutter at end of burner manifold (see Figure 3).

Loosen screw and adjust air shutter to fully open position. Re-

tighten screw.

Note:

Do not replace pan burner assembly in firebox at this time.

Convert the tube burner and pilot assembly first (see Tube Burner

Orifice Conversion, this page, and Pilot Orifice Conversion, page 4).

Air Shutter

Aluminum Tube/Flare Fitting

Air Shutter

Aluminum Tube/Flare Fitting

Front Pan Burner

Front Burner

Orifice

(18mm Hex)

Elbow Fitting

Adapter Fitting

(11/16" Hex)

Aluminum

Tube/Flare

Fitting (3/4" Hex)

Apply

Thread

Sealant

Here Only

Burner

Manifold

Burner Brackets

114418-01A

For more information, visit www.desatech.com

Figure 6 - Removing/Replacing Rear Burner Assembly

Tube Burner

Screw (5/16" Hex)

Tube Burner Orifice

(18mm Hex)

Apply Thread

Sealant Here Only

Elbow (7/8"

Across Flats)

Aluminum Tube/

Flare Fitting

(3/4" Hex)

3. Remove NG orifice from elbow. Apply a light amount of pro-

pane/LP resistant sealant to short threaded end of LP orifice

(104, #59) supplied in kit. Thread LP orifice into elbow.

4. Apply a light amount of propane/LP resistant sealant to long

threaded end of orifice (see Figure 5, page 2). Thread elbow

fitting with orifice into burner inlet and tighten by turning clock-

wise. Use a 7/8" open end wrench. Make sure flare end of el-

bow faces left.

5. Locate air shutter at end of tube burner (see Figure 5, page 2).

Loosen screw and adjust air shutter to full open (maximum)

position. Retighten screw.

Note:

Do not replace tube burner assembly in firebox at this time.

Convert the pilot assembly first (see Pilot Orifice Conversion).

PILOT ORIFICE CONVERSION

1. Remove the pilot hood by pulling up until it disengages from

the barrel. Do not remove the retainer clip (see Figure 7).

2. Remove the pilot orifice from inside the barrel using a 5/32"

allen wrench to unscrew the orifice.

3. Replace pilot orifice with LP orifice supplied with this kit. The

number 30 is stamped on the sleeve for identification. Insert

the small end of the new pilot orifice into the barrel and thread

until tight with the allen wrench.

4. Line up the notch on pilot hood to the positioning tab on the

barrel receiver and snap back into position.

IMPORTANT:

Be careful not to bend or kink the aluminum

tubing during conversion. Make sure the pilot hood and orifice

are properly mated and aligned after finishing this conversion.

Figure 7 - Converting Pilot Orifice

Pilot Hood

Pilot Orifice

Barrel Clip

Pilot Bracket

5/32" Allen

Wrench

REINSTALLING BURNERS

Tube Burner

1. Apply RTV silicone to orifice where it passes through the fire-

box bottom (see Figure 5, page 2).

2. Connect aluminum tube to elbow fitting and tighten flare fit-

ting. Use a 3/4" open end wrench.

Pan Burner

1. Rest pan burner on grate base.

2. Using screws removed in step 3 of Pan Burner Orifice Con-

version, page 2, reattach two small burner hold down brackets

on rear of pan burner to grate base. See Figure 4, page 2.

3. Apply RTV silicone to adapter fitting where it passes through

the firebox bottom (see Figure 3, page 2).

4. Connect aluminum tube to elbow fitting and tighten flare fit-

ting. Use a 3/4" open end wrench.

114418-01A

For more information, visit www.desatech.com

Figure 8 - Removing Mounting Screws, Pressure Regulator

Tower, and Diaphragm/Spring Components

Mounting Screws

Pressure

Regulator Tower

Diaphragm/Spring

Components

GAS CONTROL VALVE CONVERSION

Convert the gas control valve by swapping out the valve regulator

portion of the gas valve.

1. Using a Torx T20 or slotted screwdriver, remove and discard

the three mounting screws, pressure regulator tower, and dia-

phragm/spring components (see Figure 8).

2. Insure that the rubber gasket is properly positioned on the new

pressure regulator assembly. Install the LP pressure regulator

assembly to the valve using the new mounting screws sup-

plied with the kit. Tighten screws securely (approximately 25

in-lbs.) (see Figure 9).

3. Install the identification label enclosed with the gas valve regula-

tor to the valve body where it can easily be seen (see Figure 9).

Figure 9 - Installing Pressure Regulator Assembly

Mounting Screws

Rubber

Gasket

Identification Label

114418-01A

For more information, visit www.desatech.com

Figure 10 - Applying English and French Conversion Labels

over Existing Certification Labels on Lighting Instruction Plate

CONVERSION INFORMATION LABEL

This appliance was converted on

(name and address of organization making

this conversion), which accepts the

responsibility that this conversion has been

properly made.

Day Month Year

– – to gas

with Kit No.

106080-0156060

Figure 12 - Conversion

Information Label

English This Side

French This Side

Figure 11 - Print Previous

Model Number on Conversion

Labels

Lighting Instruction Plate

CONVERSION LABELING AND PLACEMENT

1. Apply the English and French conversion labels over the top of the

existing certification labels (see Figure 10). Existing certification

labels are located on the lighting instruction plate inside the gas

valve compartment area. With permanent ink, print the previous

model number on the label in the space provided (see Figure 11).

2. After filling in the data required on the conversion informa-

tion label (see Figure 12), affix it to the floor of the appliance

where it is easily seen when the lower louver is removed.

WARNING: Never use an open flame to check for

a leak. Apply noncorrosive leak detection fluid to all

joints. Bubbles forming show a leak. Correct all leaks

at once.

WARNING: This conversion kit shall be installed

by a qualified service agency in accordance with the

manufacturer’s instructions and all applicable codes

and requirements of the authority having jurisdic-

tion. If the information in these instruction is not

followed exactly, a fire, explosion, or production of

carbon monoxide may result causing property dam-

age, personal injury, or loss of life. The qualified

service agency is responsible for the proper installa-

tion of this kit. The installation is not proper and

complete until the operation of the converted appli-

ance is checked as specified in the manufacturer’s

instructions supplied with the kit.

FINAL PREPARATION

1. Reinstall logs. Refer to Installing Logs, Lava Rock and Glow-

ing Embers in owner’s manual.

2. Leak check the gas control and any connections you've made

before operating the appliance. Refer to Checking Gas Con-

nections in owner’s manual.

3. Close and latch door.

4. Replace screen and reinstall louver panels.

The conversion is now complete.

To operate your fireplace, refer to Operating Fireplace in your

appliance owner’s manual.

WARNING: Test all gas piping and connections,

internal and external to unit, for leaks after installing

or servicing. Correct leaks at once.

VENTED GAS FIREPLACE

Conversion Kit Model

Type of Gas

Previous Model #

114418-01A

For more information, visit www.desatech.com

114418-01

Rev. A

06/04

NOT A UPC

2701 Industrial Drive

Bowling Green, KY 42101

www.desatech.com

114418 01

Autres manuels Desa Accessoires de cheminée

Desa

Desa Wall Mantel and Base W32LS2 Manuel d'instructions

Desa

Desa C32CO Manuel d'instructions

Desa

Desa C36TO Manuel d'instructions

Desa

Desa GA3700T Manuel utilisateur

Desa

Desa BDMO48E Manuel utilisateur

Desa

Desa Mantel and Base W21TO Manuel d'instructions

Desa

Desa Proflame 584 Manuel utilisateur

Desa

Desa PC-BVBN Manuel utilisateur

Desa

Desa HFL300 SERIES Manuel utilisateur

Desa

Desa GA6050 Manuel utilisateur

Desa

Desa GA9150A Manuel utilisateur

Desa

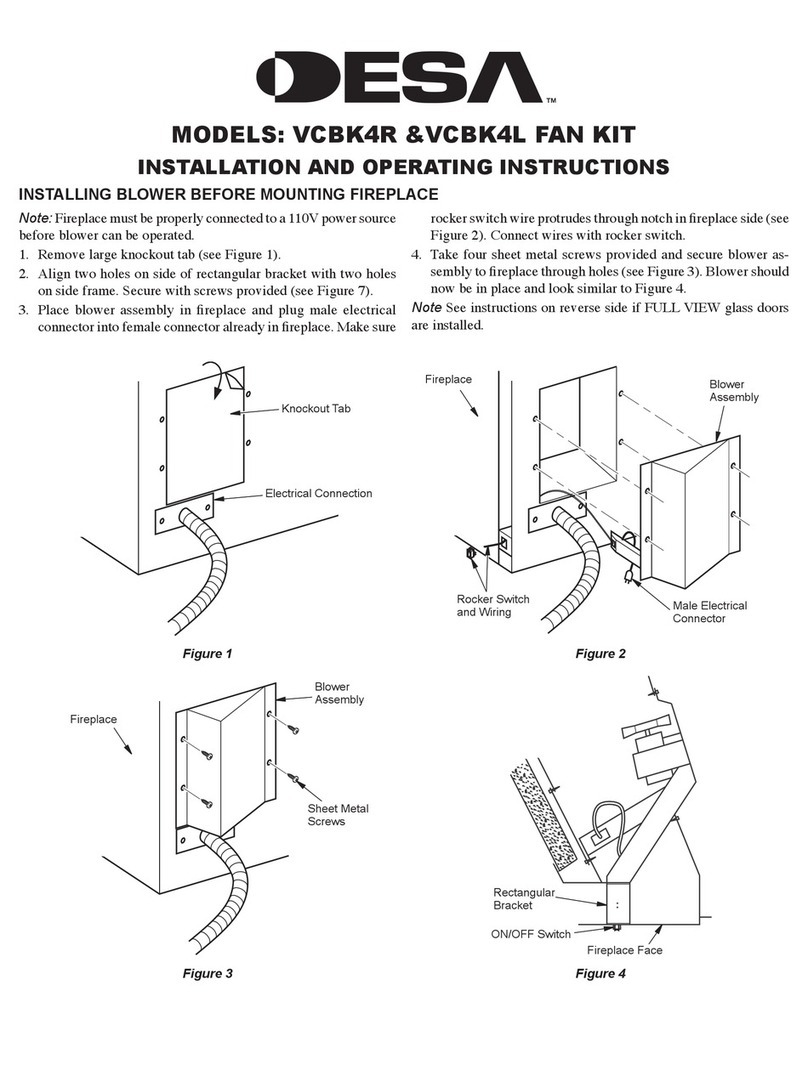

Desa VCBK4L Manuel utilisateur

Desa

Desa Mantel and Base W26TO Manuel d'instructions

Desa

Desa W32GO Manuel d'instructions

Desa

Desa GB38 Manuel utilisateur

Desa

Desa HFL200 SERIES Manuel utilisateur

Desa

Desa Wall Mantel and Base with Trim W32WP Manuel d'instructions

Desa

Desa W32AOSA Manuel d'instructions

Desa

Desa Wall Mantel and Base W26LC Manuel d'instructions

Desa

Desa Wall Mantel and Base W32MF Manuel d'instructions

Desa

Desa BK3 Manuel utilisateur

Desa

Desa Wall Mantel and Base W32LT Manuel d'instructions

Desa

Desa DVC36 Guide de démarrage rapide

Desa

Desa W23OT Manuel d'instructions

Manuels Accessoires de cheminée populaires d'autres marques

Valor

Valor L2 1700K Manuel utilisateur

Exodraft

Exodraft Xzense Manuel utilisateur

Whalen

Whalen Ruso MNFP62BF23-6 Manuel utilisateur

Lopi

Lopi Hearthview 864 Manuel utilisateur

Woodstock Soapstone

Woodstock Soapstone Fireview 201 Manuel utilisateur

EdilKamin

EdilKamin SERBATOIO 250 Guide de démarrage rapide

Bronpi

Bronpi KIT-1 Manuel utilisateur

Town & Country Fireplaces

Town & Country Fireplaces 22150051 Manuel utilisateur

Travis Industries

Travis Industries 33 DVI Manuel utilisateur

Superior

Superior ASD3628-TI Manuel utilisateur

pleasant hearth

pleasant hearth OFP28WG Manuel utilisateur

IHP

IHP Astria Series Manuel utilisateur

Firegear

Firegear FG-H-2110SS Manuel utilisateur

Nibe

Nibe Contura C i31 Manuel utilisateur

kozy heat

kozy heat KZK-052 Manuel utilisateur

SimpliFire

SimpliFire SF-WM36 Manuel utilisateur

Bluegrass Living

Bluegrass Living BC18NR Guide de démarrage rapide

pleasant hearth

pleasant hearth IRIS SCROLL Manuel utilisateur
