Denver TCM-208 Manuel utilisateur

English - 1

Location of controls

(1) FUNCTION SWITCH

CD/TAPE(OFF)/RADIO

(2) BAND SWITCH

(3) FM ANTENNA

(4) CD DOOR

(5) TUNING KNOB

(6) BASS BOOST BUTTON

(7) CD SKIP/SEARCH/FOLDER

FORWARD BUTTON

(8) CD SKIP/SEARCH/FOLDER

BACKWARD BUTTON

(9) CD PROGRAM BUTTON

(10) CD REPEAT BUTTON

(11) CD STOP BUTTON

(12) CD PLAY/PAUSE BUTTON

(13) CD LCD DISPLAY

(14) STEREO HEADPHONE JACK

(15) VOLUME CONTROL KNOB

(16) AC SOCKET

(17) BATTERY DOOR

(18) FM STEREO LED INDICATOR

(19) CASSETTE COMPARTMENT

(20) CASSETTE RECORD BUTTON

(21) CASSETTE PLAY BUTTON

(22) CASSETTE REWIND BUTTON

(23) CASSETTE FAST FORWARD

BUTTON

(24) CASSETTE STOP/EJECT

BUTTON

(25) CASSETTE PAUSE BUTTON

(26) SPEAKER LEFT

(27) SPEAKER RIGHT

English - 2

AC OPERATION

Before operation please be sure that the VOLTAGE on the set corresponds to

the VOLTAGE of your local area. Unravel the AC Line Cord, insert one end

into the AC jack on the set, and the other end into a standard AC outlet.

BATTERY OPERATION

Disconnect the AC Cord Set completely. Open the BATTERY COMPARTMENT

DOOR and insert UM-2/ “C” size x 8 batteries (not supplied) making sure that

the indicated battery polarity is observed.

RADIO OPERATION

Slide the FUNCTION switch to the “RADIO” position. Slide the BAND switch to

the desired waveband. Turn the TUNING KNOB to your desired radio station.

Adjust the sound level by rotating the VOLUME CONTROL KNOB. To turn off

the radio, simply slide the FUNCTION SWITCH to “TAPE (OFF)” position.

FM STEREO INDICATOR

When tuned to a FM stereo broadcast the “FM ST.” LED indicator will light up.

In weak signal areas the FM Stereo signal may not be strong enough and can

cause excessive background noise. In this case, switch to the “FM” position.

ANTENNAS

For best reception, fully extend the FM Antenna to receive FM stations. For

AM reception, the unit has a built-in antenna, turn the whole unit for best

reception.

BASS BOOST

For increased bass at all volume levels, slide the BASS BOOST BUTTON to

“ON” position to boost the low frequency tone for an emphasized bass sound.

To release the super bass, simply slide to “OFF” position.

STEREO HEADPHONE JACK

For private listening, insert the plug of a STEREO Headphone into the

STEREO HEADPHONE JACK and adjust the VOLUME CONTROL KNOB

accordingly. During the use of a headphone, the Speakers are automatically

disconnected.

CASSETTE OPERATION

TAPE PLAYBACK

Depress the STOP/EJECT BUTTON to open the cassette door. Insert a

cassette tape into the CASSETTE COMPARTMENT and push the cassette door

English - 3

to close. Slide the FUNCTION SWITCH to TAPE position. Depress the PLAY

BUTTON. Adjust the VOLUME CONTROL KNOB to your desired listening level.

To stop the tape, depress the STOP/EJECT BUTTON.

Fast Forward and Rewind

The tape can be fast FORWARDED or REWOUND by depressing the FAST

FORWARD BUTTON or REWIND BUTTON respectively.

Pause Function

During playback or recording, the tape can be stopped temporarily by

depressing the PAUSE BUTTON. To continue playback or recording, press the

PAUSE BUTTON once again.

Auto Stop System

When the tape runs to its end during playback or recording, the cassette

operation will be stopped automatically.

CAUTION

To avoid damage to the cassette mechanism or to the cassette tapes, always

depress the STOP/EJECT Button between each operation!

RECORDING FROM THE RADIO

1. Tune to a desired radio program as described in the “RADIO OPERATION”

section.

2. Insert a blank cassette tape into the CASSETTE COMPARTMENT.

3. Press the PAUSE BUTTON.

4. Press the RECORD BUTTON. The PLAY BUTTON is engaged simultaneously

to start recording. With the built-in Automatic Level Control (ALC), the

best recording quality is automatically adjusted. Changing the volume level

will not affect the recording.

5. To stop recording temporarily, press the PAUSE BUTTON. To continue the

recording, press the PAUSE BUTTON once again.

6. Press the STOP/EJECT BUTTON to stop recording.

7. When the tape runs to its end, the cassette operation will be stopped

automatically.

CD OPERATION

PLAYING COMPACT DISC (CD-R/RW PLAYBACK COMPATIBLE)

GETTING STARTED

NOTE: Should skipping of tracks occur during CD playing, try turning the

volume down.

English - 4

When CD is playing, do not open the CD Door.

1. Open the CD DOOR by pull up the CD DOOR. Put a CD disc into the CD

COMPARTMENT and close the CD DOOR. Set the FUNCTION SWITCH to

“CD” position.

NOTE : Ensure the CD Door is closed properly and locked in place.

2. When the CD DOOR is closed with a CD inside, total number of tracks of

the disc will be shown on the CD LCD DISPLAY and will go to stop mode.

(ex. Total 17 tracks inside the disc).

1. If the CD DOOR is not closed or there is no disc inside, the DISPLAY will

show “ ” and go to stop mode.

PLAY/PAUSE MODE

1. When the PLAY/PAUSE BUTTON is pressed during stop mode, the first

track will be played. The PLAY INDICATOR “” will be shown on the

LCD DISPLAY. The CD LCD DISPLAY will show the specific number of

track being played.

2. For interruption while the CD is playing, press the CD PLAY/PAUSE

BUTTON once. The PAUSE INDICATOR “” will be shown on the LCD

DISPLAY.

English - 5

3. Though the sound stops, the disc will continue to spin. To re-start

playing, press the CD PLAY/PAUSE BUTTON once again. The music will

start from the exact position where it was interrupted.

4. To stop the CD, press the CD STOP BUTTON once whether the CD is in

Play or Pause mode.

5. To turn off the unit, slide the FUNCTION SWITCH to “TAPE (OFF)”

position.

REPEAT MODE

1. REPEAT 1 :

When the REPEAT BUTTON is pressed once, the “REPEAT” INDICATOR

will be shown on the LCD DISPLAY. This single track of music will be

repeated.

2. REPEAT ALL:

When the REPEAT BUTTON is pressed twice, the “ALL REPEAT”

INDICATOR will be shown on the LCD DISPLAY. The whole disc can be

played continuously.

3. TO CANCEL THE REPEAT FUNCTION

Press the REPEAT BUTTON until the REPEAT INDICATOR disappears

from the LCD DISPLAY.

SKIP AND SEARCH MODE

1. During play or pause mode, when CD SKIP/SEARCH/FOLDER or CD

SKIP/SEARCH/FOLDER Button is pressed once, it will go to the next

track or go back to the beginning of the track.

2. During play mode, when CD SKIP/SEARCH/FOLDER or CD

SKIP/SEARCH/FOLDER BUTTON is pressed and held, it will search the

track with audible high speed forward or backward playback.

English - 6

Program Mode

1. During the CD stop mode, press the PROGRAM BUTTON once. The

PROGRAM INDICATOR “PROG” will light up and blink continuously while

the CD LCD DISPLAY will show the number of Program to be memorized

starts from the first program “ ”.

The track number is to be memorized will show “ ” and blink

continuously as well. Press the CD SKIP/SEARCH/FOLDER or

SKIP/SEARCH/FOLDER BUTTON to your desired musical track, the CD

LCD DISPLAY will show the appropriate track number. Press the

PROGRAM BUTTON to store the desired track in memory.

2. Repeat above procedure until all desired tracks have been programmed. A

total of 20 tracks can be stored in memory. After complete programming,

LCD DISPLAY will show “ ” and “PROG” indicator will flash

continuously.

3. To start the PROGRAMMED playback, press the CD PLAY/PAUSE BUTTON

once and the CD PLAY INDICATOR “” will light up.

English - 7

4. To check the program you have stored after complete programming,

press the PROGRAM BUTTON step by step during the CD stop mode.

Note : While PROGRAM INDICATOR is flashing, never press the CD

STOP BUTTON otherwise all programmed memory will be

cancelled automatically.

5. To cancel the PROGRAMMED memory :

¾Press the PROGRAM BUTTON once, “PROG” indicator is flashing on

the LCD DISPLAY, then press the CD STOP BUTTON.

¾Open the CD Door during the CD stop mode.

PLAYING MP3 DISC

GETTING STARTED

NOTE: Should skipping of tracks occur during CD playing, try turning the

volume down.

When MP3 disc is playing, do not open the CD Door.

1. Open the CD DOOR by pull up the CD DOOR. Put a MP3 disc into the CD

COMPARTMENT and close the CD DOOR. Set the FUNCTION SWITCH to

“CD” position.

NOTE : Ensure the CD Door is closed properly and locked in place

2. When the CD DOOR is closed with a MP3 disc inside, the total number of

folders and tracks of the disc will be shown on the CD LCD DISPLAY and

go to stop mode. MP3 indicator will be shown on the LCD DISPLAY as

well to indicator MP3 disc is being played.

3. If the CD DOOR is not closed or there is no disc inside, the DISPLAY will

show “ ” and go to stop mode.

English - 8

PLAY/PAUSE MODE

1. When the PLAY/PAUSE BUTTON is pressed during stop mode, the first

track will be played. The PLAY INDICATOR “”will be lighted. The CD

LCD DISPLAY will show the specific folder and track number being played.

NOTE :

a. If the MP3 disc is downloaded without dividing into folder, then only

“ ” will show on the Folder number.

b. If the MP3 disc is downloaded with several folders inside, then “ ”

will always be shown in the Folder number when you first play the disc.

(“ ” will never be shown in this case because it represents all the

tracks and folders inside this MP3 disc).

2. For interruption while MP3 disc is playing, press the CD PLAY/PAUSE

BUTTON once. The PAUSE INDICATOR “” will be shown on the display.

3. Though the sound stops, the disc will continue to spin. To re-start playing,

press the CD PLAY/PAUSE BUTTON once again. The music will start from

the exact position where it was interrupted.

4. To stop the MP3 disc, press the CD STOP BUTTON once whether the MP3

disc is in Play or Pause mode.

5. To turn off the unit, slide the FUNCTION SWITCH to “TAPE (OFF)”

position.

REPEAT MODE

1. REPEAT 1 :

When the REPEAT BUTTON is pressed once, the “REPEAT” INDICATOR

will light. This single track of music will be repeated.

2. REPEAT FOLDER :

When the REPEAT BUTTON is pressed twice, the “REPEAT FOLDER”

indicator will be shown. This specific folder will be played repeatly.

English - 9

3. REPEAT ALL :

When the REPEAT BUTTON is pressed three times, the “ALL REPEAT”

INDICATOR will be shown. The whole disc can be played continuously.

4. TO CANCEL THE REPEAT FUNCTION

Press the REPEAT BUTTON until the REPEAT INDICATOR disappears from

the LCD DISPLAY.

SKIP AND FOLDER

1. During play or pause mode, when CD SKIP/SEARCH/FOLDER or CD

SKIP/SEARCH/FOLDER Button is pressed once, it will go to the next

track or go back to the beginning of the track.

2. During play or pause mode, when CD SKIP/SEARCH/FOLDER or CD

SKIP/SEARCH/FOLDER BUTTON is pressed once and held, it will go to

the next or previous folder for speed track selection.

NOTE : There has no search function in MP3 playback.

Program Mode

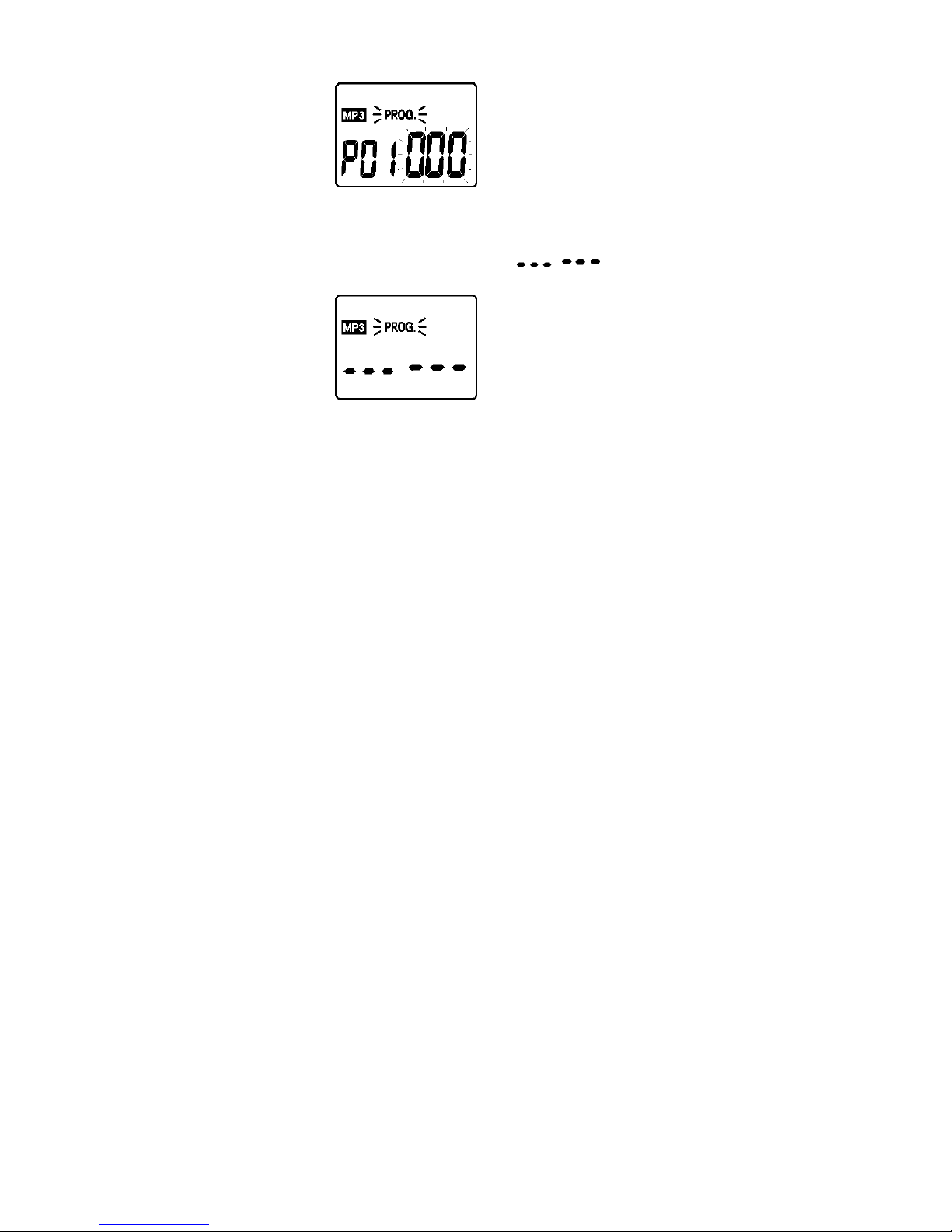

1. During the CD stop mode, press the PROGRAM BUTTON once. The

PROGRAM INDICATOR will light up and blink continuously while the CD

LCD DISPLAY will show the number of Program to be memorized starts

from the first program “ ”. The track number is to be memorized will

show “ ” and blink continuously as well. Press the CD

SKIP/SEARCH/FOLDER or CD SKIP/SEARCH/FOLDER BUTTON to

your desired musical track, the CD LCD DISPLAY will show the

appropriate track number. Press the PROGRAM BUTTON to store the

desired track in memory.

English - 10

2. Repeat above procedure until all desired tracks have been programmed.

A total of 20 tracks can be stored in memory. After complete

programming, LCD DISPLAY will show “ ” and the “PROG”

indicator will blink continuously.

3. To start the PROGRAMMED playback, press the CD PLAY/PAUSE BUTTON

once and the CD PLAY INDICATOR “” will light up.

4. To check the program you have stored after complete programming,

press the PROGRAM BUTTON step by step during CD stop mode.

Note : While PROGRAM INDICATOR is flashing, never press the CD

STOP BUTTON otherwise all programmed memory will be

cancelled automatically.

5. To cancel the PROGRAMMED memory :

¾Press the PROGRAM BUTTON once, “PROG” indicator is flashing on

the LCD DISPLAY, then press the CD stop BUTTON.

¾Open the CD Door during the CD stop mode.

RECORDING FROM CD PLAYER

1. Slide the FUNCTION SWITCH to “CD” position.

2. Put a CD into the CD compartment with the label side upward.

3. Insert a cassette into the CASSETTE COMPARTMENT and press PAUSE

BUTTON of the cassette deck.

4. Press RECORD BUTTON and PLAY BUTTON simultaneously for recording

stand-by. With the built-in ALC, the best recording quality is adjusted

automatically.

5. Activate the CD player, playing in a desired TRACK as described in the

COMPACT DISC PLAYER OPERATION section. Release the PAUSE BUTTON

of the cassette deck to start recording.

6. To stop recording temporarily, press the PAUSE BUTTON. To continue

recording, press the PAUSE BUTTON again.

7. Press STOP/EJECT BUTTON of the cassette deck to stop recording. Then

stop CD playback by pressing the CD STOP BUTTON of the CD player.

Table des matières

Autres manuels Denver Système stéréo portable

Denver

Denver TCD-47 Manuel utilisateur

Denver

Denver TCP-34 Manuel utilisateur

Denver

Denver TCD-85 Manuel utilisateur

Denver

Denver TC-18C Manuel utilisateur

Denver

Denver TCD-30 Manuel utilisateur

Denver

Denver TCD-34 Manuel utilisateur

Denver

Denver TCD-32C Manuel utilisateur

Denver

Denver TCD-32C Manuel utilisateur

Denver

Denver TCD-32 Manuel utilisateur

Denver

Denver TDB-10 Manuel utilisateur

Denver

Denver TDA-65 Manuel utilisateur

Denver

Denver TDC-280 Manuel utilisateur

Denver

Denver TCD-29 Manuel utilisateur

Denver

Denver TCD-54 Manuel utilisateur

Denver

Denver TCM-210 Manuel utilisateur

Denver

Denver TCD-21 Manuel utilisateur

Denver

Denver TCD-53 Manuel utilisateur

Denver

Denver TCU-209 Manuel utilisateur

Denver

Denver TC-28 Manuel utilisateur

Denver

Denver TCS-86 Manuel utilisateur

Denver

Denver TCL-212BTPINK Manuel utilisateur

Denver

Denver TDC-250 Manuel utilisateur

Denver

Denver TCD-31 Manuel utilisateur

Denver

Denver TCS-86 Manuel utilisateur

Manuels Système stéréo portable populaires d'autres marques

Panasonic

Panasonic RXDS520 - RADIO CASSETTE W/CD Manuel utilisateur

LG SB159ST Manuel utilisateur

Philips

Philips AZ305 Manuel utilisateur

Manta

Manta BBX002 Manuel utilisateur

Sony

Sony ZS-BTG900 Manuel utilisateur

Memcorp

Memcorp Disney DB3000-P Manuel utilisateur

Sharp

Sharp GF-800HS Manuel utilisateur

Philips

Philips AZ 2760 Manuel utilisateur

Hyundai

Hyundai H-1443 Manuel utilisateur

Grundig

Grundig RR 300 CD Manuel utilisateur

Insignia

Insignia NS-BCDCAS1 Manuel utilisateur

Philips

Philips AZ380W Manuel utilisateur

Sony

Sony ZS-S10CP Manuel d'instructions d'installation

AudioSonic

AudioSonic 42373117 Manuel utilisateur

Akai

Akai A60009 Manuel utilisateur

Sony

Sony HCD-E301 Manuel utilisateur

Memorex

Memorex MW5554 Manuel utilisateur

Panasonic

Panasonic RXDS16 - RADIO CASSETTE W/CD Manuel utilisateur
