Denver Instrument Company

TL-Series

Toploading Balances

Operation Manual

602174.1

Rev. G

Declaration Of Conformity

Denver Instrument Company declares that the following products:

TL-Series Balances

conform to the European Union Council Directives and other stan-

dards listed below:

73/23/EEC, “Low Voltage Directive”

EN 61010-1, “Safety requirements for electrical equipment

for measurement, control, and laboratory use.

Part 1. General requirements”

89/336/EEC, “Electromagnetic Compatibility Directive”

EN 55011, Group 1, Class A, “Limits and methods of mea-

surement of radio disturbance characteristics

of industrial, scientific, and medical (ISM) radio-

frequency equipment”

EN 50082-1, “Electromagnetic compatibility - Generic

immunity standard; Part 1: Residential, com-

mercial, and light industry”

Further information may be obtained from the manufacturer, or from

the manufacturer’s representative:

manufacturer:

Denver Instrument Company

6542 Fig Street

Arvada, CO 80004 USA

manufacturer’s representative:

Denver Instrument Company, Ltd.

Denver House

Sovereign Way

Trafalgar Business park

Downham market

Norfolk, UK PE38 9SW

Table Of Contents

Declaration of Conformity . . . . . . . . . . . . . . . . . . . . . . . . . . . . .ii

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1

Unpacking Your Balance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1

Model Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

Display and Keypad . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

Software Layout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

Calibration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

Basic Weighing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

Units . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

Statistics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

Environmental . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

Animal Weighing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22

Count Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24

Check Weighing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26

Good Laboratory Practice . . . . . . . . . . . . . . . . . . . . . . . . . . .29

Serial . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33

Stored Tare Weights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .39

Batch Weighing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .42

System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .44

Password . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .47

Specific Gravity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48

Factory Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .50

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .52

Setting the Scale . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .53

Interface details and Serial Commands . . . . . . . . . . . . . . . . .55

Linearity Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .58

Linearity Weight Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . .61

Glossary of Terms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .62

Gram Conversion Chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .63

Menu Tree . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .64

External Transformers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .67

Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .67

Cleaning Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .68

Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .68

Warranty Instructions . . . . . . . . . . . . . . . . . . .Inside Back Cover

You have purchased a quality precision weighing instru-

ment that requires handling with care.

Read entire contents of this Operation Manual prior to

operating your new Denver Instrument balance.

Disclaimer Notice

“Calibrate your balance using reference weights of the

appropriate tolerance (class). An instrument can be no

more accurate than the standard to which it has been

compared. For assistance in the selection of reference

weights, please contact the factory”.

Class A Digital Devices:

Notice: This equipment has been tested and found to comply

with the limits for a Class A digital device, pursuant to Part 15 of

the FCC rules. These limits are designed to provide reasonable

protection against harmful interference when the equipment is

operated in a commercial environment. The equipment gener-

ates, uses, and can radiate radio frequency energy and, if not

installed and used in accordance with the instruction manual,

may cause harmful interference to radio communications.

Operation of this device in a residential area is likely to cause

harmful interference in which the user will be required to correct

the interference at his own expense.

Caution: Changes or modifications not expressly approved by

the manufacturer could void the user’s authority to operate this

equipment.

Manufactured in the U.S.A. by:

Denver Instrument Company

6542 Fig Street • Arvada, Colorado 80004

(303) 431-7255 • (800) 321-1135 • Fax(303) 423-4831

Introduction

Thank you for selecting a precision Denver Instrument

Company balance. Your balance is designed and engi-

neered to provide years of reliable performance.

WARNING

Use of this product in a manner not specified by

the manufacturer may impair any safety protection

provided by the equipment!

UNPACKING YOUR BALANCE

Carefully remove your balance from the packing material.

The weigh pan assembly and power transformer are removed

from the balance for shipping but are in the same box.

Be sure that you have received each of the following items

with your balance:

• Balance

• Operation Manual

• Warranty Registration Card

• Weigh Pan Assembly:

Round pan and ring (for 3.5” or 4.5” pans)

or square pan)

• Power Transformer

Carefully read this operation manual in order to take full

advantage of the many features of your balance. Be sure to

read the section on the proper care and maintenance of

your balance so that it will provide you with years of reliable

service.

Please complete and return your warranty registration card,

so that in the event your balance is lost or stolen, Denver

Instrument Company will have a record of your balance’s seri-

al number. Also take a moment right now to record the

model and serial number of your balance on the inside back

cover of this manual for future reference.

Model Specifications

Analytical Models

Model 64 104 204

Weighing Range 61g 110g 210g

Readability 0.1mg 0.1mg 0.1mg

Linearity 0.2mg 0.2mg 0.2mg

Repeatability, (s) 0.1mg 0.1mg 0.1mg

Stabilization Time 4 sec 4 sec 4 sec

Pan Dimensions 3.5” 3.5” 3.5”

(9cm) (9cm) (9cm)

Toploading Models

Model 203 403 402 602

Weighing Range 210g 410g 410g 610g

Readability 0.001g 0.001g 0.01g 0.01g

Linearity 0.002g 0.003g 0.01g 0.01g

Repeatability, (s) 0.001g 0.001g 0.01g 0.01g

Stabilization Time 3 sec 3 sec 2 sec 2 sec

Pan Dimensions 4.5” 4.5” 6.0” 6.0”

(11cm) (11cm) (15cm) (15cm)

Model 2102 4102 2101 4101 6101

Weighing Range 2100g 4100g 2100g 4100g 6100g

Readability 0.01g 0.01g 0.1g 0.1g 0.1g

Linearity 0.01g 0.02g 0.1g 0.1g 0.1g

Repeatability, (s) 0.01g 0.01g 0.1g 0.1g 0.1g

Stabilization Time 2 sec 2 sec 2 sec 2 sec 2 sec

Pan Dimensions 8.375x8.375” 6.0” 8.375x8.375” 8.375x8.375” 8.375x8.375”

(21x21cm) (15cm) (21x21cm) (21x21cm) (21x21cm)

Model 8101 12001 603D 4102D 8102D

Weighing Range 8100g 12000g 610/110g 4100/410g 8100/810g

Readability 0.1g 0.1g 0.01/0.001g 0.1/0.01g 0.1/0.01g

Linearity 0.2g 0.2g 0.01/0.002g 0.1/0.01g 0.2/0.01g

Repeatability, (s) 0.1g 0.1g 0.01/0.001g 0.1/0.01g 0.1/0.01g

Stabilization Time 2 sec 2 sec 2 sec 2 sec 2 sec

Pan Dimensions 8.375x8.375” 8.375x8.375” 4.5” 8.375x8.375” 8.375x8.375”

(21x21cm) (21x21cm) (11cm) (21x21cm) (21x21cm)

Common Specifications

Electrical Requirements: 15VDC @ 800 mA with AC Adapter, center pin (+)

Controls: Silicone rubber keypad, Zero, Display ON/OFF, and 3 softkeys

Display: 4.5 x 1.75 inch (12.3 x 4 cm) custom LCD with backlight

Interface: RS-232 Bidirectional

16 weighing units and 2 custom

Calibration with external weight (minimum of 4 permissible)

Custom calibration with external weight and weigh value entry

Count mode (Average Piece Weight or Piece Counting)

Environmental settings

Animal weighing mode

Specific gravity mode

Check weighing mode (Low and High Limits or Percent to Target)

Statistics function (number, min., max., range, average, standard deviation and total)

250 last weight storage with edit capability

Stored tare weights (10)

User custom setup (10)

Password security

Date, time and weigh value of last calibration

Batch weigh with printout of Tare weight, Net weight and Gross weight

Custom printout with selection of date/time, sample type, sequence number, balance ID, signature line,

and operator.

Height above pan (analyticals): 9.5” (24cm)

Net Weight: 8.7 lbs. (3.9 kg) Round Pan

10 lbs. (4.5kg) Square Pan

14.6 lbs. (6.6 kg) Analytical

Shipping Weight: 12.0 lbs. (5.4 kg) Round Pan

13.0 lbs. (5.9 kg) Square Pan

17.8 lbs. (8.0 kg) Analytical

Installation

Preparation

This product is intended for indoor use.

Select a level, rigid work area that is free from drafts and

vibrations (i.e. away from doors, windows, air conditioning

and heating vents).

The line voltage to the balance should be reasonably con-

stant (+/-10%) and free from fluctuations.

Position balance to allow the removal of the power adapter

plug from the wall outlet. It is not advisable to use an outlet

that is shared with fluorescent fixtures or other electrical

equipment that draws current in an inconsistent manner.

Do not locate the balance near magnetic materials, or near

instruments that incorporate magnets in their design. Avoid

areas that experience extreme highs, lows or fluctuations in

room temperature. Excessive temperatures that may affect

balance operation and accuracy are 1) above 105°F (40°C)

and 2) below 60°F (15°C).

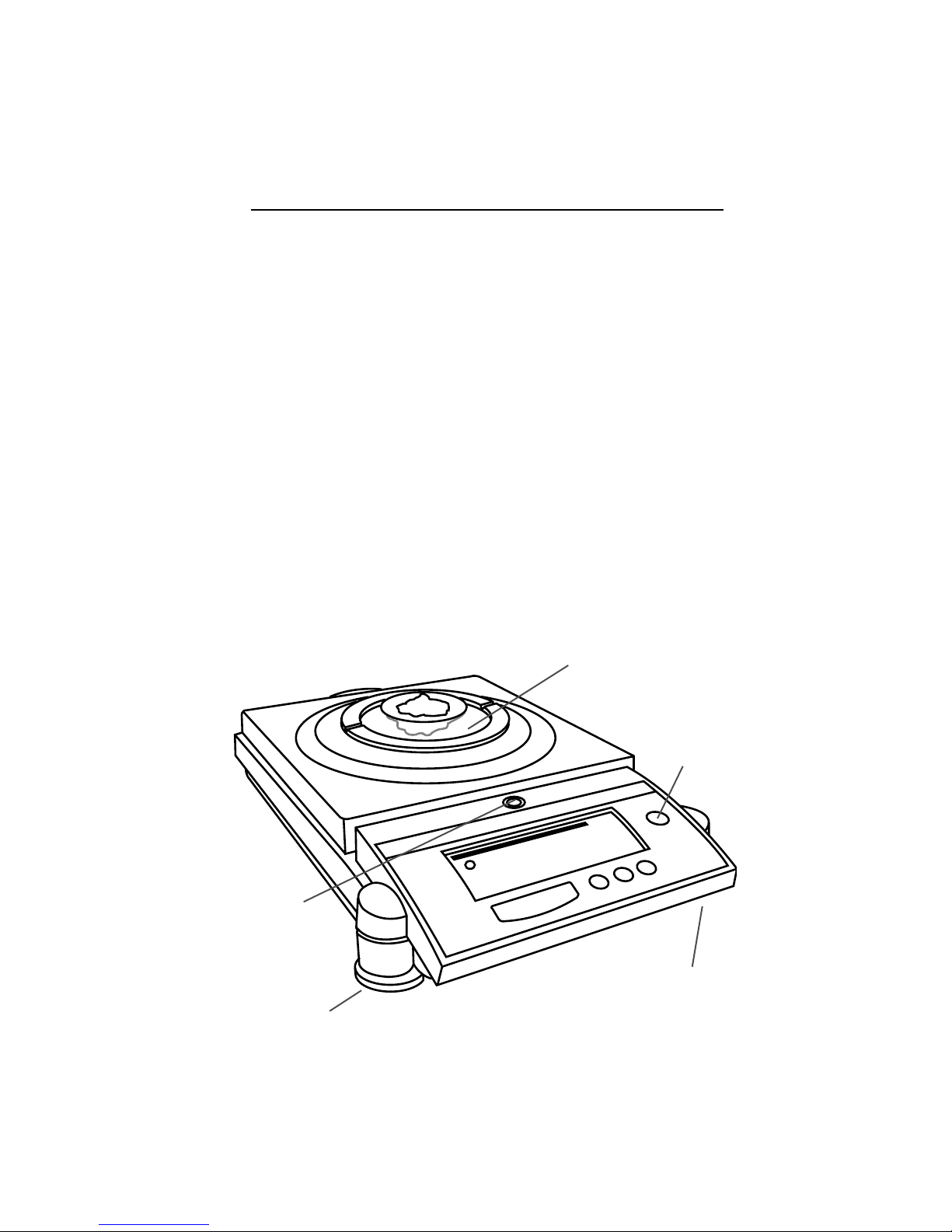

24.788

WEIGH

SelectModePrint

ZE R O

Display

On/Off

Leveling

Foot

Bubble

Level

Indicator

Weigh

Pan

Display

On/Off

Leveling

Foot

Setup

Carefully remove the balance and all accessories from the

carton. There are no tie-downs; however there may be pack-

ing materials under the pan support (square-pan models only).

LEVELING THE BALANCE

1. The leveling feet are located on the bottom of the balance.

Do not turn the balance over. Viewing the balance from

above, turn all leveling feet counterclockwise until the feet

are fully retracted into the balance base.

2. Note the position of the bubble on the leveling vial.

For maximum weighing accuracy, the bubble should be

located inside the black ring. Some adjustment will likely be

necessary.

3. Begin with the foot that is opposite of the location of the

bubble and turn clockwise until the bubble is moved into

the black ring. If necessary, repeat this step with the other

leveling feet until the bubble is positioned in the center of

the black ring.

4. Avoid extending the level feet too far. If it seems necessary

to do so, it is likely that the tabletop is not level. Check the

surface on which you have placed the balance; it may be

necessary to choose another location.

The bubble moves TOWARD a foot when that foot is

turned CLOCKWISE. The bubble moves AWAY from a

foot when that foot is turned COUNTERCLOCKWISE.

POWERING THE BALANCE

WARNING

Verify that you have received the proper voltage

power supply for your country of use!

Insert the power cord into the receptacle located at the back

of the balance and plug the power adapter into a wall outlet.

The display will perform a quick test in which all segments are

briefly illuminated and display “stabilizing” for 30 seconds.

INITIAL WARM-UP PERIOD

After the initial power-up, it is necessary to allow a minimum of

60 minutes for the balance components to become warm

and for the internal temperature to stabilize.

Memo:

Note

It is not necessary to unplug your balance from the power

source when it is not in use. It is advised to leave the unit

plugged in so that all components are warm and the balance

is ready to weigh at any time. If you wish, the display can be

turned off to save the segment life, by simply pressing the

Display On/Off button.

WEIGH PAN INSTALLATION

WARNING

Mishandling the balance weigh pans can

cause serious mechanical damage!

The balance weigh pan engages critical and delicate

mechanical components inside the balance. Please observe

the following precautions when handling the weigh pans:

1. Do not apply manual pressure to the weigh pan at any time.

2. Do not bump the pan.

3. Do not drop objects onto the pan.

4. Do not attempt to clean or vigorously wipe the pan while it is

installed on the balance.

ROUND-PAN MODELS

Balances with 3.5” or 4.5” round pans feature a weigh pan

assembly that consists of an aluminum pan and an impact pro-

tection ring that helps to shield the weigh pan from lateral

shocks. (For models with 6” pans, simply place pan on pan

stem.)

1. Place the impact ring on the balance first.

2. Center the weigh pan over the impact ring and gently slide

or twist (do not push) the pan onto the pan stem.

3. When removing the pan for cleaning, remove the impact

ring first and then pull the weigh pan straight up and off

(pulling the pan at an angle could result in mechanical

breakage).

SQUARE-PAN MODELS

Simply place the square top-pan on the pan support.

You’re ready to begin weighing!

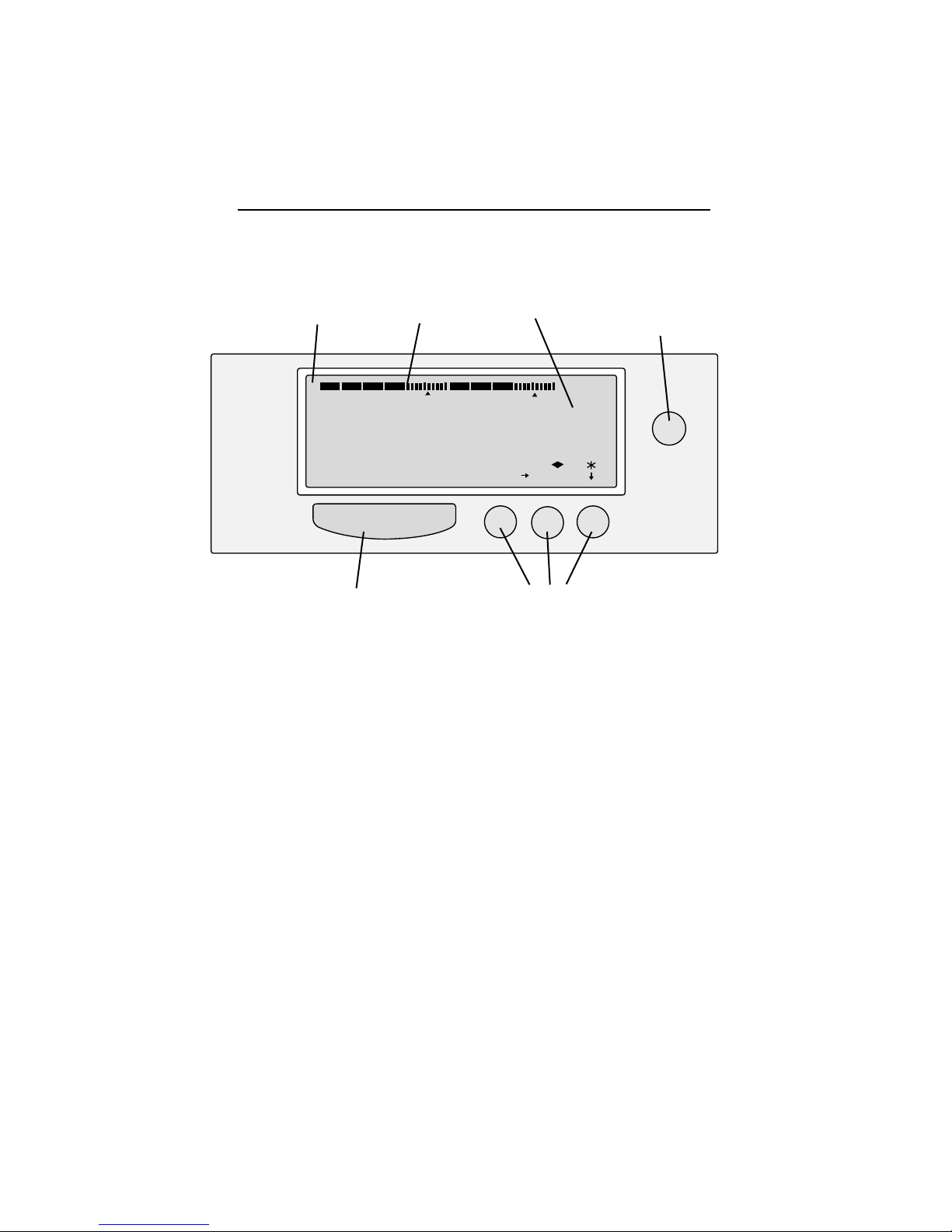

Display and Keypad

The balance features an integrated display/keypad. The

high-contrast LCD display simultaneously provides alpha and

numeric information for ease in setup and accuracy in inter-

pretation of results.

DISPLAY

Stability Indicator. This icon is illuminated when the balance

has stabilized, indicating that the displayed weight is your final

result.

Weigh Units. The current selected weigh unit is displayed. The

balance will keep two weigh units resident for ready use at all

times. Press "Select" to toggle between the two resident

weigh units. (Factory default is grams.) See page 12 for a

complete list of weigh units, their display abbreviations and

how to change the current weigh units.

00000000

000000000000

Weigh

Power

dwtlb%

ozGNB

drmomgkg

C1 C2 HST

Select Mode Print

Enter

ZERO

Display

On/Off

Stability

Indicator

Weigh unit

in use

Turns backlight

and display

on/off.

Returns the display

to zero. Exits a setup

function.

Soft keys provide

access to balance

functions and setup

features.

Graphical

display

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Denver Instrument Échelle

Denver Instrument

Denver Instrument TB Series Manuel utilisateur

Denver Instrument

Denver Instrument Summit Manuel utilisateur

Denver Instrument

Denver Instrument XE-100A Manuel utilisateur

Denver Instrument

Denver Instrument ACA-100 Manuel utilisateur

Denver Instrument

Denver Instrument P-114 Manuel utilisateur

Denver Instrument

Denver Instrument TP Series Manuel utilisateur

Denver Instrument

Denver Instrument DL series Manuel utilisateur

Denver Instrument

Denver Instrument DA Series Manuel utilisateur

Denver Instrument

Denver Instrument MAXX Manuel utilisateur

Denver Instrument

Denver Instrument PK-Series Manuel utilisateur

Denver Instrument

Denver Instrument XP Series Manuel utilisateur

Denver Instrument

Denver Instrument TB-124 Manuel utilisateur

Manuels Échelle populaires d'autres marques

AWS

AWS ZEO-50 Manuel utilisateur

Gima

Gima Glass Body Fat Analyzer Manuel de la liste des pièces

Seca

Seca 374 Manuel utilisateur

TEC

TEC TEC SL59 SERIES Manuel utilisateur

Axis

Axis B/E Series Manuel utilisateur

Alecto

Alecto ACW-40 Manuel utilisateur

Rice Lake

Rice Lake MSI-4260 IS Manuel utilisateur

IKA

IKA RCT basic safety control Manuel utilisateur

ADE

ADE M20011 Manuel utilisateur

Duronic

Duronic KS3000 Manuel utilisateur

Digi

Digi SM-720 Manuel utilisateur

Cardinal

Cardinal CS Series Manuel utilisateur

Korona

Korona Kastella Manuel utilisateur

A&D

A&D FC-50Ki Manuel utilisateur

BDA

BDA CAMARGUE Manuel utilisateur

Tanita

Tanita HD-357 Manuel utilisateur

Leifheit

Leifheit 03173 Manuel utilisateur

Lumme

Lumme LU-1340 Manuel utilisateur
