DentalEZ Forest Manuel utilisateur

6.11.21 0097-305 Rev. U 4 of 4

6200 NE Cherry Drive, Hillsboro, OR 97124 USA (TF) 800 . 423 . 3555 (T) 503 . 640 . 3012 (F) 503 . 693 . 9715

DTE OREGON, INC. DENTALEZ.COM

REAR PIVOT MOUNT

1 of 4

FIG.1:

STEP 2: Remove the 6 screws holding the upholstery in

place (Phillips screwdriver). Sit upholstery and hardware

aside (FIG. 2).

FIG. 2:

ROUTING DRAIN/SUCTION LINE

STEP 1: Remove covers (FIG. 1).

STEP 2: Route and secure tubings together with zip tie (FIG. 2).

CAUTION: Do not kink tubings with zip tie.

STEP 3: Make appropriate connection at utility center.

STEP 4: Reinstall covers.

STEP 5: Reinstall upholstery if originally removed.

FIG. 1:

COVERS

DRAIN LINE FROM

REAR PIVOT UNIT

ZIP TIE

TUBINGS

TOGETHER

FIG. 2:

INSTALLATION

INSTRUCTION

ALERT SYMBOL KEY

The safety notices associated with the following should be

given special attention when they appear in maintenance,

operating and emergency procedures in the guide.

WARNING indicates that the personal safety of the

patient, end user or technician could be compromised

by disregarding the WARNING. Not following instruc-

tions may result in an injury.

CAUTION indicates that a particular procedure

or precaution must be followed to avoid system

irregularity or possible damage to the product.

NOTE indicates special information to improve the

ease of maintaining the product, or to clarify important

information.

CAUTION: To avoid electrostatic discharge (ESD)

damage to electronics, always wear grounded wrist

strap attached to a ground adapter (eg: Banana or

Grounding plug) when handling circuit boards, chair

controls, and cables or working in the area of electrical

circuits.

CAUTION: Field modiﬁcations that alter the electrical

and/or mechanical safety of ForestTM products conﬂict

with agency construction ﬁle requirements and are not

sanctioned by Forest.

NOTE: Installation Veriﬁcation: Refer to Operator’s Guide

and perform all operations. If operations performing

as intended installation complete. If operations not

performing as intended, review steps in installation

instructions to conﬁrm correct installation or call

Technical Support at 800-423-3555.

Tools Required: 1/8”, 5/32”, 3/16”, 3/32” & 5/16”, 3mm, 8mm,

and 10mm, Allen Hex Wrenches, 1/8”, 5/16” Allen Sockets

with Torque Wrench, 3/4”, 9/16” & 15/16” Wrench, Flathead

Screwdriver, and Nitrile Gloves.

NOTE: Chairs purchased before July of 2014 contain

metric screws, all chairs purchased after this date

contain standard screws. This kit contains a metric and

standard nut and bolt set to accommodate either chair.

Please check to make sure that you are using the

correct tools and hardware for your chair before

proceeding.

NOTE: If rear pivot is already installed, proceed to page 3.

REAR PIVOT ASSISTANT’S OR CUSPIDOR

MOUNT 3900 CHAIR

STEP 1: Position the chair’s back in the fully up position

and the base in the fully down position (FIG. 1).

2 of 4 3 of 4

REAR PIVOT ASSISTANT’S OR CUSPIDOR

MOUNT 3900 CHAIR (CONTINUED)

LIFT COVER PLATE IN STALLATION

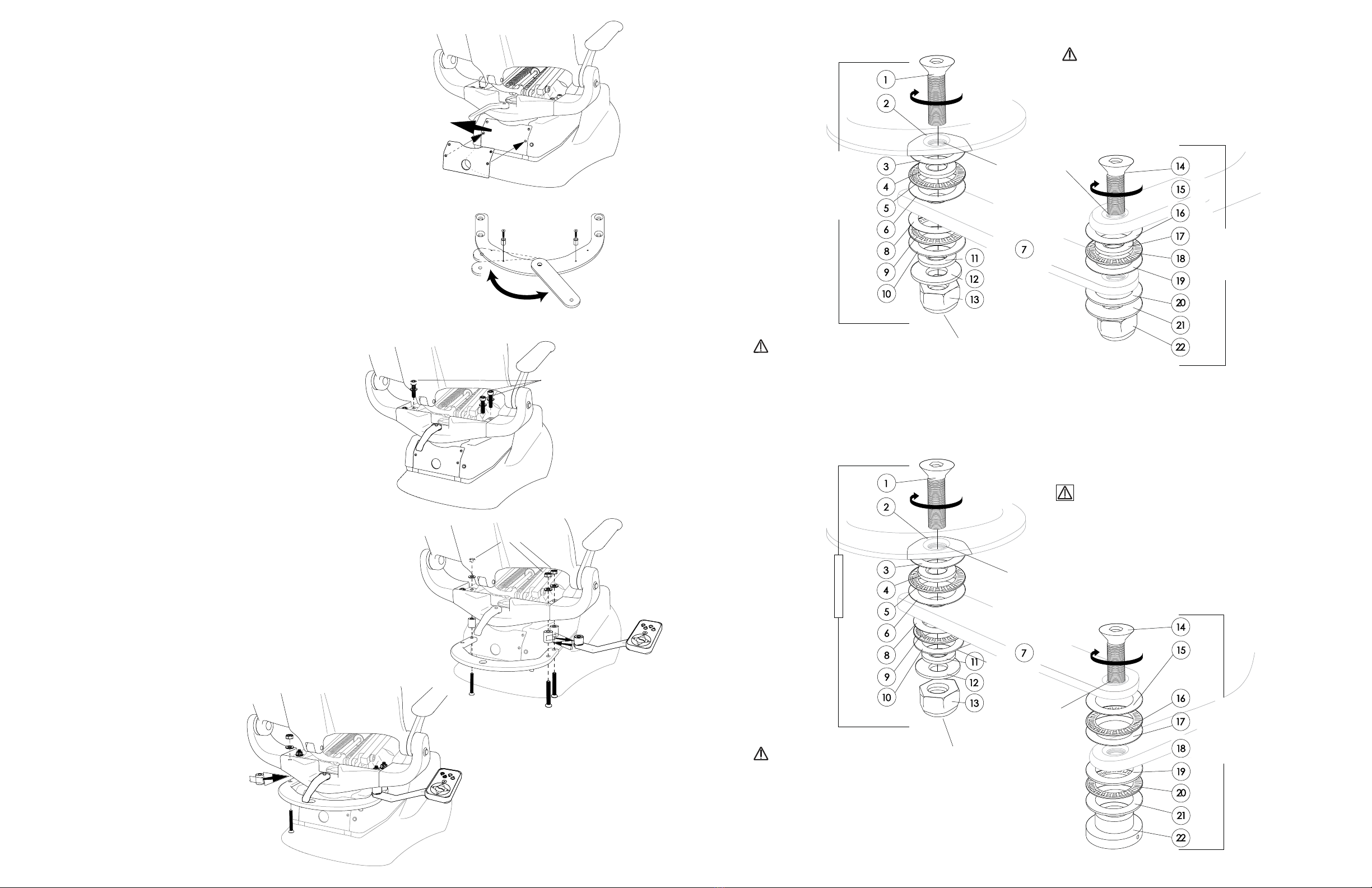

STEP 1: Remove existing lift cover plate from chair (1/8” or

3mm hex) (FIG. 3).

STEP 2: Use pre-existing screws to install the new cover

plate that contains the umbilical routing hole.

REAR PIVOT MOUNT SETUP

STEP 1: Install rear pivot bumpers on the mounting plate

using the screws provided (5/32” hex) (FIG. 4). Choose hole

location based on the desired limits of the link arm that will

be attached.

REAR PIVOT MOUNT INSTALLATION

STEP 1: Remove 3 shoulder bolts as shown (3/8” or 10mm

hex) (FIG. 5). If a chair mounted touchpad is installed,

remove it during this step.

STEP 2: Install mounting plate and spacers with nuts and

bolts provided (5/16” hex & 3/4” socket or 8mm hex & 19mm

socket). If re/installing a chair mounted touchpad, insert the

touchpad mount assembly in place of the provided spacer

(FIG. 5.1).

STEP 3: Remove remaining shoulder bolt. Insert spacer and

secure with nut and bolt (5/16” hex & 3/4” socket or 8mm

hex & 19mm socket) (FIG. 5.2).

FIG. 3:

BOLTS (3)

REAR PIVOT BEARING ASSEMBLY - ASSISTANT’S

1090/1091/1095/1096/1290

REAR PIVOT BEARING ASSEMBLY - CUSPIDOR OR DUO CONTROL

1490/1495PI/1500PI/1580/1590/1591

CAUTION: Protect work area. Threads to be

sealed must be clean and dry. Shake the product

applicator before use.

FIG. 4:

FIG. 5:

CAUTION: Protect work area. Threads to be sealed

must be clean and dry. Shake the product applicator

before use.

(REAR ADAPTER)

MAIN BEARINGS

1115-314

GREASE

BEARINGS

(LINK 1110-625)

LOCTITE®

(243/242) P/N:

0030-010

(ARM SIDE )

INTERMEDIATE BEARINGS

0010-679

MODEL 3900

CHAIR

ASSISTANT’S UNIT

(LINK = 1110-911)

(REAR ADAPTER)

MAIN BEARINGS

1115-314

MODEL 3900

CHAIR

GREASE

BEARINGS

LOCTITE®

(243/242) P/N:

0030-010

(ARM SIDE )

INTERMEDIATE BEARINGS

0010-728

CAUTION: 2 or 3 screw threads from bolt (1) should

protrude below the nut (13) for proper installation.

CAUTION: 2 or 3 screw threads from bolt (1) should

protrude below the nut (13) for proper installation.

FIG. 5.2:

CUSPIDOR OR

DUO CONTROL

LOCTITE®

(243/242) P/N:

0030-010

FIG. 5.1:
