Never Allow Any Unauthorized or Untrained Person To Operate This
Machine
Lockout and tagout any time maintenance is performed on this
machine
WARNING
NEVER GRIND OR SAND ANY ALUMINUM OR MAGNESIUM, OR ANY
SPARK CREATING PRODUCT ON THIS MACHINE

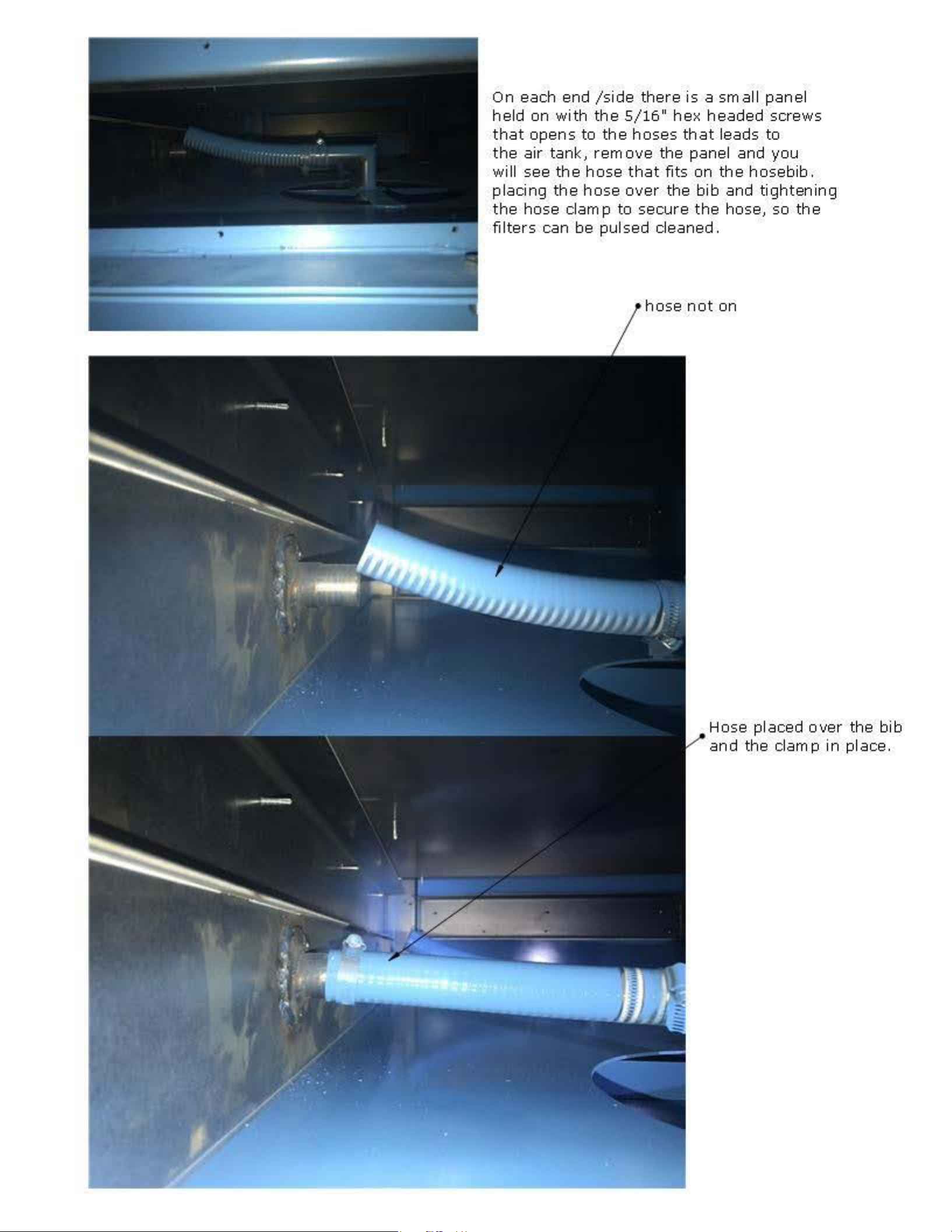

Filters are the main need of maintenance, the cleaner the filters are kept the better the machine will
perform. This machine is equipped with timers to clean the filters, every so many minutes a pulse of
air will be released into one of the filters, and a few minutes later the other filter will be pulsed, the
time is needed to refill the tank. The time between pulses are adjustable, refer to the electrical
diagram. Warning if the time is reduced between pulses the filter may plug up reducing the
machines performance. The filters can also be pulsed with the machine off, it may blow dust back
into the work area, so caution should be used here, pulse the machine then turn machine on to pull
dust back into the filters.
The filters will clean better with machine off,
you may shut machine off and before it slows
down to a complete stop, pulse the filter and
allow the fan to prevent the dust from exiting
the filter compartment.
Filter replacement number is on the inside of
the filter door.Be sure to replace with same
type of filter or a filter made of polyester
media.
Bolt that holds the band that
secures the filter to the steel plate
that slides in the filter unit.
This makes removing filters from
the plate very easy, Allowing filter
deep cleaning a much easier task,
thus allowing the filters
to be cleaned better and easier.
Filter replacement number
Is on inside of this door.
MUST replace with the
prop
er fire retardant filter
Cartridge Filters 99.95% efficeincy
down to .5 micron

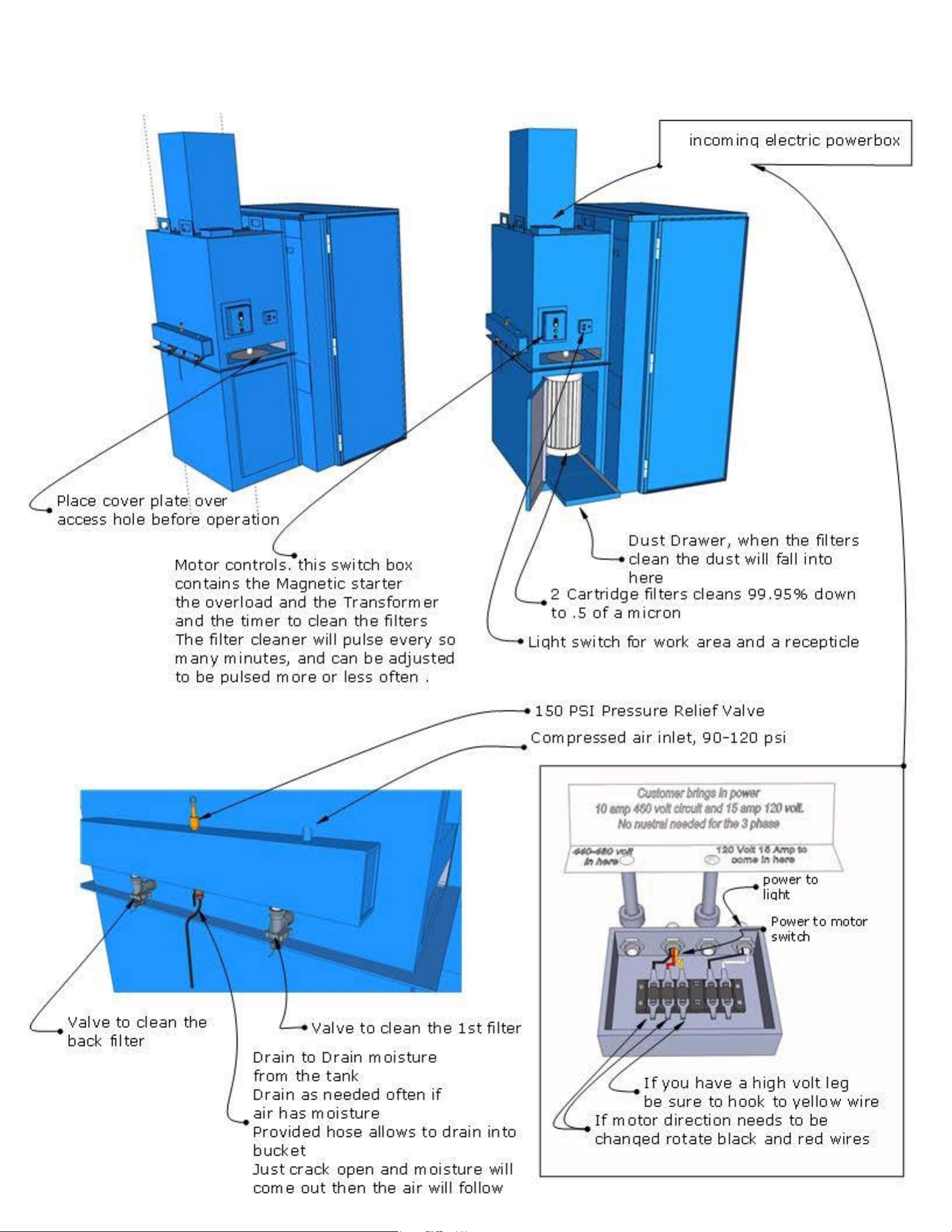

Dust Drawer Clean
regularly, as needed
UMHW Plastic
strips for ease
of sliding the
filters. Must be
in place
