MI073015E3-1

NOTE:

This edition is missing the FAQ’s content (pages 15 and 16) ………………………………………………………..7/30/2015

This edition is missing the link to the IR Codes………………………………………………………………………....7/30/2015

Protection History

Display Mode

Front Panel

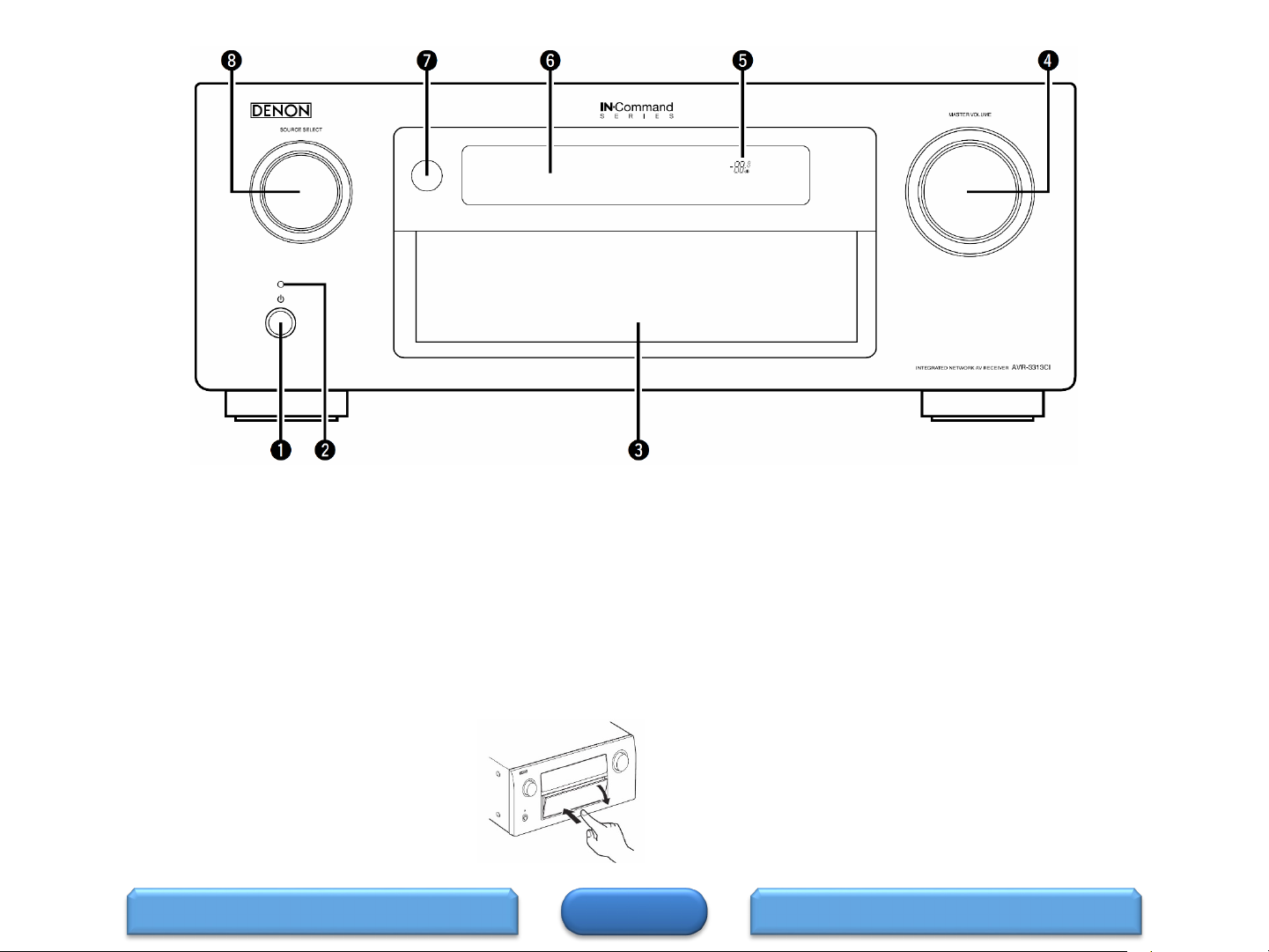

Power operation button (O)

Turns power to this unit on and off (standby).

Power indicator

(Power indicator status)

• Power on : Green

• Normal standby : Off

• When “HDMI Control” is set to “On” : Red

• When “IP Control” is set to “Always On” : Red

Door

When you are using buttons and/or connectors

behind the door, press the bottom of the door to

open it. Be careful not to catch your fingers when

closing the door.

MASTER VOLUME knob

This adjusts the volume level.

Master volume indicator

Display

This displays various pieces of information.

Remote control sensor

This receives signals from the remote control unit.

SOURCE SELECT knob

This selects the input source.

HOME Buttons and Connectors Behind the Front Door 2Buttons and Connectors Behind the Front Door 12

Buttons and Connectors Behind the Compartment Door (1 of 2)

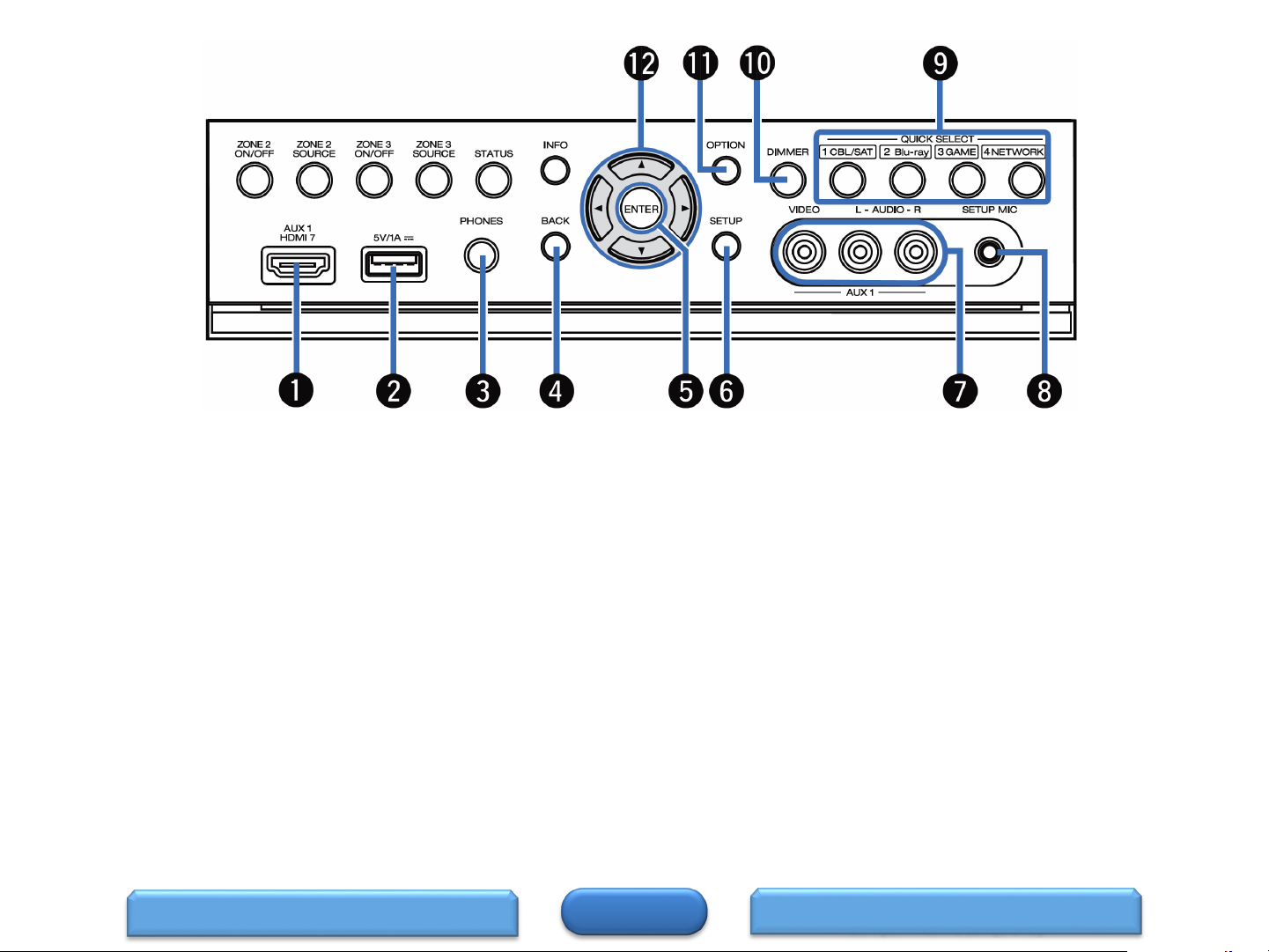

AUX1 HDMI 7 connector

Used to connect HDMI output compatible devices such as video

cameras and game consoles.

Ipod/USB port

Used to connect USB storages (such as USB memory devices)

and the USB cable supplied with iPod.

Headphones jack (PHONES)

When the headphones are plugged into this jack, audio will no

longer be output from the connected speakers or from the

PRE-OUT connector.

NOTE: To prevent hearing loss, do not raise the volume

level excessively when using headphones.

BACK button

This returns to the previous screen.

ENTER button

This determines the selection.

SETUP button

This displays the menu on the TV screen.

AUX1 INPUT connector

Used to connect analog output compatible devices such as video

cameras and game consoles.

SETUP MIC jack

Used to connect the supplied Setup and measurement

microphone.

QUICK SELECT buttons

With a single press of any of these buttons, you can call up various

settings you’ve registered to each button such as the input source,

volume level and sound mode settings.

DIMMER button

Each press of this switches the brightness of the display.

OPTION button

This displays the option menu on the TV screen.

Cursor buttons (  )

These select items

HOME

FRONT PANEL Buttons and Connectors Behind the

Compartment Door (2 of 2) 3

Buttons and Connectors Behind the Compartment Door (2 of 2)

Information button (INFO)

This displays the status information on the TV screen.

STATUS button

Each press of this switches the status information that is shown on

the display.

ZONE3 SOURCE button

This selects the input source for ZONE3.

ZONE3 ON/OFF button

This turns the power of ZONE3 on/off.

ZONE2 SOURCE button

This selects the input source for ZONE2.

ZONE2 ON/OFF button

This turns the power of ZONE2 on/off.

HOME DISPLAY

Buttons and Connectors Behind the

Compartment Door (1 of 2) 4

Information display

The input source name, sound mode, setting values and other

information are displayed here.

Front speaker indicator

This lights according to the setting of the front A and B speakers.

Output signal channel indicators

Lights when audio signals are being output from the speakers.

Master volume indicator

MUTE indicator

This lights when the mute mode is selected.

Sleep timer indicator

This lights when the sleep mode is selected.

MULTI ZONE indicators

This lights up when ZONE2, ZONE3 (separate room) power is

turned on.

Monitor output indicator

These light according to the HDMI monitor output setting.

When set to “Auto (Dual)”, the indicators light according to

connection status.

Tuner reception mode indicators

These light according to the reception conditions when the

input source is set to “HD Radio”.

STEREO : In FM mode, this lights up when receiving analog

stereo broadcasts.

TUNED : Lights up when the broadcast is properly tuned in.

Audyssey® indicator

This indicator lights when the “MultEQ® XT”, “Dynamic EQ”,

or “Dynamic Volume” setting is set to “On”.

Decoder indicator

These light when Dolby or DTS signals are input or when the

Dolby or DTS decoder is running.

Input mode indicators

Set the audio input modes for the different input sources

HOME REAR PANEL

Buttons and Connectors Behind the

Compartment Door (2 of 2) 5

Display

HOME

DISPLAY 6

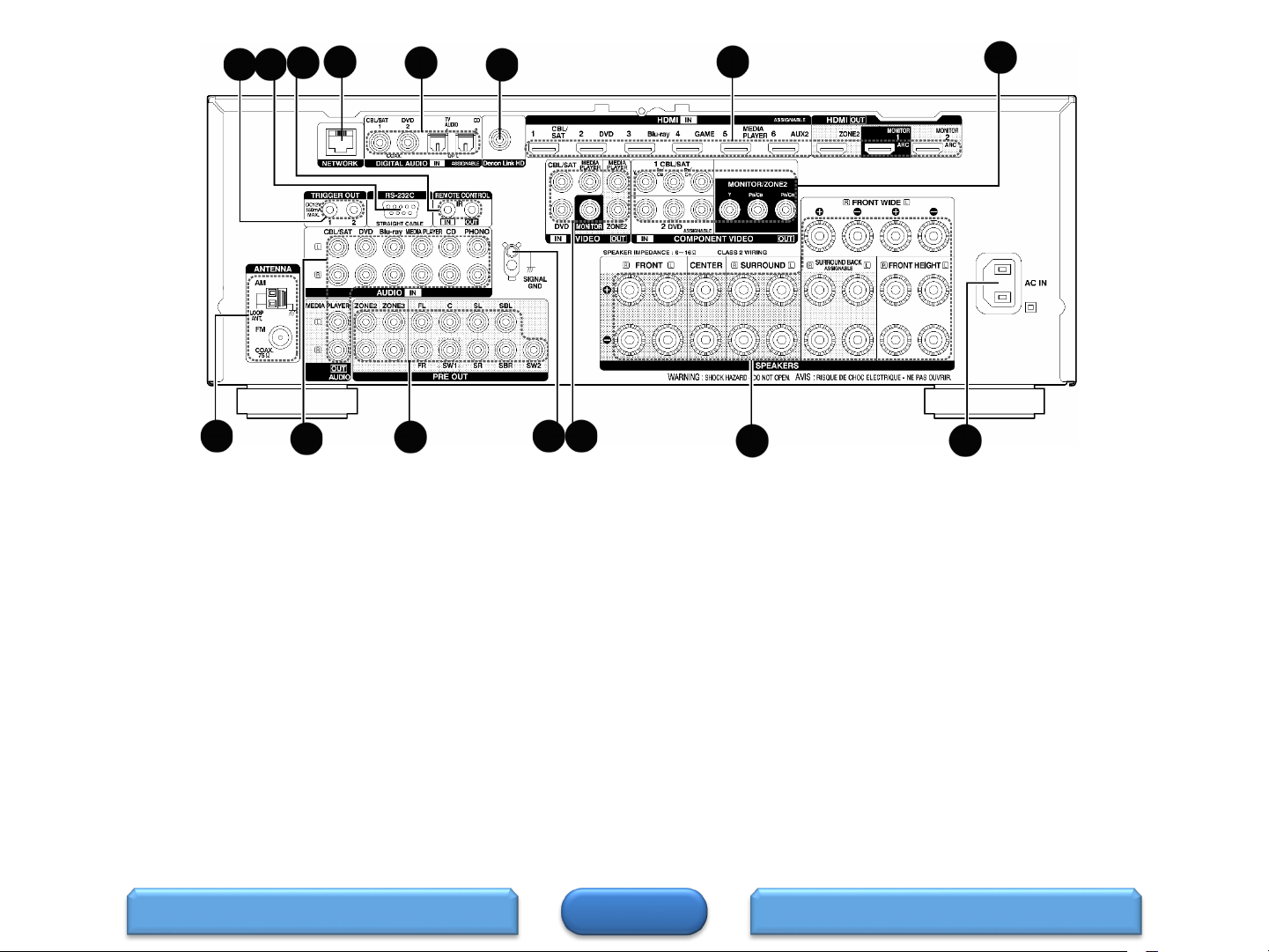

FM/AM antenna terminals (ANTENNA)

Analog audio connectors

(AUDIO)

PRE OUT connectors

SIGNAL GND terminal

Video connectors (VIDEO)

Speaker terminals

(SPEAKERS)

AC inlet (AC IN)

Component video connectors

(COMPONENT VIDEO)

HDMI connectors

Denon Link HD connector

Digital audio connectors

(DIGITAL AUDIO)

Network connector (NETWORK)

REMOTE CONTROL jacks

RS-232C connector

TRIGGER OUT jack

Rear Panel

1234567

REMOTE CONTROL 1

HOME

Remote Control (1 of 3)

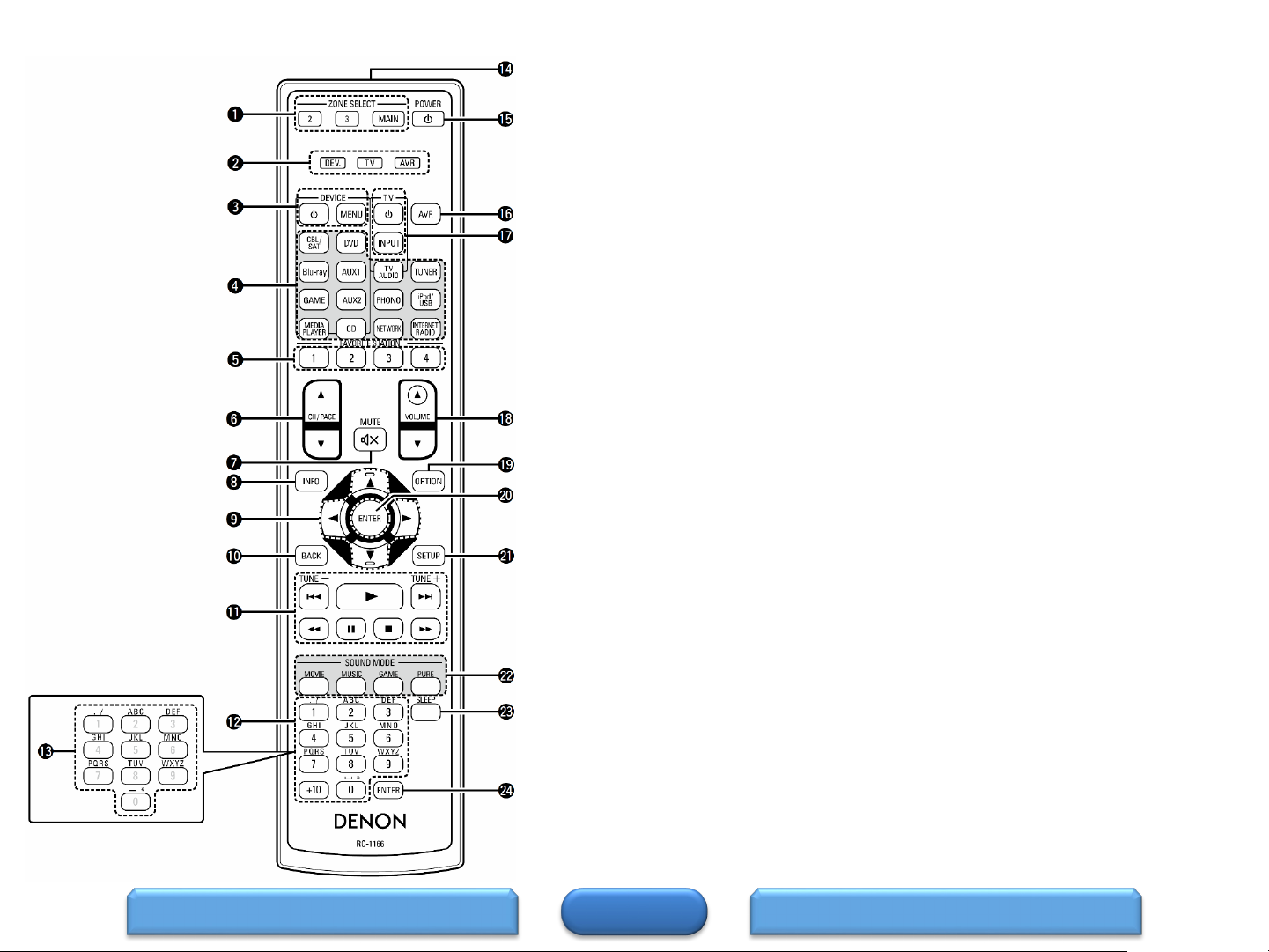

ZONE SELECT buttons (MAIN, Z2, Z3)

These switch the zone (MAIN ZONE, ZONE2, ZONE3) that is operated

through the remote control unit.

Operation mode indicators

The “AVR” operation mode indicator lights when the unit is being

operated.

The “DEV.” indicator lights when an external device is being operated.

The “TV” indicator lights when the TV is being operated.

Device operation buttons (DEVICEO/ DEVICE MENU)

These turn the power of external devices on/off and call up menus.

Preset codes need to be registered in order to use these buttons.

Input source select buttons

These select the input source.

FAVORITE STATION buttons (1 –4)

 Channel/page search buttons (CH/PAGE )

These select radio stations registered to presets or switch pages.

 MUTE button ( )

This mutes the output audio.

Information button (INFO)

This displays the status information on the TV screen.

Cursor buttons ()

These select items.

BACK button

REMOTE CONTROL 2REAR PANEL 7

HOME

Remote Control (2 of 3)

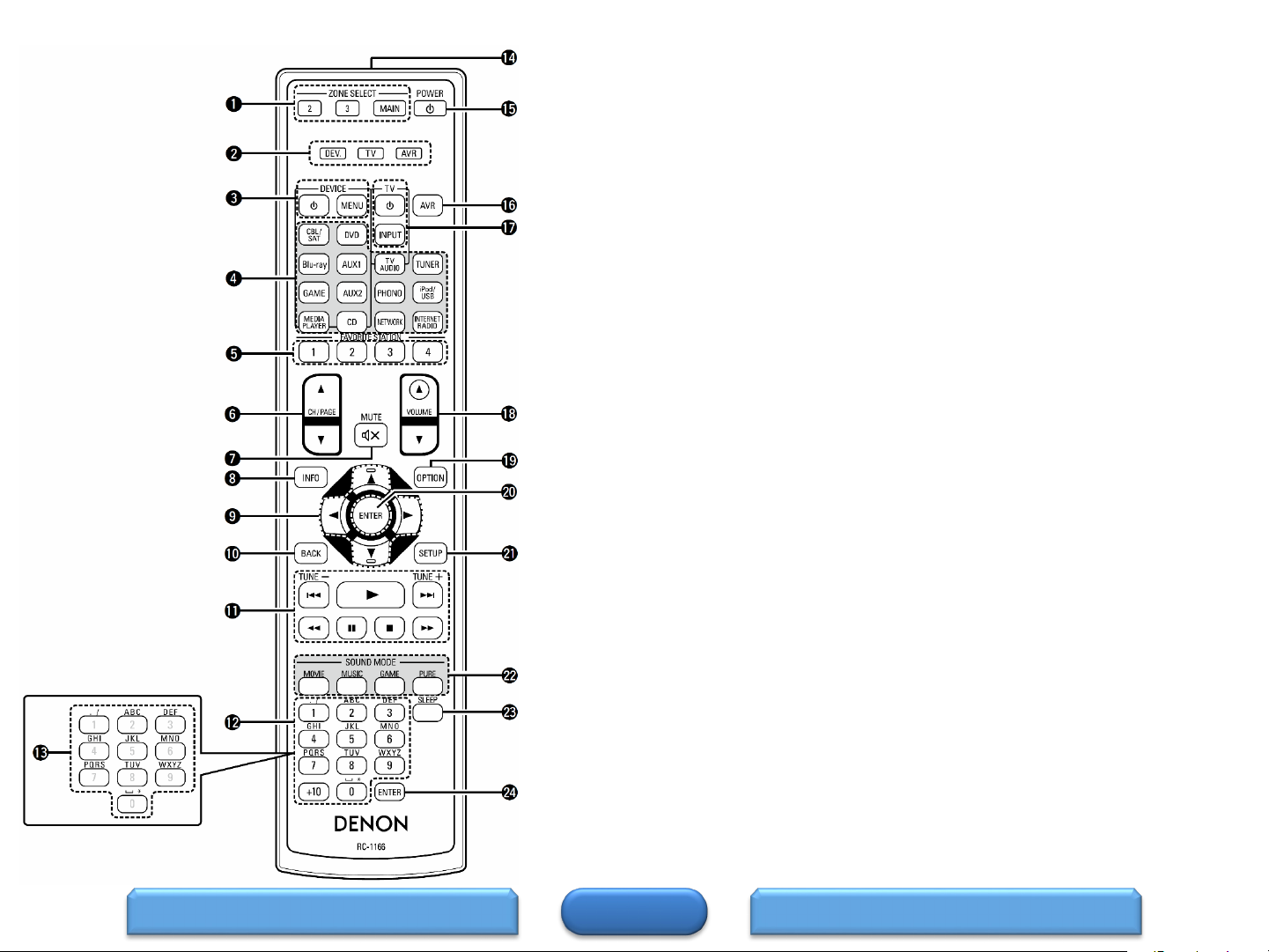

System buttons.

These perform playback related operations.

Skip buttons ()

Play button ()

Search buttons ()

Pause button ()

Stop button ()

Tuning up / Tuning down buttons (TUNE +, –).

These select either FM broadcast or AM broadcast.

Number buttons

These enter numbers into the unit.

Character buttons

These enter letters into the unit.

Remote control signal transmitter

This transmits signals from the remote control unit.

POWER button (O)

This turns the power on/off.

AVR-operation mode button

When using a remote control with preset codes registered, press AVR before

other operations in order to operate the unit.

TV operation buttons

(TV X / INPUT)

REMOTE CONTROL 3REMOTE CONTROL 1 8

HOME

Remote Control (3 of 3)

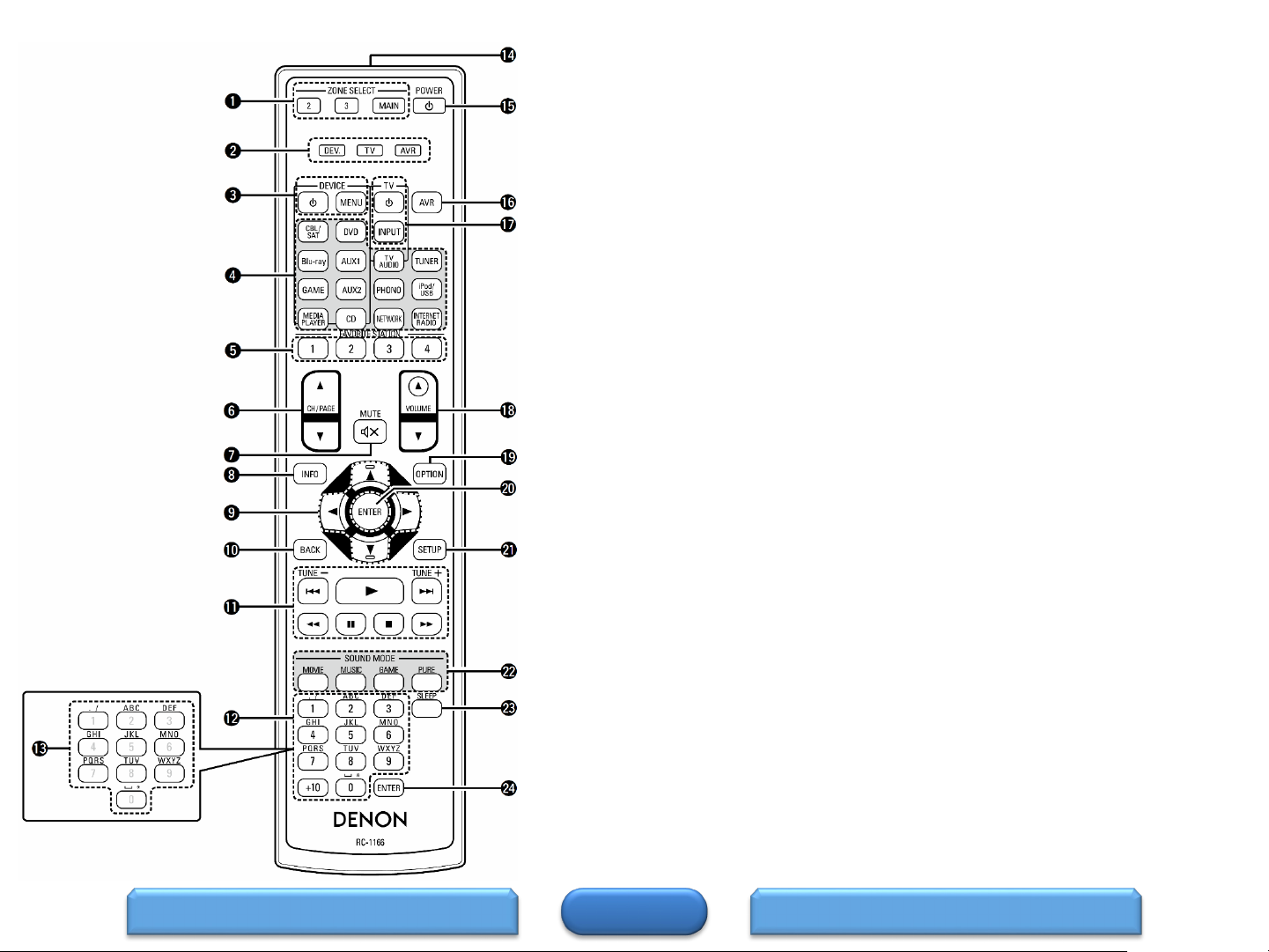

VOLUME buttons ()

These adjust the volume level.

OPTION button

This displays the option menu on the TV screen.

 ENTER button

This determines the selection.

 SETUP button

This displays the menu on the TV screen.

 SOUND MODE buttons

These select the sound mode.

•MOVIE button

•MUSIC button

•GAME button

•PURE button

 SLEEP button

This sets the sleep timer.

 ENTER button

Warranty 1REMOTE CONTROL 2 9

DENON LIMITED WARRANTY (1 of 2)

This warranty will be honored only in the U.S.A.

Length of Non-Transferable Warranty

This warranty on your DENON product which is distributed and warranted by DENON ELECTRONICS (USA), LLC remains in effect

for the following periods from the date of the original consumer purchase from an AUTHORIZED DENON ELECTRONICS (USA),

LLC DEALER.

DENON ELECTRONICS (USA), LLC

(a D&M Holdings Company)

100 Corporate Drive

Mahwah, NJ 07430-2041

(201) 762-6665

www.usa.denon.com

DENON FACTORY SERVICE by PANURGY OEM

701 Ford Road (South Dock)

Rockaway, NJ 07866-2053

(973) 625-4056

(973) 625-9489 Fax

http://www.panurgyoem.com/Denon/Denonrepair.html

See the next page for more information about the Denon limited warranty

HOME

3years for units purchased new

1year for refurbished (B-Stock) units

WARRANTY 2REMOTE CONTROL 3 10
