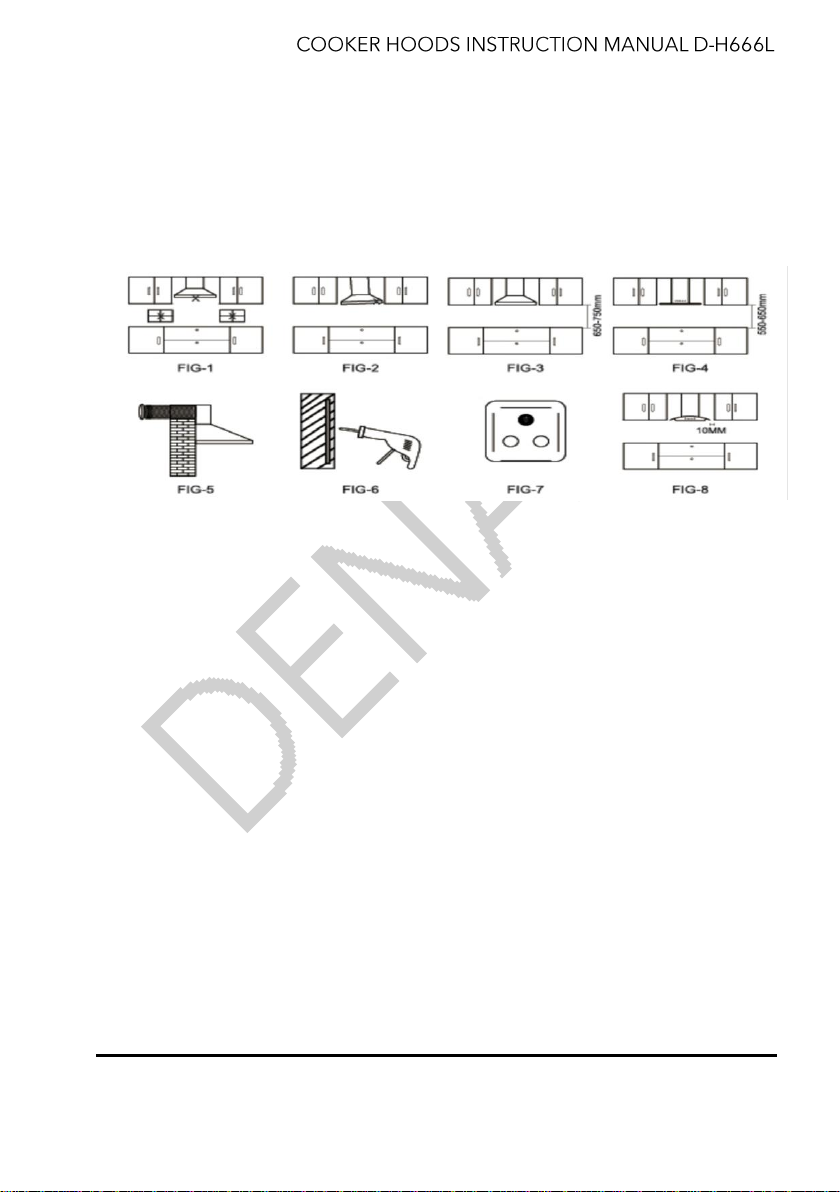

change optionally.(FIG-7)
3.8.Proper space(Usually about 10mm) should be left on both sides of
the cooker hoods for convenience of maintenance and repair(FIG-
8)
4. INSTALLATION METHOD
4.1.Installation location

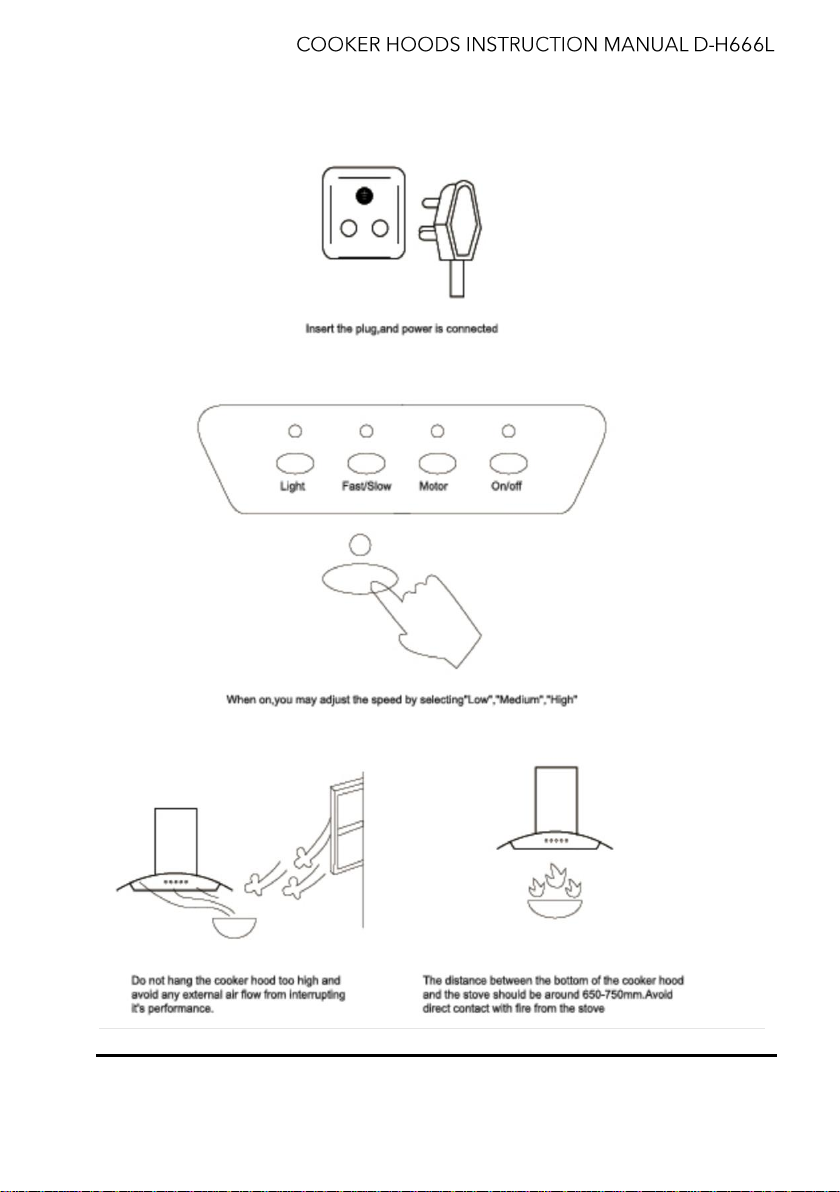

Install the kitchen hoods horizontally above the stove.The bottom of the
cooker hoods is about 650mm-750mm above the stove.The size of the
drawable boards we refer to ou is 430mm,which can be adjusted according
to actual situation.The open holes must be vertical,centre and horizontal to
be cooker hoods.
4.2.Installing the bracket
Firstly,bore three holes on the wall with a diameter of 8mm and 50-60mm
depth.The put the expansion tube in the packing box to set the bracket.
4.3.Removing the strectched tube(If there is)
Remove the stretched tube,place cooker hoods on wall and ajust to
appropriate height

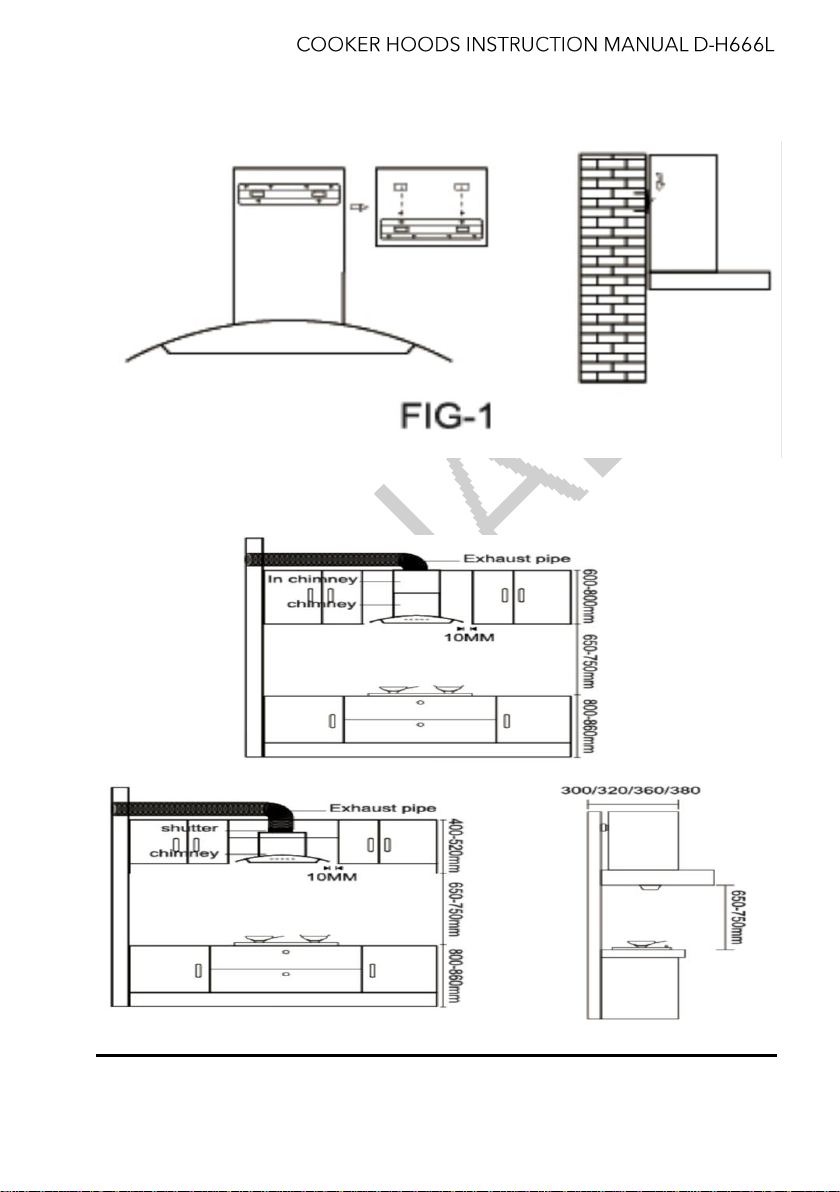

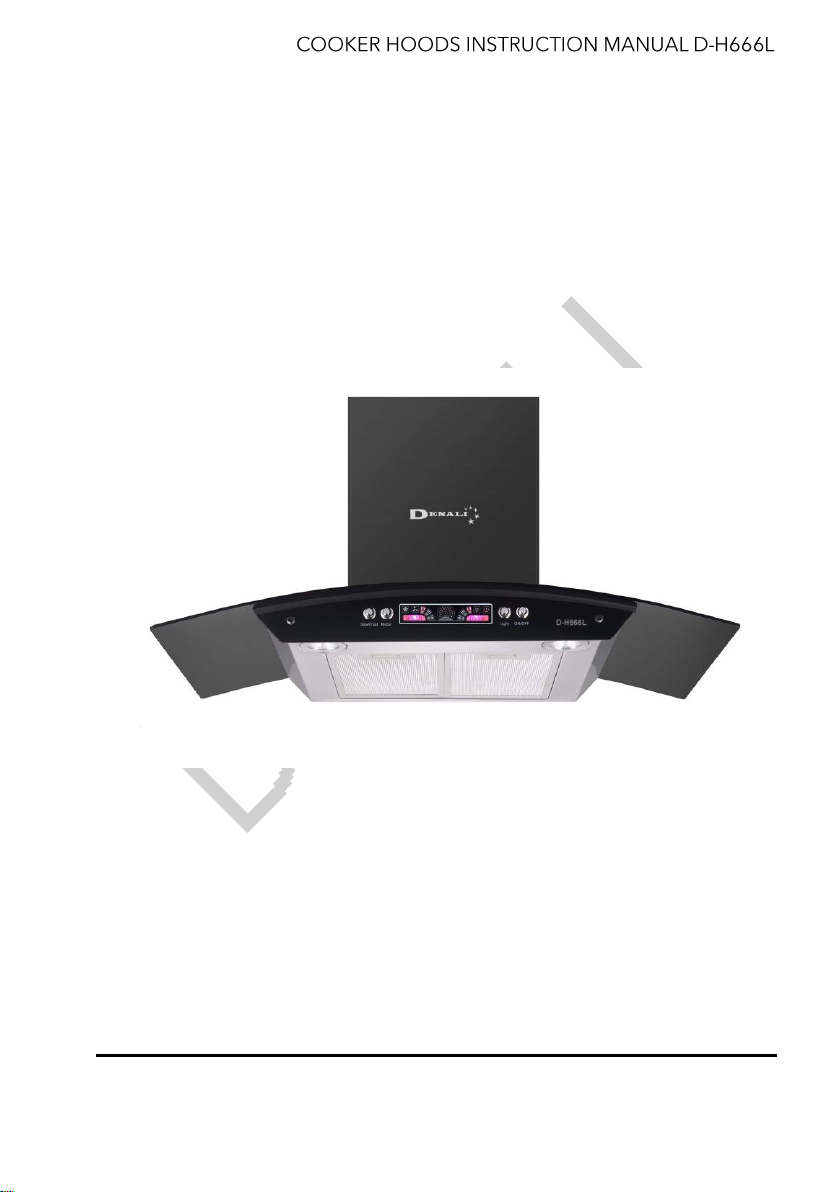

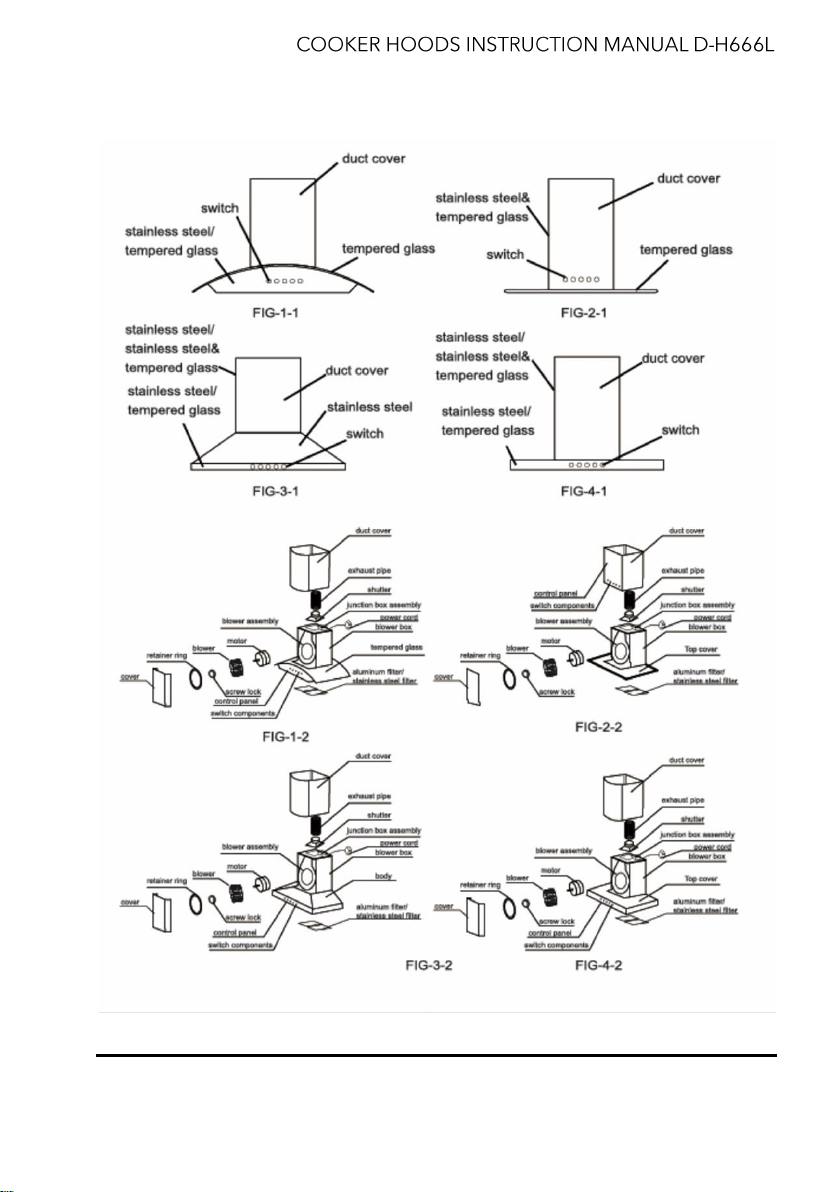

4.4.Installing the cooker hoods(PIG-1)
Press and slide the pothook on the cladding into the holes att the back of
the cooker hoods.Make sure it is placed tight without any loose movements.
4.5.Fixing the exhaust pipe
Insert the exhaust pipe between the inside and outside track of the air
otlet.Fix it with ST3X6 Bolts,and place the other end facing outdoor.
4.6.Fixing the exit end of the exhaust pipe
a. Window:Remove panel of glass and fix a veneer with a hole,or make a
hole on the glass.
b. Bore a hole in the wall,measure and draw a circle on the wall with the
diameter slightly bigger than that of the exhaust pipe.The diameter of the
hole should be close to the diameter of the exhaust pipe so the air can go
out smoothly with less noise.
