DEMA Nitro Guide d'installation

Nitro Existing Program Training

December 1, 2009

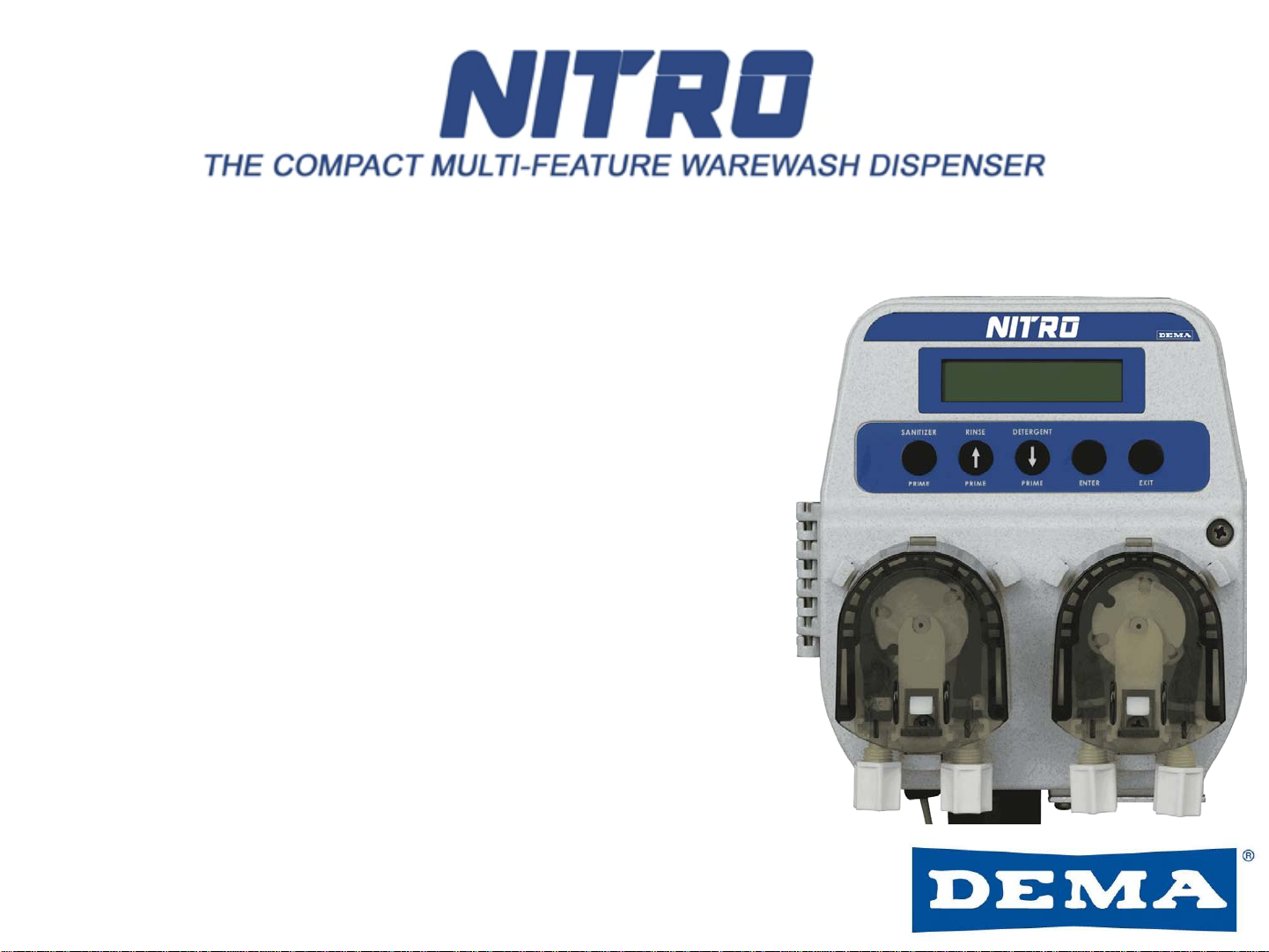

Nitro bridges the gap between compact

basic dispensers and large dispensers

with multi-features but too bulky for

smaller kitchen environments

–Probe or probeless operation from

the same unit

– Pre-wired power supply

–Password protected digital

programming

–Multi-lingual display

–Quick change pump cover

–Optional magnetic field reader and

inductive probe

Nitro Features

•100-260VAC 50/60Hz main

power (constant power)

•24-480VAC trigger signals

•Detergent pump output 6

oz./min (180ml / min)

•Rinse pump output 1.3

oz./min (40ml / min)

Nitro Button Functions

SANITIZER

PRIME button

primes

sanitizer and

moves cursor

left in

programming

Det. Prime / DOWN arrow primes

detergent and decreases value or

moves cursor down

EXIT button

exits the

programming

and moves

cursor right in

programming

Rinse Prime

/ UP arrow

primes rinse

and

increases

value or

moves cursor

ENTER button

enters

programming

and accepts

values entered

Idle Screen & Priming

•Idle / Default screen shown

when unit is not being

programmed

•Unit will return to this

screen during long periods

of no button activity

•Press and hold any prime

button to prime each pump

Language Screen- English

•Press ENTER to modify

language

•Use UP & DOWN arrows to

select between 4 languages

–English, Spanish,

Portuguese and French

•Press ENTER to select

desired language

•Press DOWN arrow for

Rack Count screen

Rack Count

•Displays number of rack

counts registered

•Rack counts are generated

by rinse length in conveyor

mode or machine operations

in door mode

•Press DOWN arrow for

Information screen

Information Screen

•Displays the following

information

•DET

–P = Probeless mode

–C = Concentration mode

•SP

–Not applicable for

probeless mode

–Detergent set point in

concentration mode

•Input

–Actual probe reading

•Press DOWN arrow for new

program

System Access Screen

•Allows program and setup

features to be modified

•Press ENTER to gain

access

•Note: The training covers

Concentration mode 1st

followed by Probeless mode

Enter Code –Concentration Mode

•Enter code to gain access

•Use SANITIZER button to

move cursor left and EXIT

button to move cursor right

•Use UP & DOWN arrows to

change digit in each position

•Press ENTER when access

code is displayed
