OWNERS MANUAL
Important: Read all of the following instruction before
installing of the devices begins!
ver 2019-05-08
Aqua Signal Water Alarm
W1201, W1301 & W2301
Product Overview
The Aqua Signal family is a simple detection unit to
give an early alarm if something is leaking water. The
unit is easily placed nearby or under the equipment
attached to water. Depending on model of your choice
you might connect the unit by relay to other alarms or
equipment.
Product Features W1201:
• Exchangeable 9V battery
• Bright and clear alarm signal
• Battery warning when time to change
• External sensor
Product Features W1301:
• Exchangeable 9V battery
• Bright and clear alarm signal
• Battery warning when time to change
• Relay with Normally Open or Normally Closed
• External sensor
Product Features W2301:
• External +12VDC Operation
• Bright and clear alarm signal
• Relay with Normally Open or Normally Closed
1. Remove the cover carefully.
2. Connect a 9V battery
ALT. B (Only applies to model: W2301)
2. Connect 12V power supply, ensure correct polarity.
3. Close the cover. NB position mark.
EN60335-1:2012+A11:2014
EN62233:2008, AfPS GS2014:01 PAK
CE 2004/108/EC (EMC Directive)
Activating the unit
Testing the alarm
Place the Aqua Signal device on a wet towel or similar,
ensure that all 3 points touch simultaneously, the alarm
shall sound. If the alarm is equipped with a Relay, there
is a built-in delay of 2 sec before the relay goes o.
Low Battery Warning
Applies only to the W1201 & W1301 version.
Replace the battery when continuous short beeps
occurs, preferable with a 9 volt alkaline battery.
SAVE INSTRUCTIONS
FOR FUTURE USE
Deltronic Security AB
E A Rosengrens gata 4
SE-421 31 Västra Frölunda
www.deltronic.se
Tel: +46 (0)31-14 08 00
For more information or if you have any questions, you are
welcome to contact Deltronic, at the following address:
-
-

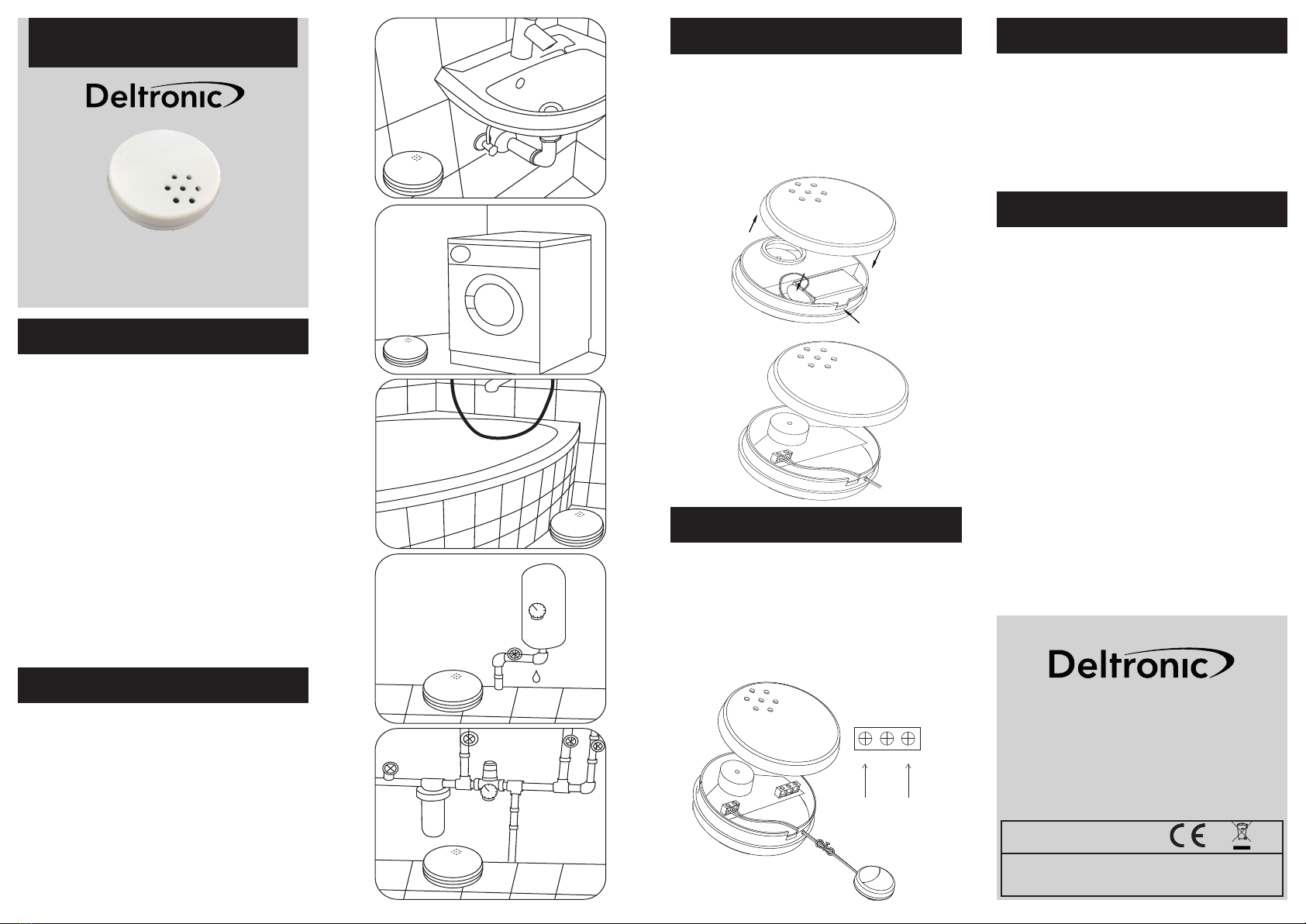

Example of Locations
Place the alarm where a water leakage or ood is likely
to occur, such as in bathrooms, basement, kitchen, ga-
rage, near water pipes etc. when water simultaneously
reaches the 3 contact pins at the bottom of the unit,
the alarm with be activated.
To enhance the sensitivity you may place the device
up on a Wettex ™ dish cloth that will secure that the
water wont pass the pins without trigging an alarm.
NC NO C
B.
A.
NC NO
C
In versions W1201 & W1301 it may be possible to con-
nect an additional external water sensor, no polarity
needed. (marked A in following picture)
In version W2301 it is possible to connect to an external
system by help of a built in relay. (marked B in following
picture)
NO-Normally Open
Breaking capacity 2A/24VDC NC-Normally Closed
C-Common
External connection & Relay
Testing & Low Battery Warning
Deltronic Security AB guarantees to you, as a purchas-
er, that the enclosed water alarm will be free from de-
fects in material, workmanship, or design under normal
use and service for a period of 2 years. This guarantee is
not assignable. Our liability to you, under this guarantee
is limited to repairing or replacing any part which we
nd to be defective in material, workmanship or design,
free of charge to the customer, upon sending (postage
paid) or supplying the alarm with proof of purchase. The
terms of this guarantee will not apply if the alarm has
been modied, dismantled, contaminated, damaged
neglected or otherwise abused, or if this instruction
manual have not been followed.
The liability of Deltronic Security AB arising from the
sale of this alarm or under the terms of this guarantee
shall not in any case exceed the cost of replacement of
the alarm.
In no case, shall Deltronic Security AB be liable for
consequential loss or damage resulting from the
failure of the alarm, or the breach of this or any other
guarantee, expressed or implied or for damage caused
by failure to abide by the instructions supplied. The
guarantee does not aect your statutory rights.
Warranty
