DeltaPix H4KFWSD08DPX Manuel utilisateur

H4KFWSD08DPX User Manual

Contents

H4KFWSD08DPX User Manual ....................................................................................................................... 1

1Available Ports on the Back of the Camera Body............................................................................ 1

2HDMI 4K Camera Function Description .............................................................................................. 1

2.1 Video Output .................................................................................................................................... 1

2.2 Image Capture and Video Saving in SD card...................................................................... 1

2.3 ISP Function ..................................................................................................................................... 2

2.4 Image Operation Function .......................................................................................................... 2

2.5 Other Functions............................................................................................................................... 2

3H4KFWSD08DPX Packing list.................................................................................................................. 2

4Software and App*..................................................................................................................................... 2

4.1 Camera working standalone with the built-in 4KView software. ................................. 3

4.2 Camera working with Pc software (DeltaPix InSigh)........................................................ 4

4.3 Camera working in WLAN mode (AP mode) ........................................................................ 4

4.4 Connecting camera to the PC with Gigabit Ethernet port (coming soon) ................ 6

4.5 Connecting multi-cameras to the router through the GE port/WLAN STA mode

for the network application ..................................................................................................................... 8

5Brief Introduction of H4KFWSD08DPX UI and Its Functions.................................................... 12

5.1 4KView UI........................................................................................................................................ 12

5.2 The camera control panel on the left side of the video window ................................ 13

5.3 The Measurement Toolbar on top of the video window................................................. 14

5.4 Icons and functions of the Synthesis Camera Control Toolbar at the bottom of

the video window ...................................................................................................................................... 16

6Sample Photos Captured with H4KFWSD08DPX Series Camera ............................................ 22

H4KFWSD08DPX User Manual

1/ 26

1Available Ports on the Back of the Camera Body

Figure 2-1 Available Ports on the Back Panel of the Camera

Interface

Function Description

1. USB Mouse

Connect USB mouse for easy operation with embedded 4KView software.

2. USB3.0

1.Connect USB flash drive to save pictures and videos

2.Connect 5G WLAN modules to transfer video wirelessly in real time (AP/STA).

3.Connect computer with USB 3.0 connection to transfer video in real time and for advance

image processing and analysis.

3. GE

Gigabit Ethernet port to connect router and switch to transfer video.

4. On/Off

Power switch.

5. HDMI

Comply with HDMI2.0 standard. 4K/1080P format video output and supporting automatic

switch between 4K and 1080P format according to the connected monitors.

，

6. SD

Comply with SDIO3.0 standard and SD card could be inserted for video and images saving.

7. 12V

Power adapter connection (12V/1A).

8. LED

LED status indicator.

2HDMI 4K Camera Function Description

2.1 Video Output

Video Output Interface

Function Description

HDMI Interface

1. Comply with HDMI2.0 standard.

2. 60fps@4K or 60fps@1080P(H4KFWSD08DPX)

GE Interface

1. 30ps@4K resolution.

2. H264 encoded video.

3. Bandwidth adjustment in real time.

4. DHCP configuration or manual configuration.

5. unicast/multicast configuration;

WLAN Interface

6. Connecting 5G WLAN adapter (USB3.0 interface) in AP/STA mode;

USB3.0 Interface

1. Connecting USB3.0 port of PC for video transfer using DeltaPix InSIght

2. MJPEG format video;

2.2 Image Capture and Video Saving in SD card

Function Name

Function Description

Video Saving

1. Video format

：

8.3MP (3840*2160) H264 encoded MP4 file

；

2. Video saving frame rate：50~60fps(H4KFWSD08DPX) (related with

SD card

and video resolution);

Image Capture

3. 8.3MP (3840*2160, H4KFWSD08DPX) JPEG image in SD card or USB flash

disk

Measurement Saving

4. Measurement information saved in different layer with image content

。

Measurement information is saved together with image content in burn in

mode.

H4KFWSD08DPX User Manual

2/ 26

2.3 ISP Function

Function Name

Function Description

Exposure / Gain

Automatic / Manual Exposure

White Balance

Manual / Automatic / ROI Mode

Sharpening

Supported

3D Denoise

Supported

Saturation Adjustment

Supported

Contrast Adjustment

Supported

Brightness Adjustment

Supported

Gamma Adjustment

Supported

50HZ/60HZ Anti-

flicker Function

Supported

2.4 Image Operation Function

Function Name

Function Description

Zoom In/Zoom Out

Up to 10X

Mirror/Flip

Supported

Freeze

Supported

Cross Line

Supported

PIP (Picture in Picture)

Supported

Compare

Comparison between real time video and images in SD card or USB flash drive

Embedded Files

Browser

Supported

Video Playback

Supported

Measurement Function

Supported

2.5 Other Functions

Function Name

Function Description

Embedded

RTC(Optional)

To support accurate time on board

Restore Factory

Settings

Supported

Multiple Language

Support

English / Simplified Chinese / Traditional Chinese / Korean / Thai / French /

German / Japanese / Italian

3H4KFWSD08DPX Packing list

Standard Packing List

Camera box: L:25.5cm W:17.0cm H:9.0cm (1pcs, 1.43Kg/ box)

H4KFWSD08DPX Camera

Power Adapter: Input: AC 100~240V 50Hz/60Hz, Output: DC 12V 1A

USB Mouse

HDMI 2.0 Cable

High-speed USB3.0 A male to A male gold-plated connectors cable /2.0m

USB WLAN adapter

SD Card (16GB or above; Speed: class 10)

4Software and App*

The software or the APP can be downloaded from the following link：

Android: Insert QR code for app ! (coming soon)

PC software InSight https://www.deltapix.dk/software-download/

H4KFWSD08DPX Application Configurations

You can use the H4KFWSD08DPX camera in multiple different ways. Each application requires different

hardware and setup.

H4KFWSD08DPX User Manual

3/ 26

4.1 Camera working standalone with the built-in 4KView software.

For this application, apart from the microscope, you only need an HDMI monitor, the supplied USB

mouse, and the camera embedded 4KView software. A computer or a network connection is not required

to operate the camera in this mode. The steps to start the camera are listed below:

Figure 7-1 H4KFWSD08DPX Camera with the HDMI Displayer

Connect the camera to a HDMI displayer using the HDMI cable.

Insert the supplied USB mouse to the camera’s USB port (USB mouse port).

Insert the supplied SD card/USB flash disk (USB3.0 interface) into the HDMI camera SD card

slot/USB3.0 interface.

Connect the camera to the power adapter and switch it on.

H4KFWSD08DPX User Manual

4/ 26

Switch on the displayer and view the video in the 4KView software.

Move the mouse to the left, top or bottom of the 4KView UI, different control panel or UI will pop up

and users could operate with the mouse with ease.

4.2 Camera working with Pc software (DeltaPix InSigh)

•Install DeltaPix InSight to the PC

•Connect the camera to the Pc via the Included USB3.0 male to male cable.

•Switch on the camera.

•Drag and drop the included virtual dongle file into the InSight software

•Start DeltaPix InSight (See DeltaPix InSight user manual for more info)

https://www.deltapix.dk/Software/Insight/Manual/PDF/DeltaPix_InSight_Manual.pdf

4.3 Camera working in WLAN mode (AP mode)

It requires that the PC supports WLAN.

Android 5.1 or higher operating systems.

H4KFWSD08DPX User Manual

5/ 26

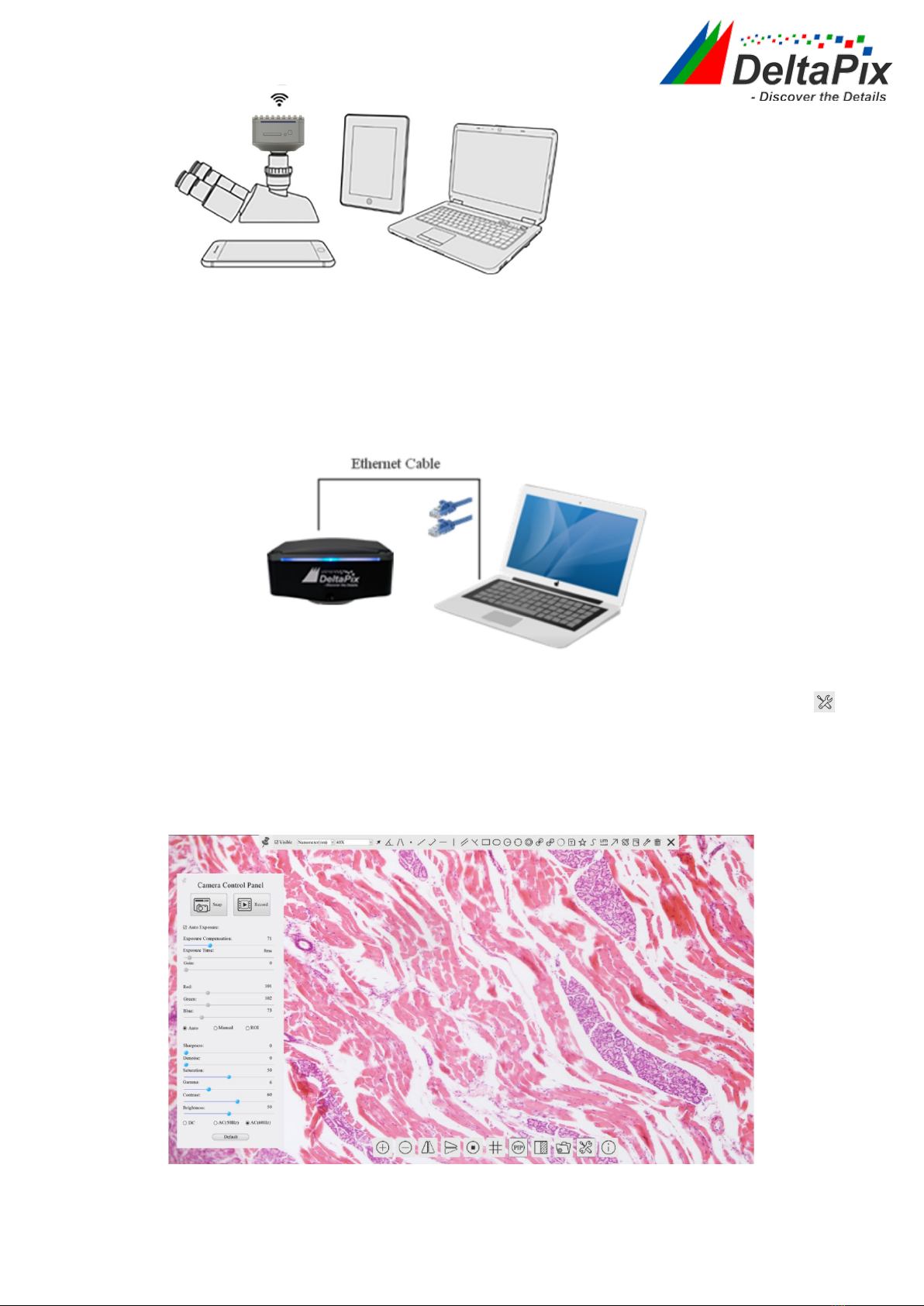

Figure 7-2 The PC or Mobile Device Connect to the Camera through WLAN

The steps to start the camera are listed below:

Start the camera according to Sec. 7.1. After the camera is running, moving the

mouse to the bottom of the UI and clicking the button on the Camera Control

Toolbar at the bottom of the window, a small window called Settings will pop up as

shown below. Click USB3.0> and select Host mode (Note as long as in host mode

the camera can not be connected to a PC via USB, it needs to be changed back to

device mode)

Network >WLAN property page and choose the AP in the WiFi Mode edit box (The

factory default configuration is AP mode ).

Install DeltaPix InSight on your PC or install the 4KView App on the mobile device.

Plug the USB WLAN adapter into the camera’s USB3.0 port.

Connect the PC or mobile device with the WLAN AP point that the camera

provides; The network name (SSID) and the WLAN password (The default one is

12345678) can be found on the camera’s Setting>Network>WLAN page in AP mode

H4KFWSD08DPX User Manual

6/ 26

Start DeltaPix InSIght software or 4KView App and check the configuration.

Normally, active H4KFWSD08DPX cameras are automatically recognized.

4.4 Connecting camera to the PC with Gigabit Ethernet port (coming soon)

This application uses the camera as the a network camera. User must configure the IP of

the camera and PC manually and ensure their IP addresses are in the same net. The

subnet mask and gateway of the camera and PC must be the same.

Figure 7-3 Connecting the H4KFWSD08DPX Camera with Ethernet Cable to the PC

Start the camera according to Sec. 7.1 after the camera is running, clicking the

button on the Camera Control Toolbar at the bottom of the video window, a small

window called Settingswill pop up as shown below on the left side, clicking the LAN

property page, uncheck the DHCP item. Input the IP Address, Subnet Mask and

Default Gateway for the camera. Designate the Internet Protocol Version 4 (TCP/IPv4)

Settings page’s IP address on the PC with similar configuration as shown below on the

right side but with different IP address.

H4KFWSD08DPX User Manual

7/ 26

Figure 7-4 Configure the H4KFWSD08DPX

Camera IP

Figure 7-5 Configure the

PC’s IP

After the above configurations are finished, user can connect the H4KFWSD08DPX

camera to the computer through the USB to Ethernet adapter as shown below:

Connect the GE port with the Ethernet cable to the PC’s network port;

Insert the supplied SD card/USB flash disk (USB3.0 interface) into the HDMI

camera SD card slot/USB3.0 interface.

Install DeltaPix InSight on your PC or install the 4KView App on the mobile device;

Run the software, clicking the camera name in the camera list starts the live video.

H4KFWSD08DPX User Manual

8/ 26

4.5 Connecting multi-cameras to the router through the GE port/WLAN STA

mode for the network application

In LAN/WLAN STA mode, the camera connects to router LAN/WLAN by Ethernet cable

GE/WLAN STA mode. If a router with GE/WLAN capability is used, users could connect the

router with Ethernet cable/WLAN and control the camera.

Figure 7-6 Multi H4KFWSD08DPX Cameras Connecting to the Router through the Gigabit

Ethernet Port/WLAN Style

The connection and configuration are just the same as in Sec.7.1 or Sec. 7.3. But

here, users need to check DHCP. If Multicast is disabled or is not supported, users

should only select Unicast. If Multicast is supported by the network, users could select

Multicast to achieve a better performance, especially in the case that multi-users

connecting to the same camera. In addition, please guarantee that the broadcasting

function is enabled in the network.

Active H4KFWSD08DPX camera recognized by the DeltaPix InSight software or the

4KView App and they are displayed as a camera list or thumbnail in the app.

Table des matières

Autres manuels DeltaPix Microscope

DeltaPix

DeltaPix H4KAZFSD08DPX Manuel utilisateur

Manuels Microscope populaires d'autres marques

Thermo Scientific

Thermo Scientific Nicolet iN10 Mode d’emploi

National

National DC3-163 Manuel utilisateur

KERN Optics

KERN Optics OPE-1 Manuel utilisateur

OPTIKA MICROSCOPES

OPTIKA MICROSCOPES B-150D Manuel utilisateur

Prior

Prior Lux POL Manuel utilisateur

Opitec

Opitec Smartscoop 115615 Manuel utilisateur

KERN

KERN OPO-1 Manuel utilisateur

Topcon

Topcon SP-1P Manuel utilisateur

Motic

Motic PA43 Manuel utilisateur

Leica

Leica DVM5000 Guide de l'utilisateur

MshOt

MshOt MZ62 Manuel utilisateur

KERN Optics

KERN Optics OZR-5 Manuel utilisateur

VWR

VWR VisiScope 384 Series Manuel utilisateur

Nikon

Nikon ECLIPSE E200 POL Manuel utilisateur

Leica

Leica DI C800 Manuel

ThermoFisher Scientific

ThermoFisher Scientific Continuµm Manuel utilisateur

ThermoFisher Scientific

ThermoFisher Scientific Continuµm Manuel utilisateur

Olympus

Olympus SZ61 Manuel utilisateur
