HD2107 - 10 - V2.3

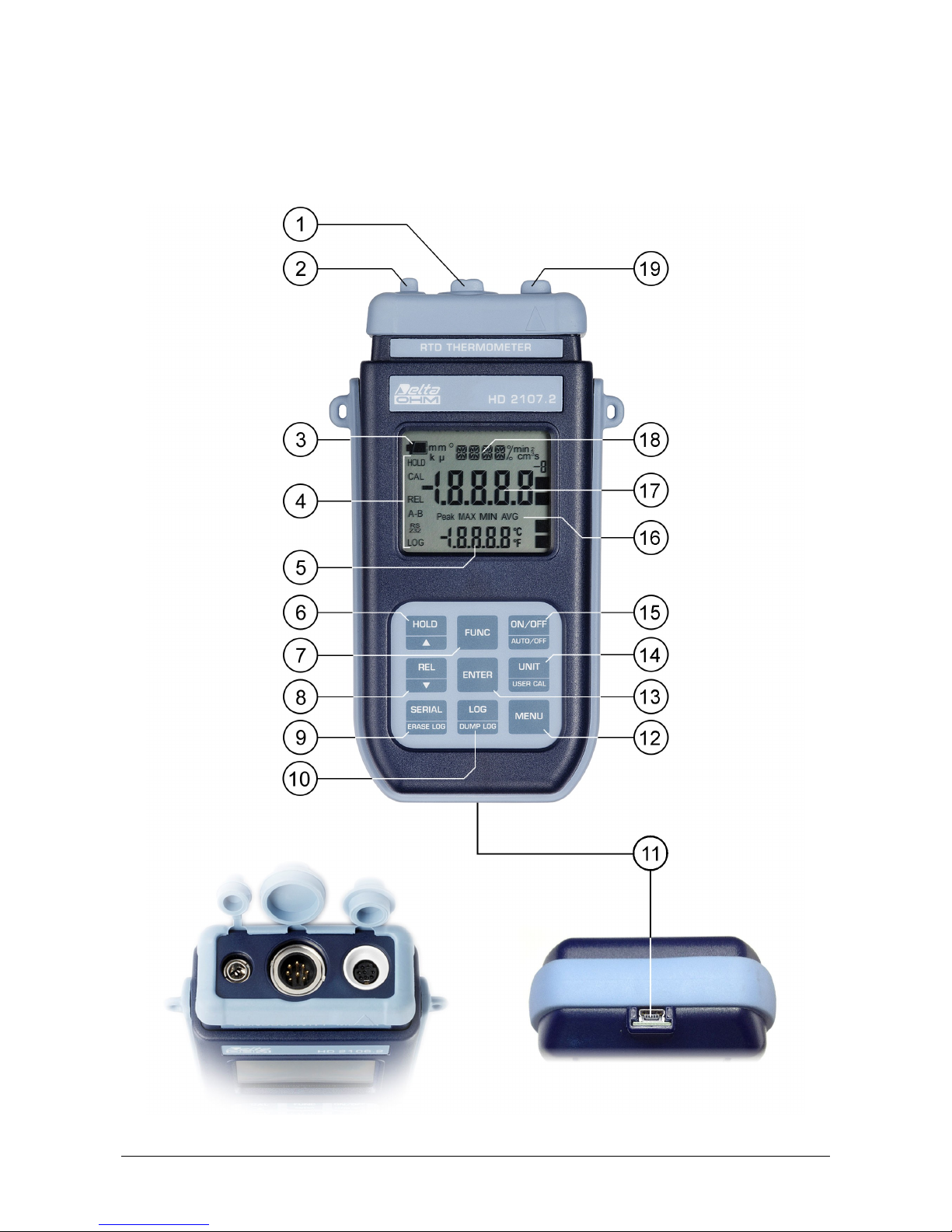

ENTER key
In the menu, the ENTER key confirms the displayed parameter and then goes to the next one.
REL/key
In measurement mode, it displays the difference between the current value and that measured on
pressing the key. The REL message appears on the display; press the key again to return to the
current measurement.
When used in the menu, it decreases the current variable value.
MENU Key
The first menu item is accessed by initially pressing on the MENU key; press ENTER to go to the
following items. To modify the item displayed, use the arrow keys (and ). By pressing the
ENTER key, the current value is confirmed and the display moves on to the next parameter. By
pressing the FUNC key, the setting is cancelled.
To exit the menu, press the MENU key at any time.
The menu items are listed in this order:
1) Management of memorized data (only HD2107.2): the message “>>>_LOG_DUMP_or-
_ERAS” (Transfer data or erase) is scrolled in the comment line.
The center figure reports the number of free memory pages (FREE). All memory data are
permanently erased by pressing SERIAL/EraseLOG. By pressing LOG/DumpLOG, the data
transfer of the logged data on the serial port is started: the “BAUD-RATE” must have previ-
ously been set to the maximum value (please see the menu items described below and the
paragraph "STORING AND TRANSFERRING DATA TO A PERSONAL COMPUTER"
on page 25).
2) RTD probe type: the message “RTD_PRBE_TYPE" is scrolled in the comment line. The
main line in the center of the display shows the type of probe connected to the instrument.
The following probes can be connected to the input:
•temperature probes Pt100 complete with SICRAM module
•direct 4 wire Pt100 probes through module TP47
•direct 3 wire Pt100 probes through module TP47
•2 wire Pt1000 probes through module TP47
•2 wire Ni1000 probes through module TP47
Upon turning on the instrument automatically detects the probes fitted with SICRAM mod-
ule: the Probe Type menu item is configured to AUTO and cannot be modified by the user.
When turned on, the temperature probes direct 4 wire Pt100, direct 3 wire Pt100, the Pt1000
and the Ni1000 display the message "NO_PRBE_SER_NUM" (no probe serial number).
