Delta OHM HD2030MSP Manuel utilisateur

Operating manual

Seat accelerometer

2030MSP

www.deltaohm.com

English

Keep for future reference.

Companies / Brands of GHM

HD2030MSP -2-V1.0

INDEX

1INTRODUCTION .................................................................................................... 3

2TECHNICAL CHARACTERISTICS ............................................................................ 4

3DESCRIPTION ....................................................................................................... 5

4USE....................................................................................................................... 6

5STORAGE ............................................................................................................ 10

6SAFETY INSTRUCTIONS ...................................................................................... 10

7ORDERING CODES .............................................................................................. 11

HD2030MSP -3-V1.0

1INTRODUCTION

HD2030MSP is an accelerometer suitable for the measurement of vibrations transmit-

ted by seats to the occupants of passenger and work vehicles.

The mechanical design is compliant with the requirements of ISO 10326-1.

The seat pad consists of a thin circular rubber pad housing a low profile tri-axial accel-

erometer.

The accelerometer is suitable for the measurement of human exposure to whole-body

vibrations, according to ISO 2631, ISO 10326-1, ISO 7096 and ISO 8041.

The transducer is based on MEMS technology and the electrical interface is IEPE/ICP

compatible for reliable signal transmission.

The device measures the acceleration imparted to the body in three orthogonal axes

with a sensitivity of 100 mV/(m/s2) nominally.

The tri-axial accelerometer HDWBV-100, mounted at the center of the rubber pad

HD2030PAD, is housed an anodized aluminum case provided with a threaded hole,

suitable for sensor calibration, and a 4-pin M5 connector compatible with

HD2030.CAB3M cables.

Reference markets are:

Control of vibration risk for drivers of passenger and work vehicles

Measurement of vibrations in the automotive industry

Laboratory measurements

HD2030MSP -4-V1.0

2TECHNICAL CHARACTERISTICS

SENSOR

Sensing element MEMS inertial sensor

Number of axis 3

PERFORMANCES

Sensitivity @ 15.915 Hz 100 mV/(m/s2)

Range F.S. (@24V supply voltage) ± 50 (m/s2)

Frequency response (f3dB) 0.2 Hz ÷ 700 Hz

Frequency response (f10%) 0.4 Hz ÷ 350 Hz

Frequency response (f5%) 0.6 Hz ÷ 230 Hz

Resonant frequency (MEMS transducer) > 5 kHz

Linearity error (FSO) ± 0.5 %

Transverse sensitivity < 5%

Residual noise (0.4 Hz ÷ 100 Hz) < 0.005 m/s2

ELECTRICAL CHARACTERISTICS

Output IEPE

Compliance (supply) voltage range +18 ÷ +28 V

Constant current supply 2 mA ÷ 4 mA

Output bias voltage 13.0 V ÷ 15.0 V

Output impedance <100 ohm

Ground isolation Case grounded

ENVIRONMENTAL CHARACTERISTICS

Shock limit 1000 G

Operating temperature range -20°C ÷ 60°C

Temperature coefficient 0.01 %/°C

Protection rating IP65

PHYSICAL CHARACTERISTICS

Weight 410 g

Size 250 mm diameter,

12 mm height

Connector 4-pin M5

Material Anodized aluminum

accelerometer inserted in

a rubber pad

HD2030MSP -5-V1.0

3DESCRIPTION

Fig. 3.1: Top side

Fig. 3.2: Detail of bottom side

Rubber pad

HD2030.CAB3M-xM

cable

(optional)

Slots for the strap

(not supplied)

for fixing to the

back of the seat

Sensor

position

4-pole

connector

10-32 UNF

threaded hole

Screws for fixing

the

sensor to the

bber pad

M5 connector

HD2030MSP -6-V1.0

4USE

The rubber pad must be fixed to the seat or the backrest so that it is interposed be-

tween the seat itself and the body part subject to vibrations. For the fixing it is possi-

ble to use tape or a strap (not supplied), by passing it through the appropriat slots

provided in the pad.

The sensor detects the acceleration imparted to the body on three orthogonal axes. It

is necessary to accurately orient the axes of the accelerometer according to the refer-

ence system established by ISO 2631-1. The orientations of the axes along which the

sensor detects the acceleration are printed on the top of the accelerometer. The ana-

log output signal corresponding to the X and Y axes increases when the sensor is sub-

jected to an acceleration in the direction of the arrows printed on the housing. The

analog output signal corresponding to the Z axis increases when the sensor is sub-

jected to an acceleration upwards.

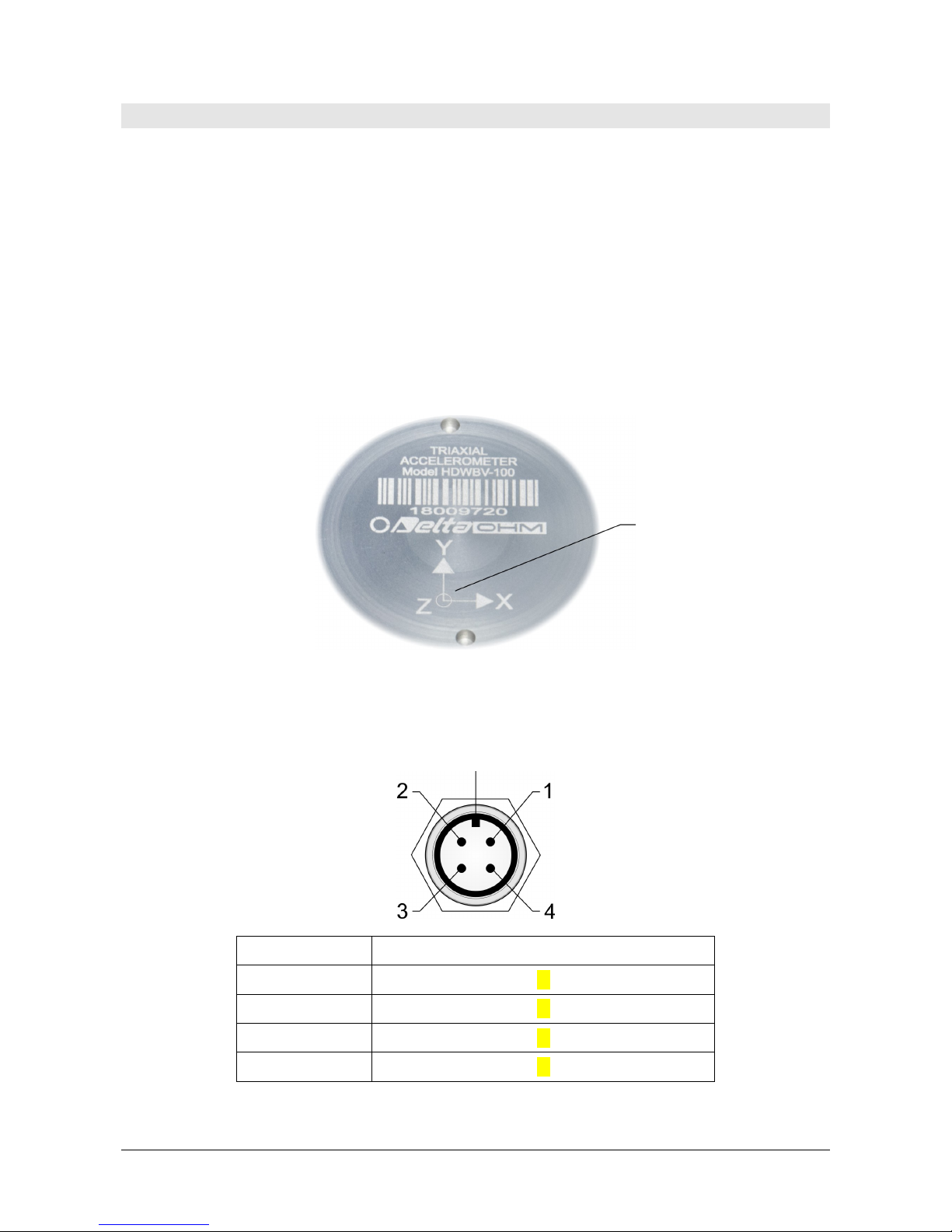

Fig. 4.1: Reference axes of the accelerometer

The accelerometer is equipped with a male 4-pole M5 connector having the following

pinout:

Numero Pin Descrizione

1 …

2 …

3 …

4 …

Fig. 4.2: M5 connector pinout

Reference

axes

Reference

HD2030MSP -7-V1.0

For the connection to the HD2030 and HD2070 vibration analyzers, the optional

HD2030.CAB3M-xM cables can be used.

Route the connecting cable so that the connection point with the sensor is not sub-

jected to stress. Minimize the possibility of cable movements, by securing it with cable

ties or tape. Do not route the cable near power lines, to avoid interferences on the

sensor output signal.

The accelerometer must be powered with constant current. Use only power

sources equipped with the current regulating function or use a current regulating di-

ode as shown below:

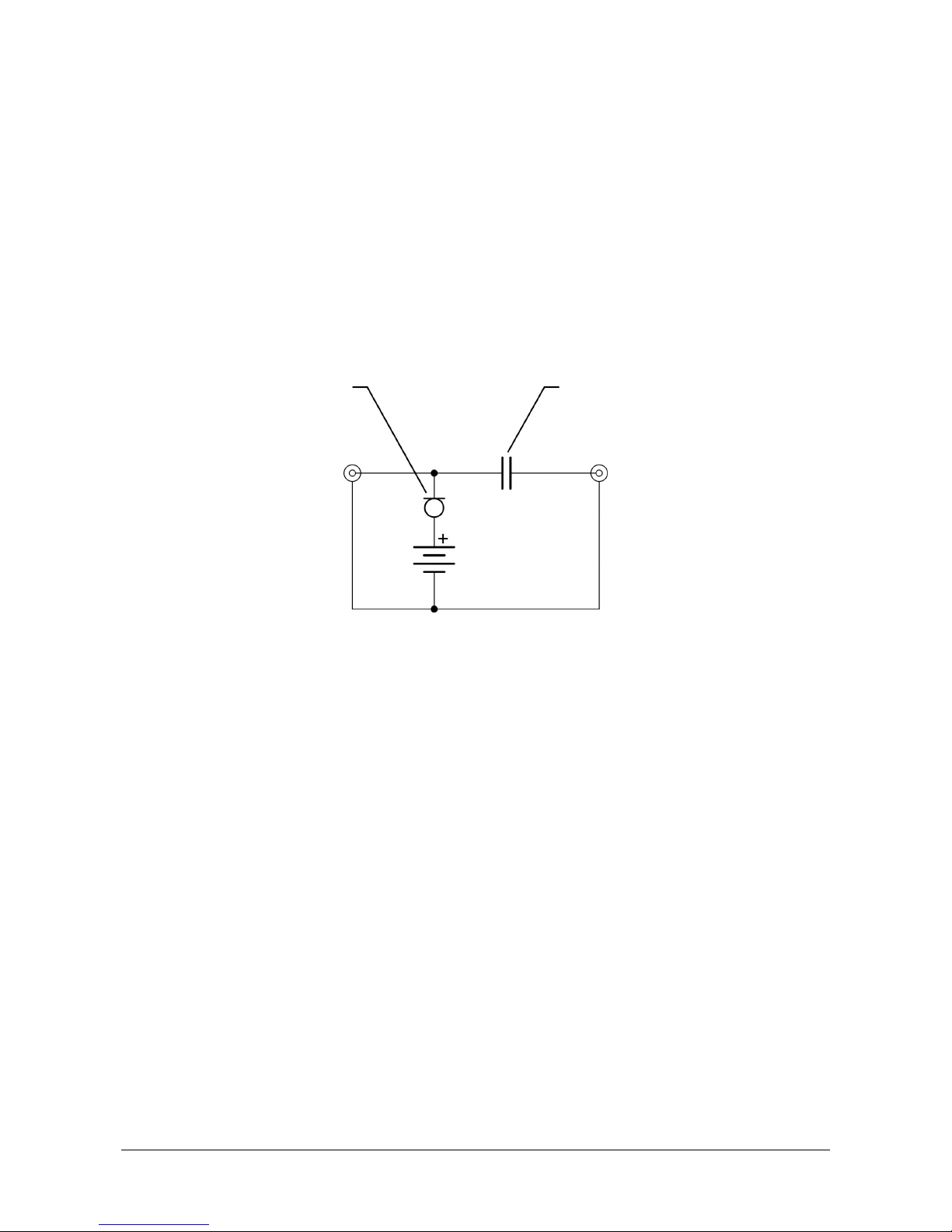

Fig. 4.3: Sensor connection

If the accelerometer is connected to the HD2030 or HD2070 analyzer, the power sup-

ply and current regulation functions are performed by the analyzer.

In order to remove the bias voltage from the sensor output signal and obtain only the

AC component, connect the sensor output to the measuring instrument using a de-

coupling capacitor.

DO not power the accelerometer with voltage and corrente outside the limits

specified in the technical characteristics table, in order not to damage the in-

ternal electronic circuit.

Power supply

(18…28 V)

Measuring instrument

input

Accelerometer

GND

Decoupling

capacitor

Current regulating diode

(2…4 mA)

HD2030MSP -8-V1.0

5FIXING FOR CALIBRATION

The accelerometer is supplied with a double threaded screw for fixing the sensor to

the vibrating base of a calibration system.

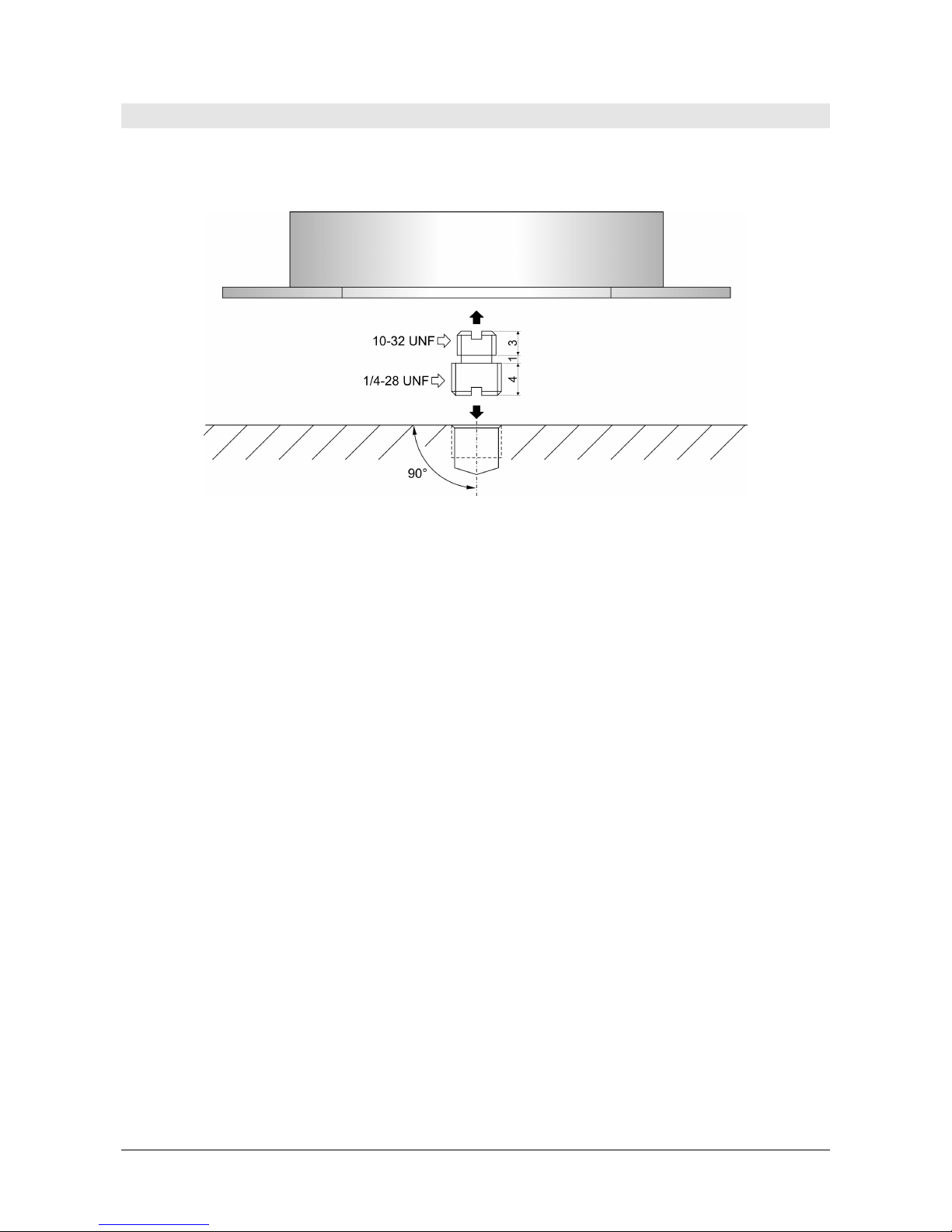

Fig. 5.1: Double threaded screw

The contact surface (vibrating base) of the sensor must be smooth and flat. Before

fixing the sensor it is advisable to clean the surface and apply a light film of grease/oil

(or equivalent fluid) to fill small gaps between the contact surface and the sensor and

improve the vibration transmissibility.

To fix the accelerometer using a screw it is sufficient a 1-2 Nm tightening force, com-

patible with a manual operation. For maximum measurements repeatability, the use

of a torque wrench is recommended.

As an alternative to screw mounting, in case the contact surface is not provided with a

threaded hole, it is possible to fix the sensor using:

adhesive material (double-sided tape, wax or quick glue);

a magnet.

Mounting with adhesive material or a magnet can reduce the sensor response to high-

er frequencies, especially in the mounting with magnet.

Mounting with adhesive material:

The sensor can be fixed with adhesive material to the contact surface:

directly;

through an adapter, fixing the sensor to the adapter (preferably using the screw)

and gluing the adapter to the contact surface.

If the sensor is fixed directly to the contact surface with glue or wax, be careful not to

obstruct the threaded hole at the bottom of the sensor; moreover, do not use too

much glue that could make the removal of the sensor difficult. In order to remove a

glued sensor, use a debonder product suitable for the type of glue used, avoiding to

force the sensor.

Sensor

Double threaded

screw

Vibrating base

HD2030MSP -9-V1.0

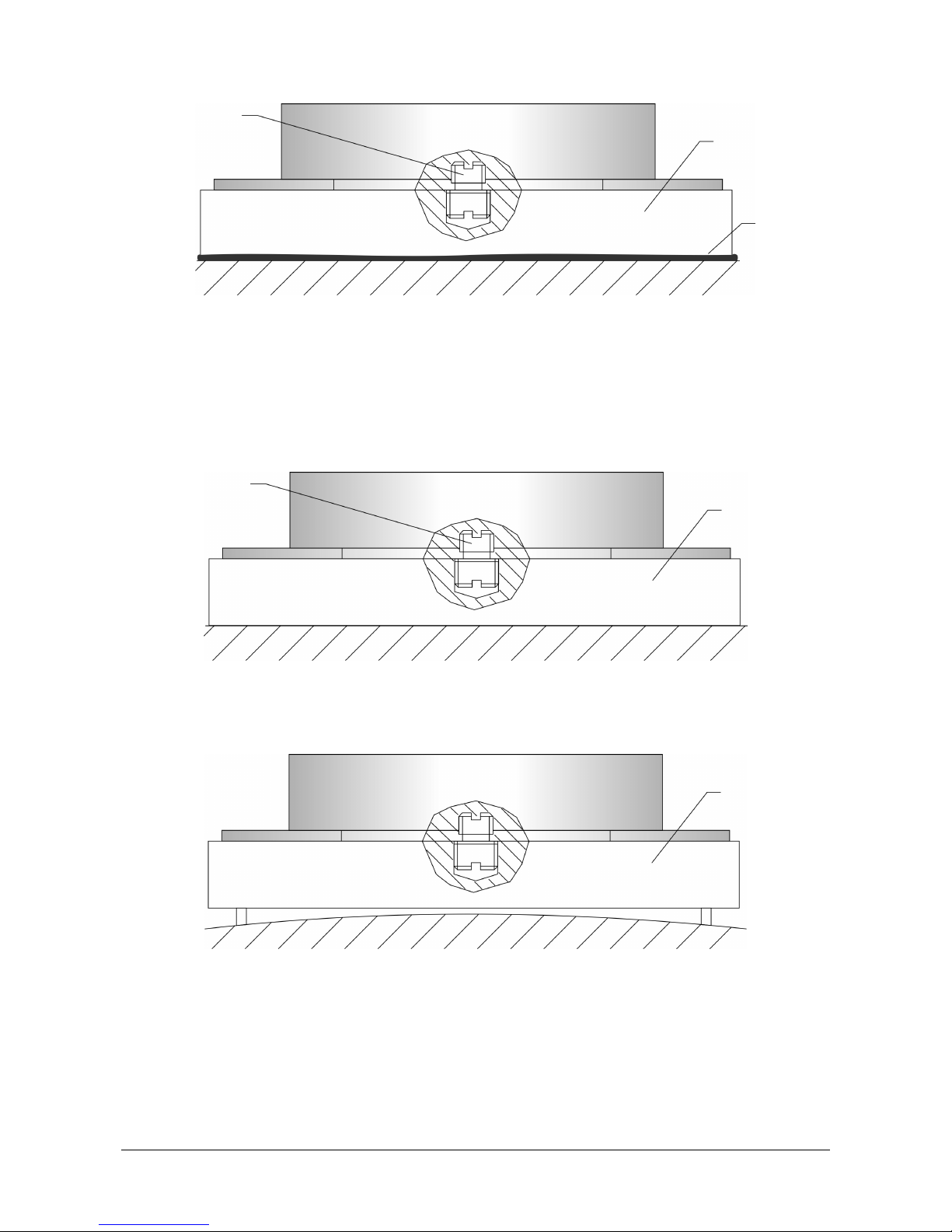

Fig. 5.2: Fixing with adhesive

Mounting with magnet:

Fix the sensor to the magnet (preferably using the screw) and place the magnet on

the contact surface.

Fig. 5.3: Fixing with magnet on a flat surface

For non-flat surfaces, dual-rail magnets can be used.

Fig. 5.4: Fixing with dual-rail magnet

For uneven surfaces, glue a flat metal base onto the surface, than place the sensor

with the magnet on the metal base.

Place the sensor with the magnet on the contact surface gently, to avoid damaging

the sensor due to the high accelerations caused by the magnet attraction.

Sensor

Double

threaded

screw

Adhesive

Adapter

Sensor

Double

threaded

screw

Magnet

Sensor

Dual-rail

magnet

HD2030MSP -10 -V1.0

6STORAGE

Storage conditions:

Temperature: -20...+60 °C.

Humidity: less than 90 %RH no condensation.

For storage, avoid places where:

There is a high level of humidity;

Instruments are exposed to direct sun radiation;

Instruments are exposed to a high temperature source;

There is vapor, salt and/or corrosive gases.

7SAFETY INSTRUCTIONS

General instructions for safety

The transducer has been manufactured and tested in compliance with the safety stand-

ard EN61010-1:2010 “Safety requirements for electrical equipment for measurement,

control and laboratory use” and left the factory in a safe and secure technical condition.

The regular functioning and operational safety of the transducer can be ensured only if

all normal safety measures, as well as the specific measures described in this manual,

are followed.

The regular functioning and operational safety of the transducer can only be guaran-

teed under the climatic conditions specified in the manual.

Do not use the transducer in places where there are:

Rapid ambient temperature variations that may cause condensation.

Corrosive or flammable gases.

High-intensity electromagnetic fields, static electricity.

If the transducer is transported from a cold environment to a warm one, or vice versa,

the formation of condensation may cause disturbances to its functioning. In this case,

wait until the temperature of the transducer reaches room temperature before putting

into operation.

Obligations of the User

The user of the transducer must ensure compliance with the following standards and

guidelines for the treatment of hazardous materials:

EEC directives on workplace safety

National low regulations on workplace safety

Accident prevention regulations
