Intelligent SFP Bi-Directional Transceiver Module

for Fast Ethernet, ATM, SONET OC-3/SDH STM-1

FEATURES

 RoHS compliant



Digital Diagnostic SFF-8472, Rev. 9.5 MSA

compliant

 Simplex LC connector with 1550nm

Transmitter and 1310nm Receiver

 Single + 3.3V power supply and TTL logic

interface

 Bellcore GR-468 compliant

 Laser class 1 product which comply with the

requirements of IEC 60825-1 and IEC 60825-2

Description

The SPBD-155xxxxx series are hot pluggable

3.3V Small-Form-Factor (SFP) Bi-Directional

transceiver module designed expressly for

high-speed communication applications that

require rates of up to 155Mbit/sec. It is compliant

with the Fast Ethernet, ATM, SONET OC-3/SDH

STM-1 standards, as well as the SFP Multisource

Agreement (MSA).

The SPBD-155xxxxx transceivers provide with

the LC receptacle that is compatible with the

industry standard LC connector. The transceiver is

also compatible with industry standard RFT

connector and cage. It also includes a LOS (Loss

Of Signal) circuit that provides a TTL logic-high

output when an unusable optical signal level is

detected.

The module includes 1550nm un-cool FP laser,

InGaAs PIN, Preamplifer and WDM filter in a

high-integrated optical assembly for high-density

system application. The SFP Bi-Directional

transceiver can upgrade transmission capacity very

convenient without installing new fibers.

Application

 TTC TS-1000

 ITU-T G.985

 IEEE 802.3ah 100BASE-BX/ Fast Ethernet

 SONET OC-3/SDH STM-1

 FTTx WDM Broadband Access

 Switch to switch/backbone interface

Performance

 SPBD-155F4J1RD data link up to 15km in

9/125um single mode fiber.

SPBD-155F4J1RD

DELTA ELECTRONICS, INC.

2 Revision: S1

04/11/2007

www.deltaww.com

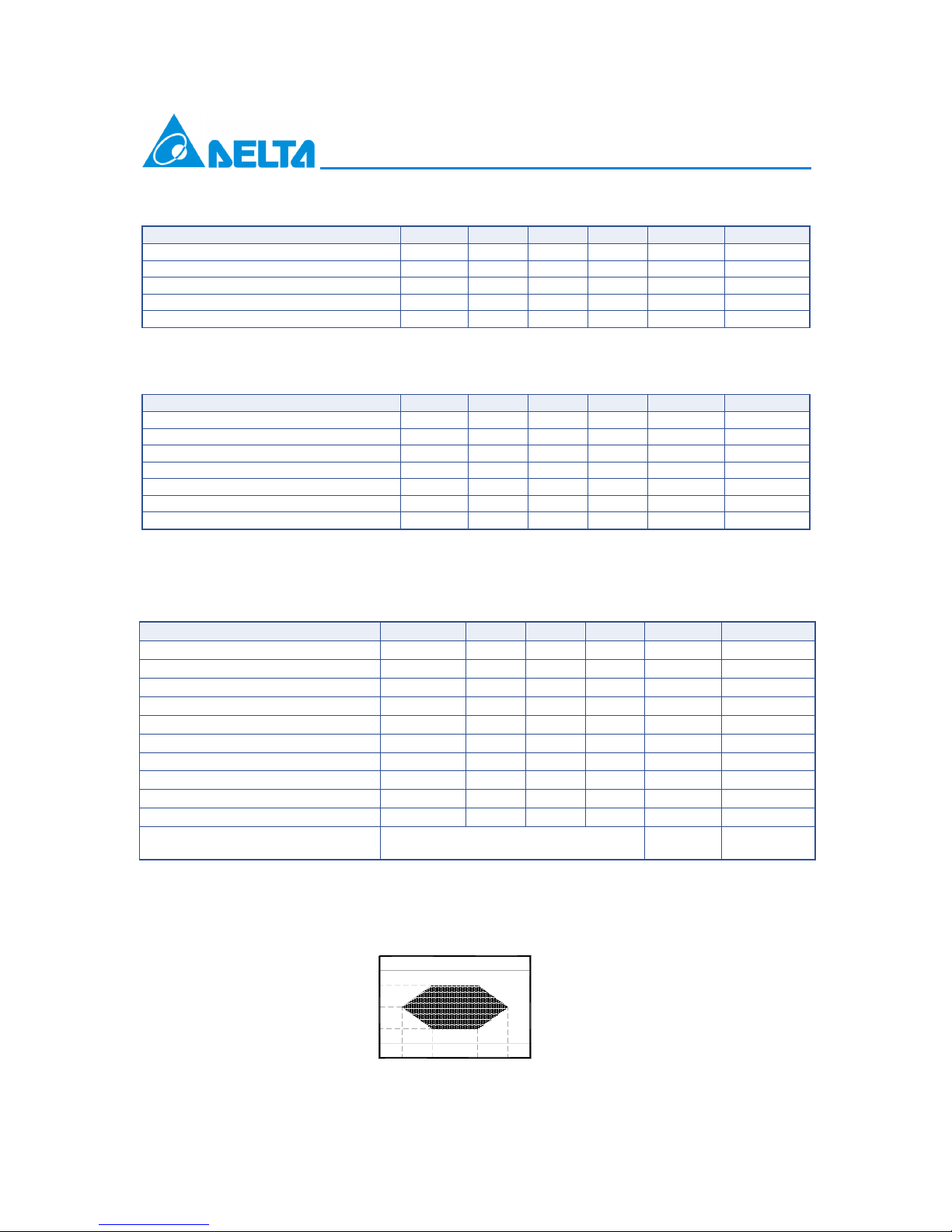

1. Absolute Maximum Ratings

Parameter Symbol Min. Typ. Max. Unit Note

Storage Temperature Ts -40 85 ºC

Storage Ambient Humidity HA5 95 %

Power Supply Voltage VCC 0 5 V

Signal Input Voltage -0.3 Vcc+0.3 V

Optical Input Power (Peak) +4 dBm

2. Recommended Operating Conditions

Parameter Symbol Min. Typ. Max. Unit Note

Operating Case Temperature TC-5 75 ºC Note (1)

Ambient Humidity HA5 85 %

Non-condensing

Power Supply Voltage VCC 3.135 3.3 3.465 V

Power Supply Current ICC 300 mA

Power Supply Noise Rejection 100 mVp-p 100Hz to 1MHz

Data Rate 10 155.52 Mbps

Transmission Distance 15 km

Note (1). Measured on topside of case front center.

3. Specification of Transmitter

Parameter Symbol Min. Typ. Max. Unit Note

Average Launched Power PO-14 -8 dBm Note (1)

Optical Extinction Ratio ER 10 dB

Center Wavelength λC1480 1520 1580 nm FP Laser

Spectrum Width (RMS) σ3

Transmitter OFF Output Power POff -45

dBm

Optical Rise/Fall Time tr/tf1.3 ns Note (2)

Total Jitter TJ 1 ns Note (3)

Optical Return Loss Tolerance ORLT 14 dB

Relative Intensity Noise RIN -116 dB/Hz

Dispersion Penalty TDP 1 dB

Output Eye Mask Compliant with Bellcore TR-NWT-000253

and ITU recommendation G.957 Note (4)

Note (1). Launched power (avg.) is power coupled into a single mode fiber.

Note (2). These are unfiltered 20-80% values.

Note (3). Measure at 223-1 NRZ PRBS pattern.

Note (4). Eye Mask definition

0.85

1.20

0.80

1.00

0.50

0.20

0.00

-0.20

Amplitude

0.350.150.00

Time

0.65

Mean level of logical "0"

1.00

Mean level of logical "1"

Optical Pulse Mask with Bessel Filter Specified in ITU-T G.957

SPBD-155F4J1RD

DELTA ELECTRONICS, INC.

3 Revision: S1

04/11/2007

www.deltaww.com

4. Specification of Receiver

Parameter Symbol Min. Typ. Max. Unit Note

Input Optical Wavelength λIN 1260 1360 nm PIN-PD

Receiver Sensitivity PIN -31

dBm Note (1)

Input Saturation Power (Overload) PSAT -3 dBm

LOS-Deassert Power PA- -31 dBm

LOS-Assert Power PD-44 dBm Note (2)

LOS Hysteresis PA-PD0.5 2 5 dB

Optical Reflectance -14 dB Note (3)

Output Data Rise/Fall time tr/tf1.5 ns Note (4)

S/X Endurance 10 dB Note (5)

Optical Isolation 25 dB Note (6)

Note (1). Measured with 1520nm, ER=10dB; BER =<10-10@PRBS=223-1 NRZ

Note (2). When LOS asserted, the data output is Low-level (fixed)

Note (3). When the terminal is viewed from the optical path, the reflection toward the optical path of the

optical signal with a central wavelength of 1260nm to 1360nm transmitted to terminal.

Note (4). These are 20%~80% values

Note (5). X=10 MHz, Rectangular BER =10-10

Note (6). Receiver isolation between 1480nm ~1580nm

5. Electrical Interface Characteristics

Parameter Symbol Min. Typ. Max. Unit Note

Transmitter

Total Supply Current ICC A mA Note (1)

Differential Data Input Swing VDT 500 2400 mVp-p

Differential line input Impedance RIN 80 100 120 Ohm

Transmitter Disable Input-High VDISH 2 VCC V Note (2)

Transmitter Disable Input-Low VDISL 0 0.8 V

Transmitter Fault Output-High VTXFH 2 VCC+0.3 V

Transmitter Fault Output-Low VTXFL 0 0.8 V

Transmitter Fault Pull up Resistor RTX_FAULT 4.7 10 kNote (3)

Receiver

Total Supply Current ICC B mA Note (1)

Differential Data Output Swing VDR 400 2000 mVp-p Note (4)

LOS Output Voltage-High VLOSH 2 VCC+0.3 V

LOS Output Voltage-Low VLOSL 0 0.8 V

Receiver LOS Load RRXLOS 4.7 10 kNote (3)

Note (1). A (TX)+ B (RX) = 300mA

(A: Not include termination circuit; B: using a resister of 150between Data-output and ground)

Note (2). There is an internal 4.7 to 10kpull-up resistor to VccT.

Note (3). Pull up to VCC on host Board.

Note (4). Internally AC coupled with LVPECL output, but requires a 100Ohm differential termination at or

internal to Serializer/ Deserializer.

SPBD-155F4J1RD

DELTA ELECTRONICS, INC.

4 Revision: S1

04/11/2007

www.deltaww.com

6. Enhanced Digital Diagnostic Interface

The memory map in the following describes an extension to the memory map defined in SFP MSA.

The enhanced interface uses the two wire serial bus address 1010001X(A2h) to provide diagnostic

information about the module’s present operating conditions.

2 wire address 1010000 X (A0h) 2 wire address 1010001 X (A2h)

0 0

Alarm and Warning Thresholds

(56 bytes)

Serial ID Defined by SFP MSA

(96 bytes) 56

Cal Constants

(40 bytes)

96 96

119

Real Time Diagnostic Interface

(24 bytes)

127

Vender Specific

(32 bytes) 120

127

Vender Specific

128 128

247

User Writable EEPROM

(120 bytes)

255

Reserved in SFP MSA

(128 bytes)

248

255

Vender Specific

(8 bytes)

7. Digital Diagnostic Monitor Accuracy

Parameter Accuracy Unit Calibration Note

Transceiver Internal Temperature ±3℃℃Internal TC=-5~+75℃

Power Supply Internal Voltage ±3% V Internal

VCC=3.3V±5%

TX Bias Current ±10% mA Internal Specified by nominal bias value

TX Optical Power ±3dB dBm Internal -14 to -8dBm

RX Optical Power ±3dB dBm Internal -31 to -8dBm

Note. Temperature and Voltage is measured internal to the transceiver.

SPBD-155F4J1RD

DELTA ELECTRONICS, INC.

5 Revision: S1

04/11/2007

www.deltaww.com

8. Pin Description

SFP Transceiver Electrical Pad Layout Host Board Connector Pad Layout

Pin Function Definitions

Pin Num. Name Function Plug Seq. Notes

1 VeeT Transmitter Ground 1 Note (1)

2 TX Fault Transmitter Fault Indication 3 Note (2)

3 TX Disable Transmitter Disable 3 Note (3)

4 MOD-DEF2 Module Definition 2 3 Note (4), 2 wire serial ID interface

5 MOD-DEF1 Module Definition 1 3 Note (4), 2 wire serial ID interface

6 MOD-DEF0 Module Definition 0 3 Note (4), Grounded in Module

7 Rate Select Not Connect 3 Function not available

8 LOS Loss of Signal 3 Note (5)

9 VeeR Receiver Ground 1

10 VeeR Receiver Ground 1

11 VeeR Receiver Ground 1

12 RD- Inv. Received Data Out 3 Note (6)

13 RD+ Received Data Out 3 Note (6)

14 VeeR Receiver Ground 1

15 VccR Receiver Power 2 Note (7)

16 VccT Transmitter Power 2 Note (7)

17 VeeT Transmitter Ground 1

18 TD+ Transmit Data In 3 Note (8)

19 TD- Inv. Transmit Data In 3 Note (8)

20 VeeT Transmitter Ground 1

Plug Seq.: Pin engagement sequence during hot plugging.

SPBD-155F4J1RD

DELTA ELECTRONICS, INC.

6 Revision: S1

04/11/2007

www.deltaww.com

Notes:

1) Circuit ground is internally isolated from frame (chassis) ground. Tx GND and Rx GND may be internally isolated

within the TRx module.

2) TX Fault is an open collector/drain output, which should be pulled up with a 4.7K~10Kresistor on the host board.

Pull up voltage between 2.0V and VccT+0.3V. The output indicates Low when the transmitter is operating

normally, and High with a laser fault including laser end-of-life. In the low state, the output will be pulled to less

than 0.8V.

3) TX disable is an input that is used to shut down the transmitter optical output. It is pulled up within the module

with a 4.7 – 10 K resistor. Its states are:

Low (0 – 0.8V): Transmitter on

(>0.8, < 2.0V): Undefined

High (2.0 – 3.465V): Transmitter Disabled

Open: Transmitter Disabled

4) Mod-Def 0,1,2. These are the module definition pins. They should be pulled up with a 4.7K – 10Kresistor on the

host board. The pull-up voltage shall be VccT or VccR.

Mod-Def 0 is grounded by the module to indicate that the module is present

Mod-Def 1 is the clock line of two-wire serial interface for serial ID

Mod-Def 2 is the data line of two-wire serial interface for serial ID

5) LOS (Loss of Signal) is an open collector/drain output, which should be pulled up with a 4.7K – 10Kresistor.

Pull up voltage between 2.0V and VccR+0.3V. When high, this output indicates the received optical power is

below the worst-case receiver sensitivity. Low indicates normal operation. In the low state, the output will be

pulled to less than 0.8V.

6) RD-/+: These are the differential receiver outputs. They are AC coupled 100differential lines which should be

terminated with 100(differential) at the user SERDES. The AC coupling is done inside the module and is thus

not required on the host board. The voltage swing on these lines will be between 400 and 2000 mV differential

(200 – 1000 mV single ended) when properly terminated.

7) VccR and VccT are the receiver and transmitter power supplies. They are defined as 3.3V ±5% at the SFP

connector pin. Recommended host board power supply filtering is shown below page. Inductors with DC

resistance of less than 1 Ohm should be used in order to maintain the required voltage at the SFP input pin with

3.3V supply voltage. When the recommended supply-filtering network is used, hot plugging of the SFP

transceiver module will result in an inrush current of no more than 30 mA greater than the steady state value.

8) TD-/+: These are the differential transmitter inputs. They are AC-coupled, differential lines with 100 

differential termination inside the module. The AC coupling is done inside the module and is thus not

required on the host board. The inputs will accept differential swings of 500 – 2400 mV (250 – 1200

mV single-ended), though it is recommended that values between 500 and 1200 mV differential (250 –

600 mV single-ended) be used for best EMI performance.

SPBD-155F4J1RD

DELTA ELECTRONICS, INC.

7 Revision: S1

04/11/2007

www.deltaww.com

9. Recommend Interface Circuit

Laser Diode

Photo Diode

1uH

0.1uF10uF

0.1uF

0.01uF

0.1uF10uF

RES1

100 Ohms*

RES1 RES1 RES1

10k Ohms

100 Ohms

VCC

Protocol Vcc

SerDes ICProtocol IC

PLD / PAL Mod_def 2

Mod_def 1

Mod_def 0

3.3V

DELTA SFP Module

Preamp &

Tx_Disable

Quantizer

Tx_Fault

TD +

TD -

VeeT

RD +

RD -

Rx_LOS

VeeR

Tx_Disable

Tx_Fault

Rx_LOS

RES1 = 4.7k to 10k Ohms

VccT

VccR

Laser Driver

* Depands on SerDes IC used

EEPROM

SFP Host Board Schematic

Recommended Host Board Supply Filtering Network

Design criterion of the capacitor used is the

resonant frequency and its value must be in the

order of the nominal data rate. Short trace

lengths are mandatory.

SPBD-155F4J1RD

DELTA ELECTRONICS, INC.

8 Revision: S1

04/11/2007

www.deltaww.com

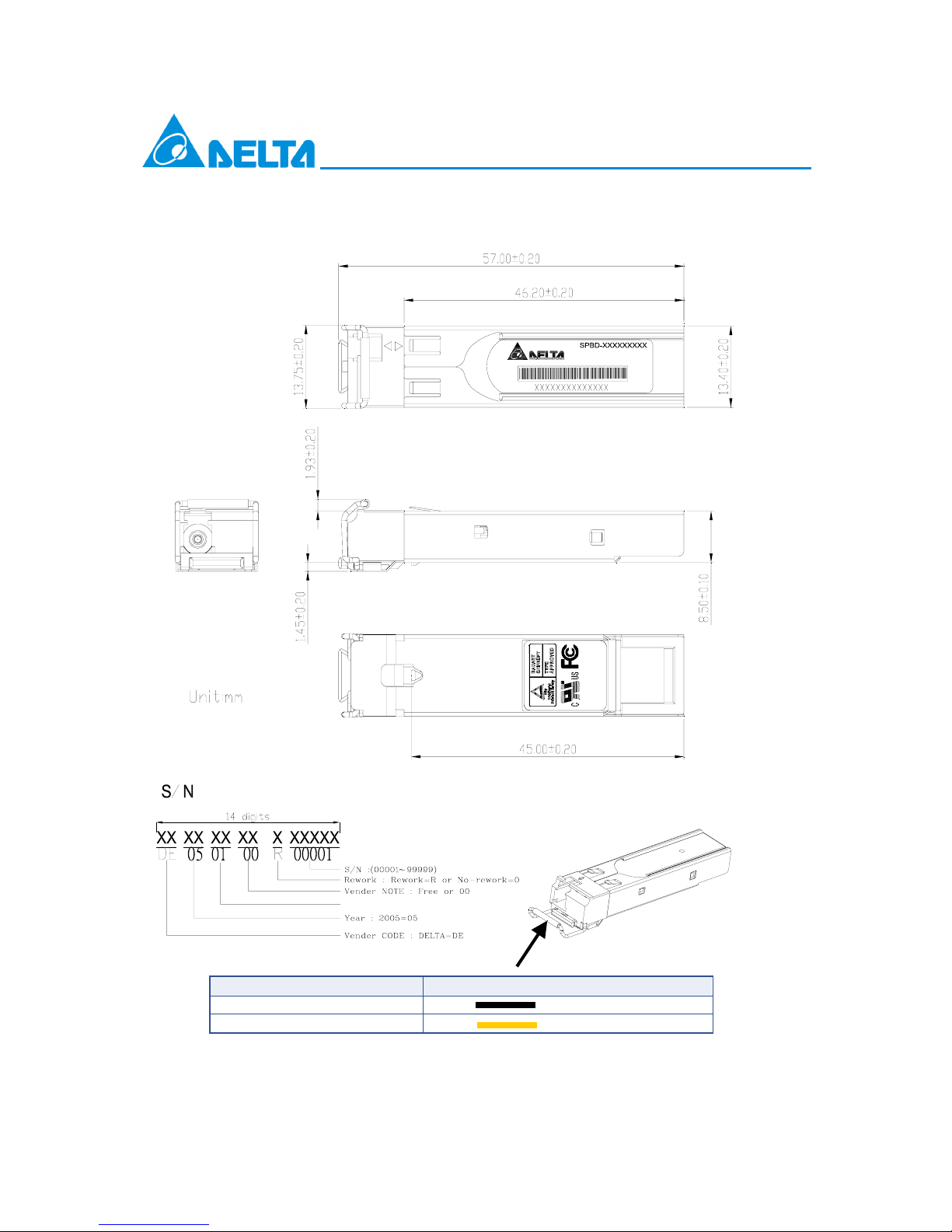

10. Outline Dimensions

Transmitter Wavelength Latch Color Identifier

1310nm Black

1550nm Yellow

Week (52Weeks/Year) : 1月2日=01

Class 1 Laser Product

1040.10 and 1040.11

Made in x

Complies with 21 CFR

XXXX nm Tx / Rx XXXX nm

SPBD-155F4J1RD

DELTA ELECTRONICS, INC.

9 Revision: S1

04/11/2007

www.deltaww.com

11. Regulatory Compliance

Feature Test Method Reference Performance

Human Body Model

(HBM)

MIL-STD-883E Method 3015.7

EIA-JESD22-A114

Electrostatic Discharge

(ESD) to the Electrical

Pins Machine Model (MM) EIA-JESD22-A115

Contact Discharge IEC/EN 61000-4-2Electrostatic Discharge

(ESD) to the Simplex

Receptacle Air Discharge IEC/EN 61000-4-2

Radio Frequency

Electromagnetic Field

Immunity

IEC/EN 61000-4-3

Electromagnetic

Interference (EMI)

FCC Part 15 Class B

EN 55022 Class B

(CISPR 22A)

(1) Satisfied with

electrical

characteristics of

product spec.

(2) No physical damage

Laser Eye Safety

FDA/CDRH

TUV

FDA 21CFR 1040.10, 1040.11

IEC/EN 60825-1

IEC/EN 60825-2

CDRH File # 0420993

TUV Certificate #

R50032471

Component Recognition

TUV

UL/CSA

IEC/EN 60950

UL 60950

UL File # E239394

Appendix A. Document Revision

Version No. Date Description

S0 2006-09-05 Preliminary datasheet

S1 2007-04-11

Change the Receiver Differential Data Output Swing from CML to LVPECL

output

Table des matières

Autres manuels Delta Electronics Émetteur-récepteur

Delta Electronics

Delta Electronics LCP-4250A4CDR Series Manuel utilisateur

Delta Electronics

Delta Electronics SFP Bi-Directional Transceiver Module... Manuel utilisateur

Delta Electronics

Delta Electronics Multimode SFP Transceiver LCP-1250A4FDRx Manuel utilisateur

Delta Electronics

Delta Electronics Optical Transceiver Modules OPT-622A1F1R Manuel utilisateur

Delta Electronics

Delta Electronics SFBD-155E2J1RM Manuel utilisateur

Delta Electronics

Delta Electronics LCP-2488A4EDRxM Manuel utilisateur

Delta Electronics

Delta Electronics Single Mode SFP Transceiver LCP-1250B4QDRx Manuel utilisateur

Delta Electronics

Delta Electronics SFBD-1250A4Q1R Manuel utilisateur

Delta Electronics

Delta Electronics LCP-155B4MSRx Series Manuel utilisateur

Delta Electronics

Delta Electronics SPBD-155E4J1RD Manuel utilisateur

Delta Electronics

Delta Electronics SPBD-1250A4Q1R Manuel utilisateur

Delta Electronics

Delta Electronics LCP-2125 Series Manuel utilisateur

Delta Electronics

Delta Electronics SFP Transceiver LCP-2488B4HDRx Manuel utilisateur

Delta Electronics

Delta Electronics SFP Bi-Directional Transceiver Module... Manuel utilisateur

Delta Electronics

Delta Electronics 10GBASE-LR SFP+ Optical Transceiver... Manuel utilisateur

Delta Electronics

Delta Electronics SFBD-155F2J1RM Manuel utilisateur

Delta Electronics

Delta Electronics 10GBASE-LRM SFP+ Optical Transceiver... Manuel utilisateur

Delta Electronics

Delta Electronics 1x9 Bi-Directional Transceiver Module... Manuel utilisateur

Delta Electronics

Delta Electronics LCP-155B4JSRx Series Manuel utilisateur

Delta Electronics

Delta Electronics 10GBASE-SR SFP+ Optical Transceiver... Manuel utilisateur

Delta Electronics

Delta Electronics Optical Transceiver Modules LC-155Axxxxx Manuel utilisateur

Delta Electronics

Delta Electronics Single Mode SFP Transceiver LCP-1250B4MDRx Manuel utilisateur

Delta Electronics

Delta Electronics LCP-155A4HSRBx Series Manuel utilisateur

Delta Electronics

Delta Electronics Optical Transceiver Modules OPT-155Axxxx Manuel utilisateur

Manuels Émetteur-récepteur populaires d'autres marques

Yaesu

Yaesu FT-7B Manuel utilisateur

Kenwood

Kenwood ProTalk TK-3201 Manuel utilisateur

Texas Instruments

Texas Instruments TLK10232 Manuel utilisateur

Mizuho

Mizuho MX-2 Guide produit

Kenwood

Kenwood TK-3180 Manuel d'utilisation et d'entretien

Blitz

Blitz MJ-398U Manuel utilisateur

Utilicom

Utilicom LongRanger 2050 Manuel utilisateur

Standart

Standart HX290UKA Manuel utilisateur

Altronix

Altronix Pace1PTM Manuel utilisateur

Kirisun

Kirisun PT2208 Manuel utilisateur

ELECRAFT

ELECRAFT KX2 Manuel utilisateur

Zodiac

Zodiac K3 Manuel utilisateur

Assa Abloy

Assa Abloy SecureComm HKC GSM-WIFI U Manuel utilisateur

Kenwood

Kenwood TK-2217 Manuel utilisateur

Siemens

Siemens PSO 4000 Manuel utilisateur

Kenwood

Kenwood TS-590SG Manuel utilisateur

Midland

Midland G8E-BT Manuel

ComNav

ComNav Mariner X2 Manuel utilisateur
