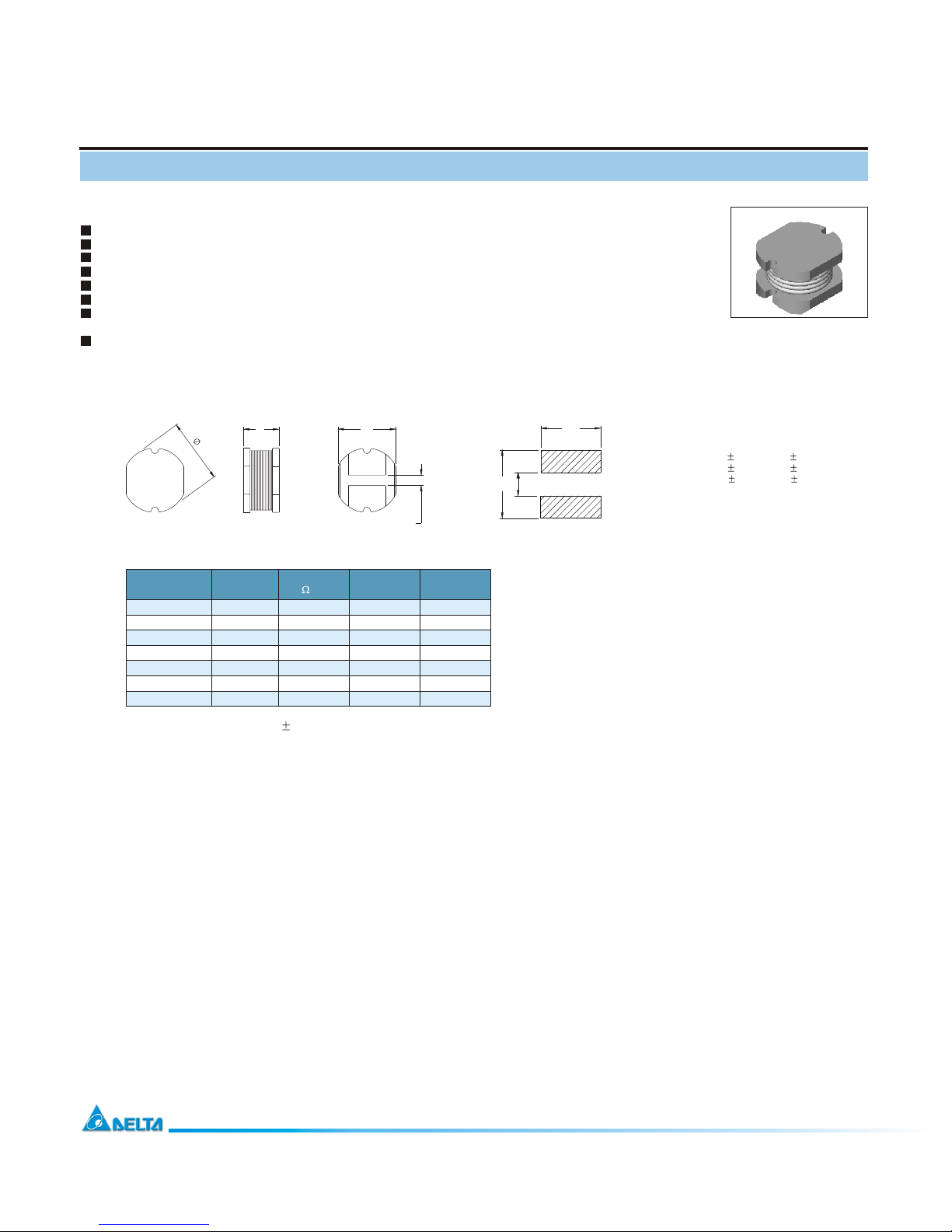

SMT Power Inductor

SI415 & SI418Type

Features

DELTA ELECTRONICS, INC.

(TAOYUAN PLANT CPBG)

252, SAN YING ROAD, KUEISAN INDUSTRIAL ZONE, TAOYUAN SHIEN, 333, TAIWAN, R.O.C.

TEL: 886-3-3591968; FAX: 886-3-3591991

http://www.deltaww.com

RoHS compliant.

Low profile, SMD type.

Unshielded.

Self-leads, suitable for high density

High energy storage and low DCR.

Provided with embossed carrier tape packing.

Idel for power source circuits, DC-DC converter,DC-AC inverters

inductor applications.

In addition to the standard versions shown here, customized inductors

are available to meet your exact requirements.

mounting.

Electrical Characteristics: 25 100KHz, 0.1V

oC,

SI415 - 4R7 4.70 0.180 1.40 1.5

SI415 - 100 10.00 0.400 0.96 1.5

SI415 - 220 22.00 0.940 0.62 1.5

SI418 - R16 0.16 0.015 5.50 1.8

SI418 - 1R0 1.00 0.090 2.10 1.8

SI418 - 2R2 2.20 0.130 1.50 1.8

SI418 - 100 10.00 0.350 0.45 1.8

HEIGHT "C"

(mm) MAX

PART NO.

DCR

( ) MAX

(uH)

Irated

(Adc)

1. Tolerance of inductance : 20%.

2. Irated is the DC current which cause the inductance drop less than 10% of its nominal inductance without current

and the surface temperature of the part increase less than 45 C.

3. Operating temperature: -20 C to 105 C (including self-temperature rise).

Mechanical Dimension:

3.6

0.6

4.0

UNIT:mm/inch

A =3.5 0.2 / 0.138 0.008

B = 3.1 0.2 / 0.122 0.008

D = 0.8 0.2 / 0.031 0.008

¡Ó

RECOMMENDED PAD PATTERNS
