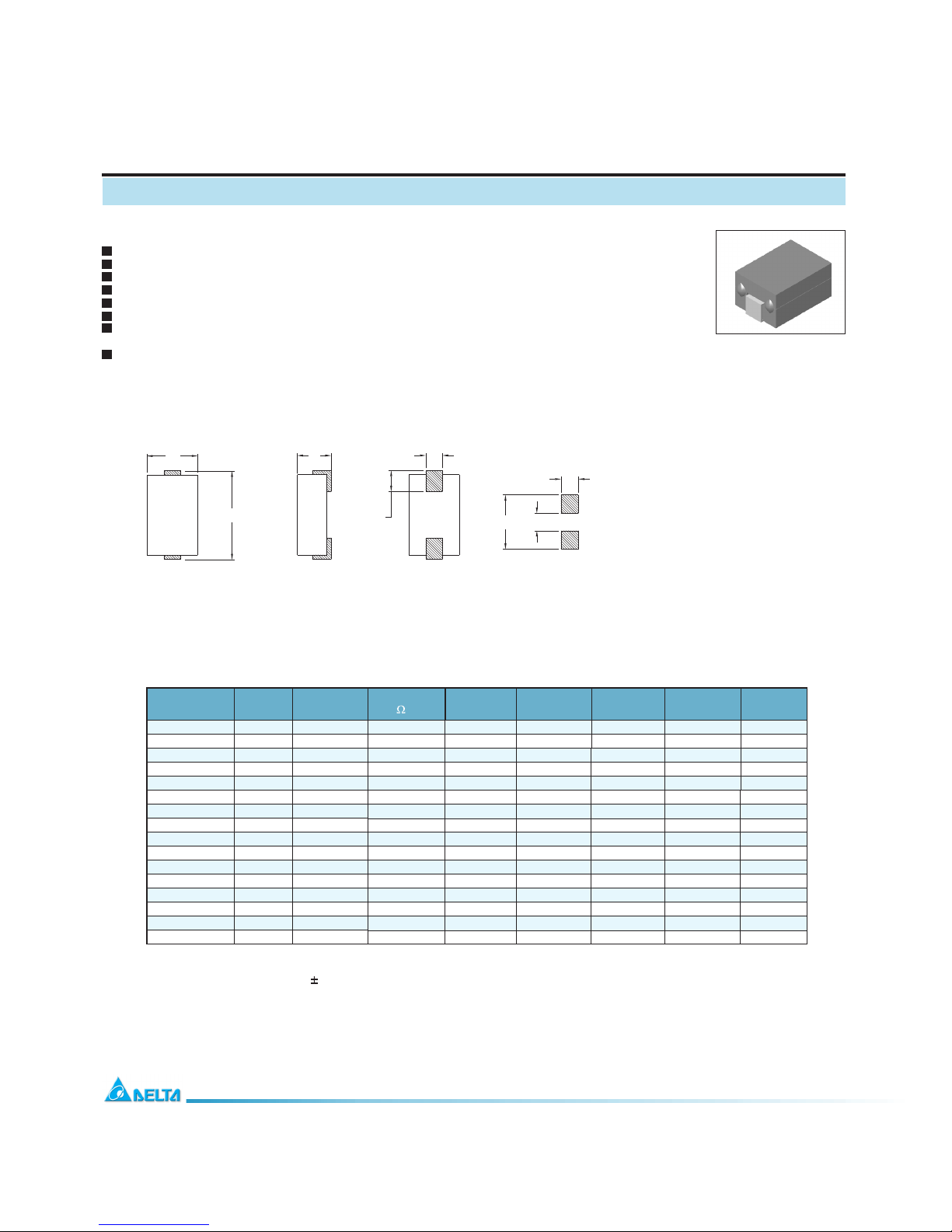

Delta Electronics HCB0747 Manuel utilisateur

3.0/0.118

XXX

UNIT : mm/inch

B = 7.00 / 0.276 Max.

C = 4.70 / 0.185 Max.

D = 2.50 / 0.098

E = 1.50 / 0.059

Features

SMT Power Inductor

HCB0747 Type

Mechanical Dimension :

DELTA ELECTRONICS, INC.

(TAOYUAN PLANT CPBG) 252, SAN YING ROAD, KUEISAN INDUSTRIAL ZONE, TAOYUAN SHIEN, 333, TAIWAN, R.O.C.

TEL: 886-3-3591968; FAX: 886-3-3591991

http://www.deltaww.com

Electrical Characteristics : At 25 : 100KHz, 1V

PART NO. Isat

(Adc)

(nH)

Irms

(Adc)

(mm/inch) MAX

(mm/inch)

DCR

(m ) MAX

(nH)

109

RECOMMENDED PAD PATTERNS

1. Tolerance of inductance is 20%.

2. Isat is the DC current which cause the inductance drop not lower than Li.

3. Irms is the DC current which cause the surface temperature of the part increase less than 45 C.

4. Operating temperature : -20 C to 105 C ( including self-temperature rise ).

RoHS compliant.

Low profile, SMD type.

High current.

Magnetic shielded.

High energy storage and low DCR.

Provided with embossed carrier tape packing.

Ideal for power source circuits, DC-DC converter, DC-AC inverters

inductor applications.

In addition to the standard versions shown here, customized inductors

are available to meet your exact requirements.

HCB0747A-800 80 64 0.40 51 35 7.0/0.276 7.5/0.295 3.0/0.118

HCB0747A-960 96 80 0.40 40 35 7.0/0.276 7.5/0.295 3.0/0.118

HCB0747A-111 110 80 0.40 40 35 7.0/0.276 7.5/0.295 3.0/0.118

HCB0747A-141 140 100 0.40 35 35 7.0/0.276 7.5/0.295 3.0/0.118

HCB0747B-101 100 80 0.40 45 35 7.0/0.276 7.5/0.295 3.0/0.118

HCB0747B-121 120 96 0.40 40 35 7.0/0.276 7.5/0.295 3.0/0.118

HCB0747B-151 150 100 0.40 35 35 7.0/0.276 7.5/0.295 3.0/0.118

HCB0747B-181 180 144 0.40 20 35 7.0/0.276 7.5/0.295 3.0/0.118

HCB0747B-221 220 176 0.40 15 35 7.0/0.276 7.5/0.295 3.0/0.118

HCB0747B-101L 100 80 0.30 40 42 7.4/0.291 7.9/0.311 3.9/0.154

HCB0747B-121L 120 96 0.30 35 42 7.4/0.291 7.9/0.311 3.9/0.154

HCB0747B-151L 150 120 0.30 25 42 7.4/0.291 7.9/0.311 3.9/0.154

HCB0747B-181L 180 144 0.30 20 42 7.4/0.291 7.9/0.311 3.9/0.154

HCB0747B-221L 220 176 0.30 15 42 7.4/0.291 7.9/0.311 3.9/0.154

HCB0747BS-101L 100 80 0.30 38 42 7.0/0.276 7.5/0.295 3.0/0.118

HCB0747BS-151L 150 120 0.30 22 42 7.0/0.276 7.5/0.295 3.0/0.118
