dellonda DG116 Manuel utilisateur
Model No. DG116
Thank you for purchasing a Dellonda product. Manufactured to a high standard, this product will,
if used according to these instructions, and properly maintained, give you years of trouble free performance.
DG116 Issue:1 27/04/21
www.dellonda.co.uk
Dellonda Galvanized Steel Garden/
Outdoor Shed, 3 x 3 x 2.2m, Apex Roof -
Green
About the Product
Galvanized steel panels easily screw and rivet together to form a rigid and secure structure. Features an apex style roof which gives extra water
runoff. Double door tted with cross bolt and eyelet that accepts padlock (not included) for additional security. Supplied with bolt down kit for
secure xing.
• SPECIFICATION
• Model no: .......................................... DG116
• Width: ............................................. 3000mm
• Depth: ............................................. 3000mm
• Height: .......................................... 2200*mm
• Doors ........................................................... 2
• Roof type: .............................................. Apex
* Denotes minimum wall height
Safety Instructions
• WARNING! Ensure Health & Safety, local authority, and general workshop practice regulations are adhered to when building this shed.
• Keep children and unauthorised persons away from the working area
• DO NOT use the shed for any purpose other than that for which it is designed.
• Use appropriate safety clothing including eye protection.
• NOTE: The assembly of this product will require assistance.
• DO NOT attempt assembly in windy conditions.

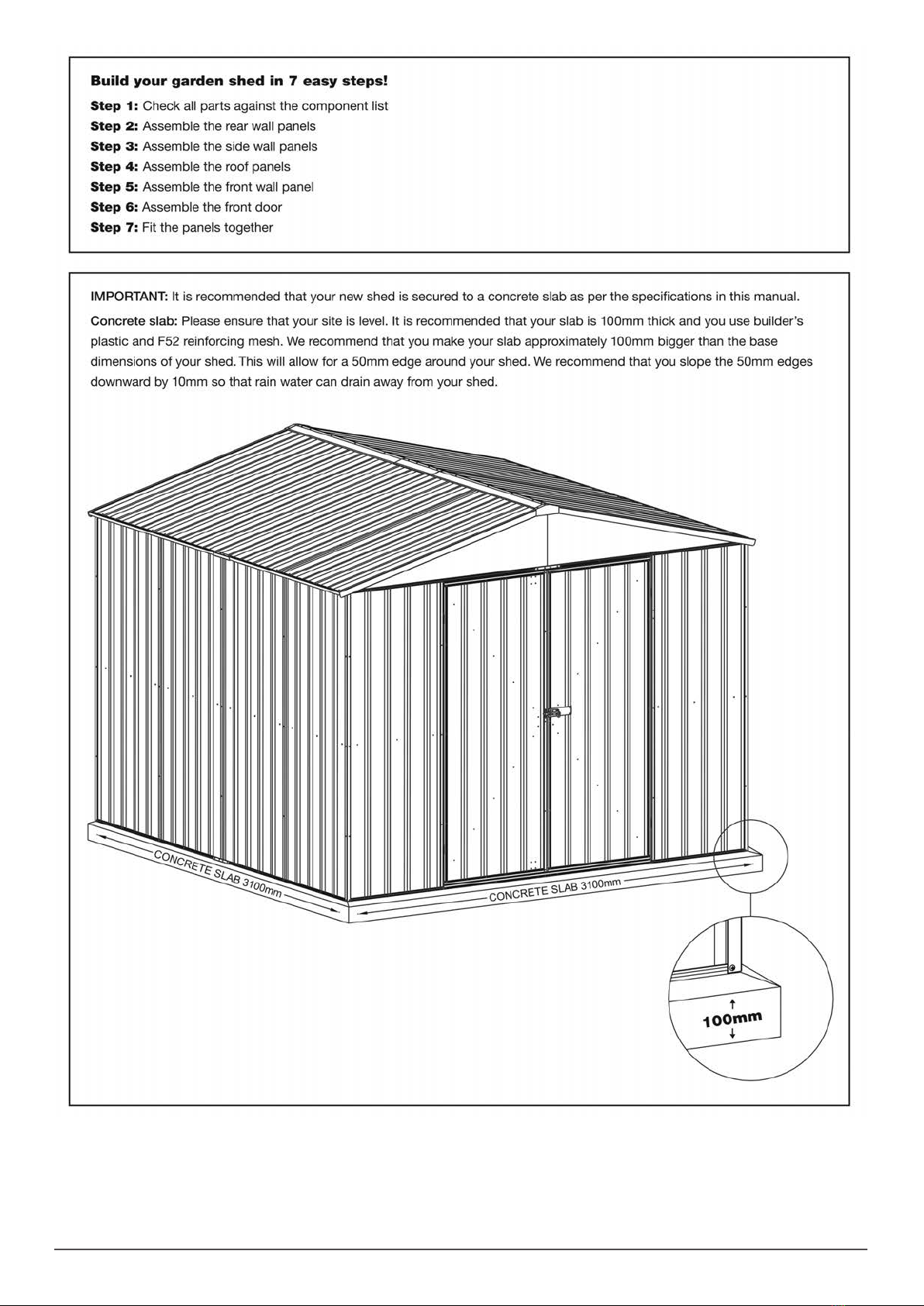

Concrete Plinth
• Concrete slab: Please ensure that your site is level. It is recommended that your slab is 100mm thick and you use builders plastic and F52
reinforcing mesh. We recommend that you make your slab 100mm bigger than the base dimensions of your shed. This will allow for a 50mm
edge around your shed. We recommend that you slope the 50mm edges downward by 10 mm so that rain water will drain away from your shed.
Assembly
Important Information
Please read these instructions carefully. Note the safe operational requirements, warnings & cautions. Use the product correctly and with care
for the purpose for which it is intended. Failure to do so may cause damage and/or personal injury and will invalidate the warranty. Keep these
instructions safe for future use.
1
www.dellonda.co.uk

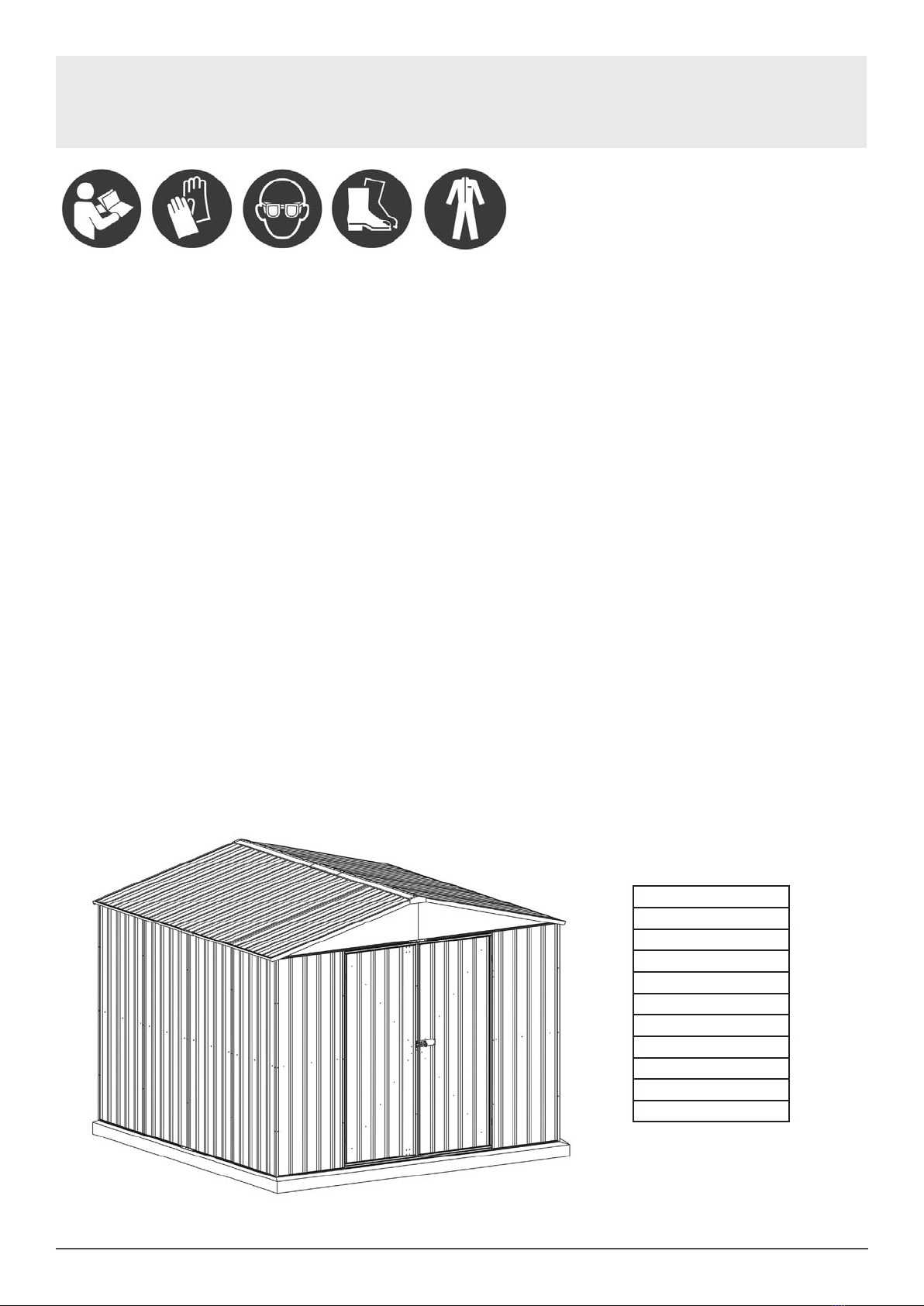

Refer to
instruction
manual
Wear protective
gloves
Wear safety
footwear
Wear eye
protection
Wear protective
clothing
Tools required
Drill
Measuring tape
Cross head screw driver
Rivet gun
Rubber mallet
Sturdy ladder
Adjustable spanner
2 Saw horses
3mm and 4mm drill
10mm Masonry drill
2
www.dellonda.co.uk
www.dellonda.co.uk 3

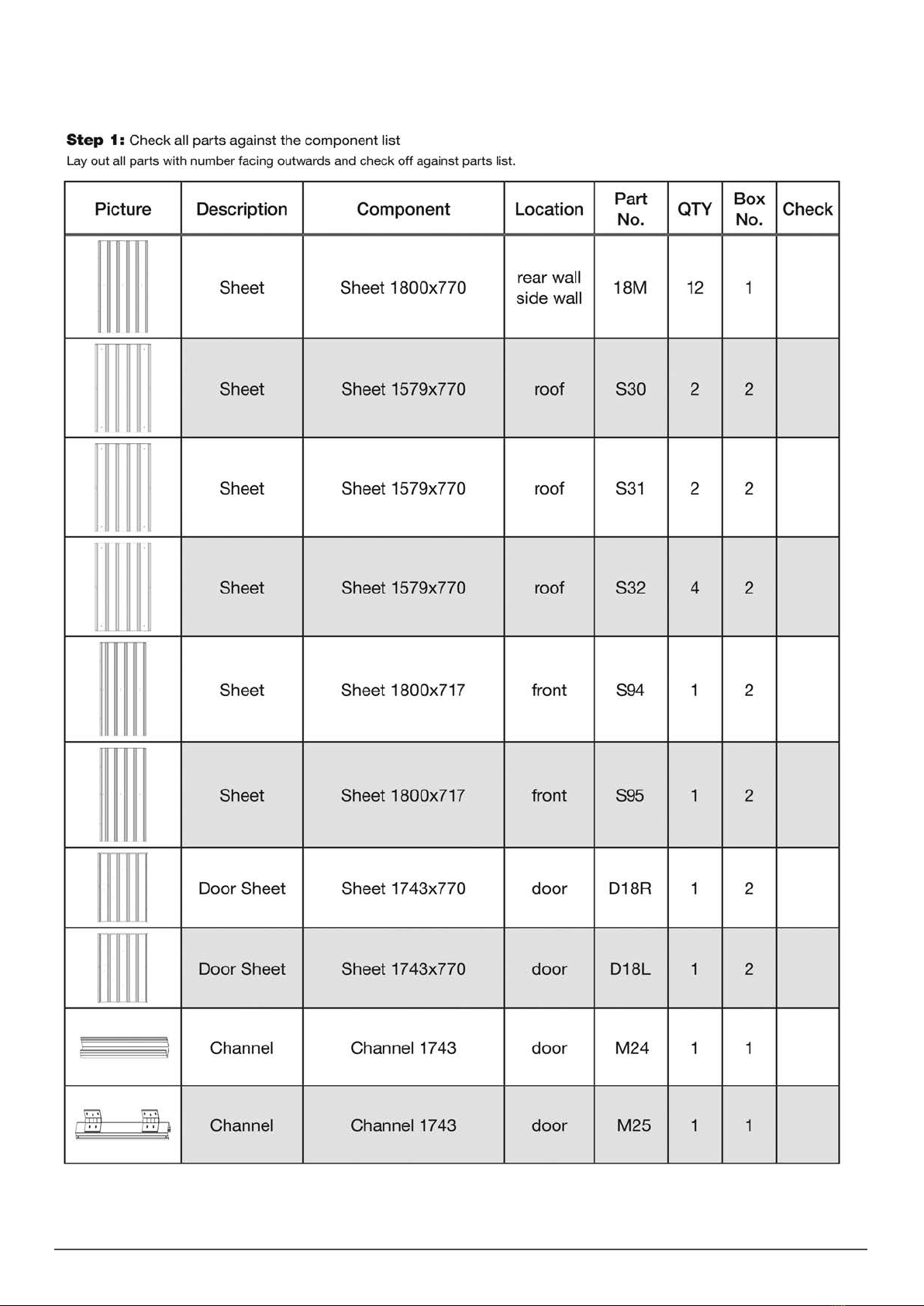

www.dellonda.co.uk 4

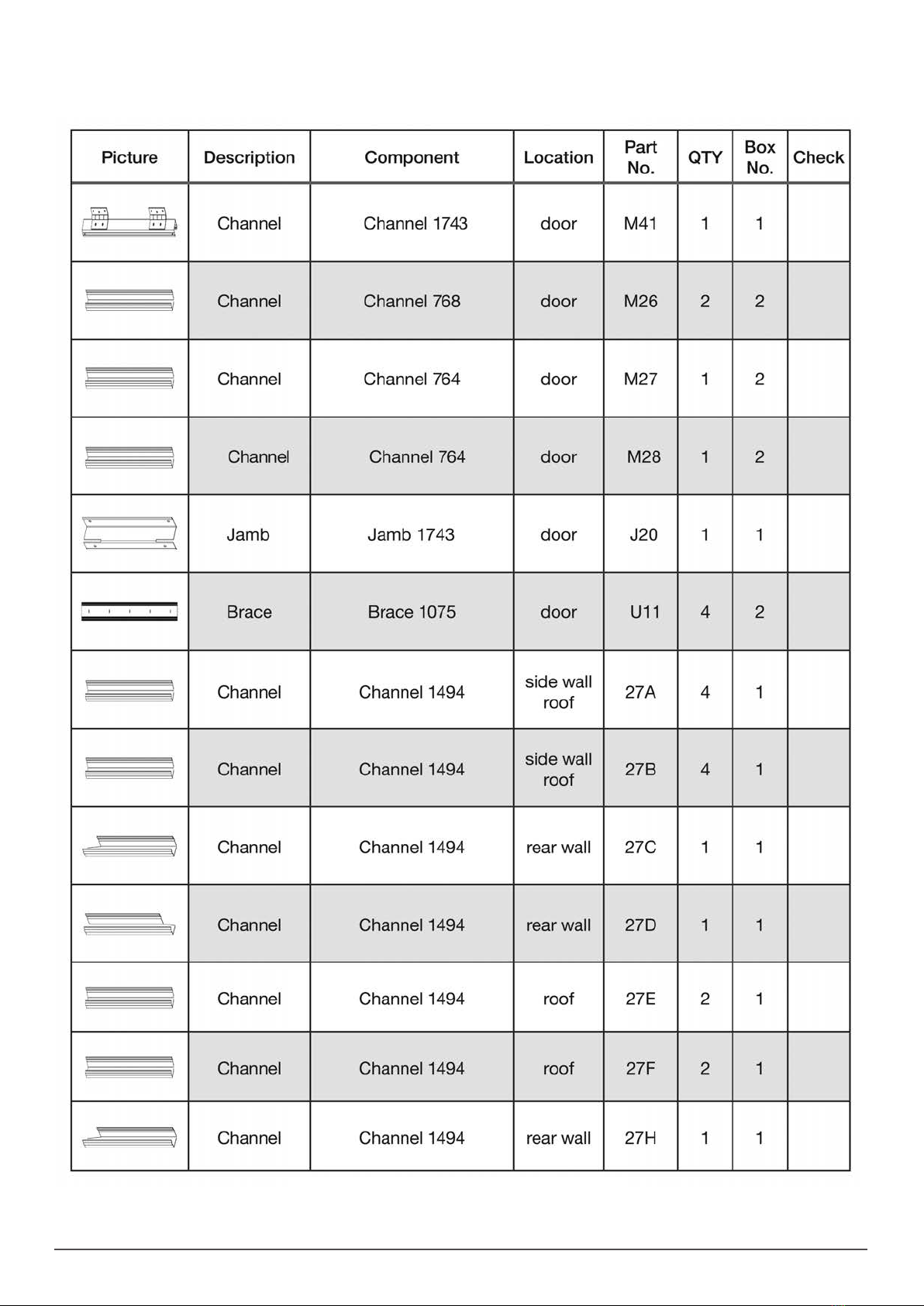

www.dellonda.co.uk 5

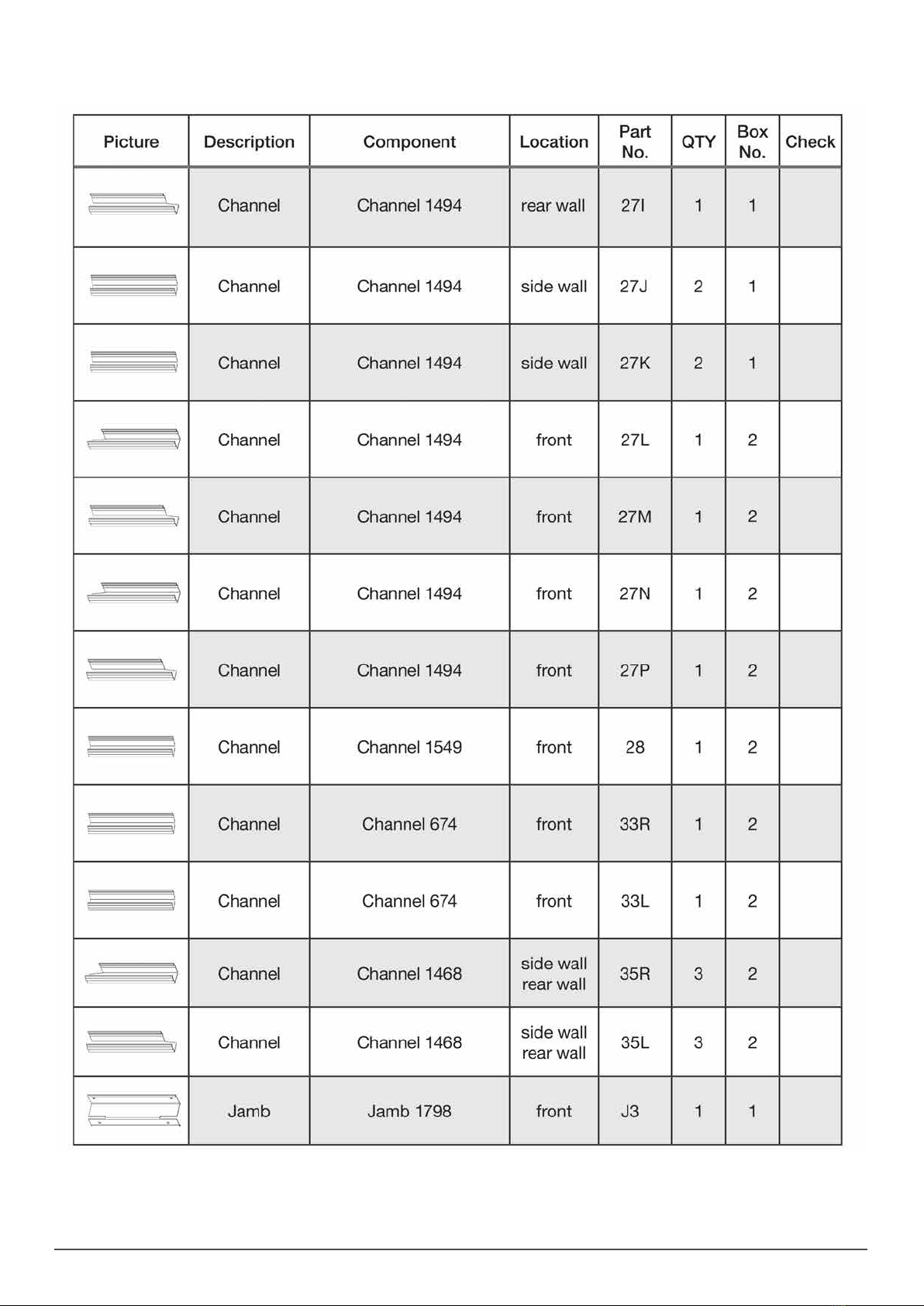

www.dellonda.co.uk 6

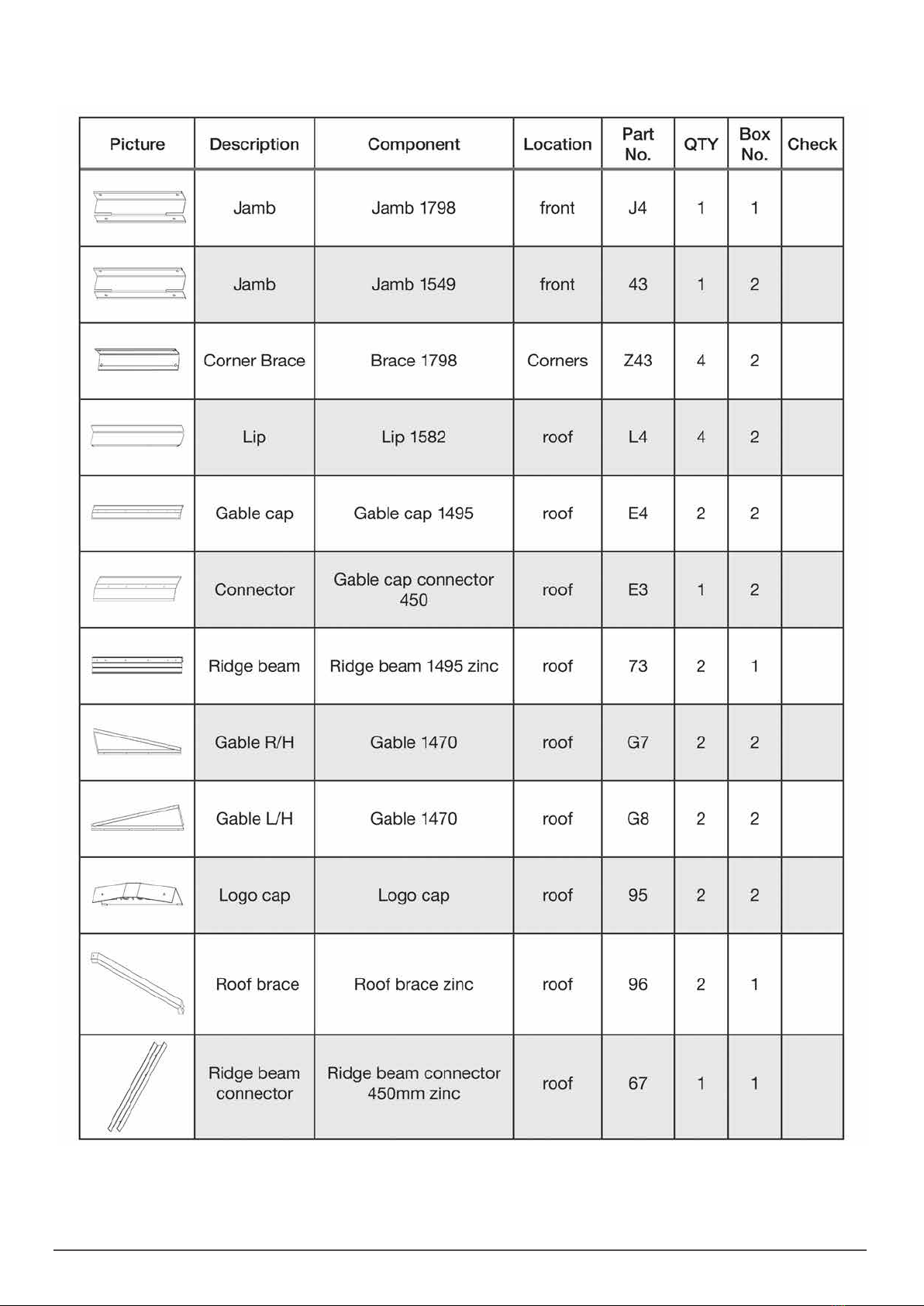

www.dellonda.co.uk 7
www.dellonda.co.uk 8

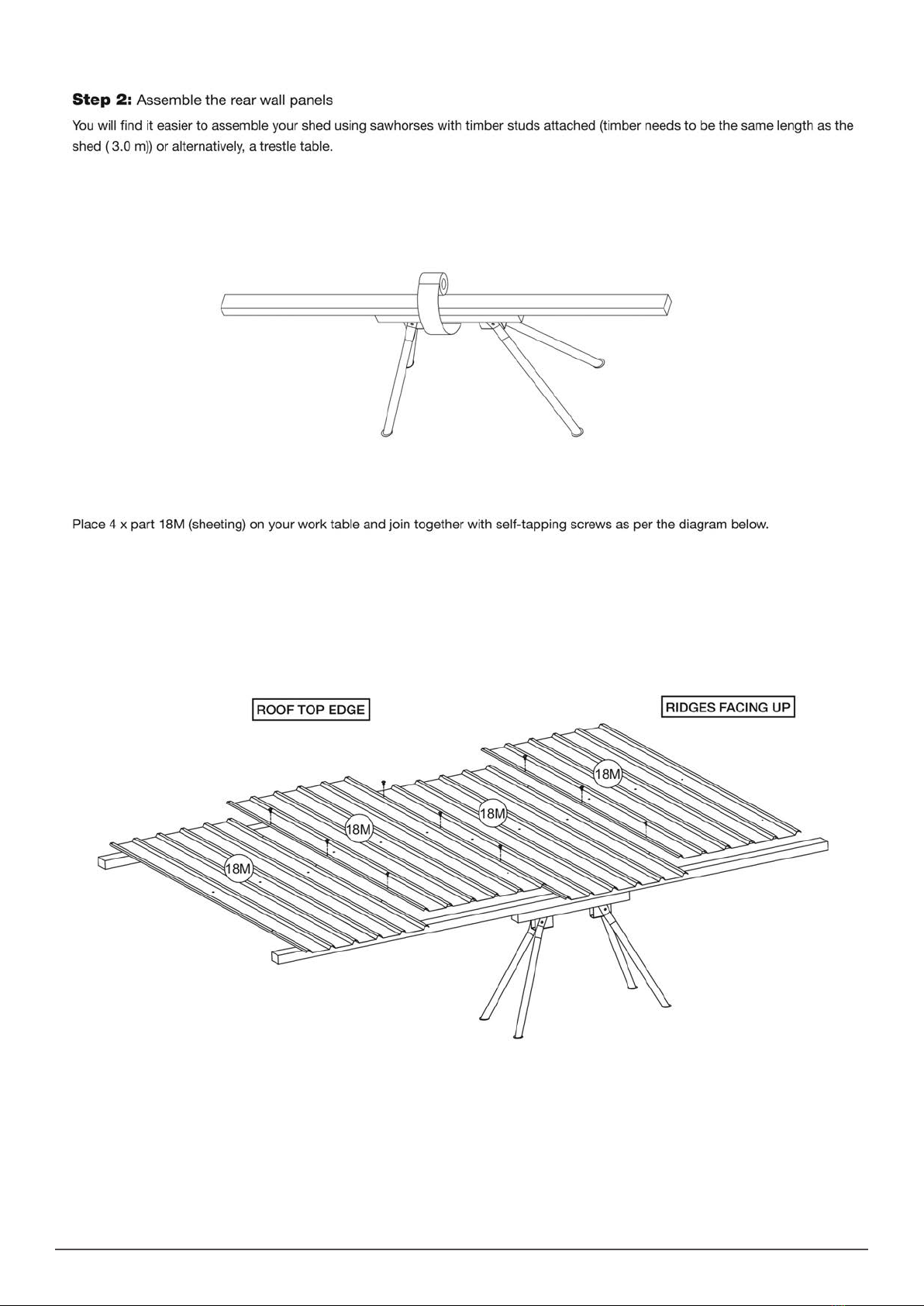

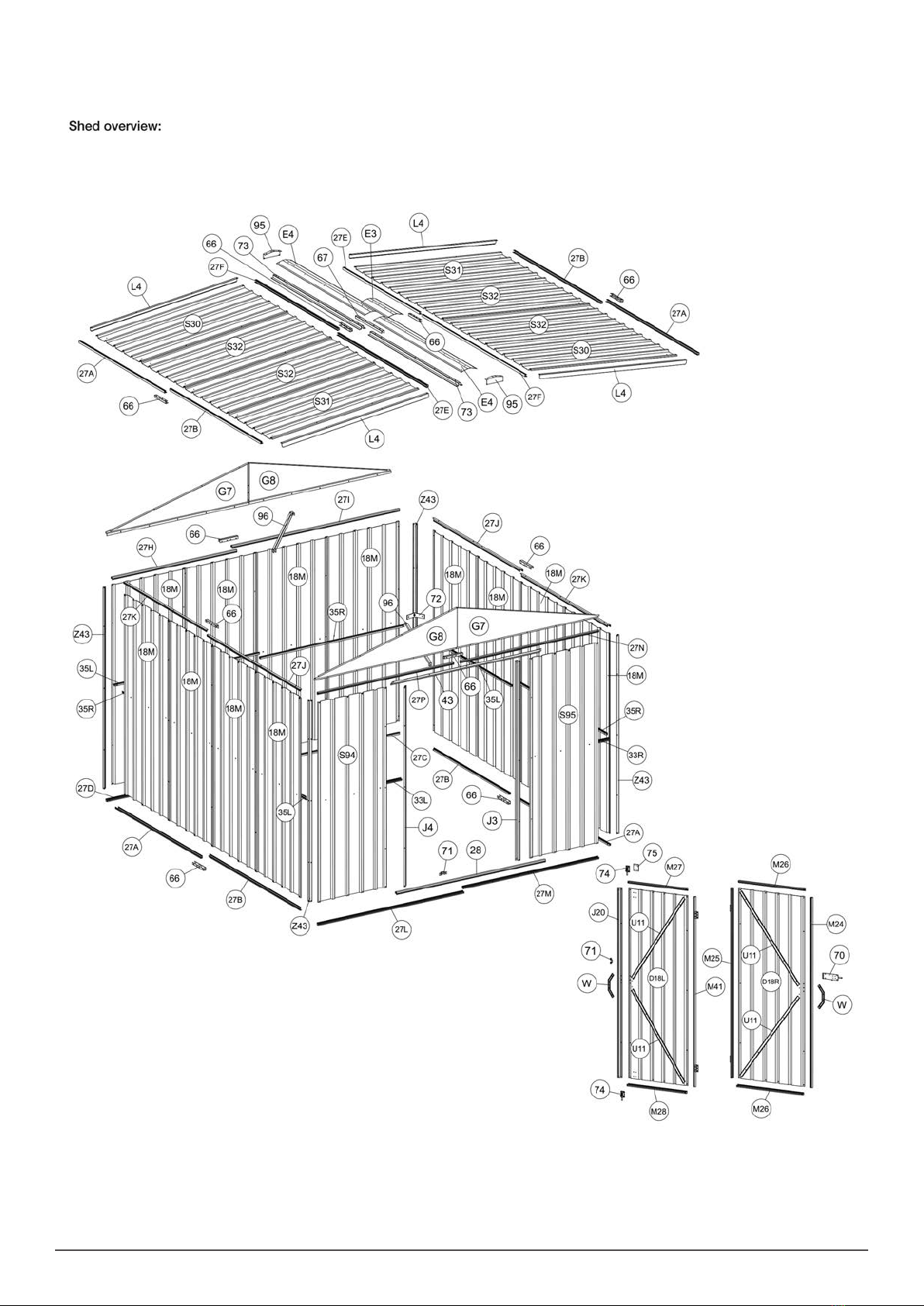

www.dellonda.co.uk 9
