Dell Storage Center

SCv2080 Storage System

Getting Started Guide

Regulatory Model: E11J

Regulatory Type: E11J001

Notes, Cautions, and Warnings

NOTE: A NOTE indicates important information that helps you make

better use of your computer.

CAUTION: A CAUTION indicates either potential damage to hardware or

loss of data and tells you how to avoid the problem.

WARNING: A WARNING indicates a potential for property damage,

personal injury, or death.

trademarks are trademarks of Dell Inc. or its subsidiaries. Other trademarks may be

trademarks of their respective owners.

2016 - 12

Rev. A00

Setting Up the Storage System

Consider the following best practices when setting up an SCv2080 storage system.

• Dell recommends that you use a dedicated SAN network for data transmission

when using a Fibre Channel or iSCSI storage system.

• Complete the Worksheet to Record System Information in this guide before

configuring the storage system.

• Always configure redundant data paths to provide alternate paths to and from

the host server should one of the data paths become disabled.

• Before connecting any cables between the storage system and host server or

expansion enclosure, physically label each port and connector.

• Always follow proper power-up and power-down procedures when cycling power

across the network. Verify that critical network components are on separate

power circuits.

NOTE: This product is intended for restricted access locations, such as a

dedicated equipment room or equipment closet.

WARNING: If installed in a closed or multi-unit rack assembly, the operating

ambient temperature of the rack environment may be greater than room

ambient temperature. Therefore, consideration should be given to installing

the equipment in an environment compatible with the maximum ambient

temperature (Tma) specified by the manufacturer.

Safety Warnings

Heavy weight warning

A fully configured SCv2080 storage system weighs up

to 130 kg (287 lb). An unpopulated storage system

weighs 62 kg (137 lb). Use appropriate lifting methods

when installing the storage system.

High temperature warning

The operating temperature inside the drawers of a

storage system can reach up to 60°C (140°F). Take

care when opening drawers and removing drive

carriers.

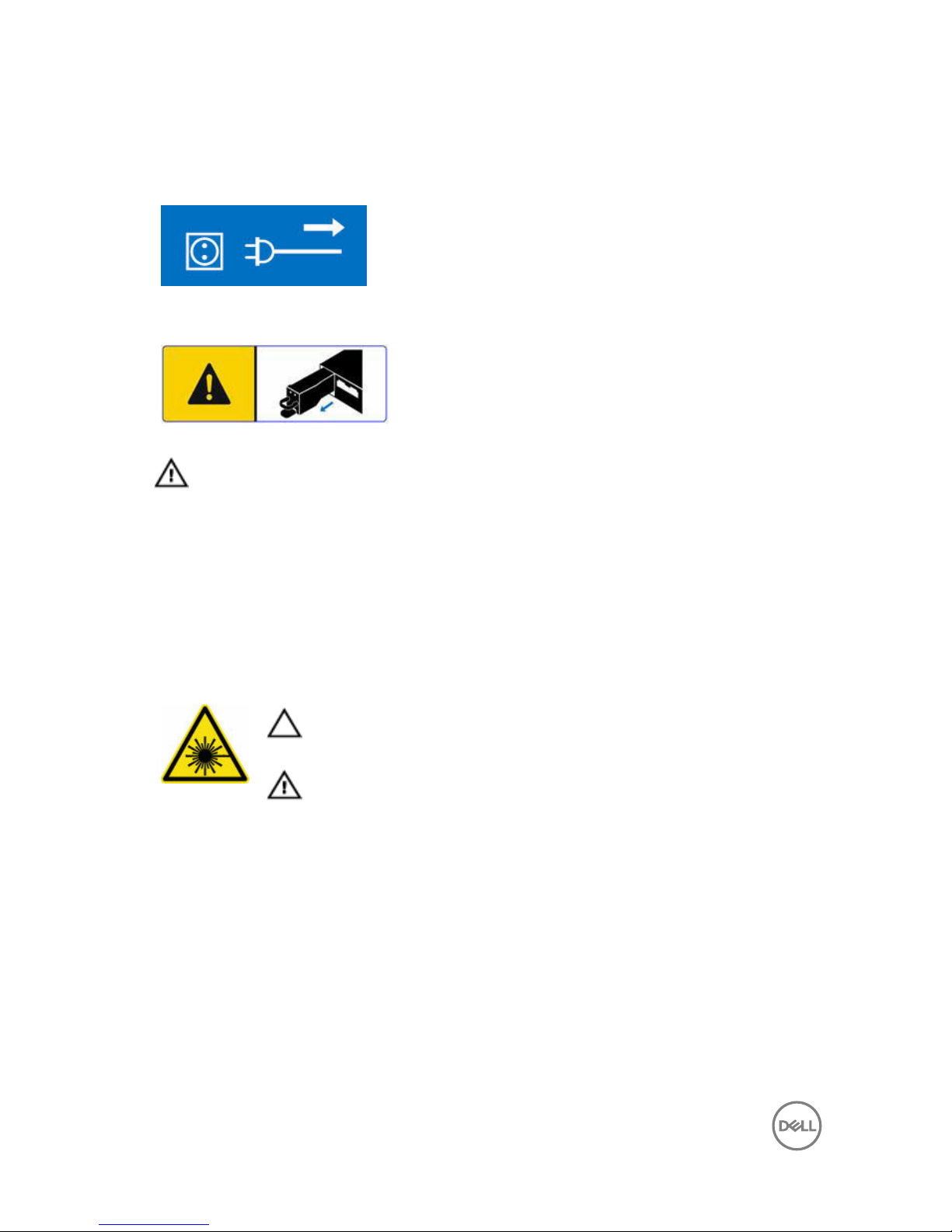

Electrical disconnection

Indicates that all electrical supply connections to the

storage system must be disconnected before

proceeding.

Battery pack warning

Remove the battery pack before removing a storage

controller from the storage system.

WARNING: Installing an incompatible battery may increase the risk of fire or

explosion. Observe the following precautions:

• The battery should only be replaced with a battery that is the same or

equivalent as the factory installed battery.

• Do not attempt to open or service the battery. Do not dispose of the

battery in a fire or with household waste. Contact the local waste disposal

agency for the location of the nearest battery deposit site.

Laser Radiation for Fibre Channel Storage Systems

CAUTION: Class I laser radiation when open, avoid exposure

to beam.

WARNING: Laser radiation, avoid direct exposure to beam.

The unit is certified in the U.S. to conform to the requirements of DHHS 21 CFR,

chapter 1 Subchapter J for Class I (1) laser products, and elsewhere is certified as a

Class I laser product conforming to the requirements of IEC 60825-1:2007.

Class I laser products are not considered to be hazardous. The laser system and unit

are designed so there is never any human access to laser radiation above a Class I

level during normal operation, user maintenance or prescribed service condition.

Worksheet to Record System Information

Use the following worksheet to record the information that is needed to install the

SCv2080 storage system.

Storage Center Information

Gather and record the following information about the Storage Center network and

the administrator user.

Table 1. Storage Center Network

Service Tag ________________

Management IPv4 address (Storage Center management

address)

___ . ___ . ___ . ___

Left Controller IPv4 address (Controller 1 MGMT port) ___ . ___ . ___ . ___

Right Controller IPv4 address (Controller 2 MGMT port) ___ . ___ . ___ . ___

Subnet mask ___ . ___ . ___ . ___

Gateway IPv4 address ___ . ___ . ___ . ___

Domain name ________________

DNS server address ___ . ___ . ___ . ___

Secondary DNS server address ___ . ___ . ___ . ___

Table 2. Storage Center Administrator

Password for the default Storage Center “Admin” user ________________

Email address of the default Storage Center “Admin” user ________________

iSCSI Fault Domain Information

For a storage system with iSCSI front-end ports, gather and record network

information for the iSCSI fault domains. This information is needed to complete the

Discover and Configure Uninitialized SCv2000 Series Storage Centers wizard.

NOTE: For a storage system deployed with two Ethernet switches, Dell

recommends setting up each fault domain on separate subnets.

See the Dell Storage Center SCv2080 Storage System Deployment Guide for

information about setting up iSCSI fault domains.

Table 3. iSCSI Fault Domain 1

Target IPv4 address ___ . ___ . ___ . ___

Subnet mask ___ . ___ . ___ . ___

Gateway IPv4 address ___ . ___ . ___ . ___

IPv4 address for storage controller module 1: port 1 ___ . ___ . ___ . ___

IPv4 address for storage controller module 2: port 1 ___ . ___ . ___ . ___

(Four port I/O card only) IPv4 address for storage

controller module 1: port 3

___ . ___ . ___ . ___

(Four port I/O card only) IPv4 address for storage

controller module 2: port 3

___ . ___ . ___ . ___

Table 4. iSCSI Fault Domain 2

Target IPv4 address ___ . ___ . ___ . ___

Subnet mask ___ . ___ . ___ . ___

Gateway IPv4 address ___ . ___ . ___ . ___

IPv4 address for storage controller module 1: port 2 ___ . ___ . ___ . ___

IPv4 address for storage controller module 2: port 2 ___ . ___ . ___ . ___

(4-port I/O card only) IPv4 address for storage controller

module 1: port 4

___ . ___ . ___ . ___

(4-port I/O card only) IPv4 address for storage controller

module 2: port 4

___ . ___ . ___ . ___

Additional Storage Center Information

The Network Time Protocol (NTP) and Simple Mail Transfer Protocol (SMTP) server

information is optional. The proxy server information is also optional, but it may be

required to complete the Discover and Configure Uninitialized SCv2000 Series

Storage Centers wizard.

Table 5. NTP, SMTP, and Proxy Servers

NTP server IPv4 address ___ . ___ . ___ . ___

SMTP server IPv4 address ___ . ___ . ___ . ___

Backup SMTP server IPv4

address

___ . ___ . ___ . ___

SMTP server login ID ________________

SMTP server password ________________

Proxy server IPv4 address ___ . ___ . ___ . ___

Fibre Channel Zoning Information

For a storage system with Fibre Channel front-end ports, record the physical and

virtual WWNs of the Fibre Channel ports in Fault Domain 1 and Fault Domain 2. This

information is displayed on the Review Front-End page of the Discover and

Configure Uninitialized SCv2000 Series Storage Centers wizard. Use this

information to configure zoning on each Fibre Channel switch.

See the Dell Storage Center SCv2080 Storage System Deployment Guide for

information about setting up Fibre Channel zoning.

Table 6. Physical WWNs in Fault Domain 1

Physical WWN of storage controller 1: port 1 ________________

Physical WWN of storage controller 2: port 1 ________________

(4-port I/O card only) Physical WWN of storage controller

1: port 3

________________

(4-port I/O card only) Physical WWN of storage controller

2: port 3

________________

Table 7. Virtual WWNs in Fault Domain 1

Virtual WWN of storage controller 1: port 1 ________________

Virtual WWN of storage controller 2: port 1 ________________

(4-port I/O card only) Virtual WWN of storage controller

1: port 3

________________

(4-port I/O card only) Virtual WWN of storage controller

2: port 3

________________

Table 8. Physical WWNs in Fault Domain 2

Physical WWN of storage controller 1: port 2 ________________

Physical WWN of storage controller 2: port 2 ________________

(4-port I/O card only) Physical WWN of storage

controller 1: port 4

________________

(4-port I/O card only) Physical WWN of storage

controller 2: port 4

________________

Table 9. Virtual WWNs in Fault Domain 2

Virtual WWN of storage controller 1: port 2 ________________

Virtual WWN of storage controller 2: port 2 ________________

(4-port I/O card only) Virtual WWN of storage controller

1: port 4

________________

(4-port I/O card only) Virtual WWN of storage controller

2: port 4

________________

Locating Your Service Tag

Your storage system is identified by a unique service tag and Express Service Code.

You can find the service tag on the back of the storage system chassis. Dell uses this

information to route support calls to the appropriate personnel.

Figure 1. Service Tag Location

Other Information You May Need

To install the storage system, you may need the following additional information.

NOTE: See the safety and regulatory information that shipped with your

Storage Center components. Warranty information is included as a separate

document.

• The Dell Storage Center SCv2080 Storage System Deployment Guide provides

information about cabling storage system hardware components and configuring

a new storage system using the Dell Storage Manager Client.

• The Dell Storage Manager Storage Center Administrator's Guide describes how

to use the Dell Storage Manager Client to manage a Storage Center.

• The Dell Storage Manager Administrator’s Guide describes how to use Dell

Storage Manager to manage multiple Storage Center systems.

Installation and Configuration

Before you begin installation, make sure that the site where you plan to install the

storage system has 208 V power from an independent source or a rack power

distribution unit with a UPS. (110 V power is not supported.)

In addition, verify that there is a 5U space in the lower 20U of the rack to install the

storage system. If you plan to install the storage system above the lower 20U of a

rack, a customer-provided mechanical lift must be used to avoid injury.

Safety Precautions

Always follow these safety precautions to avoid injury and damage to Storage Center

equipment.

If equipment described in this section is used in a manner not specified by Dell, the

protection provided by the equipment could be impaired. For your safety and

protection, observe the rules described in the following sections.

NOTE: See the safety and regulatory information that shipped with each

Storage Center component. Warranty information is included within this

document or as a separate document.

Installation Safety Precautions

Follow these safety precautions:

• Dell recommends that only individuals with rack-mounting experience install the

SCv2080 in a rack.

• You need at least two people to lift the storage system chassis from the shipping

box and three people to install it in the rack. The empty chassis weighs

approximately 62 kg (137 lbs).

• Make sure the storage system is always fully grounded to prevent damage from

electrostatic discharge.

• When handling the storage system hardware, use an electrostatic wrist guard

(not included) or a similar form of protection.

The chassis must be mounted in a rack. The following safety requirements must be

considered when the chassis is being mounted:

• The rack construction must be capable of supporting the total weight of the

installed chassis. The design should incorporate stabilizing features suitable to

Autres manuels pour SCv2080

Table des matières

Autres manuels Dell Stockage

Dell

Dell PowerVault MD3260 Series Guide de référence rapide

Dell

Dell Data Domain DD9800 Manuel utilisateur

Dell

Dell PowerVault NX300 Manuel utilisateur

Dell

Dell PowerVault 122T LTO Manuel utilisateur

Dell

Dell PowerVault TL2000 Manuel utilisateur

Dell

Dell PowerVault 701N Manuel de l'opérateur

Dell

Dell PowerVault MD3800f series Manuel utilisateur

Dell

Dell AMP01 Manuel utilisateur

Dell

Dell PowerVault MD3260i Series Manuel de service

Dell

Dell PowerVault MD3260 Series Manuel utilisateur

Dell

Dell PowerVault TL4000 Manuel utilisateur

Dell

Dell PowerVault TL2000 Manuel utilisateur

Dell

Dell SCv2080 Manuel utilisateur

Dell

Dell EqualLogic PS Series Instructions d'utilisation

Dell

Dell Latitude 3440 Manuel utilisateur

Dell

Dell PowerVault Storage Area Network Manuel utilisateur

Dell

Dell PowerVault 136T LTO Manuel technique

Dell

Dell PowerVault 110T DLT1 Manuel utilisateur

Dell

Dell PowerVault MD3200i Series Manuel utilisateur

Dell

Dell PowerVault MD3200 Series Instructions d'installation

Dell

Dell PowerVault DR4100 Manuel utilisateur

Dell

Dell PowerVault ML6000 Manuel utilisateur

Dell

Dell E03T Manuel utilisateur

Dell

Dell EMC ML3 Manuel utilisateur

Manuels Stockage populaires d'autres marques

QNAP

QNAP TS 32PXU Series Manuel utilisateur

LaCie

LaCie RUGGED RAID Manuel utilisateur

Freecom

Freecom CLS DOCK Manuel utilisateur

PNY

PNY Attache P-FD64MBATT3 Manuel utilisateur

HP StorageWorks MSL2024 Manuel utilisateur

OLT

OLT 6x6 Maximizer Manuel utilisateur

Transcend

Transcend JetFlash 160 Manuel utilisateur

LaCie

LaCie RUGGED MINI Manuel utilisateur

Thunderbolt

Thunderbolt 600 Manuel utilisateur

Panasonic

Panasonic LB-DH8 series Manuel

Intel

Intel RAID High Availability Manuel utilisateur

LaCie

LaCie 12big Thunderbolt 3 Manuel utilisateur

Spectra Logic

Spectra Logic T-Series Spectra T50e Manuel utilisateur

Panasonic

Panasonic LKM-F931-1 Manuel utilisateur

Tabernus

Tabernus Enterprise Erase E2400 Manuel utilisateur

Rocstor

Rocstor COMMANDER 3F series Manuel utilisateur

HP P9000 Manuel utilisateur

Western Digital

Western Digital Ultrastar Data60 Manuel utilisateur
