Introduction: Dell PowerVault 110T DLT VS160 Tape Drive User's Guide

file:///C|/Users/rishi_sood/Desktop/Temp/MissingDocsPosted/110t_dlt/UG/intro.htm[3/8/2013 11:46:11 AM]

Back to Contents Page

Introduction: Dell™ PowerVault™ 110T DLT VS160 Tape Drive

User's Guide

Overview

Features

Tape Backup Software

Obtaining Drivers and Firmware Upgrades

Front Panel Controls and Indicators

Overview

The Dell™ PowerVault™ 110T DLT VS160 Tape drive is a value-priced, high-reliability, high-capacity linear streaming cartridge

tape drive designed for use on entry to midrange computing platforms. With a combination of data compression and compaction,

the PowerVault 110T DLT VS160 Tape drive offers a formatted cartridge capacity of 80GB (160GB assuming a 2:1 compression

ratio) and a sustained user data transfer rate of 8 MB/s (up to 16 MB/s with 2:1 compression). The capacity you realize in practice

depends on the data set, which affects the actual compression ratio.

The PowerVault 110T DLT VS160 Tape drive is a 5.25-inch, half-height form-factor, using a 1/2-inch tape. Its design includes a

four-channel read/write head, Lempel-Ziv (DLZ) high-efficiency hardware data compression, and tape-mark directory to achieve

fast data throughput and data access times.

The PowerVault 110T DLT VS160 Tape drive is read/write-compatible the DLT VS160 format using DLTtape VS1 cartridges and

read compatible with the DLT1 format using DLTtape™ IV cartridges. The PowerVault 110T DLT VS160 Tape drive is an Ultra 160

SCSI device that works with any wide-ultra, Ultra2, Ultra160, or Ultra3 Low-Voltage Differential (LVD) or Single-Ended (SE), narrow

or wide, SCSI bus.

Features

The PowerVault 110T DLT VS160 Tape drive has the following features:

Supported formats: DLT VS160 (read/write using DLTtape VS1 cartridges), DLT1 (read only using DLTtape™ IV cartridges)

Uses DLTtape VS1 cartridges

5.25-inch half-height form-factor

Formatted cartridge capacity of 80GB native, 160GB compressed*

Sustained user data transfer rate of 8 MB/s native, up to 16 MB/s with compression*

The PowerVault 110T DLT VS160 Tape drive requires a wide-ultra, Ultra2, Ultra160, or Ultra3, Low-Voltage Differential

(LVD) or Single-Ended (SE) SCSI bus

* Assumes 2:1 compression ratio. The capacity and data transfer rates realized in practice depend on the data set, which

determines the actual compression ratio.

Obtaining Drivers and Firmware Upgrades

If the tape backup software does not detect the tape drive or to obtain the latest operating system drivers and/or firmware

upgrades, see the Dell Support website at support.dell.com.

Tape Backup Software

Drivers

Introduction: Dell PowerVault 110T DLT VS160 Tape Drive User's Guide

file:///C|/Users/rishi_sood/Desktop/Temp/MissingDocsPosted/110t_dlt/UG/intro.htm[3/8/2013 11:46:11 AM]

Microsoft® Windows® 2000 and Windows® Server™ 2003: QSDLT32.SYS

Native Operating System Backup Utilities

Microsoft® Windows® 2000 and Windows® Server™ 2003

Windows Backup

Red Hat Linux versions 7.3 and 8.0 and 9.0

Tar

Tape Backup Applications

NOTICE: See the Dell Support website at support.dell.com to obtain the latest patches and upgrades for the

Tape Backup Applications noted below.

Microsoft® Windows® 2000 and Windows® Server™ 2003

VERITAS™ BackupExec™ for Windows NT/2000 version 9.0 or later

Yosemite Tapeware® version 7.0 or later

Novell® NetWare®

VERITAS™ BackupExec™ for NetWare™ version 9.0 or later

Yosemite Tapeware® version 7.0 or later

Red Hat Linux versions 7.3, 8.0, and 9.0

Yosemite Tapeware® version 7.0 or later

Front Panel Controls and Indicators

Location of the Controls and Indicators

Figure 1. PowerVault 110T DLT VS160 Tape drive front panel

NOTE: The front panel controls and indicators are in the same locations on both the internal and external drives. The

internal drive does not have a Power LED.

Indicator Activity During Power-On Self-Test (POST)

Introduction: Dell PowerVault 110T DLT VS160 Tape Drive User's Guide

file:///C|/Users/rishi_sood/Desktop/Temp/MissingDocsPosted/110t_dlt/UG/intro.htm[3/8/2013 11:46:11 AM]

Every time you turn on or reset the drive, it conducts a Power-On Self-Test (POST). This test ensures that the drive is working

properly and is ready to use. While POST is in progress, watch the front panel LEDs to see the progress and results of the test.

During POST, the following actions take place:

The LEDs illuminate one at a time, from left to right, starting with the Ready LED, next the Fault LED, and finally the Clean

LED, at approximately one second intervals

About four seconds later, the Media LED illuminates

Each LED signals a different part of the POST process

All LEDs then turn off momentarily

If a cartridge is not loaded, the Ready LED illuminates and POST is complete, the entire process taking approximately eight

seconds

If a cartridge is loaded, the Ready LED flashes while the drive mounts the cartridge, a process that can take several

minutes depending upon the position of the media in the tape path

As POST completes, the drive makes a slight buzzing noise for several seconds. This noise is normal and should be

ignored

The drive is now ready to use.

Indicator Activity During Normal Operation - Ready LED

When the PowerVault 110T DLT VS160 Tape drive is in use, the Ready LED indicates the three states detailed in Table 1. The

Ready LED operates independently of the other three LEDs.

Table 1. Ready LED activity and drive status

Ready LED

Activity Drive Status

Off No power to the drive

On Power is on; no cartridge loaded or a loaded cartridge is idle with

no tape motion

Blinking The drive is loading a cartridge or a loaded cartridge has tape

motion indicating read, write, seek, rewind, calibration, or other

cartridge activity

Indicator Activity During Normal Operation - Fault/Clean/Media LEDs

The Fault, Clean, and Media LEDs indicate the status of the drive. Note that the LEDs can indicate more than one of the indicated

operating conditions simultaneously. For example:

If cleaning is required while a DLT1 format cartridge is loaded, both the Clean and Media LEDs are on

If an internal write/read diagnostic fails as a result of a permanent write error, both the Fault and Clean LEDs blink slowly.

Table 2 describes what each front panel indicator means.

Table 2. Fault/Clean/Media LED activity and drive status

Indicator Activity Operating Condition

Fault Slow Blink (1x per second) User initiated write/read diagnostic failed

Fast Blink (3x per second) Servo or mechanism error

On Internal firmware error

Clean Slow Blink (1x per second) Calibration error or permanent write/read error

Medium Blink (2x per second) Cleaning in progress

On Cleaning required

Introduction: Dell PowerVault 110T DLT VS160 Tape Drive User's Guide

file:///C|/Users/rishi_sood/Desktop/Temp/MissingDocsPosted/110t_dlt/UG/intro.htm[3/8/2013 11:46:11 AM]

Media Slow Blink (1x per second) Unsupported format, or damaged or unsupported cartridge type

inserted into drive

On DLT1 format DLTtape™ IV cartridge loaded

See Troubleshooting the Drive in Troubleshooting for more details on error conditions.

Unload/Eject Button Features

The Unload/Eject button provides features in addition to unloading and ejecting a cartridge. To activate one of these features, press

and hold the Unload/Eject button for the amount of time specified in Table 3. Release the Unload/Eject button when the desired

LED sequence is displayed.

If you do nothing for 15 seconds after accessing any of the additional features that require an action, such as loading a cartridge,

the drive returns to normal operating mode.

NOTICE: The Unload/Eject button features indicated by an asterisk (*) in Table 3 overwrite all data on the

cartridge loaded in the drive. Use extreme caution when accessing these features to avoid loss of important

data.

Table 3. Unload/Eject button features

LED Status Button Hold

Time (seconds) Feature Description

Ready Fault Clean Media

On N/A N/A N/A 0-6 Normal unload/eject function

Blinking Off Off Off 6-9 Reserved

Blinking Blinking Blinking Off 12-15 Reserved

Blinking Blinking Blinking Blinking 15-18 Reserved

On Off Off Off 18-21 Revert to normal operating mode

On On Off Off 21-24 Write/read diagnostic mode*

On On On Off 24-27 Reserved*

On On On On 27-30 Emergency reset

Off Off Off Off 30+ Revert to normal operating mode

Unload/Eject Button Feature Description

Normal Unload/Eject

When you release the button, the drive unloads and ejects the cartridge.

Write/Read Diagnostic Mode

NOTICE: This mode overwrites all data on the cartridge in the drive. Use extreme caution when using this

feature to avoid loss of important data.

When you release the button, the drive initiates an internal write/read diagnostic. The diagnostic requires that you first load a

cartridge that is blank or does not contain valuable data. When the diagnostic begins, the drive writes and then reads approximately

400MB of data and then unloads and ejects the cartridge. The process takes about two minutes. If the diagnostic test detects no

errors, the drive returns to normal operating mode. If an error occurs, the appropriate LEDs illuminate.

Emergency Reset

Introduction: Dell PowerVault 110T DLT VS160 Tape Drive User's Guide

file:///C|/Users/rishi_sood/Desktop/Temp/MissingDocsPosted/110t_dlt/UG/intro.htm[3/8/2013 11:46:11 AM]

When you release the button, the drive performs a hard reset, behaving as if it had been turned off and then on. A standard POST

then takes place.

Revert to Normal Operating Mode

When you release the button, the drive returns to normal operation.

Back to Contents Page

Getting Started and Setup: Dell PowerVault 110T DLT VS160 Tape Drive User's Guide

file:///C|/Users/rishi_sood/Desktop/Temp/MissingDocsPosted/110t_dlt/UG/setup.htm[3/8/2013 11:46:12 AM]

Back to Contents Page

Getting Started and Setup: Dell™ PowerVault™ 110T DLT VS160

Tape Drive User's Guide

Obtaining Drivers and Firmware Upgrades

Dell-Installed Drives

Installing the PowerVault 110T DLT VS160 Tape Internal Drive

Installing the PowerVault 110T DLT VS160 Tape External Drive

Installing the Device Drivers

Installing the Tape Backup Software

Installing the Dell PowerVault Tools Diagnostic Package

Obtaining Drivers and Firmware Upgrades

If the tape backup software does not detect the tape drive or to obtain the latest operating system drivers and/or firmware

upgrades, see the Dell Support website at support.dell.com.

Dell-Installed Drives

Dell™ performs the installation and setup of tape drives that are shipped as part of a system. Dell also installs tape backup drivers

and most software applications.

Installing the PowerVault 110T DLT VS160 Tape Internal Drive

SCSI Requirements

The Dell PowerVault™ 110T DLT VS160 Tape Internal drive incorporates a wide-ultra 160 Low-Voltage Differential (LVD) SCSI

bus, but may also be attached to a Single-Ended (SE) SCSI bus.

Make sure your SCSI host adapter or controller supports these standards. If you connect the drive to an SE SCSI bus or if there

are SE devices attached to the same SCSI bus, the drive's performance is limited to the maximum data transfer speed and

maximum cable lengths of the SE bus. The PowerVault 110T DLT VS160 Tape is not compatible with a standard differential (Diff)

or High-Voltage Differential (HVD) SCSI bus. If you attach the drive to a narrow (50-pin) SCSI bus, you must use a customer-

supplied 68-pin to 50-pin adapter that terminates the unused 18 pins. These adapters are sometimes labeled "high-byte

termination."

Make sure the total length of the SCSI bus does not exceed the ANSI SCSI standard of 19 feet (6 meters) for an SE bus, 40 feet

(12 meters) for an LVD SCSI bus with multiple devices, or 82 feet (25 meters) for an LVD SCSI bus with a single device.

Unpacking the Internal Drive

NOTE: If the room in which you are working differs from the temperature in which the tape drive was shipped or stored

by 30 degrees F (15 degrees C) or more, let the drive acclimate to the surrounding environment for at least 12 hours

before operating.

Unpack and inspect the PowerVault 110T DLT VS160 Tape Internal drive for shipping damage. If you notice any damage, report it

to both Dell and the shipping company immediately.

Getting Started and Setup: Dell PowerVault 110T DLT VS160 Tape Drive User's Guide

file:///C|/Users/rishi_sood/Desktop/Temp/MissingDocsPosted/110t_dlt/UG/setup.htm[3/8/2013 11:46:12 AM]

NOTE: Save the packing materials in case you need to move or ship your drive in the future. You must ship the

PowerVault 110T DLT VS160 Tape Internal drive in the original or equivalent packing materials or your warranty may be

invalidated.

Setting the SCSI ID

Regardless of the number of SCSI devices attached to the server that is to be the host for the PowerVault 110T DLT VS160 Tape

Internal drive, each must have a unique SCSI ID. Check the SCSI IDs on all other SCSI devices on the selected server, including

the SCSI host adapter, and select an unused SCSI ID for the PowerVault 110T DLT VS160 Tape Internal drive. The factory default

SCSI ID is 6. If another device is not already using the factory default SCSI ID, you do not need to change the drive's SCSI ID.

NOTE: If you attach the drive to a narrow (50-pin) bus, you can only use SCSI IDs 0 through 7.

Locate the SCSI ID jumpers on the rear panel of the drive as shown in Figure 1.

Figure 1. SCSI ID jumpers on rear panel of drive

To set the SCSI ID on the PowerVault 110T DLT VS160 Tape Internal drive, use the supplied jumpers to select the desired SCSI

ID as shown in Table 1. After you change the SCSI ID, restart the host server to activate the new SCSI ID and to allow the server

to recognize the drive at the new ID.

Table 1. SCSI ID jumper settings

Getting Started and Setup: Dell PowerVault 110T DLT VS160 Tape Drive User's Guide

file:///C|/Users/rishi_sood/Desktop/Temp/MissingDocsPosted/110t_dlt/UG/setup.htm[3/8/2013 11:46:12 AM]

When to Use Termination

If the PowerVault 110T DLT VS160 Tape Internal drive is the only SCSI device on the selected server other than the SCSI host

adapter, or it is the last physical device on the SCSI bus (at the end of the SCSI cable), it must be terminated. If another SCSI

device is the last device on the SCSI bus, confirm that it is properly terminated and do not terminate the PowerVault 110T DLT

VS160 Tape drive. Regardless of which device is used to terminate the SCSI bus, it must have power applied and be turned on for

proper termination to occur.

To terminate the PowerVault 110T DLT VS160 Tape Internal drive, install an active Low-Voltage Differential/Single-Ended

(LVD/SE) cable-end or inline terminator on the SCSI cable you intend to use with the PowerVault 110T DLT VS160 Tape Internal

drive. See the terminator's instructions for more information.

Terminator Power

At least one device on the SCSI bus must supply terminator power (TERMPWR). The factory default for the PowerVault 110T DLT

VS160 Tape Internal drive is TERMPWR enabled, which is the recommended setting. It is acceptable for more than one device on

the SCSI bus to provide TERMPWR. If you need to disable TERMPWR, remove the terminator power jumper shown in Figure 1.

Installing the PowerVault 110T DLT VS160 Tape Internal Drive

1. Shut down the operating system and turn off the selected server. Turn off all attached accessory devices, such as printers

and other SCSI devices. Remove the power cables from the host server and all attached accessories. Failure to follow these

instructions may result in damage to the PowerVault 110T DLT VS160 Tape Internal drive or other devices.

CAUTION: Do not move on to step 2 until you have shut down the operating system and turned off the server

that is to be the host for the PowerVault 110T DLT VS160 Tape Internal drive. Turn off all attached accessory

devices, such as printers and other SCSI devices. Remove the power cables from the host server and all

attached accessories.

2. Locate an available half-height, 5¼-inch drive bay and remove the front cover from the drive bay as described in the

server's manuals (see Figure 2).

3. Slide the PowerVault 110T DLT VS160 Tape Internal drive into the open drive bay (see Figure 2).

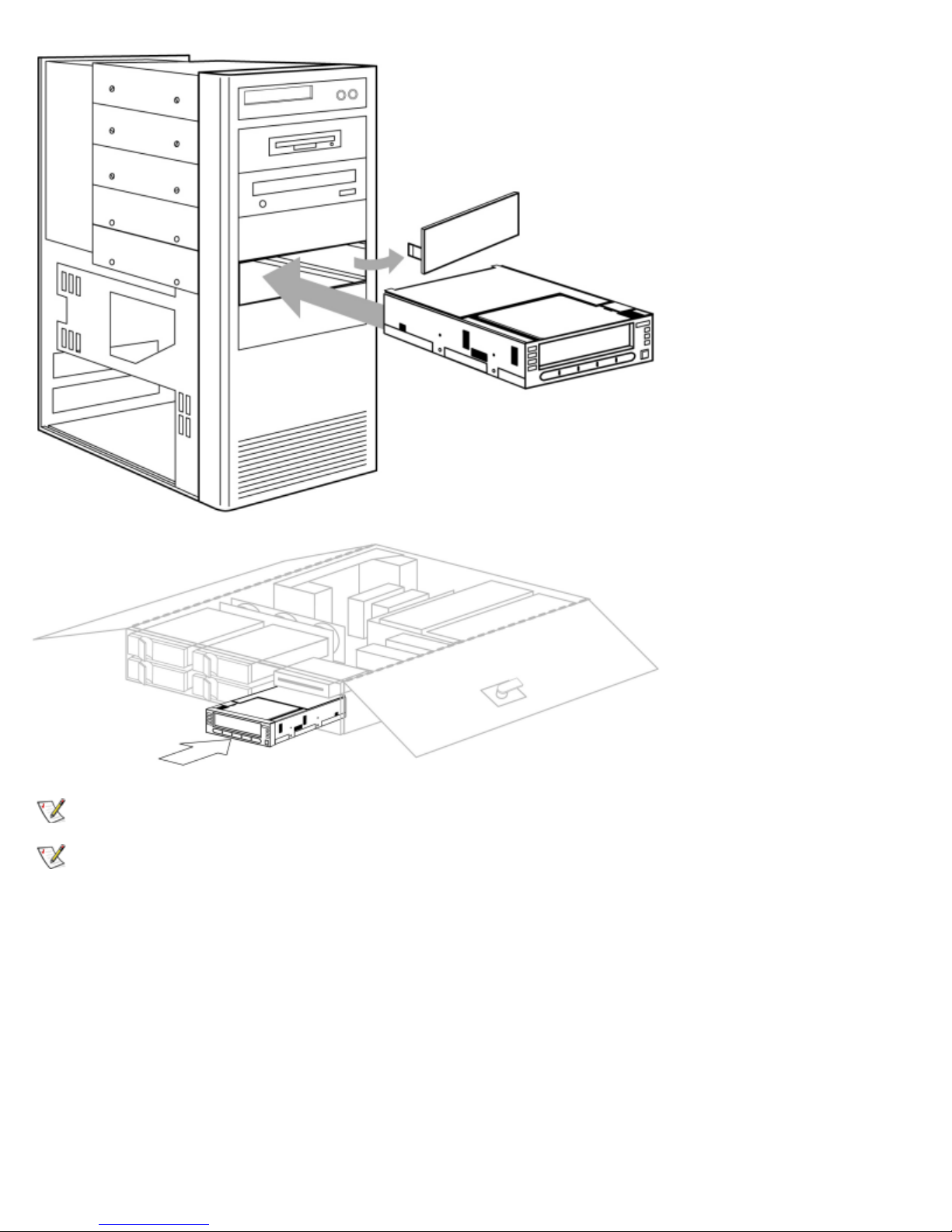

Figure 2. Install Drive in an Open Half-height Bay; tower, 2U server shown

Getting Started and Setup: Dell PowerVault 110T DLT VS160 Tape Drive User's Guide

file:///C|/Users/rishi_sood/Desktop/Temp/MissingDocsPosted/110t_dlt/UG/setup.htm[3/8/2013 11:46:12 AM]

NOTE: Install a SCSI host adapter in the selected server now, if necessary.

NOTE: If your SCSI host adapter already has a ribbon cable with an open 68-pin, high-density connector, you can use

the existing cable instead of the cable supplied with the PowerVault 110T DLT VS160 Tape Internal drive.

4. Locate the SCSI ribbon cable in the accessories package. Attach one end of the SCSI ribbon cable to the SCSI connector

on the rear panel of the PowerVault 110T DLT VS160 Tape Internal drive. The SCSI connectors are keyed, preventing

improper connection. Use a 50- to 68-pin adapter with "high-byte termination" if the existing SCSI cable uses a 50-pin

connector.

5. Attach the other end of the SCSI ribbon cable to the SCSI host adapter. The SCSI connectors are keyed, preventing

improper connection.

6. Locate an available power cable in the host server and attach it to the power connector on the rear panel of the PowerVault

110T DLT VS160 Tape Internal drive. The connectors are keyed, preventing improper connection.

Figure 3. Attach SCSI and power cables to drive

Autres manuels pour PowerVault 110T DLT1

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Dell Stockage

Dell

Dell PowerEdge R520 Manuel utilisateur

Dell

Dell PowerVault 35F Manuel utilisateur

Dell

Dell PowerVault DL2000 Manuel utilisateur

Dell

Dell PowerVault MD1000 Instructions d'installation

Dell

Dell SCv2080 Manuel utilisateur

Dell

Dell PowerVault MD3200 Series Manuel utilisateur

Dell

Dell PowerVault MD3200i Series Guide de référence rapide

Dell

Dell EqualLogic FS7610 Instructions de montage

Dell

Dell PowerVault TL2000 Comment utiliser

Dell

Dell PowerVault MD3220 Series Manuel utilisateur

Dell

Dell SC180 Manuel utilisateur

Dell

Dell SCv2080 Manuel utilisateur

Dell

Dell PowerVault MD3600i Series Guide de référence rapide

Dell

Dell PowerVault 110T DLT VS80 Manuel utilisateur

Dell

Dell PowerVault MD3200 Series Manuel utilisateur

Dell

Dell PowerVault 775N Manuel technique

Dell

Dell PowerVault ML6000 Manuel

Dell

Dell PowerVault NX3500 Manuel utilisateur

Dell

Dell EMC PowerVault ME4 Series Manuel utilisateur

Dell

Dell PowerVault LTO4-120 Manuel utilisateur

Dell

Dell POWER VAULT 130T LIBRARY 130T Manuel d'installation et d'exploitation

Dell

Dell PowerVault ML6000 Manuel utilisateur

Dell

Dell PowerStore 1000 Instructions d'installation et d'entretien

Dell

Dell PowerVault MD3660i Series Storage Array Guide de référence rapide

Manuels Stockage populaires d'autres marques

QNAP

QNAP TS 32PXU Series Manuel utilisateur

LaCie

LaCie RUGGED RAID Manuel utilisateur

Freecom

Freecom CLS DOCK Manuel utilisateur

PNY

PNY Attache P-FD64MBATT3 Manuel utilisateur

HP StorageWorks MSL2024 Manuel utilisateur

OLT

OLT 6x6 Maximizer Manuel utilisateur

Transcend

Transcend JetFlash 160 Manuel utilisateur

LaCie

LaCie RUGGED MINI Manuel utilisateur

Thunderbolt

Thunderbolt 600 Manuel utilisateur

Panasonic

Panasonic LB-DH8 series Manuel

Intel

Intel RAID High Availability Manuel utilisateur

LaCie

LaCie 12big Thunderbolt 3 Manuel utilisateur

Spectra Logic

Spectra Logic T-Series Spectra T50e Manuel utilisateur

Panasonic

Panasonic LKM-F931-1 Manuel utilisateur

Tabernus

Tabernus Enterprise Erase E2400 Manuel utilisateur

Rocstor

Rocstor COMMANDER 3F series Manuel utilisateur

HP P9000 Manuel utilisateur

Western Digital

Western Digital Ultrastar Data60 Manuel utilisateur
