Dell PowerEdge C6320 Manuel utilisateur

Dell PowerEdge C6320

Getting Started Guide

Guide de mise en route

Guia de Noções Básicas

Guía de introducción

Scan to see how-to videos, documentation,

andtroubleshooting information

Dell PowerEdge C6320

Getting Started Guide

NOTE: A NOTE indicates important information that helps you make better use

of your computer.

CAUTION: A CAUTION indicates either potential damage to hardware or loss

of data and tells you how to avoid the problem.

WARNING: A WARNING indicates a potential for property damage, personal

injury, or death.

Dell End User License Agreement

Before using your system, read the Dell Software License Agreement that shipped with your

system. If you do not accept the terms of agreement, see Dell.com/contactdell.

Save all software media that shipped with your system. These media are backup copies of the

software installed on your system.

United States and/or other jurisdictions. All other marks and names mentioned herein may be

trademarks of their respective companies.

2016 – 01

P/N NT2RV Rev. A01

Installation and configuration │5

CAUTION: Restricted Access Location

This server is intended for installation only in restricted access locations as defined

in Cl. 1.2.7.3 of IEC 60950-1: 2001 where both these conditions apply:

• Access can only be gained by service persons or by users who have been

instructed about the reasons for the restrictions applied to the location and

about any precautions that shall be taken.

• Access is through the use of a tool or lock and key, or other means of security,

and is controlled by the authority responsible for the location.

Installation and configuration

WARNING: Before performing the following procedure, read and follow the

safety instructions that came with the system.

Installing the tool-less rail solution

WARNING: Whenever you need to lift the system, get others to assist you.

To avoid injury, do not attempt to lift the system by yourself.

WARNING: To avoid a potential electrical shock hazard, a third wire safety

grounding conductor is necessary for the rack installation. The rack equipment

must provide sufficient airflow to the system to maintain proper cooling.

CAUTION: When installing rails in a square-hole rack it is important to ensure

that the square pegs slide through the square holes.

NOTE: The rails can be used in both square-hole racks (item 1 in the following

figure) and round-hole racks (item 2 in the following figure).

6 │Installation and configuration

1. To open the rail latches, push the latch release buttons on the midpoints of the

end pieces of the rails. See

in figure 1.

2. Align the end pieces of the rails on the vertical rack flanges to seat the pegs in

the bottom and top holes of the desired U spaces. See

in figure 1.

Figure 1: Pushing the latch release buttons

3. To lock the latches in place, engage the end of the rails until they seat on the

vertical rack flanges, and release the latch release buttons. See

in Figure 2.

Figure 2: Releasing the latch release buttons

2Back View

Latch Release Button

Front View

Back View

Front View

Installation and configuration │7

4. Slide the system into the rack. See

in Figure 3.

5. Tighten the thumbscrews to secure the rack ears to the rack flanges.

See

in Figure 3.

Figure 3: Installing the chassis onto the rack

NOTE: To remove the rails, push the latch release button on the midpoints

of the end piece and unseat each rail.

Back View

Front View

8 │Installation and configuration

Installing the optional chassis stabilizer

shipping brackets

1. At the back of each vertical rack flange, put two screw bases into the two

square holes above the rail. See

in Figure 4.

2. Install the optional chassis stabilizer shipping brackets on the rack flanges.

See

in Figure 4.

3. Install and tighten the screws. See

in Figure 4.

NOTE: To transport systems already installed in the rack, ensure that the two

chassis stabilizer shipping brackets are in place.

Figure 4: Installing the chassis stabilizer shipping brackets

Back View

Installation and configuration │9

Optional — Connecting the keyboard, mouse,

and monitor

Connect the keyboard, mouse, and monitor (optional).

The connectors on the back of your system have icons indicating which cable to

plug into each connector. Be sure to tighten the screws (if any) on the monitor’s

cable connector.

NOTE: Note that the system supports only one USB port and a micro USB port. If

you require more than one USB outlet at a time, use USB Hub or Adapter Cable.

10 │Installation and configuration

Connecting the power cable(s)

Connect the system’s power cable(s) to the system, and if a monitor is used,

connect the monitor’s power cable to the monitor. Plug the other end of the power

cables into a grounded electrical outlet or a separate power source such as an

uninterrupted power supply or a power distribution unit.

NOTE: The system supports both AC and HVDC power inputs and up to

two1400 W power supply units (200-240 VAC nominal input voltage) or up to

two 1600 W power supply units (200-240 VAC nominal input voltage).

1400 W power supply unit is supported only for China.

Autres manuels pour PowerEdge C6320

Table des matières

Langues :

Autres manuels Dell Serveur

Dell

Dell PowerEdge R810 Manuel de la liste des pièces

Dell

Dell Vostro 1400 Instructions de montage

Dell

Dell PowerEdge 4400 Instructions générales

Dell

Dell PowerEdge R530 Manuel utilisateur

Dell

Dell PowerEdge 750 Manuel utilisateur

Dell

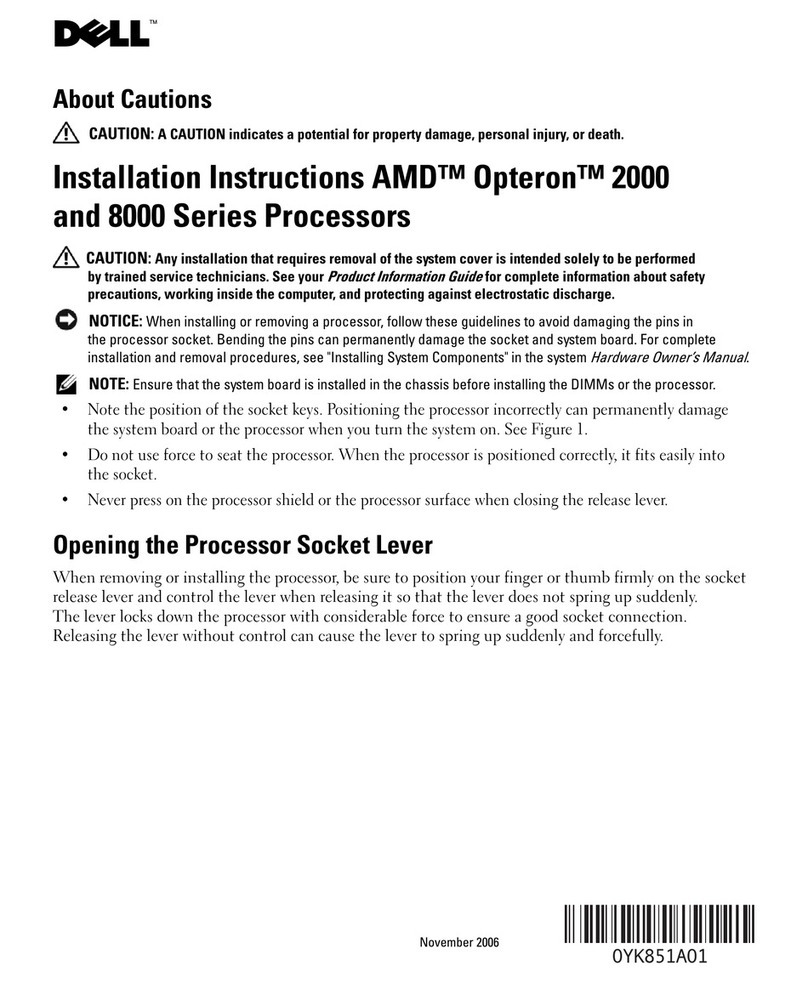

Dell PowerEdge 6950 Manuel utilisateur

Dell

Dell DSS 1510 Manuel utilisateur

Dell

Dell XC730-16G Manuel utilisateur

Dell

Dell PowerEdge XR4520c Manuel

Dell

Dell PowerEdge T320 Manuel utilisateur

Dell

Dell PowerEdge T710 Guide de référence rapide

Dell

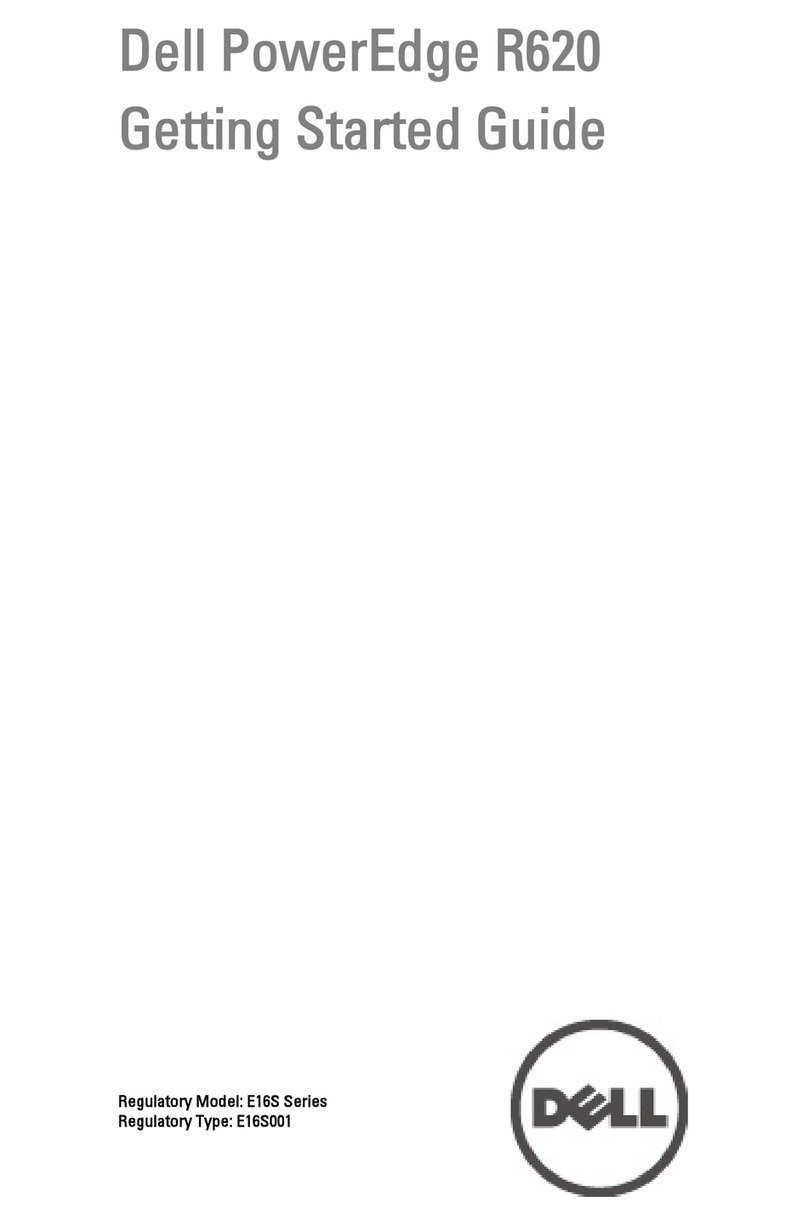

Dell PowerEdge R620 Manuel utilisateur
