Dell PowerEdge C6105 Manuel utilisateur

Dell PowerEdgeC6105

Getting Started

With Your System

Guide de mise en route

Primeiros passos com o sistema

Procedimientos iniciales con el sistema

Regulatory Model B03S

Dell PowerEdgeC6105

Getting Started

With Your System

Notes, Cautions, and Warnings

NOTE: A NOTE indicates important information that helps you make

better user of your computer.

CAUTION: A CAUTION indicates potential damage to hardware or loss

of data if instructions are not followed.

WARNING: A WARNING indicates a potential for property damage,

personal injury, or death.

Information in this publication is subject to change without notice.

Reproduction of these materials in any manner whatsoever without the written permission of

Dell Inc. is strictly forbidden.

Trademarks used in this text: Dell™, the DELL logo, and PowerEdge™ are trademarks of

Dell Inc. AMD®is a registered trademark and AMD Opteron™ is a trademark of Advanced

Micro Devices, Inc. Red Hat Enterprise Linux®and Enterprise Linux®are registered

trademarks of Red Hat, Inc. in the United States and/or other countries. Novell®is a registered

trademark and SUSE™ is a trademark of Novell Inc. in the United States and other countries.

Citrix®and XenServer®are either registered trademarks or trademarks of Citrix Systems, Inc.

in the United States and/or other countries. VMware®is a registered trademarks or trademarks

of VMWare, Inc. in the United States or other countries.

Other trademarks and trade names may be used in this publication to refer to either the entities

claiming the marks and names or their products. Dell Inc. disclaims any proprietary interest in

trademarks and trade names other than its own.

Regulatory Model B03S

July 2010 P/N 45F0M Rev. A00

Getting Started With Your System | 3

CAUTION: Restricted Access Location

This server is intended for installation only in restricted access locations as

defined in Cl. 1.2.7.3 of IEC 60950-1: 2001 where both these conditions

apply:

•Access can only be gained by service persons or by users who have been

instructed about the reasons for the restrictions applied to the location

and about any precautions that shall be taken.

•Access is through the use of a tool or lock and key, or other means of

security, and is controlled by the authority responsible for the location.

Installation and Configuration

WARNING: Before performing the following procedure, review and

follow the safety instructions that came with the system.

Unpacking the System

Unpack your system and identify each item.

Installing the Tool-Less Rail Solution

WARNING: Whenever you need to lift the system, get others to assist

you. To avoid injury, do not attempt to lift the system by yourself.

WARNING: The system is not fixed to the rack or mounted on the rails.

To avoid personal injury or damage to the system, you must adequately

support the system during installation and removal.

WARNING: To avoid a potential electrical shock hazard, a third wire

safety grounding conductor is necessary for the rack installation.

The rack equipment must provide sufficient airflow to the system to

maintain proper cooling.

CAUTION: When installing rails in a square-hole rack it is important to

ensure that the square peg slides through the square holes.

4|Getting Started With Your System

1Align the end pieces of the rails on the vertical rack flanges to seat the

pegs in the bottom hole of the first U and the top hole of the second U.

Engage the back end of the rail until the latch locks in place.

NOTE: The rails can be used in both square-hole (item 1 in figure below)

and round-hole racks (item 2 in figure below).

2Repeat step 1 to position and seat the front end piece on the vertical

flange.

NOTE: To remove the rails, pull on the latch release button on the end

piece midpoint and unseat each rail.

3Slide the system into the rack.

Getting Started With Your System | 5

4If present, remove the chassis stabilizer shipping bracket (optional)

from the rack.

NOTE: To remove the rails, pull on the latch release button on the end

piece midpoint and unseat each rail.

5Tighten the thumbscrews to secure the ears of system to the front of

the rack.

6|Getting Started With Your System

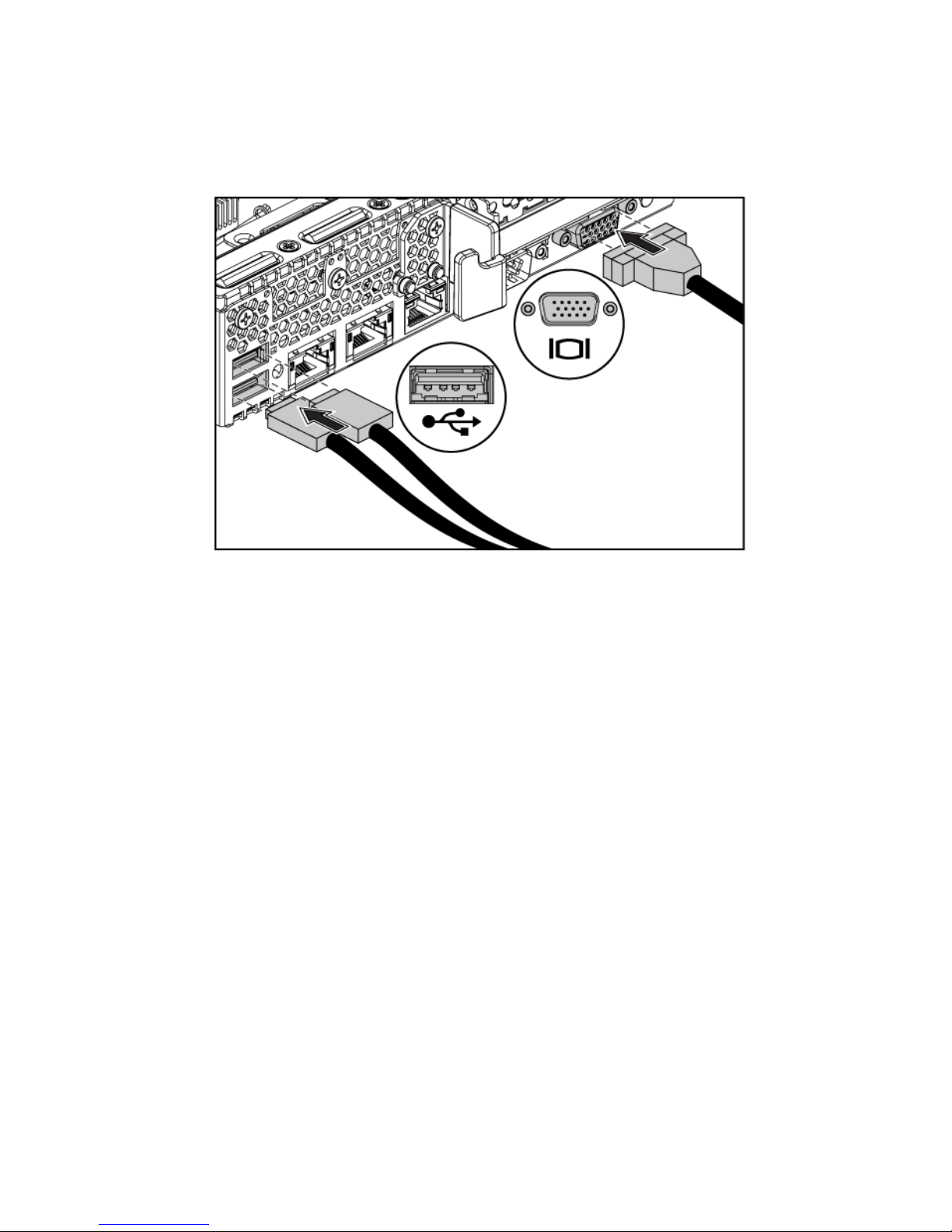

Optional –Connecting the Keyboard, Mouse, and Monitor

Connect the keyboard, mouse, and monitor (optional).

The connectors on the back of your system have icons indicating which

cable to plug into each connector. Be sure to tighten the screws (if any) on

the monitor’s cable connector.

Getting Started With Your System | 7

Connecting the Power Cable (s)

Connect the system’s power cable(s) to the system and, if a monitor is used,

connect the monitor’s power cable to the monitor. Plug the other end of the

power cables into a grounded electrical outlet or a separate power source

such as an uninterrupted power supply or a power distribution unit.

8|Getting Started With Your System

Turning On the System

Press the power button(s) either on the front or back of the system and

the monitor. The power indicators should light.
