Dell™ PowerEdge™ Systems

Using the Baseboard

Management Controller

Notes, Cautions, and Warnings

NOTE: A NOTE indicates important information that helps you make better use of your computer.

____________________

Information in this document is subject to change without notice.

Reproduction of these materials in any manner whatsoever without the written permission of Dell Inc. is strictly forbidden.

Trademarks used in this text: Dell and the DELL logo are trademarks of Dell Inc.; Microsoft, Windows, and Internet Explorer are registered

trademarks of Microsoft Corporation; Linux is the registered trademark of Linus Torvalds; Java is a registered trademark of Sun Microsystems,

Inc. or its subsidiaries in the United States and other countries. Intel is a registered trademark of Intel Corporation in the U.S. and other countries.

Other trademarks and trade names may be used in this document to refer to either the entities claiming the marks and names or their products.

Dell Inc. disclaims any proprietary interest in trademarks and trade names other than its own.

January 2011 Rev. A00

Contents 3

Contents

Intelligent Platform Management Interface. . . . . . . . . . . . . . . . . . . . 5

Baseboard Management Controller . . . . . . . . . . . . . . . . . . . . . . . . 5

BMC Key Features and Functions . . . . . . . . . . . . . . . . . . . . . . 5

Watchdog and Automatic System Recovery . . . . . . . . . . . . . . . . . 6

Virtual Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Using the Web User Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Logging into the Web User Interface . . . . . . . . . . . . . . . . . . . . . . . 6

Remote Management Controller. . . . . . . . . . . . . . . . . . . . . . . . . . 7

System Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Server Health . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Remote Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Languages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Updating Firmware Using the TFTP Flash Interface. . . . . . . . . . . . . . . 15

Running Virtual Media . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Connecting and Disconnecting Virtual Media . . . . . . . . . . . . . . . 16

JViewer Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

IPMI 2.0 Command Support List . . . . . . . . . . . . . . . . . . . . . . . . . 18

Chassis Control Command Implementation . . . . . . . . . . . . . . . . . . . 32

Entity ID and Instance Table . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Sensor Summary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Threshold Settings and Converting Formulas . . . . . . . . . . . . . . . . . . 38

Power Throttling Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

Power Throttling Configuration in BIOS Setup Utility . . . . . . . . . . . 42

Additional Power Throttling Information . . . . . . . . . . . . . . . . . . 42

Power Throttling Protection . . . . . . . . . . . . . . . . . . . . . . . . 42

Information From the Fan Control Board . . . . . . . . . . . . . . . . . . 42

4Contents

Appendix . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

SSH/Telenet Enable and Disable . . . . . . . . . . . . . . . . . . . . . . 43

SSH/Telenet Enable and Disable . . . . . . . . . . . . . . . . . . . . . . 44

VLAN ID . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

BMC/BIO Version Information . . . . . . . . . . . . . . . . . . . . . . . 46

BIOS Version Information. . . . . . . . . . . . . . . . . . . . . . . . . . 47

Using the Baseboard Management Controller 5

Intelligent Platform Management Interface

The Intelligent Platform Management Interface (IPMI) defines a set of standardized, message-

based interfaces that monitor system hardware health (fan speed, temperature, voltage, power

supply, etc.), control system components, and store data about important system events in a system

event log (SEL) for later examination. IPMI provides the foundation for remote platform

management.

Baseboard Management Controller

The key component in the IPMI system is the baseboard management controller (BMC), a

microcontroller located in the server’s motherboard. BMC is the “intelligence” within the IPMI

architecture, responsible for monitoring and controlling the system’s manageable devices.

The BMC is connected to the various sensors through the Intelligent Platform Management Bus

(IPMB), a subset of the I2C bus. System software communicates with BMC using a keyboard

controller style (KCS) interface.

BMC Key Features and Functions

Following are the supported features of the BMC:

• IPMI v2.0.

• Out-of-band monitoring and control for server management over LAN.

• Dedicated 10/100 NIC for remote management over a network.

• Information report including main board part number, product name, manufacturer, etc.

• Health status/hardware monitoring report.

• Events log, view, and clear.

• Event notification using chassis LED indicator and Platform Event Trap (PET).

• Platform Event Filtering (PEF) to take selected action for selected events, including non-

masking interrupt (NMI) and system management interrupt (SMI).

• Chassis management including power control and status report, front panel buttons, LED

control, Secure Mode, and Boot Option.

• Watchdog and auto server re-start and recovery.

• Multi-session user and alert destination for LAN channel.

• IPMB connector to enable advanced server management communication with BMC.

6Using the Baseboard Management Controller

www.dell.com | support.dell.com

Watchdog and Automatic System Recovery

The BMC watchdog timer commands, as defined in the IPMI v2.0 specification, are part of the

Intelligent Platform Management Interface. The watchdog timer can restart, turn off, or cycle

power to your server in your absence to support automatic system recovery functions. If a

pre-set interval expires, the configured timer actions are executed and logged into SEL for later

examination. The timer commands are:

• System reset

• System power off

• System power cycle

• Host diagnostic interrupt

NOTE: The software that acquired and activated the watchdog timer is responsible for resetting the

timer countdown.

Virtual Storage

The firmware supports USB diskette, keyboard, mouse, and CD/DVD. These are supported as a

composite device. The USB keyboard and mouse traffic is bridged to the KVM connections.

Using the Web User Interface

The embedded console client provides KVM/IP functionality. The client is in the form of an

ActiveX control for the Windows

platform and an application for the Linux

platform.

NOTE: The application must be installed before completing the console redirection.

A web-based graphic user interface (GUI) is supported on the following browsers:

• Windows platforms: Internet Explorer

6.0 or later

• All platforms: Firefox 2.0017 or later

NOTE: Before using the Web user interface, ensure that the firewall settings are configured to enable

access to the following: KVM:7578, USB–CDROM:5120, and USB–Floppy:5123.

Logging into the Web User Interface

Enter the BMC-embedded server IP address or URL into the address bar of the web browser. The

BMC interface has a default of (DHCP\Static). Press the <F2> key to enter the system BIOS

setup and change these settings.

Using the Baseboard Management Controller 7

Remote Management Controller

The first time you access the Dell™ Remote Management Controller, you are prompted to enter a

user name and password. Use “root” as the default value for both.

NOTE: When you log in using the “root” user name and password, you have full administrative

privileges. It is suggested that you change the user name and password after signing in for the first time.

The remote management controller offers six menu selections:

System Information

Server

Health

Configuration

Remote Control

Maintenance

, and

Languages

System Information

The

System Information

menu selection allows you to:

• View system information (

System Information

option).

• Obtain field replaceable unit (FRU) information (

List FRU

option).

Table 1-1. System Information Option

BMC Information Description

System Power Status On or Off

Firmware Revision Revision Number

AuxFirmware Revision Revision Number

Build Time Date firmware was last built in the format:

Month Day Year HH:MM:SS

8Using the Baseboard Management Controller

www.dell.com | support.dell.com

Server Health

The

Server Health

menu selection allows you to:

• View system hardware information such as fan speed, internal temperature, and voltage

(

Sensor Readings

and

Sensor Readings with Thresholds

buttons).

• View system event information such as event ID, time stamp, sensor name, sensor type, and

description (

Event Log

button). This system event log is generated by the BMC or BIOS on

the managed system.

Configuration

The

Configuration

menu selection allows you to:

• Manage alert messages for platform events, such as environmental warnings or component

failures (

Alerts

button).

• Set the mouse mode for either a Windows or Linux OS (

Mouse Mode

button).

• View and modify network settings (

Network

button).

Table 1-2. List FRU Option

Chassis Information Board Information Product Information

Type Manufacturer Manufacturer Name Part Number

Part Number Product Name Product Name Asset Tag

Serial Number Serial Number Serial Number

Part Number Version

Table 1-3. Server Health Options

Button Options Description

Sensor Readings Select a sensor type category

(drop-down list)

Select all sensors, or select a category (temperature

sensors, voltage sensors, fan sensors, etc.).

Refresh (button) Reread the sensor state.

Show Thresholds (button) View the sensor readings with thresholds.

Sensor Readings

with Thresholds

View the sensor readings with thresholds.

Event Log Select an event log category

(drop-down list)

Select a category (BMC generated events, BIOS

generated events, etc.).

Time Zone (radio button) Select a time zone: local or Greenwich Mean Time

(GMT).

Clear Event Log (button) Clear the SEL.

Using the Baseboard Management Controller 9

• Set the email server IP address for sending alert notifications (

SMTP

button).

• View information, configure existing BMC users, and control access privileges (

Users

button).

Alerts

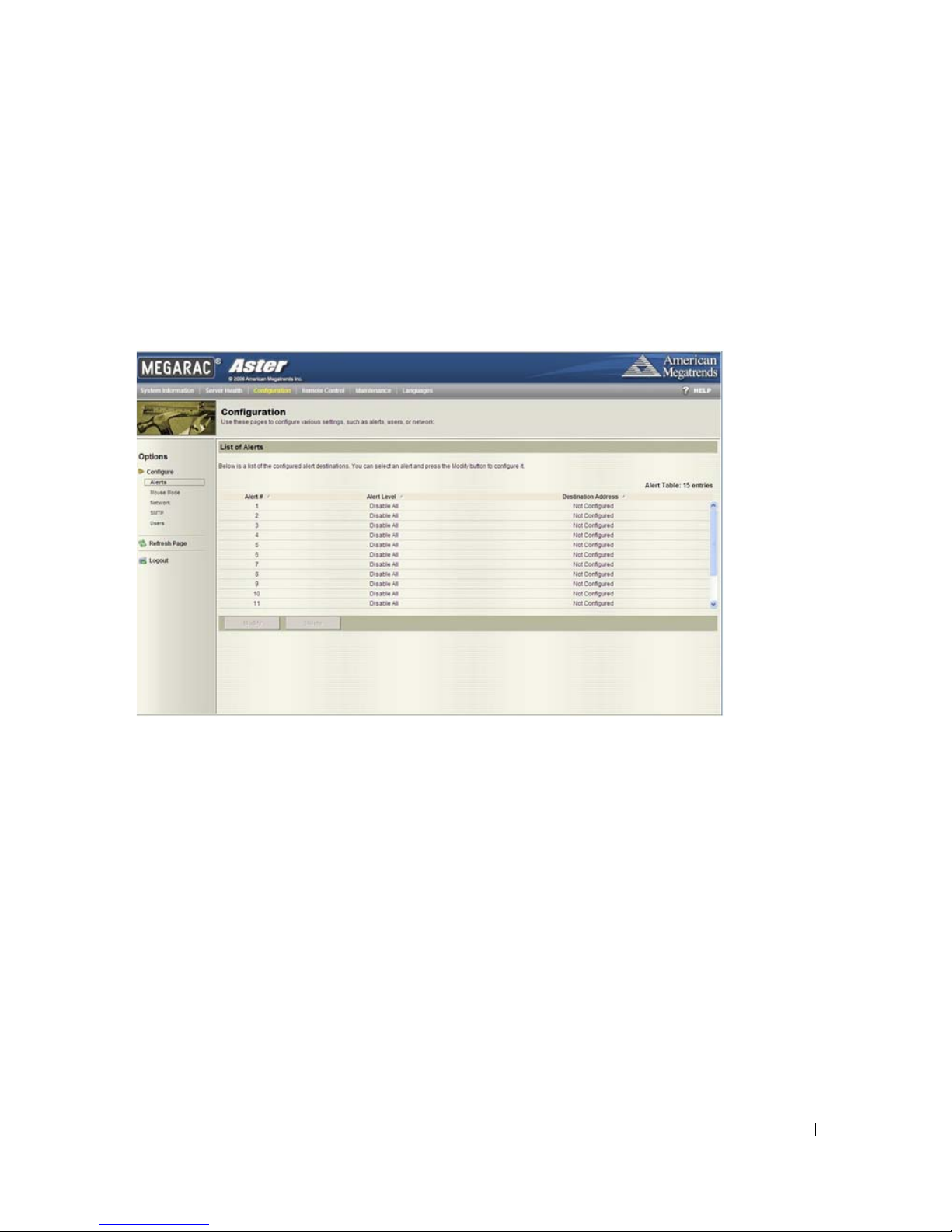

To set up a destination to receive alerts, complete these steps:

In the

List of Alerts

window, select an alert number and click the

Modify

button.

10 Using the Baseboard Management Controller

www.dell.com | support.dell.com

In the

Modify Alert

window, complete the following:

From the

Alert Type

drop-down list, select an alert type.

From the

Event Severity

drop-down list, select a severity level.

If the

Alert Type

Snmp Trap

enter a destination IP.

If the

Alert Type

, enter an email address, then enter the email subject in the

Subject

field.

Click the

Save

button.

Mouse Mode

Click the appropriate radio button to select the mouse mode, then click the

Save

button.

•

Set Mode to Absolute

—Use for Windows OS host system.

•

Set Mode to Relative

—Use for Linux OS host system.

Network

Click the appropriate radio button to modify network settings, then click the

Save

button.

SMTP

Enter the IP address for the SMTP mail server and click the

Save

button.

Autres manuels pour PowerEdge C6100

Table des matières

Autres manuels Dell Serveur

Dell

Dell PowerEdge 6350 Manuel utilisateur

Dell

Dell PowerEdge M820 Systems Manuel utilisateur

Dell

Dell Dimension 2400 Series Manuel utilisateur

Dell

Dell PowerEdge 6400 Manuel utilisateur

Dell

Dell Wyse P25 Manuel utilisateur

Dell

Dell PowerEdge R530 Manuel utilisateur

Dell

Dell POWEREDGE 4300 Manuel utilisateur

Dell

Dell PowerEdge 2950 Manuel utilisateur

Dell

Dell PowerEdge R730 Manuel utilisateur

Dell

Dell PowerEdge 1600SC Manuel utilisateur

Dell

Dell PowerEdge C6220 II Manuel utilisateur

Dell

Dell PowerEdge M420 Manuel d'utilisation

Dell

Dell PowerEdge systems 6300 Manuel utilisateur

Dell

Dell EMC ScaleIO Ready Node 14G Manuel utilisateur

Dell

Dell PowerEdge C6100 Manuel utilisateur

Dell

Dell PowerEdge T130 Manuel utilisateur

Dell

Dell Wyse Z90D7 Manuel utilisateur

Dell

Dell External OEMR R320 Manuel utilisateur

Dell

Dell EMC PowerEdge C6520 Manuel

Dell

Dell PowerEdge R810 Manuel utilisateur

Dell

Dell DR4000 Restore Manager Comment utiliser

Dell

Dell PowerEdge T105 Systems Instructions générales

Dell

Dell PowerEdge T110 II Manuel utilisateur

Dell

Dell Force10 MXL Blade Manuel utilisateur

Manuels Serveur populaires d'autres marques

HP AlphaServer ES47 Manuel utilisateur

PowerNAS

PowerNAS CMA Manuel utilisateur

Supero

Supero FatTwin F617R3-FT Manuel utilisateur

MSI

MSI P1-109N-L70 Manuel utilisateur

EtroVISION

EtroVISION EV3151 Manuel utilisateur

NEC

NEC Express5800/T110j Manuel utilisateur

HP ProLiant Gen9 Manuel utilisateur

Compaq

Compaq ProLiant 3000 Manuel

iRobo

iRobo IPC2U Manuel utilisateur

Nortel

Nortel 1000 Con?guration guide Manuel utilisateur

Asus

Asus AP7500 Manuel d'utilisation et d'entretien

Avid Technology

Avid Technology AirSpeed 5000 Manuel utilisateur

HP Integrity rx2600 Guide d'installation

Milestone

Milestone Husky IVO 350T Manuel utilisateur

Planet

Planet NAS-7410 Manuel utilisateur

Lenovo

Lenovo ThinkSystem SR635 V3 Manuel utilisateur

Fujitsu

Fujitsu PRIMERGY BX900 Manuel utilisateur

Asus

Asus RS700DA-E6 PS4 Manuel utilisateur
