Jumpers, Switches, and Connectors

Dell™PowerEdge™6850SystemsInstallationandTroubleshootingGuide

Jumpers—A General Explanation

System Board Jumpers

System Board Connectors

Memory Riser Card Connectors

SCSI Backplane Connectors

Disabling a Forgotten Password

This section provides specific information about the system jumpers. It also provides some basic information on jumpers and switches and describes the

connectors on the various boards in the system.

Jumpers—A General Explanation

Jumpers provide a convenient and reversible way of reconfiguring the circuitry on a printed circuit board. When reconfiguring the system, you may need to

change jumper settings on circuit boards or drives.



Jumpers

Jumpers are small blocks on a circuit board with two or more pins emerging from them. Plastic plugs containing a wire fit down over the pins. The wire connects

the pins and creates a circuit. To change a jumper setting, pull the plug off its pin(s) and carefully fit it down onto the pin(s) indicated. FigureA-1 shows an

example of a jumper.

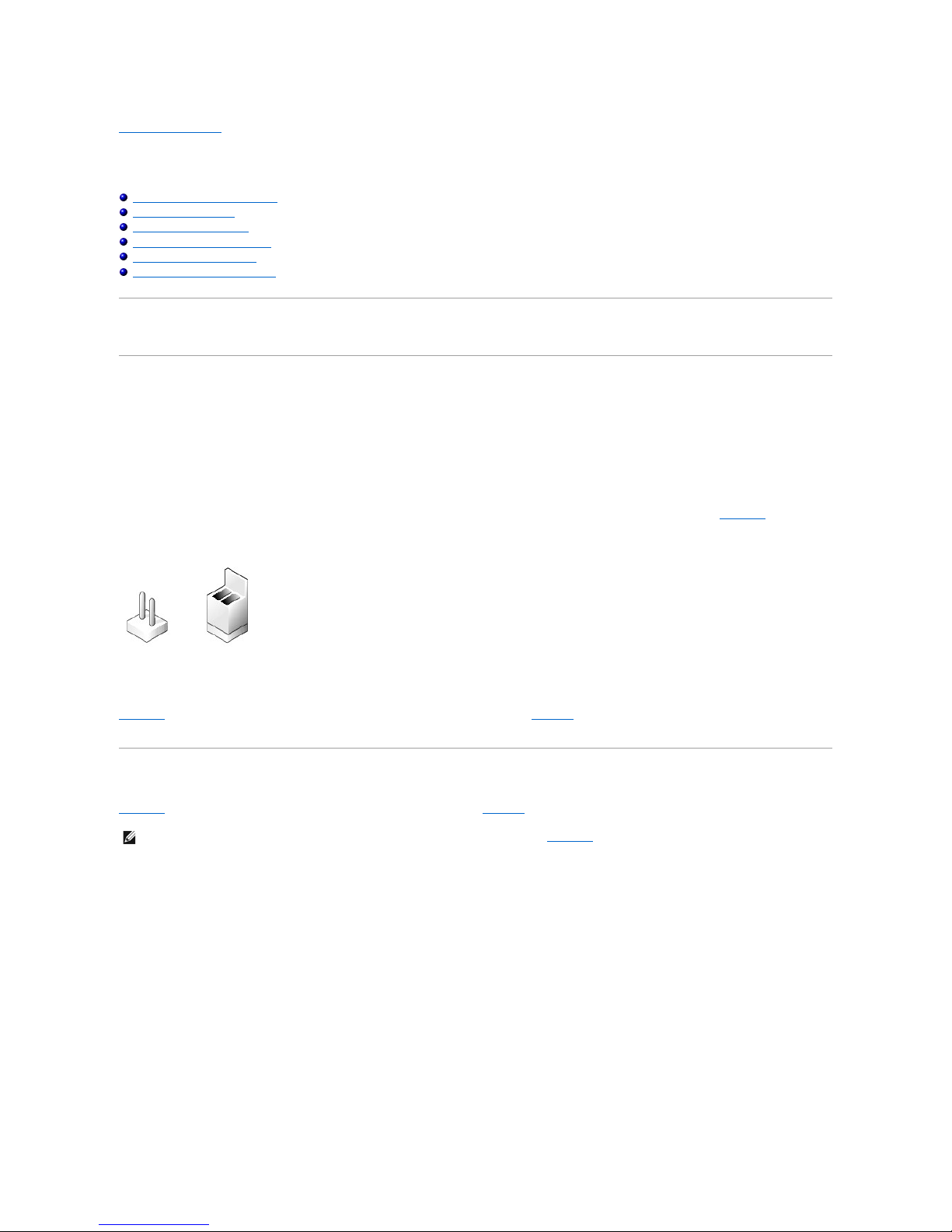

Figure A-1. Example Jumper

A jumper is referred to as open or unjumpered when the plug is pushed down over only one pin or if there is no plug at all. When the plug is pushed down

over two pins, the jumper is referred to as jumpered. The jumper setting is often shown in text as two numbers, such as 1–2. The number 1 is printed on the

circuitboardwithatrianglesothatyoucanidentifyeachpinnumberbasedonthelocationofpin1.

FigureA-2 shows the location and default settings of the server-module jumper blocks. See TableA-1 for the designations, default settings, and functions of

the jumpers.

System Board Jumpers

FigureA-2 shows the location of the configuration jumpers on the system board. TableA-1 lists the jumper settings.

Figure A-2. System Board Jumpers

NOTE: To access the jumpers, remove any expansion cards installed in slots 6 and 7. See FigureA-3.

Table A-1.SystemBoardJumperSettings

System Board Connectors

See FigureA-3 and TableA-2 for the location and description of the system board connectors.

Figure A-3. System Board Connectors



Jumper



Setting



Description

PASSWD

(default)

The password feature is enabled.

The password feature is disabled.

NVRAM_CLR

(default)

The configuration settings in NVRAM are retained at system boot.

The configuration settings in NVRAM are cleared at next system boot.

Table A-2.SystemBoardConnectors

Memory Riser Card Connectors

See FigureA-4 for the location of the connectors on the memory riser card.

Figure A-4. Memory Riser Card Connectors



Connector



Description

BATTERY

Connector for the 3.0-V coin battery

BKPLN SIG

Backplane interface cable connector

PROC_n

Processor connector (4)

CPU3 VRM, CPU4 VRM

Voltage regulator modules (VRMs) for processors 3 and 4

CPU 3&4 CACHE VRM

Reserved

FIBRE CHAN

Integrated Fiber Channel module card

MEM A, B, C, D

Memory riser card connector (4)

NVRAM_CLR

NVRAM jumper. See TableA-1.

PASSWD

Password jumper. See TableA-1.

SCSI_A, SCSI_B

Connectors for the integrated SCSI controller (2)

SLOT n

Expansion slot connector (7)

RAID_BAT

Connector for the optional RAID battery

RAID_DIMM

Connector for the optional RAID memory module

RAID_KEY

Connector for the optional RAID key

RMC

Connector for the remote access controller (RAC)

SCSI Backplane Connectors

See FigureA-5 for the location and description of the connectors on the back of the SCSI backplane board.

Figure A-5. Connectors on Back of SCSI Backplane

Disabling a Forgotten Password

Thesystem'ssoftwaresecurityfeaturesincludeasystempasswordandasetuppassword,whicharediscussedindetailin"UsingtheSystemSetupProgram"

in your User's Guide.Thepasswordjumperenablesthesepasswordfeaturesordisablesthemandclearsanypassword(s)currentlyinuse.



1. Turn off the system and attached peripherals, and disconnect the system from the electrical outlet.



2. Open the system. See "Opening the System" in "Troubleshooting Your System."



3. Remove the expansion card from expansion slots 6 and 7, if installed. See "Expansion Cards" in "Installing System Components."



4. Remove the password jumper plug from pins 1 and 2 and place it on pins 2 and 3.

See FigureA-2 to locate the password jumper on the system board.



5. Replace the expansion cards in expansion slots 6 and 7, if removed. See "Expansion Cards" in "Installing System Components."



6. Close the system. See "Closing the System" in "Troubleshooting Your System."



7. Reconnect the system to the electrical outlet, and turn on the system.

The existing passwords are not disabled (erased) until the system boots with the password jumper plug on pins 2 and 3. However, before you assign a

new system and/or setup password, you must install the jumper plug on pins 1 and 2.



8. Turn off the system, including any attached peripherals, and disconnect the system from the electrical outlet.



9. Open the system. See "Opening the System" in "Troubleshooting Your System."



CAUTION: Many repairs may only be done by a certified service technician. You should only perform troubleshooting and simple repairs as

authorized in your product documentation, or as directed by the online or telephone service and support team. Damage due to servicing that is not

authorized by Dell is not covered by your warranty. Read and follow the safety instructions that came with the product.

NOTE: If you assign a new system and/or setup password with the jumper plug still removed, the system disables the new password(s) the next

time it boots.

10. Remove the expansion cards from expansion slots 6 and 7, if installed. See "Expansion Cards" in "Installing System Components."



11. Reinstall the password jumper plug on pins 1 and 2 to enable the password protection feature.



12. Replace the expansion cards in expansion slots 6 and 7, if removed. See "Expansion Cards" in "Installing System Components."



13. Close the system, reconnect the system to the electrical outlet, and turn on the system.



14. Assign a new system and/or setup password.

To assign a new password using the System Setup program, see "Using the System Setup Program" in your User's Guide.

Back to Contents Page



Back to Contents Page

I/O Connectors

Dell™PowerEdge™6850SystemsInstallationandTroubleshootingGuide

Serial Connector

Video Connector

USB Connectors

Integrated NIC Connectors

Network Cable Requirements

I/O connectors are the gateways that the system uses to communicate with external devices, such as a keyboard, mouse, printer, or monitor. This section

describes the various connectors on your system. If you reconfigure the hardware connected to the system, you may also need the pin number and signal

information for these connectors. FigureB-1 illustrates the connectors on the system.

Figure B-1. I/O Connectors

TableB-1 shows the icons used to label the connectors on the system.

Table B-1. I/O Connector Icons

Serial Connector

Serial connectors support devices such as external modems, printers, and mice that require serial data transmission. The serial connector is also used by the

BMC to provide remote access to the system. The serial connector uses a 9-pin D-subminiature connector.



Serial Connector Autoconfiguration

The default designation of the integrated serial connector is COM1. When you add an expansion card containing a serial connector that has the same

designation as the integrated connector, the system's autoconfiguration feature remaps (reassigns) the integrated serial connector to the next available

designation. Both the new and the remapped COM connectors share the same IRQ setting. COM1 and COM3 share IRQ4, while COM2 and COM4 share IRQ3.

Before adding a card that remaps the COM connectors, check the documentation that came with the software to make sure that the software can

accommodate the new COM connector designation.

FigureB-2 illustrates the pin numbers for the serial connector and TableB-2 defines the pin assignments for the connector.

Figure B-2. Serial Connector Pin Numbers



Icon



Connector

Serial connector

Video connector

USB connector

NIC connector

NOTE: If two COM connectors share an IRQ setting, you may not be able to use them both at the same time. In addition, if you install one or more

expansion cards with serial connectors designated as COM1 and COM3, the integrated serial connector is disabled.

Table B-2.SerialConnectorPinAssignments

Video Connector

You can attach a VGA-compatible monitor to the system's integrated video controller using a 15-pin high-density D-subminiature connector on the system front

or back panel. FigureB-3 illustrates the pin numbers for the video connector and TableB-3 defines the pin assignments for the connector.

Figure B-3. Video Connector Pin Numbers

Table B-3. Video Connector Pin Assignments

USB Connectors

The system's USB connectors support USB-compliant peripherals such as keyboards, mice, and printers and may also support USB-compliant devices such as

diskette drives and optical drives. FigureB-4 illustrates the pin numbers for the USB connector and TableB-4 defines the pin assignments for the connector.



Signal



I/O



Definition

DCD

Data carrier detect

SIN

Serial input

SOUT

Serial output

DTR

Data terminal ready

GND

N/A

Signal ground

DSR

Data set ready

RTS

Request to send

CTS

Clear to send

Ring indicator

Shell

N/A

Chassis ground

NOTE: Installing a video card automatically disables the system's integrated video controller.



Signal



I/O



Definition

RED

Red video

GREEN

Green video

BLUE

Blue video

N/A

No connection

5–8, 10

GND

N/A

Signal ground

VCC

N/A

Vcc

N/A

No connection

DDC data out

Monitor detect data

HSYNC

Horizontal synchronization

VSYNC

Vertical synchronization

N/A

No connection

NOTICE: Do not attach a USB device or a combination of USB devices that draw a maximum current of more than 500 mA per channel or +5 V. Attaching

devices that exceed this threshold may cause the USB connectors to shut down. See the documentation that accompanied the USB devices for their

maximum current ratings.

Figure B-4. USB Connector Pin Numbers

Table B-4. USB Connector Pin Assignments

Integrated NIC Connectors

Each of the system's integrated NICs function as a separate network expansion card while providing fast communication between servers and workstations.

FigureB-5 illustrates the pin numbers for the NIC connector and TableB-5 defines the pin assignments for the connectors.

Figure B-5. NIC Connector

Table B-5. NIC Connector Pin Assignments

Network Cable Requirements

The NIC supports a UTP Ethernet cable equipped with a standard RJ45-compatible plug.

Observe the following cabling restrictions.

lUse Category 5 or greater wiring and connectors.

lDo not exceed a cable run length (from a workstation to a hub) of 100 m (328 ft).

For detailed guidelines on operation of a network, see "Systems Considerations of Multi-Segment Networks" in the IEEE 802.3 standard.

Back to Contents Page



Signal



I/O



Definition

Vcc

N/A

Supply voltage

DATA

Data in

+DATA

Data out

GND

N/A

Signal ground



Signal



I/O



Definition

TD+

Data out (+)

TD–

Data out (–)

RD+

Data in (+)

N/A

No connection

N/A

No connection

RD–

Data in (–)

N/A

No connection

N/A

No connection

NOTICE: To avoid line interference, voice and data lines must be in separate sheaths.

Back to Contents Page

Service-Only Parts Replacement Procedures

Dell™PowerEdge™6850SystemsInstallationandTroubleshootingGuide

Before You Begin

Recommended Tools

Control-Panel Assembly

Fan Interposer Board

SCSI Backplane

System Board

Power Distribution Board

Chassis Intrusion Switch

Before You Begin



The procedures in this document require that you remove the cover and work inside the system. While working inside the system, do not attempt to service

the system except as explained in this document and the User's Guide available on support.dell.com. Always follow the instructions closely, and ensure that

you review all safety precautions in the Product Information Guide.

Recommended Tools

You may need the following items to perform the procedures in this section:

l#2 Phillips screwdriver

lWrist grounding strap

Control-Panel Assembly



Removing the Control Panel



1. Turn off the system and attached peripherals, and disconnect the system from the electrical outlet.



2. Open the system. See "Opening the System" in "Troubleshooting Your System."



3. Remove fan 1. See "Removing a System Fan" in "Installing System Components."



4. Remove the three control-panel securing screws from the system front panel. See FigureC-1.



5. Lift the control-panel assembly out of the chassis.



6. Disconnect the control-panel cable from the control-panel assembly.

Figure C-1. Removing and Installing the Control-Panel Assembly

CAUTION: See your Product Information Guide for complete information about safety precautions, working inside the computer, and protecting

against electrostatic discharge.

CAUTION: Many repairs may only be done by a certified service technician. You should only perform troubleshooting and simple repairs as

authorized in your product documentation, or as directed by the online or telephone service and support team. Damage due to servicing that is not

authorized by Dell is not covered by your warranty. Read and follow the safety instructions that came with the product.

Autres manuels pour PowerEdge 6850

Table des matières

Autres manuels Dell Serveur

Dell

Dell Wyse ThinOS T10 Manuel utilisateur

Dell

Dell PowerEdge R730xd Manuel utilisateur

Dell

Dell Precision KR019 Manuel utilisateur

Dell

Dell PowerEdge C6220 II Manuel utilisateur

Dell

Dell 6100 Manuel utilisateur

Dell

Dell PowerEdge T105 Systems Manuel utilisateur

Dell

Dell EMC VxFlex Ready Node 13G Manuel utilisateur

Dell

Dell PowerEdge 2410 Manuel utilisateur

Dell

Dell PowerEdge T620 Manuel utilisateur

Dell

Dell PowerEdge C1100 Guide rapide

Dell

Dell PowerEdge T310 Manuel utilisateur

Dell

Dell PowerEdge EMT Manuel utilisateur

Dell

Dell PowerEdge 850 Manuel technique

Dell

Dell PowerEdge R520 Manuel utilisateur

Dell

Dell poweredge VRTX Manuel utilisateur

Dell

Dell Force10 S2410-01-10GE-24P Instructions d'installation et d'utilisation

Dell

Dell PowerEdge R430 Manuel utilisateur

Dell

Dell PowerEdge SC1435 Manuel utilisateur

Dell

Dell Precision Workstation 350 Manuel utilisateur

Dell

Dell PowerEdge DR715 Manuel utilisateur

Dell

Dell 8 Manuel technique

Dell

Dell PowerEdge 1550 Manuel technique

Dell

Dell PowerEdge C6100 Manuel utilisateur

Dell

Dell PowerEdge C6100 Manuel utilisateur

Manuels Serveur populaires d'autres marques

HP AlphaServer ES47 Manuel utilisateur

PowerNAS

PowerNAS CMA Manuel utilisateur

Supero

Supero FatTwin F617R3-FT Manuel utilisateur

MSI

MSI P1-109N-L70 Manuel utilisateur

EtroVISION

EtroVISION EV3151 Manuel utilisateur

NEC

NEC Express5800/T110j Manuel utilisateur

HP ProLiant Gen9 Manuel utilisateur

Compaq

Compaq ProLiant 3000 Manuel

iRobo

iRobo IPC2U Manuel utilisateur

Nortel

Nortel 1000 Con?guration guide Manuel utilisateur

Asus

Asus AP7500 Manuel d'utilisation et d'entretien

Avid Technology

Avid Technology AirSpeed 5000 Manuel utilisateur

HP Integrity rx2600 Guide d'installation

Milestone

Milestone Husky IVO 350T Manuel utilisateur

Planet

Planet NAS-7410 Manuel utilisateur

Lenovo

Lenovo ThinkSystem SR635 V3 Manuel utilisateur

Fujitsu

Fujitsu PRIMERGY BX900 Manuel utilisateur

Asus

Asus RS700DA-E6 PS4 Manuel utilisateur
