Dell 3010cn - Color Laser Printer Manuel utilisateur

Dell 3010cn

Service Manual

14 Jan 2010

Information in this document is subject to change without notice.

Reproduction in any manner whatsoever without the written permission of Dell Inc.is strictly forbidden.

Trademarks used in this text: Dell and the DELL logo are trademarks of Dell Inc.

Other trademarks and trade names may be used in this document to refer to the entities claiming the marks and

names of their products. Dell Inc. disclaims any proprietary interest in trademarks and trade names other than

its own.

Intro-1

Cautions for operation

Contents of this document may be subjected to modification without previous notice.

Dell Inc. will not assume responsibilityfor accidental or incidental damagesresulting from technical

in this manual, or the use of this manual.

or editorial errors or omissionsin this manual, the issue of this manual, the execution of descriptions

in any form without written permission from Dell Inc.

This document is protected by copyright. Do not photocopy or duplicate any part of this document

Intro-2

1. About this manual

2. Marks giving caution

Maintenance operations requiring special cautions or additional information to descriptions of this

manual are presented as "Warning", "Caution", or "Note", according to their nature.

If instructions are not observed, death or serious injury may be caused.

If instructions are not observed, injuries of workers or physical damages to assets

(including this laser printer) may result.

Particularly important essentials for procedures, steps, rules, and others.

Reference Incidental information to descriptions.

3. Related documents

- Instruction manuals (standard manuals)

Describe operation and handling of this laser printer.

- Performance specifications

Describe in detail various specifications of this laser printer.

(In the event of discrepancy between this manual and the performance specifications,

the performance specifications shall take preference.)

- Spare parts list

Information on maintenance parts (spare parts) for this laser printer

This manual is a standard service manual of

Dell Inc.

containing information

required for maintenance

of this laser printer (standard specifications).

Intro-3

4. Safety

To prevent possible accidents during maintenance operation, you should observe strictly the "Warning"

and "Caution" information in this manual.

Dangerous operations and operations out of range of this manual should be absolutely avoided.

Generally various processes not covered by this manual may be required in actual operation, which

should be performed carefully always giving attention to safety.

4.1 Power source

Keep the power supply off during maintenance operation to prevent electric shock, burns and other

damages. Keep the power plug disconnected during the maintenance operation.

If the power supply should be kept connected for measurement of voltage or other similar reasons,

sufficient care should be given to prevent electric shock, by following the procedures of this manual.

While the printer is ON, never touch live parts if not required absolutely.

Power is supplied to the power switch / inlet (PWBA FUSER CONT) even while the

printer is off. Never touch its live components.

Do not touch live parts unless otherwise specified.

Leg_Sec001_202LA

Intro-4

4.2 Driving units

When servicing gears or other driving units, be sure to turn them OFF and plug off. Drive them

manually when required.

Never touch the gears or other driving units while the printer is running.

4.3 High-temperature units

When servicing high-temperature units (securing unit, etc.), be sure to turn them OFF to prevent burns,

injuries and other troubles, remove the power plug and start service processes after they have cooled

down enough.

Immediately after completion of operation, they are still hot. Start services after

more than 40 minutes.

Intro-5

4.4 Laser beams

• If your eyes are exposed to laser beams, you may lose your eyesight.

• Never open the cover if warning label for laser beams is attached there.

• Before disassembling and reassembling this laser printer, be sure to turn it OFF.

• When servicing this laser printer while it is running, be sure to follow the

procedures specified in this manual.

• You should understand the features of the laser beams which are capable of

having an injurious action on the human body, not to extend the danger over the

workers as well as other people around the printer.

Laser beams have features as follows:

• Frequencies are smaller in width than other beams (sun and electric bulbs) and

phases are uniform so that high monochromatic and convergence performance

can be obtained and thin beams of light can reach places at a long distance.

• Due to the high convergence, beams are concentrated in high density and high

temperature, which is dangerous to human body.

Reference: Laser beams of this laser printer is invisible rays which you cannot see.

Leg_Sec001_003LA

ROS ASSY

Intro-6

4.5 Warning/caution labels

Warning labels and caution labels are attached to this laser printer to prevent accidents Check those

labels for their peeling or stain when servicing the printer.

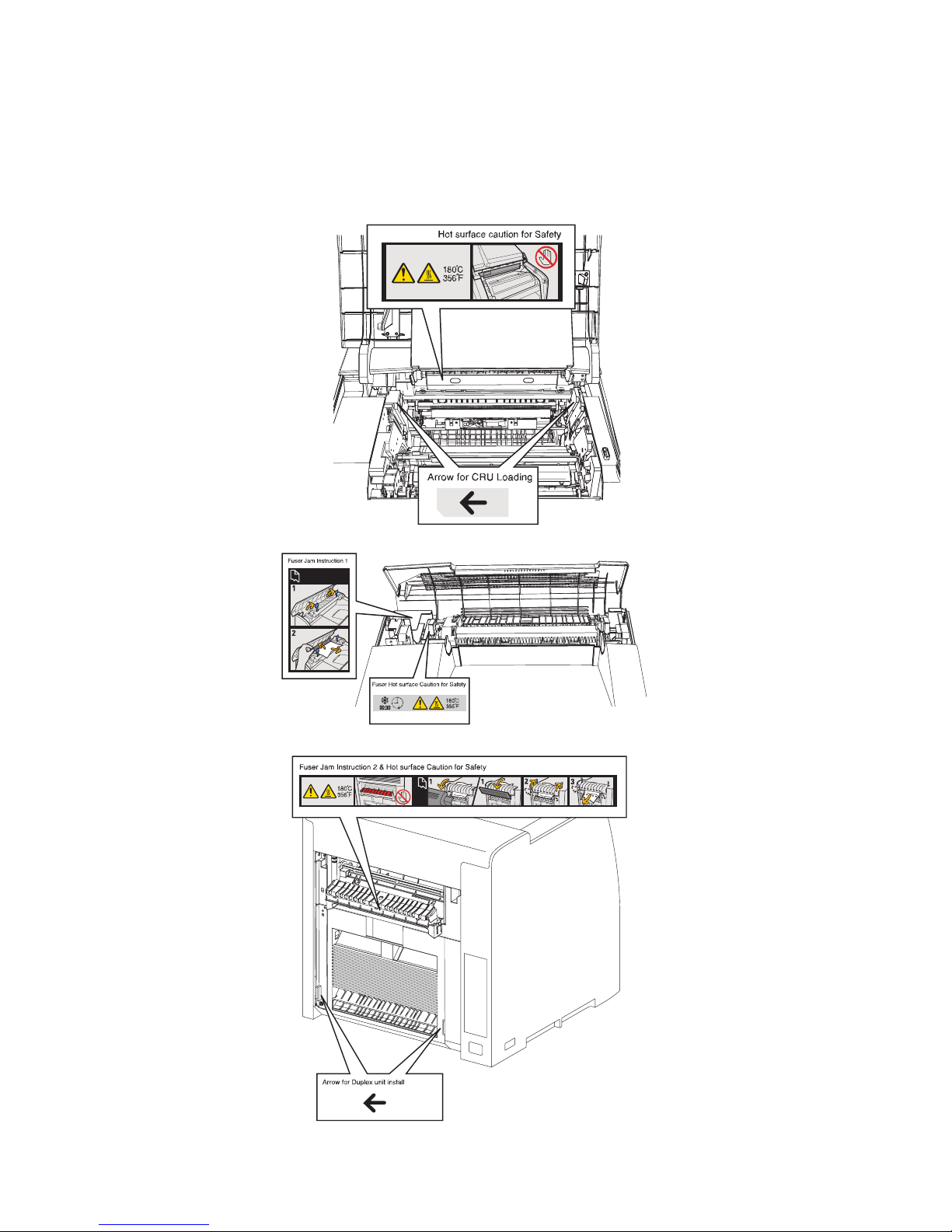

4.5.1 Caution label for high-temperature units

Leg_Sec001_004FA

Leg_Sec001_005FA

Leg_Sec001_006LA

Intro-7

4.5.2 Caution label regarding IBT ASSY and toner cartridge

4.5.3 Caution label regarding MSI and paper tray

Leg_Sec001_007LA

Leg_Sec001_008LA Leg_Sec001_009FA

Intro-8

4.5.4 Caution label for ROS

Leg_Sec001_010LA
