1. Disassembly Procedures:

Step Figure Remark

S1.Before

disassemble

Turn off power,

Unplug external cables

from product

S2. Remove the

STAND-BASE

ASS’Y

To remove the stand:

Press the button on the

red circle then pull out

the stand follow the

arrow, stand will be

remove.

Note:

To prevent scratches on

the LCD screen while

removing the stand,

ensure that the monitor is

placed on a soft, clean

surface.

SE2417HG 2

S3.Remove the

REAR COVER

Use a Philips-head

screwdriver to remove 2

screws for unlocking

mechanisms.

(No.1~2 screw

size=M3x4;

Torque=4±1kgf.cm)

Use Penknife to separate

the bezel and rear cove

follow the arrows in

sequence, then you can

take out rear cover.

S4.Disconnect the

FFC cable

S5.Remove the

VGA

Use a hex screwdriver to

remove 2 screws for

unlocking mainboard.

(No.1~2 is Hex-screw,

Torque= 4.5±0.5kgf.cm)

1 2

SE2417HG 3

S6.Remove the

FFC cable

S7.Remove the

PAPER TAPE

and panel FFC

cable

S8.Remove the

MAIN FRAME

Remove and turn over it.

SE2417HG 4

S9.Remove the

MAIN &POWER

BOARD

Use a Philips-head

screwdriver to remove 5

screws for unlocking

main board and power

board

(No.1~4 screw

size=D3x6;

Torque=6±1kgf.cm

No.5 screw size=M4x6;

Torque= 6±1kgf.cm)

Remove the cables

S10.Remove the

KEY BOARD

Use a Philips-head

screwdriver to remove 4

screws for unlocking Key

board.

(No.1~4 screw

size= M2x2.5

Torque=0.9±0.4kgf.cm)

1 2 3 4

SE2417HG 5

S11.The PANEL

S12.Remove the

screw

Use a Philips-head

screwdriver to remove

1screws for unlocking

main frame

(No.1 screw size= Q3x6

Torque=4±1kgf.cm)

S13.The MAIN

FRAME

S14.The BEZEL

SE2417HG 6

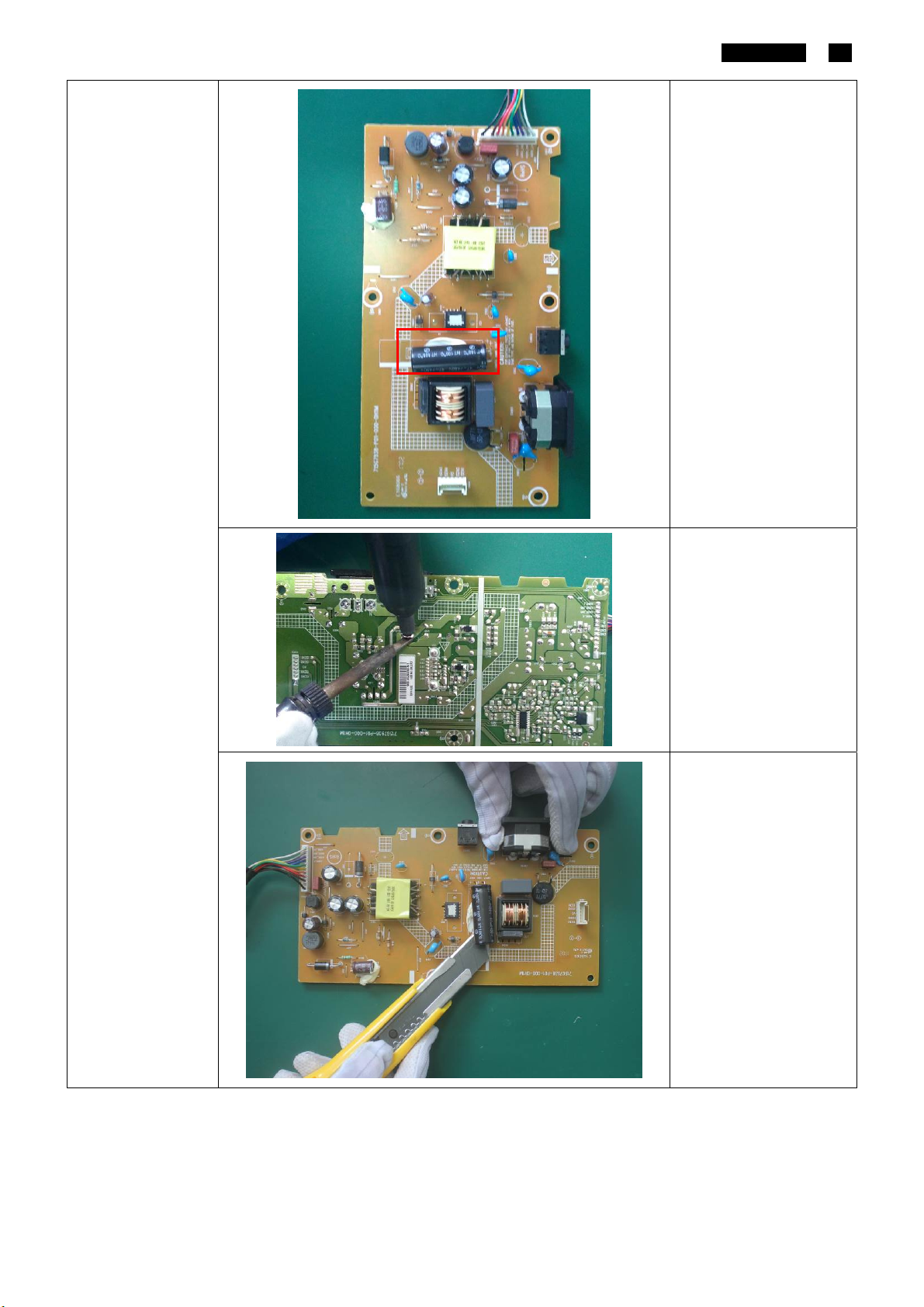

S15.Remove

capacitor

Remove electrolyte

capacitors (red mark)

from printed circuit

boards

Take out bulk cap. pin

solder with soldering

iron and absorber

Lift the bulk cap. up and

away from the PCB

SE2417HG 7

2. Product material information

The following substances, preparations, or components should be disposed of or recovered

separately from other WEEE in compliance with Article 4 of EU Council Directive 75/442/EEC.

Capacitors / condensers (containing

PCB/PCT)

No used

Mercury containing components No used

Batteries No used

Printed circuit boards (with a surface

greater than 10 square cm)

Product has printed circuit boards (with a

surface greater than 10 square cm)

Component contain toner, ink and liquids No used

Plastic containing BFR No used

Component and waste contain asbestos No used

CRT No used

Component contain CFC, HCFC, HFC

and HC

No used

Gas discharge lamps No used

LCD display > 100 cm2 Product has an LCD greater than 100 cm2

External electric cable Product has external cables

Component contain refractory ceramic

fibers

No used

Component contain radio-active

substances

No used

Electrolyte capacitors (height

> 25mm, diameter > 25mm)

Product has electrolyte capacitors

(height > 25mm, diameter > 25mm)

3. Tools Required

Listthetypeandsizeofthetoolsthatwouldtypicallycanbeusedtodisassembletheproducttoapoint

wherecomponentsandmaterialsrequiringselectivetreatmentcanberemoved.

ToolDescription:

‐PhillipheadScrewdriver

‐HexScrewdriver

‐Penknife

‐Solderingironandabsorber
