Dell S2721NX Manuel utilisateur

Product Announcement:

This product is certificated to meet RoHS

Directive and Lead-Free produced definition.

Using approved critical components only is

recommended when the situation to replace

defective parts. Vender assumes no liability

express or implied, arising out of any unauthorized

modification of design or replacing non-RoHS

parts. Service providers assume all liability.

Qualified Repairability:

Proper service and repair is important to the safe,

reliable operation of all series products. The

service providers recommended by vender should

be aware of notices listed in this service manual in

order to minimize the risk of personal injury when

perform service procedures. Furthermore, the

possible existed improper repairing method may

damage equipment or products. It is recommended

that service engineers should have repairing

knowledge, experience, as well as appropriate

product training per new model before performing

the service procedures.

NOTICE:

! To avoid electrical shocks, the products should be

connected to an authorized power cord, and turn

off the master power switch each time before

removing the AC power cord.

! To prevent the product away from water or

expose in extremely high humility environment.

! To ensure the continued reliability of this

product, use only original manufacturer’s

specified parts.

! To ensure following safety repairing behavior, put

the replaced part on the components side of

PWBA, not solder side.

! To ensure using a proper screwdriver, follow the

torque and force listed in assembly and

disassembly procedures to unscrew screws.

! Using Lead-Free solder to well mounted the

parts.

! The fusion point of Lead-Free solder requested in

the degree of 220°C.

1. Important Safety Notice

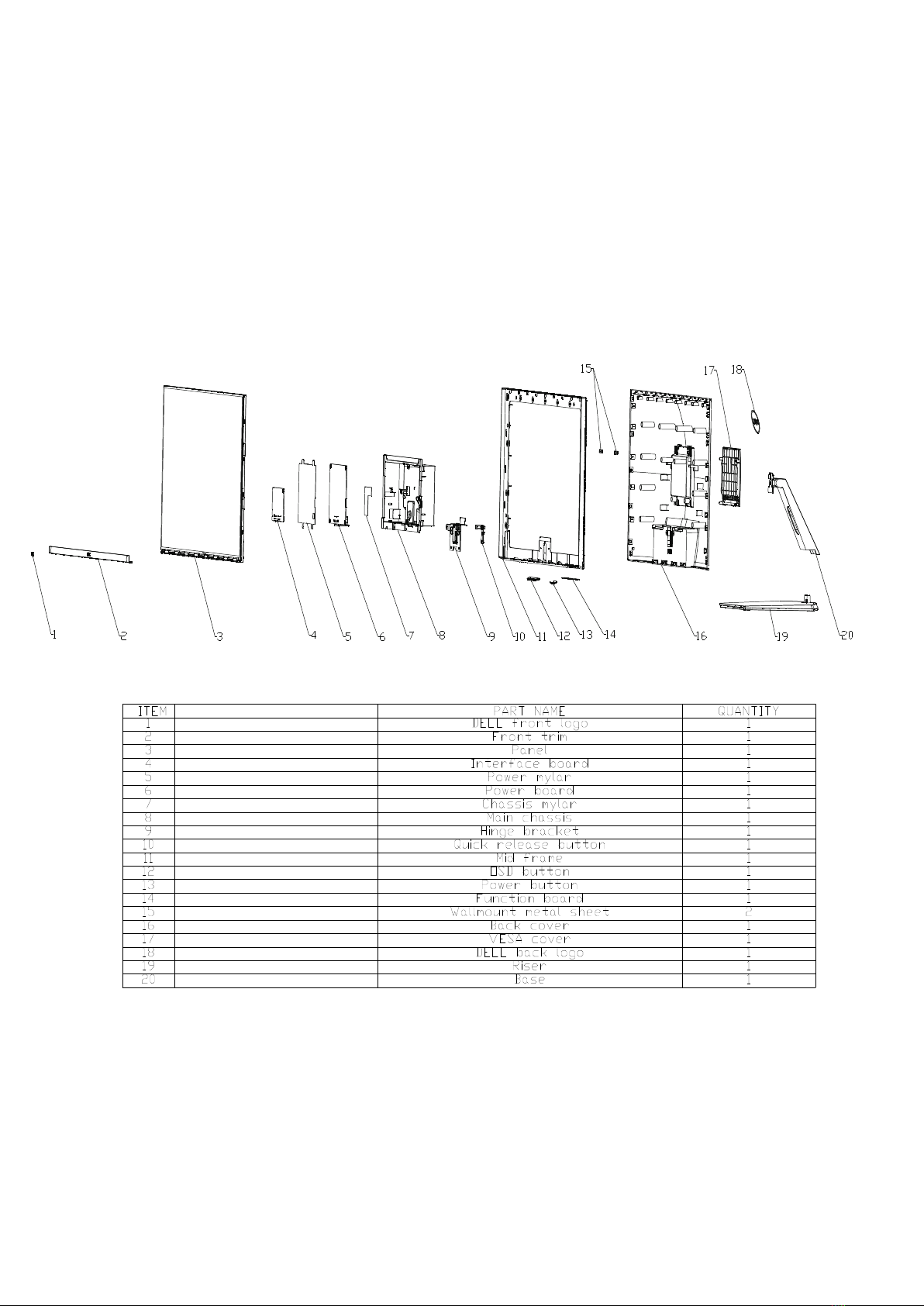

2. Exploded view diagram with list of items

3. Wiring Connectivity Diagram

Panle 1920*1080

Power Board

HDMI HDMI Line Out

FK BD

KB1

Interface Board

4. Disassembly and Assembly Procedures

4.1 Disassembly Procedures:

Remove the monitor stand base:

1. Place the monitor on a soft cloth or cushion.

2. Press the stand down to access to the release latch.

3. Use a long screwdriver to press the release latch.

While pressing the release latch, slide out the

stand assembly from the monitor.

Use one hand to press the rear cover, then wedge

your fingers between the rear cover and the middle

bezel on the corners of the top left side to the right

side of the monitor to release the rear cover.

To remove the VESA cover: Press the dimple on the

VESA cover to release it from the back of the display.

Use a Philips-head screwdriver to remove 6pcs

screws for unlocking mechanisms.

(No.1~4 screw size=M4x11; Torque=7 8kgfxcm;

No.5~6 screw size=M4x8; Torque=7 8kgfxcm)

Necessary repair and test equipment:

1. Philips-head screwdriver

Tear off 1pcs acetate tape and then disconnect the

panel lamp cable away from the connector of panel.

Tear off 2pcs aluminum foils, and then disconnect

the function key cable away from the connector of

the board.

Use a Philips-head screwdriver to remove 2pcs

screws for unlocking the bracket with middle bezel, to

remove 2pcs screws for unlocking the bracket with

panel module.

(No.1~2 screw size=M3x4, Torque=3~4kgfxcm;

No.3~4 screw size=M3x3.5, Torque=2~3kgfxcm )

Use a Philips-head screwdriver to remove 18pcs

screws for unlocking the middle bezel.

(No.1~13 screw size=M3x4, Torque=3~4kgfxcm;

No.14~18 screw size=M2x3.3, Torque=1±0.2kgfxcm)

212 13

17 18

4. Disassembly and Assembly Procedures

Take away the middle bezel, and put it on a fixture.

tear off the tapes for

releasing the key cables.

se a Philips-head screwdriver to remove 3pcs

screws for unlocking the function key board with the

middle bezel, and then

(No.1~3 screw size=M2x2.4, Torque=0.8±0.2kgfxcm

Tear off the tape, then lift up the panel module with

the bracket chassis for releasing the front bezel

away from the panel module.

Unplug the LVDS cable from the connector of the

panel module by pushing the earing-locks.

S10

Take away the bracket chassis module and then put

the bracket chassis module on a protective cushion.

Remove the Mylar from the hooks of the bracket

chassis module.

S12

S11

Use a Philips-head screwdriver to remove 5pcs

screws for unlocking the circuit board, release all the

cables from the hooks.

(No.1 screw size=M4x8, Torque=6±0.5kgfxcm;

No. 2~5 screw size=M3x7.5, Torque=6±0.5kgfxcm)

S13

4. Disassembly and Assembly Procedures

Remove the interface board and power board from

the bracket chassis module carefully, and disconnect

all the cables.

S14

4. Disassembly and Assembly Procedures

Take a mylar to insert the hooks of the bracket to

cover the power board.

Panel preparation: Take out 1pcs panel module from

the carton, then remove the protective film by tearing

off the tapes, and then examine the panel surface

according to inspection criteria. Turn over the panel,

and then place screen faced down for later

assembling.

Turn over a power board and put the power board

into the bracket chassis, locate the panel power

cable into the hook of the bracket chassis.

Place a bracket chassis base on a protective

cushion.

4.2 Assembly Procedures:

Take a interface board, connect a LVDS cable to the

connector of the interface board, then connect the

cable of the power board to the connector of the

interface board. Turn over the interface board and

locate it into the bracket. Use a Philips-head

screwdriver to tighten 5pcs screws for locking the

power board and interface board.

(No.1 screw size=M4x8, Torque=6±0.5kgfxcm;

No.2~5 screw size=M3x7.5, Torque=6±0.5kgfxcm)

Move the bracket close to the panel, then connect

LVDS cable to the connector of the panel. Turn over

the bracket and put it on the back of panel. Paste

1pcs tape to cover the LVDS connector.

4. Disassembly and Assembly Procedures

Use a Philips-head screwdriver to tighten 2pcs

screws for locking the bracket with middle bezel, to

tighten 2pcs screws for locking the bracket with panel.

(No.1~2 screw size=M3x4, Torque=3~4kgfxcm;

No.3~4 screw size=M3x3.5, Torque=2~3kgfxcm )

Take a function key board and a middle bezel, then

fix the middle bezel with a fixture, and locate the

function keyboard into the hooks of the bezel Use a

Philips-head screwdriver to tighten 3pcs screws for

locking the function key board with the middle bezel.

(No.1~3 screw size=M2x2.4, Torque=0.8±0.2kgfxcm

S13

Move the middle bezel with function key board close

to the panel unit, tear off the papers of the tapes on

the back of the key cable, and then fix the key cable

on the bezel by 1pcs tape, then assemble the middle

bezel with the front bezel and panel module.

S14

S11

S12

S10

Take 1pcs front bezel, then lift up the panel with

bracket and assemble the front bezel with the panel

module.

Connect the panel lamp cable to the connector of

panel, then paste 1pcs acetate tape to cover the

panel lamp connector.

Connect the function key cable to the connector of

board, then paste 2pcs aluminum foils on the

specific positions as the picture below shown.

Use a Philips-head screwdriver to lock 13pcs screws

for locking the middle bezel with the panel module,

then lock 5pcs screws for locking the middle bezel

with front bezel.

(No.1~13 screw size=M3x4, Torque=3~4kgfxcm;

No.14~18 screw size=M2x3.3, Torque=1±0.2kgfxcm)

212 13

17 18

4. Disassembly and Assembly Procedures

Use a Philips-head screwdriver to tighten 4pcs

screws for locking rear cover with the assembled

unit, to tighten 2pcs screws for locking the rear

cover with bracket chassis module.

(No.1~4 screw size=M4x11; Torque=7 8kgfxcm;

No.5~6 screw size=M4x8; Torque=7 8kgfxcm)

Take 1pcs rear cover, put down the rear cover

and push the rear cover on the positions marked

as the picture below shown for mechanisms

engagement.

S15

S16

front bezel with panel module , then provide power

supply and a video signal to the monitor, then turn

on the monitor for functionality check.

ift up the monitor to checking the gap between the

S18

Stick 2pcs labels on the specific positions as the

picture below shown. Take 1pcs stand riser and

1pcs stand base, assemble the stand base with

stand riser, then rotate the screw clockwise to lock

the stand base and stand riser. Insert the stand-riser

into monitor groove until it snaps into its place.

S17

5. Trouble Shooting Instructions

Self-test

Your monitor provides a self-test feature that allows you to check whether your

monitor is functioning properly. If your monitor and computer are properly connected

but the monitor screen remains dark, run the monitor self-test by performing the

following steps:

1. Turn o both your computer and the monitor.

2. Unplug the video cable from the back of the computer. To ensure proper Self-Test

operation, remove all video cables from the back of computer.

3. Turn on the monitor.

The floating dialog box should appear on-screen (against a black background), if the

monitor cannot sense a video signal and is working correctly. While in self-test mode,

the power LED remains white. Also, depending upon the selected input, one of the

dialogs shown below will continuously scroll through the screen.

S2421HN/S2421NX S2721HN/S2721NX

The display will go into Standby Mode in 4 minutes.

www.dell.com/support/S2421HN

www.dell.com/support/S2421NX

Dell 24 Monitor

S2421HN/S2421NX

No HDMI1 Cable

The display will go into Standby Mode in 4 minutes.

www.dell.com/support/S2421HN

www.dell.com/support/S2421NX

Dell 24 Monitor

S2421HN/S2421NX

No HDMI2 Cable

The display will go into Standby Mode in 4 minutes.

www.dell.com/support/S2721HN

www.dell.com/support/S2721NX

Dell 27 Monitor

S2721HN/S2721NX

No HDMI1 Cable

The display will go into Standby Mode in 4 minutes.

www.dell.com/support/S2721HN

www.dell.com/support/S2721NX

Dell 27 Monitor

S2721HN/S2721NX

No HDMI2 Cable

4. This box also appears during normal system operation if the video cable is

disconnected or damaged.

5. Turn o your monitor and reconnect the video cable; then turn on both your

computer and the monitor.

If your monitor screen remains blank after you use the previous procedure, check your

video controller and computer, because your monitor is functioning properly.

Table des matières

Autres manuels Dell Moniteur

Dell

Dell 1908WFP - UltraSharp - 19" LCD Monitor Manuel utilisateur

Dell

Dell S2719DGF Manuel utilisateur

Dell

Dell S2719DGF Manuel

Dell

Dell S2440L Manuel utilisateur

Dell

Dell E178FP Manuel utilisateur

Dell

Dell S3221QS Manuel utilisateur

Dell

Dell G2210 Manuel utilisateur

Dell

Dell E157FP - 15" LCD Monitor Manuel utilisateur

Dell

Dell 1708FP - UltraSharp - 17" LCD Monitor Manuel utilisateur

Dell

Dell S2240T Manuel utilisateur

Dell

Dell AW2721DB Instructions d'utilisation

Dell

Dell UltraSharp U2515HX Manuel utilisateur

Dell

Dell UltraSharp U2419H Manuel utilisateur

Dell

Dell SP2009W Manuel utilisateur

Dell

Dell SR2220L Fiche technique

Dell

Dell E156FPc Manuel utilisateur

Dell

Dell P2720DCc Manuel utilisateur

Dell

Dell SE197FP - 19" LCD Monitor Manuel utilisateur

Dell

Dell P4317Q Manuel utilisateur

Dell

Dell 2405FPW - UltraSharp - 24" LCD Monitor Instructions d'utilisation

Dell

Dell UltraSharp 1801FP Instructions d'utilisation

Dell

Dell UltraSharp UP3017Q Manuel utilisateur

Dell

Dell UltraSharp 1800FP Manuel utilisateur

Dell

Dell E1909WDD Manuel utilisateur

Manuels Moniteur populaires d'autres marques

Linear Acoustic

Linear Acoustic LQ-1000 Manuel utilisateur

AOC

AOC I2579V Manuel utilisateur

Gateway

Gateway FPD1520 Manuel utilisateur

Furuno

Furuno Mu 120c Manuel utilisateur

Asus

Asus VB171D - 17" LCD Monitor Manuel utilisateur

Philips

Philips 107C64 Manuel utilisateur

EverFocus

EverFocus EN-7517E Manuel utilisateur

Panasonic

Panasonic TH152UX1 - 152" PLASMA TV Manuel utilisateur

LG 50PM1M - - 50" Plasma Panel Manuel utilisateur

Bosch

Bosch DDU 9 Manuel utilisateur

Acer

Acer A231HL Manuel utilisateur

Philips

Philips 86BDL4152T Manuel utilisateur

NEC

NEC AccuSync LCD5V Manuel utilisateur

Emay

Emay SleepO2 Manuel utilisateur

IBM

IBM 6360 Instructions d'installation

LG M1950D-PZ Manuel utilisateur

Sceptre

Sceptre D40 Manuel utilisateur

Hunt Electronic

Hunt Electronic HCD-15AH Manuel utilisateur
