Dell P1917S Manuel utilisateur

Model No.: P1917S/P1917SWh/P2017H/P2217/P2217Wh

Regulatory model: P1917Sc/P2017Hc/P2217c/P2217t

User’s Guide

Dell P1917S/P1917SWh/P2017H/P2217/

P2217Wh

Notes, Cautions, and Warnings

NOTE: A NOTE indicates important information that helps you make better

use of your computer.

CAUTION: A CAUTION indicates potential damage to hardware or loss of

data if instructions are not followed.

WARNING: A WARNING indicates a potential for property damage, personal

injury or death.

_________________________

Information in this document is subject to change without notice.

Reproduction of these materials in any manner whatsoever without the written permission

of Dell Inc. is strictly forbidden.

Trademarks used in this text: Dell and the DELL logo are trademarks of Dell Inc.; Microsoft

and Windows are either trademarks or registered trademarks of Microsoft. Corporation in

the United States and/or other countries, Intel is a registered trademark of Intel Corporation

in the U.S. and other countries; and ATI is a trademark of Advanced Micro Devices, Inc.

ENERGY STAR is a registered trademark of the U.S. Environmental Protection Agency. As an

ENERGY STAR partner, Dell Inc. has determined that this product meets the ENERGY STAR

guidelines for energy efficiency.

Other trademarks and trade names may be used in this document to refer to either the

entities claiming the marks and names or their products. Dell Inc. disclaims any proprietary

interest in trademarks and trade names other than its own.

2016 - 05 Rev. A01

Contents | 3

Contents

About your monitor ................................................................ 5

Package contents.......................................................................................5

Product features......................................................................................... 7

Identifying parts and controls..................................................................8

Monitor specifications.............................................................................12

Universal serial bus (USB) interface ......................................................25

Plug and play capability ..........................................................................28

LCD monitor quality and pixel policy...................................................28

Maintenance guidelines..........................................................................28

Setting up the monitor .........................................................29

Attaching the stand..................................................................................29

Connecting your monitor ...................................................................... 31

Organizing cables ....................................................................................33

Disconnecting the monitor stand.........................................................34

Wall mounting (optional)........................................................................35

Operating your monitor.......................................................36

Power on the monitor.............................................................................36

Using the front panel controls ..............................................................36

4| Contents

Using the on-screen display (OSD) menu ..........................................38

Setting up your monitor..........................................................................54

Using the Tilt, Swivel, and Vertical Extension.....................................55

Troubleshooting.................................................................... 57

Self-test ......................................................................................................57

Built-in diagnostics ................................................................................. 60

Common problems .................................................................................61

Product-specific problems ....................................................................63

Universal serial bus (USB) specific problems..................................... 64

Appendix .................................................................................65

FCC notices (U.S. Only) and other regulatory information.............65

Contacting Dell.........................................................................................65

About your monitor | 5

About your monitor

Package contents

Your monitor ships with the components shown below. Ensure that you have

received all the components and Contacting Dell if something is missing.

NOTE: Some items may be optional and may not ship with your monitor. Some

features or media may not be available in certain countries.

Monitor(P1917S/P1917SWh)

Monitor(P2017H/P2217/

P2217Wh)

Stand riser

6| About your monitor

Stand base

Power cable (varies by

country)

VGA cable

DP Cable

USB 3.0 Upstream Cable

(Enables the USB Ports on

the Monitor)

Dell

SE2417HG Monitor

Contents:

• Device drivers

• Quick Setup Guide

• User's Guide

• Dell Display Manager

Software

Drivers and Documentation

P/N YHVN1 Rev. A01

P/N Q70G19C170012B

April 2016

Made in China

Dell™ P1917S Monitor

YHVN1A01

(DELLP/N:1KCKM rev.A00)

Q41G78S170054A

PrintedinChina.

Dell P1917S/P1917SWh

Contents:

• Device drivers

• Quick Setup Guide

• User's Guide

• Dell Display Manager

Software

DriversandDocumentation

P/N YHVN1 Rev. A00

P/N Q70G19C170012A

April 2016

Made in China

Dell™

P1917S Monitor

YHVN1A00

Contents:

• Device drivers

• Quick Setup Guide

• User's Guide

• Dell Display Manager

Software

DriversandDocumentation

P/N YHVN1 Rev. A00

P/N Q70G19C170012A

April 2016

Made in China

Dell™ P1917S Monitor

YHVN1A00

USB USB

VGAVGA

35° 21°

∞ Drivers and

Documentation media

∞ Quick Setup Guide

∞ Safety and Regulatory

Information

About your monitor | 7

Product features

The Dell P1917S/P1917SWh/P2017H/P2217/P2217Wh flat panel display has an active

matrix, Thin-Film Transistor (TFT), Liquid Crystal Display (LCD), and LED backlight. The

monitor features include:

∞P1917S/P1917SWh:48.0 cm (19.0 inch) viewable area display (measured

diagonally). 1280 x 1024 resolution, plus full-screen support for lower

resolutions.

∞P2017H:49.5 cm (19.5 inch) viewable area display (measured diagonally). 1600 x

900 resolution, plus full-screen support for lower resolutions.

∞P2217/P2217Wh:55.9 cm (22.0 inch) viewable area display (measured

diagonally). 1680 x 1050 resolution, plus full-screen support for lower

resolutions.

∞ Plug and play capability if supported by your system.

∞ VGA, HDMI and DisplayPort connectivity.

∞ Equipped with 1 USB upstream port and 2 USB2.0 / 2 USB3.0 downstream ports.

∞ On-Screen Display (OSD) adjustments for ease of set-up and screen

optimization.

∞ Software and documentation media includes an Information File (INF), Image

Color Matching File (ICM), and product documentation.

∞ Dell Display Manager Software (in the CD shipped with the monitor).

∞ Security-cable slot.

∞ Tilt,swivel,height and rotate adjustment capabilities.

∞ Removable stand and Video Electronics Standards Association (VESA™) 100 mm

mounting holes for flexible mounting solutions.

∞ 0.3 W power consumption when in the sleep mode.

∞ Optimize eye comfort with a flicker-free screen and ComfortView feature which

minimizes blue light emission.

8| About your monitor

Identifying parts and controls

Front View

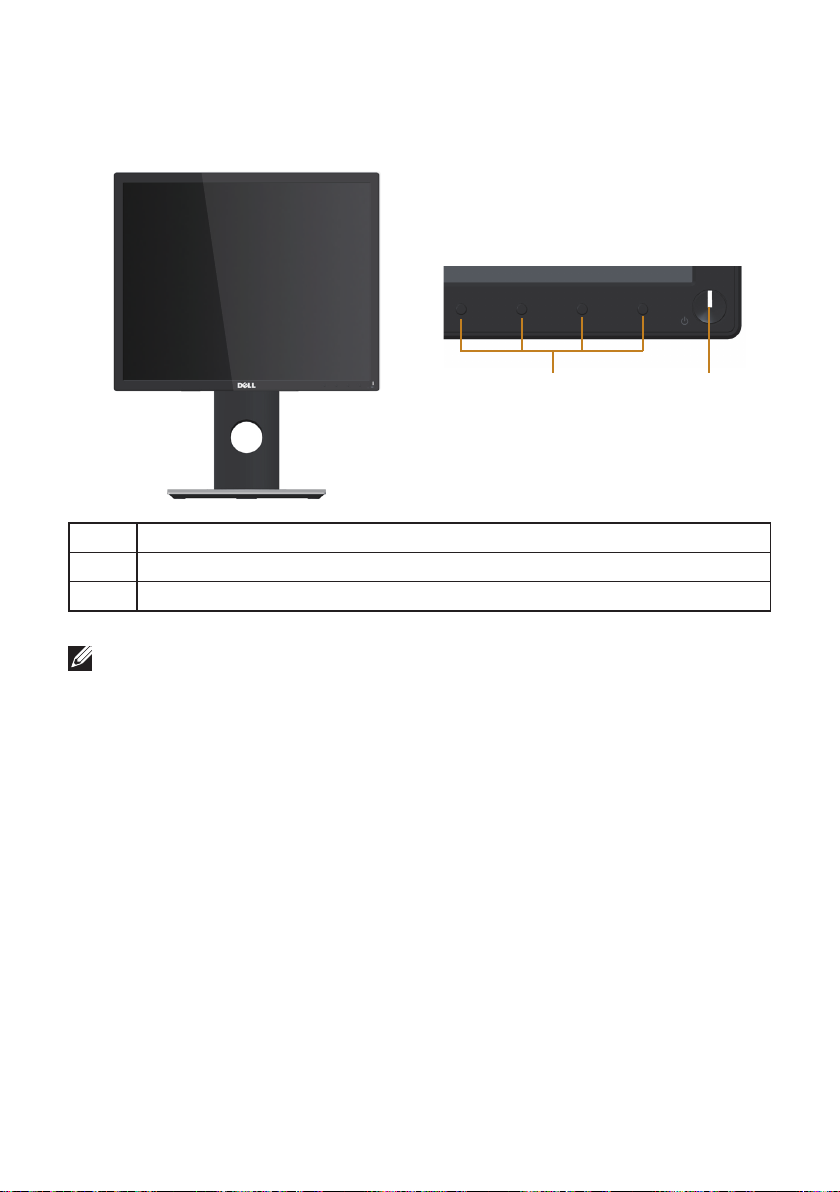

Front panel controls

Label Description

1Function buttons (For more information, see Operating your monitor)

2Power on/off button (with LED indicator)

NOTE: For displays with glossy bezels the user should consider the placement of

the display as the bezel may cause disturbing reflections from surrounding light

and bright surfaces.

About your monitor | 9

Back View

Q40G019N-700-52A

P1917S

MonitorPlano Panel /Moniteur écran plat /液晶顯示器

Modelo/N°de modelo /型號: P1917Sc

Entrade/Daya Tegangan:100-240V 50/60Hz,1.6A

輸入電源:交流電壓100-240伏特,1.6安培,50/60赫茲

Consumode energía: xx.x Wh

Consumode energía en modo de espera: x.x Wh

Удельная мощность рабочего режима - x.xxx Вт/см²

Потребляемая мощность изделием в режиме ожидания - x.xx Вт

Потребляемая мощность изделием в выключенном режиме - x.xx Вт

Theequipment must be connected to an earthed mains socket-outlet.

L'appareildoit être branché sur une prise de courant munie d'une mise à la terre.

CANICES-3 (B)/NMB-3(B)

сделанный в Китай /Fabriqué en Chine/中國製造

xxxxxxx-xx

デ

xxxxx

xxxxxxx-xxxxx

080-200-3800

MSIP-REM-TPF-P1917Sc

제조자/신청인:TPV Electronics (Fujian) Co., Ltd.

SVC Tag:

xxxxxxx

Express Service

Code:

xxx xxx xxx x

S/N: CN-12MWY-

64180-341-001L

-A00

Date of Mfg/生产日期/生產日期: December. 2015

Q40G019N-700-53A

DELL P1917S

Flat Panel Monitor /液晶显示器

MODELNO. /型号:P1917Sc

输入电源:

100-240V 50/60Hz,1.6A

www.dell.com Raheen Business Park Limerick Ireland

Madein China /中国制造

Back View without monitor stand Back View with monitor stand

Label Description Use

1VESA mounting holes (100 mm x 100

mm - behind attached VESA Cover)

Wall mount monitor using VESA-

compatible wall mount kit (100 mm x

100 mm).

2Regulatory label Lists the regulatory approvals.

3Stand release button Release stand from monitor.

4Security lock slot Secures monitor with security

lock(sold separately).

5Barcode, serial number, and Service

Tag label

Refer to this label if you need to

contact Dell for technical support.

6Dell Soundbar mounting slots Attaches the optional Dell Soundbar.

NOTE: Please remove the plastic strip

covering the mounting slots before

affixing the Dell Soundbar.

7Cable management slot Use to organize cables by placing

them through the slot.

10 | About your monitor

Side View

Label Description Use

1USB downstream port Connect your USB device.

NOTE: To use this port, you must connect the

USB cable (shipped with your monitor) to the

USB-upstream port on the monitor and to your

computer.
