Dell 2217H Manuel utilisateur

Dell P2217H/P2317H/P2317HWH/

P2417H/P2717H Monitor

User’s Guide

Model: P2217H/P2317H/P2317HWH/P2417H/P2717H

Regulatory model: P2217Hb, P2217Hc, P2317Hb, P2317Hf,

P2317Ht, P2317HWHb, P2417Hb, P2417Hc, P2717Ht

Notes, cautions, and warnings

NOTE: A NOTE indicates important information that helps you make better

use of your computer.

CAUTION: A CAUTION indicates potential damage to hardware or loss of

data if instructions are not followed.

WARNING: A WARNING indicates a potential for property damage,

personal injury, or death.

____________________

This product is protected by U.S. and international copyright and intellectual property laws.

Dell™ and the Dell logo are trademarks of Dell Inc. in the United States and/or other

jurisdictions. All other marks and names mentioned herein may be trademarks of their

respective companies.

2018 - 01 Rev. A05

Contents | 3

Contents

About Your Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Package Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

Product Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

Identifying Parts and Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

Monitor Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

Plug and Play Capability . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Universal Serial Bus (USB) Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

LCD Monitor Quality and Pixel Policy . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Maintenance Guidelines. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Setting Up the Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Attaching the Stand. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Connecting Your Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Organizing Your Cables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31

Removing the Monitor Stand . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31

Wall Mounting (Optional) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Operating the Monitor. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Power On the Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Using the Front-Panel Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Using the On-Screen Display (OSD) Menu . . . . . . . . . . . . . . . . . . . . . 35

4| Contents

Setting the Maximum Resolution . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

Using the Tilt, Swivel, and Vertical Extension . . . . . . . . . . . . . . . . . . .51

Rotating the Monitor. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

Adjusting the Rotation Display Settings of Your System . . . . . . . . . 53

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

Self-Test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

Built-in Diagnostics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

Common Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

Product Specific Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58

Universal Serial Bus (USB) Specific Problems . . . . . . . . . . . . . . . . . . . 59

Appendix . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

FCC Notices (U.S. Only) and Other Regulatory Information . . . . . . 60

Contact Dell. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

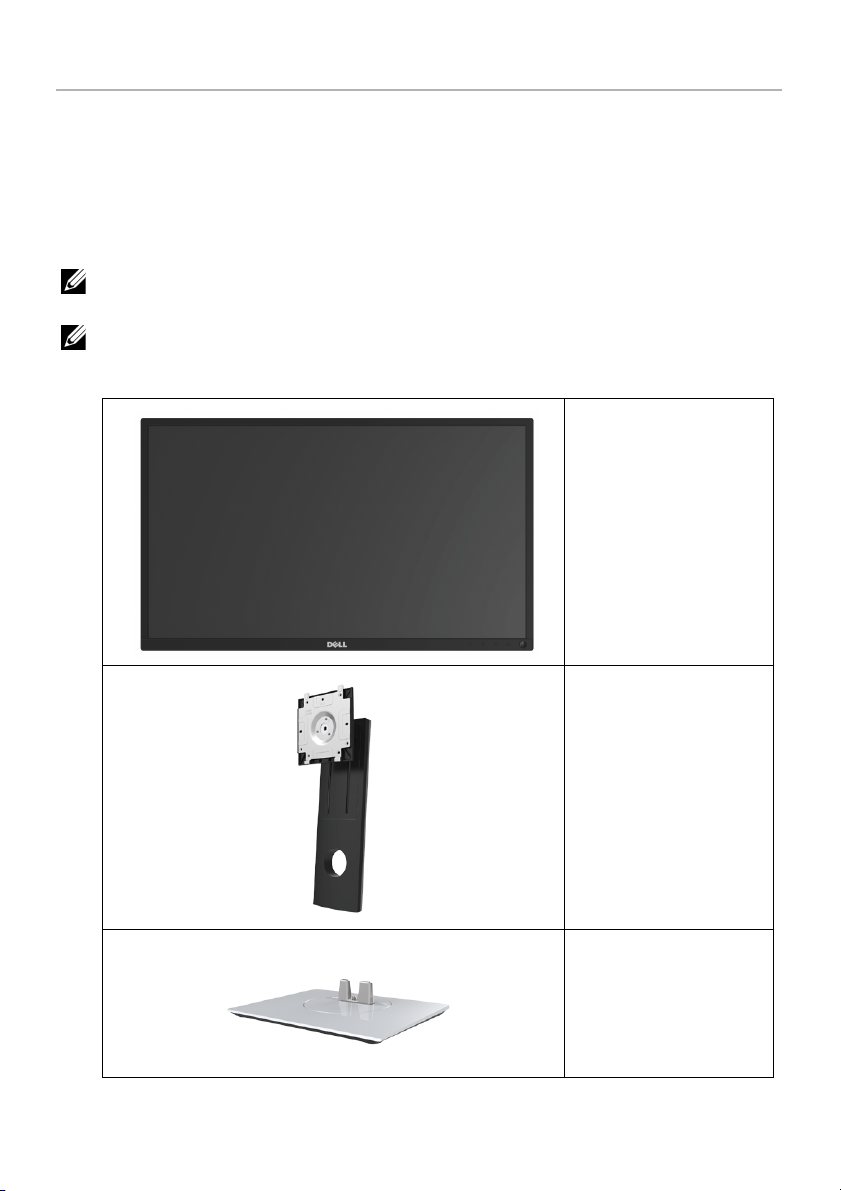

About Your Monitor | 5

About Your Monitor

Package Contents

Your monitor ships with the components shown below. Ensure that you have received all

the components and

Contact Dell

if something is missing.

Monitor

Stand Riser

Stand Base

NOTE: Some items may be optional and may not ship with your monitor. Some

features or media may not be available in certain countries.

NOTE: To set up with any other stand, please refer to the respective stand setup

guide for setup instructions.

Power Cable (Varies by

Country)

VGA Cable

DP Cable

USB 3.0 Upstream Cable

(Enables the USB Ports on

the Monitor)

•Quick Setup Guide

•Safety, Environmental,

and Regulatory

Information

6| About Your Monitor

About Your Monitor | 7

Product Features

The Dell P2217H/P2317H/P2317HWH/P2417H/P2717H flat panel display has an active

matrix, Thin-Film Transistor (TFT), Liquid Crystal Display (LCD) and LED backlight. The

monitor features include:

• P2217H: 54.6 cm (21.5-inch) viewable area (measured diagonally).

Resolution: Up to 1920 x 1080 through VGA, DisplayPort, and HDMI, with full-

screen support or lower resolutions.

• P2317H/P2317HWH: 58.4 cm (23-inch) viewable area (measured diagonally).

Resolution: Up to 1920 x 1080 through VGA, DisplayPort, and HDMI, with full-

screen support or lower resolutions.

• P2417H: 60.5 cm (23.8-inch) viewable area (measured diagonally).

Resolution: Up to 1920 x 1080 through VGA, DisplayPort, and HDMI, with full-

screen support or lower resolutions.

• P2717H: 68.6 cm (27-inch) viewable area (measured diagonally).

Resolution: Up to 1920 x 1080 through VGA, DisplayPort, and HDMI, with full-

screen support or lower resolutions.

•Color gamut of 72% NTSC.

•Tilt, swivel, height, and rotate adjustment capabilities.

•Removable stand and Video Electronics Standards Association (VESA™) 100 mm

mounting holes for flexible mounting solutions.

•Digital connectivity with DisplayPort and HDMI.

•Equipped with 1 USB upstream port and 4 USB downstream ports.

•Plug and play capability if supported by your system.

•On-Screen Display (OSD) adjustments for ease of set-up and screen optimization.

•Security lock slot.

•Stand lock.

•0.3 W standby power when in sleep mode.

•Energy Gauge shows the energy level being consumed by the monitor in real time.

•Optimize eye comfort with a flicker-free screen and ComfortView feature which

minimizes blue light emission.

8| About Your Monitor

Identifying Parts and Controls

Front View

Front panel controls

Description

1Function buttons (For more information, see

Operating the Monitor

)

2Power On/Off button (with LED indicator)

Label

Back view with monitor stand

Description Use

1VESA mounting holes

(100 mm x 100 mm -

behind attached VESA

Cover)

Wall mount monitor using VESA-compatible wall

mount kit (100 mm x 100 mm).

2Regulatory label Lists the regulatory approvals.

3Stand release button Releases stand from monitor.

4Security lock slot Secures monitor with security lock (security lock

not included).

5Barcode, serial number,

and Service Tag label

Refer to this label if you need to contact Dell for

technical support.

6Dell Soundbar mounting

slots

Attaches the optional Dell Soundbar.

NOTE: Please remove the plastic strip covering the

mounting slots before affixing the Dell Soundbar.

7Cable-management slot Use to organize cables by placing them through

the slot.

About Your Monitor | 9

Back View

Label

Description Use

1USB downstream port Connect your USB device.

NOTE: To use this port, you must connect the USB

cable (shipped with your monitor) to the USB-

upstream port on the monitor and to your computer.

10 | About Your Monitor

Side View

Label
