Dell P55F Manuel utilisateur

Views

Modes

Specifications

intellectual property laws. DellTM and the Dell logo are trademarks of Dell Inc. in the United States and/or other

jurisdictions. All other marks and names mentioned herein may be trademarks of their respective companies.

2015 ‑ 03 Rev. A00

Regulatory model: P55F | Type: P55F001

Computer model: Inspiron 15‑7558

NOTE: The images in this document may differ from your computer

depending on the configuration you ordered.

7000 Series

Inspiron 15

1 Power and battery-status light

Indicates the power and battery status of the computer.

Solid white—Power adapter is connected to the

computer and the battery is being charged.

Solid yellow—Battery charge is low or critical.

Off—Power adapter is connected to the computer

and battery is fully charged or power adapter is not

connected to the computer and the battery has

sufficient charge.

Views

Specifications

Front

Left

Right

Base

Display

Front

5 641 2 3

1 Security-cable slot

Connect a security cable to prevent unauthorized

movement of your computer.

2 Power-adapter port

Connect a power adapter to provide power to your

computer and charge the battery.

3 HDMI port

Connect a TV or another HDMI‑in enabled device.

Provides video and audio output.

4 USB 3.0 port with PowerShare

Connect peripherals such as storage devices, printers,

and so on. Provides data transfer speeds up to 5 Gbps.

PowerShare allows you to charge your USB devices even

when your computer is turned off.

NOTE: If your computer is powered off or in

hibernate state, you must connect the power

adapter to charge your devices using the

PowerShare port. You must enable this feature in

the BIOS setup program.

NOTE: Certain USB devices may not charge when

the computer is powered off or in sleep state. In

such cases, turn on the computer to charge the

device.

5 USB 3.0 port

Connect peripherals such as storage devices, printers,

and so on. Provides data transfer speeds up to 5 Gbps.

6 Headset port

Connect a headphone, a microphone, or a headphone

and microphone combo (headset).

Views

Specifications

Front

Left

Right

Base

Display

Left

1 2 3

1 Power button

Press to turn on the computer if it is turned off or in

sleep state.

Press to put the computer in sleep state if it is turned on.

Press and hold for 4 seconds to force shut‑down the

computer.

NOTE: You can customize the power‑button

behavior in Power Options. For more information,

see Me and My Dell at dell.com/support/manuals.

2 Volume-control buttons (2)

Press to increase or decrease the volume.

3 USB 2.0 port

Connect peripherals such as storage devices, printers,

and so on. Provides data transfer speeds up to

480 Mbps.

4 Media-card reader

Reads from and writes to media cards.

Views

Specifications

Front

Left

Right

Base

Display

Right

321

1 Left-click area

Press to left‑click.

2 Touch pad

Move your finger on the touch pad to move the mouse

pointer. Tap to left‑click and tap with two fingers to

right‑click.

3 Right-click area

Press to right‑click.

Views

Specifications

Front

Left

Right

Base

Display

Base

13 4 5

1 Left microphone

Provides high‑quality digital sound input for audio

recording, voice calls, and so on.

2 Ambient-light sensor

Detects the ambient light and automatically adjusts the

display brightness.

3 Camera

Allows you to video chat, capture photos, and record

videos.

4 Camera-status light

Turns on when the camera is in use.

5 Right microphone

Provides high‑quality digital sound input for audio

recording, voice calls, and so on.

6 Windows button

Press to go to the Start screen.

Views

Specifications

Front

Left

Right

Base

Display

Modes

Notebook

Stand

Tablet

Tent

Specifications

Views

System

information Memory Ports and

connectors

Dimensions and

weight

Computer

environment

Storage

Touch pad Power adapterCamera

Communications

Battery

Video Audio

Display

Media‑card

reader Keyboard

Dimensions and weight

Height 19.90 mm (0.78 in) to 20.30 mm (0.80 in)

Width 381.90 mm (15.04 in)

Depth 252.50 mm (9.94 in)

Weight (maximum) 2.25 kg (4.96 lb)

NOTE: The weight of your laptop varies depending on the configuration ordered

and the manufacturing variability.

Specifications

Views

System

information Memory Ports and

connectors

Dimensions and

weight

Computer

environment

Storage

Touch pad Power adapterCamera

Communications

Battery

Video Audio

Display

Media‑card

reader Keyboard

System information

Computer model Inspiron 15‑7558

Processor • 5th Generation Intel Core i3

• 5th Generation Intel Core i5

• 5th Generation Intel Core i7

Chipset Integrated in the processor

Specifications

Views

System

information Memory Ports and

connectors

Dimensions and

weight

Computer

environment

Storage

Touch pad Power adapterCamera

Communications

Battery

Video Audio

Display

Media‑card

reader Keyboard

Memory

Slot One SODIMM slot

Type DDR3L

Speed 1600 MHz

Configurations supported 4 GB and 8 GB

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Dell Ordinateur portable

Dell

Dell Inspiron 14 5425 Manuel d'exploitation et d'entretien

Dell

Dell Inspiron 1564 Manuel utilisateur

Dell

Dell Latitude 5300 2-in-1 Chrome Manuel d'exploitation et d'entretien

Dell

Dell 5500 Series Guide de l'utilisateur

Dell

Dell XPS 15-9570 Manuel utilisateur

Dell

Dell Latitude 110L Manuel utilisateur

Dell

Dell Latitude L400 Manuel utilisateur

Dell

Dell Inspiron 15 3520 Manuel utilisateur

Dell

Dell G7 7790 Manuel d'exploitation et d'entretien

Dell

Dell Inspiron 17 5000 Series Manuel utilisateur

Dell

Dell Vostro 3525 Manuel d'exploitation et d'entretien

Dell

Dell 9200 Manuel utilisateur

Dell

Dell XPS 15 Manuel utilisateur

Dell

Dell Inspiron 14 5430 Manuel utilisateur

Dell

Dell P28S Manuel utilisateur

Dell

Dell Latitude ATG D630 Manuel utilisateur

Dell

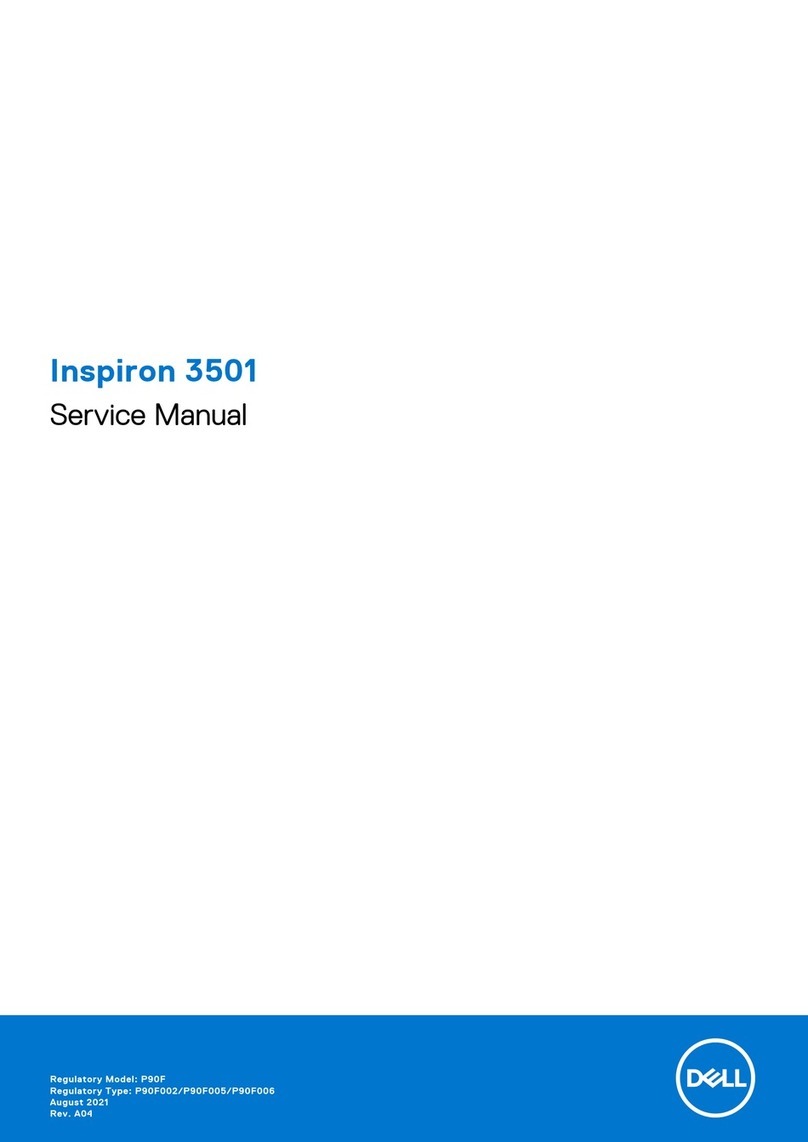

Dell P90F Manuel utilisateur
