Replacing the Bottom Access Panel

About Cautions

CAUTION: A CAUTION indicates a potential for property damage, personal injury,

or death.

CAUTION: Before you begin any of the procedures in this section, read the safety

information that shipped with your computer. For additional safety best practices

information, see the Regulatory Compliance Homepage at

www.dell.com/regulatory_compliance.

NOTICE: If you need to remove the computer cover, first disconnect the computer

power and modem cables from all electrical outlets.

To replace the bottom access panel of your computer, you need the

iAMT configuration-mode number that is located on the original bottom

access-panel of your computer.

Follow the instructions on this tech sheet carefully to ensure that you:

• Remove the original bottom access-panel from your computer (see your

Service Manual

).

• Select the correct label that is provided in the replacement kit.

• Install the label in the correct location on the replacement

bottom

access-panel

.

To replace the bottom access panel:

1

Remove the original bottom access-panel from your computer (see your

Service Manual

).

NOTE: If the original iAMT configuration-mode label is missing, damaged,

or otherwise illegible, contact Dell to obtain your iAMT configuration-mode

number (see your Setup and Quick Reference Guide for contact information).

June 2008

T539H0am0-edited.fm Page 1 Tuesday, November 3, 2009 4:57 PM

2

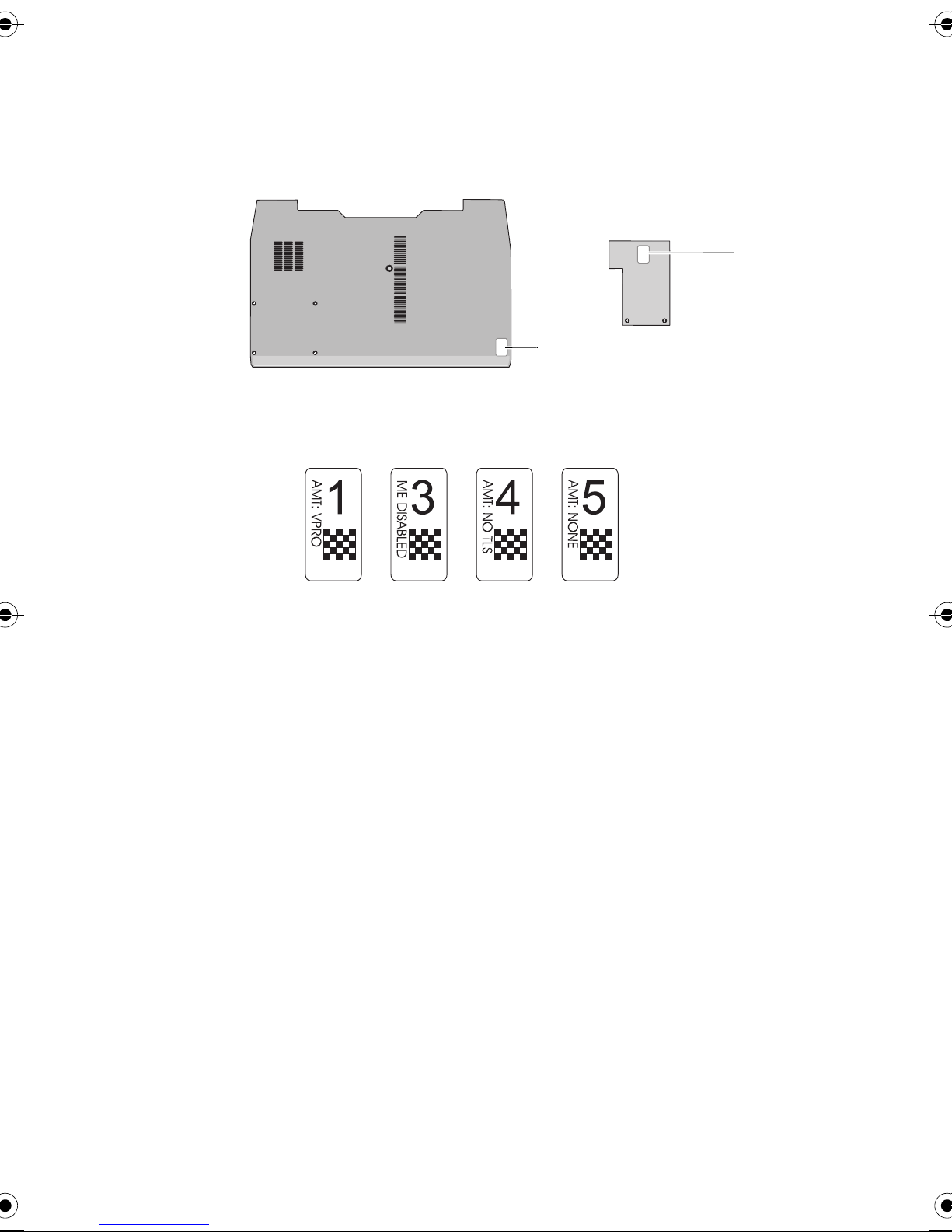

Take note of the label that is attached to the inside of the cover.

You should see one of the following four yellow iAMT configuration-mode

labels on the inside of the bottom access panel:

3

Select the matching label from the set of four iAMT configuration-mode

labels that came with the new bottom access panel.

4

Install the new label in the matching location on the new bottom access

panel.

5

Replace the bottom access panel (see your

Service Manual

).

____________________

Information in this document is subject to change without notice.

© 2008 Dell Inc. All rights reserved.

Reproduction of these materials in any manner whatsoever without the written permission of Dell Inc.

is strictly forbidden.

Trademarks used in this text: Dell and the DELL logo are trademarks of Dell Inc.; iAMT is a registered

trademark of Intel Corporation in the U.S. and other countries.

Other trademarks and trade names may be used in this document to refer to either the entities claiming

the marks and names or their products. Dell Inc. disclaims any proprietary interest in trademarks and

trade names other than its own.

label

label

T539H0am0-edited.fm Page 2 Tuesday, November 3, 2009 4:57 PM
